Automatic Heating/A/C Control (IHKA): AUC

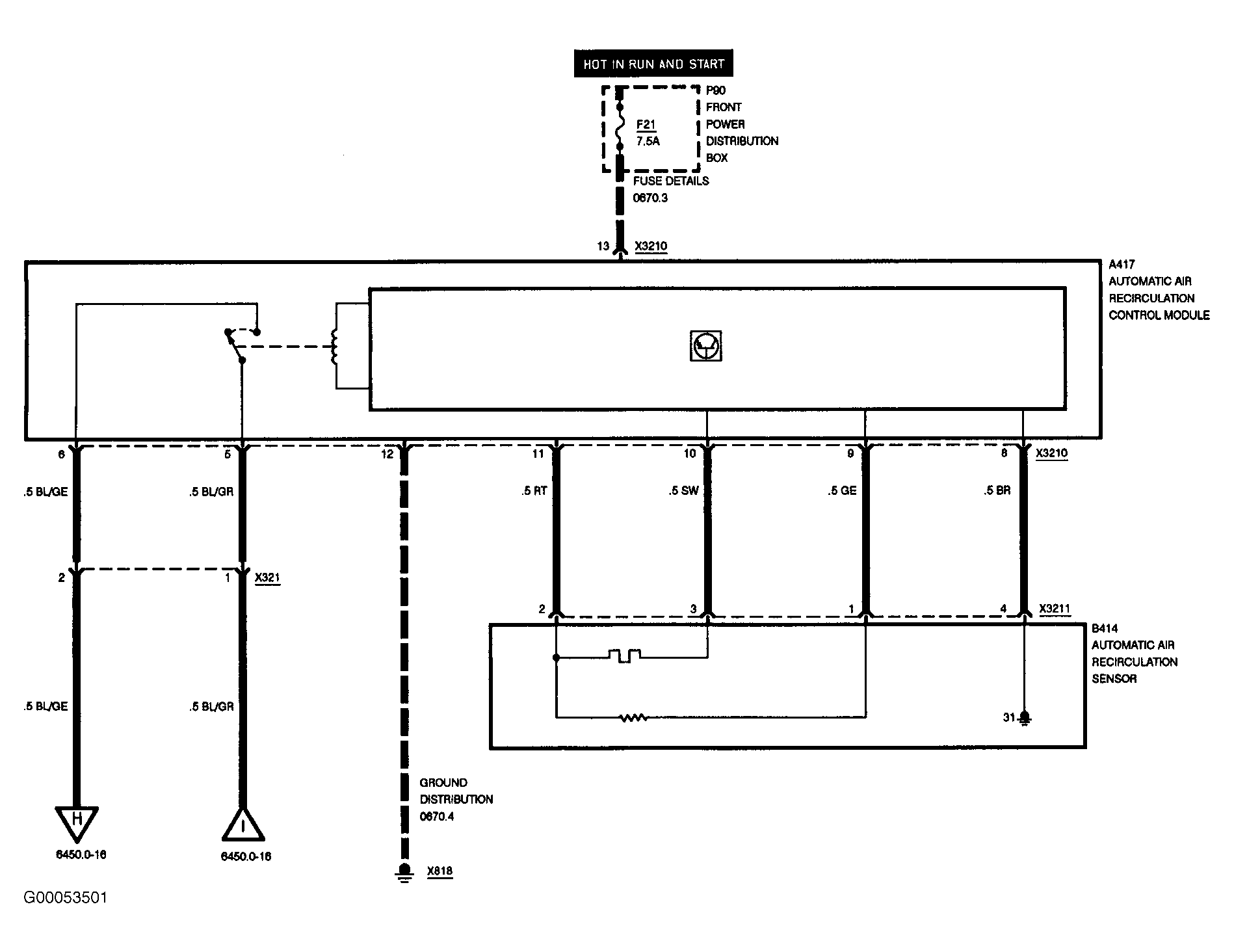

Fig 1: AUC (1 Of 2)

G00053501

Courtesy of BMW OF NORTH AMERICA, INC.

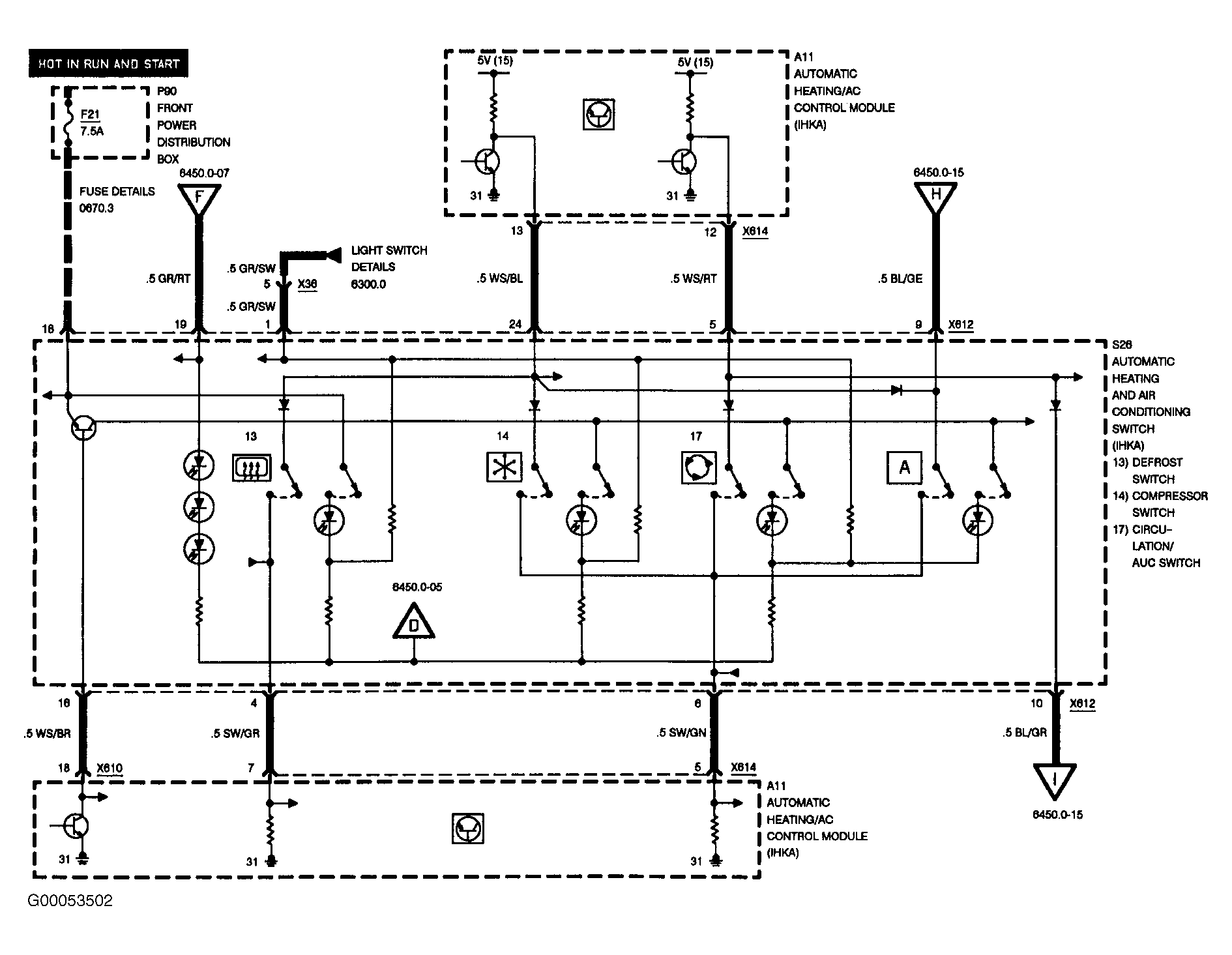

Fig 2: AUC (2 Of 2)

G00053502

Courtesy of BMW OF NORTH AMERICA, INC.
