Power, Engine Running Input, Trunk Input, Anti-Theft Horn (DWA)

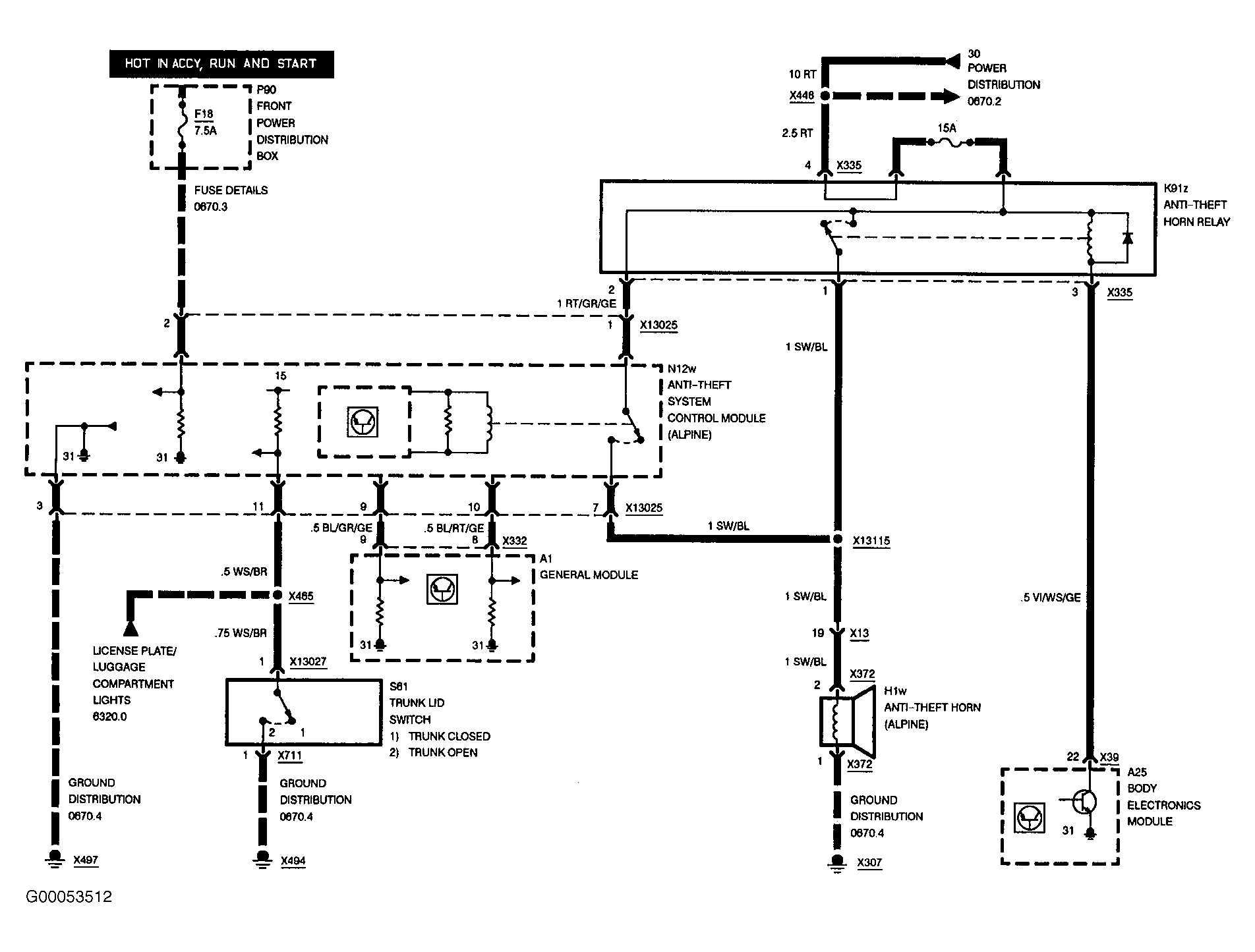

Fig 1: Power, Engine Running Input, Trunk Input, Anti-Theft Horn (DWA)

G00053512

Courtesy of BMW OF NORTH AMERICA, INC.
