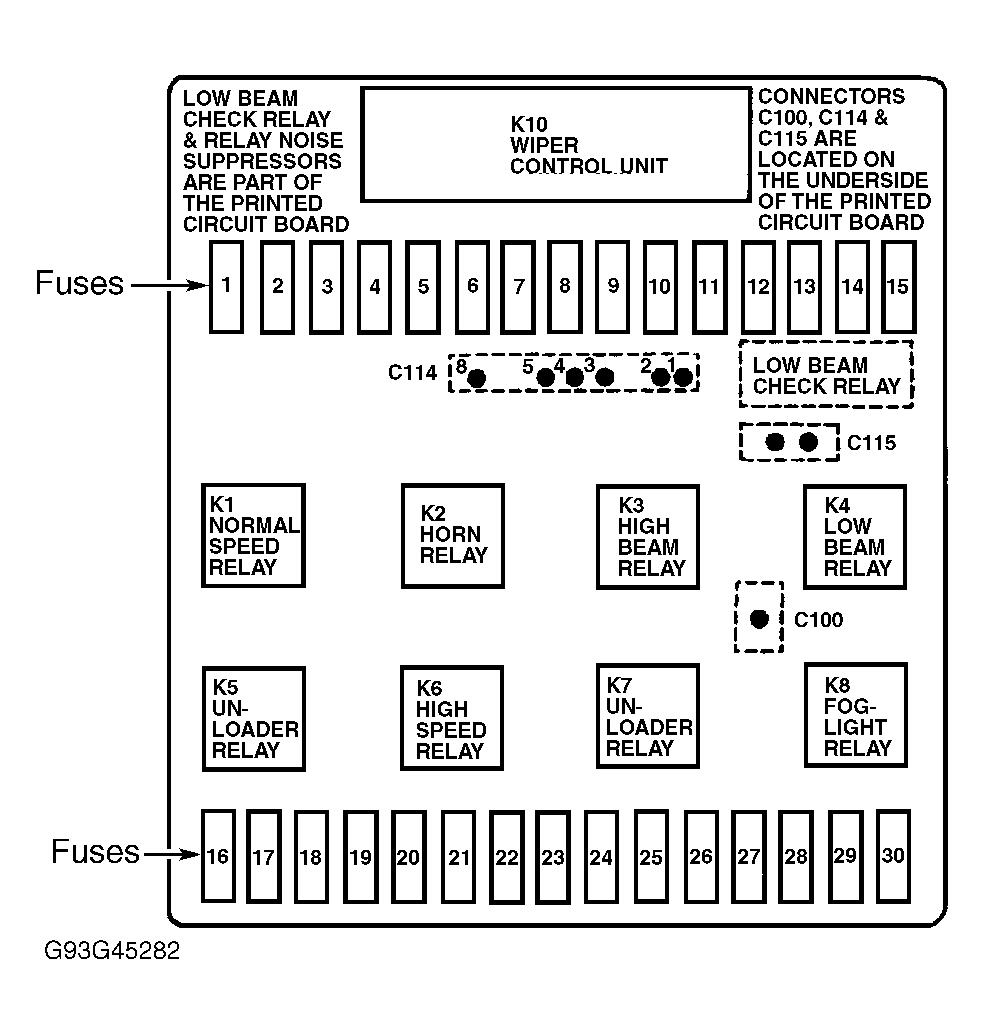

Fuse Panel Identification (1983-86)
Courtesy of BMW OF NORTH AMERICA, INC.
- 1 - 15 Amp
Left High Beam, Right Low Beam
- 2 - 15 Amp
Right High Beam, Left Low Beam
- 3 - 15 Amp
Auxiliary Fan
- 4 - 15 Amp
Turn Signal
- 5 - 25 Amp
Windshield Wiper & Washer
- 6 - 7.5 Amp
Cruise Control, Brakelight
- 7 - 15 Amp
Horn
- 8 - Open
- 9 - 15 Amp
Diagnostic Plug
- 10 - 7.5 Amp
Check Control, Instruments, On-Board Computer
- 11 - 15 Amp
Main & Auxiliary Fuel Pump
- 12 - 7.5 Amp
Radio
- 13 - 7.5 Amp
Left Low Beam
- 14 - 7.5 Amp
Right Low Beam
- 15 - Open
- 16 - 30 Amp
Blower, Air Conditioner
- 17 - 7.5 Amp
Back-Up Light, Power Outside Mirrors, Mirror Heating, Fasten Seat Belt Light, Washer Jets Heating
- 18 - 30 Amp
Auxiliary Fan
- 19 - 25 Amp
Power Sliding Roof, Heated Seat
- 20 - 25 Amp
Rear Window Defogger
- 21 - 7.5 Amp
Interior Lights, Radio, Glove Box, Luggage Compartment Light, Rechargeable, Flashlight, Seat Belt Buzzer, On-Board Computer, Radio Memory, Clock
- 22 - 7.5 Amp
Left Side Lights
- 23 - 7.5 Amp
Right Side Lights, Engine Compartment Light, License Plate Light, Instrument Panel Lights, Make-Up Mirror Light
- 24 - 15 Amp
Hazard Warning Flashers, Open Door Gong
- 25 - Open
- 26 - 30 Amp
Seat Adjustment, Power Windows
- 27 - 25 Amp
Central Locking System, Door Lock, Heating, Anti-Theft Protection, On-Board Computer
- 28 - 25 Amp
Cigarette Lighters, Power Antenna
- 29 - 7.5 Amp
Left Foglight
- 30 - 7.5 Amp
Right Foglight
