Front Fuse Panel Identification (1989-91)

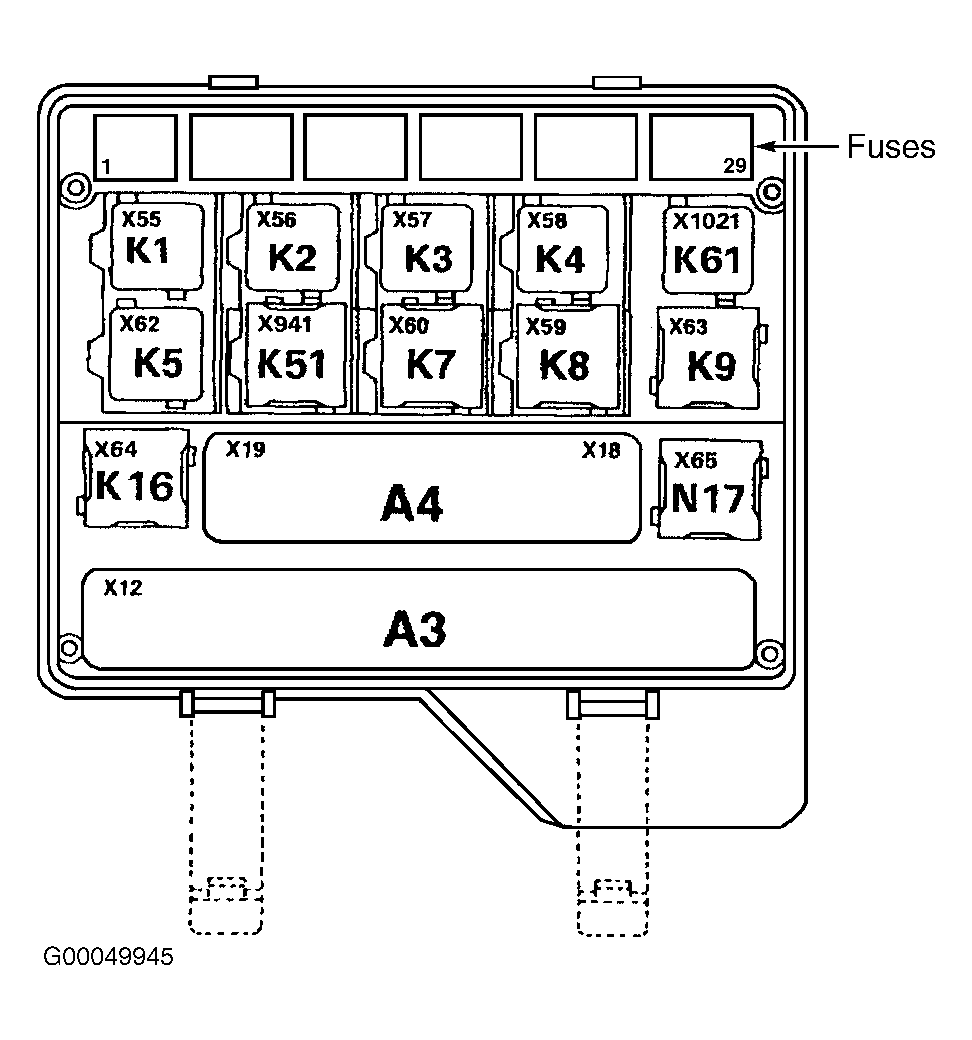

Fig 1: Front Fuse Panel & Relay Identification (1989-91)

Courtesy of BMW OF NORTH AMERICA, INC.

1 - 15 Amp ABS, Brake Lights, Brake Lining Warning, Cruise Control, Electric Throttle Control, Instrument Cluster Check Control, Lamp Monitor, Parking, Taillight, Underhood Lights
2 - 7.5 Amp Headlights, Foglights, Lamp Monitor, Turn Signal Lights, Hazard Lights
3 - 7.5 Amp Headlights, Foglights, Lamp Monitor, Turn Signal Lights, Hazard Lights
4 - 7.5 Amp Lamp Monitor, Parking Lights, Taillights, Marker Lights, Underhood Lights
5 - 10 Amp Glove Box Light, Cigarette Lighter, Ashtray Light, Charging Plug, Headlights, Fog Lights, Headlight And Foglight Washer, Heated Seats, Lamp Monitor, License/Trunk Lights, Lumbar Support, Parking Lights, Taillights, Underhood Lights
6 - 7.5 Amp Turn Signal Lights, Hazard Lights
7 - 15 Amp Headlights, Fog Lights, Lamp Monitor
9 - 15 Amp Automatic Climate Control, Auxiliary Fan, Cellular Telephone, Horn
10 - 7.5 Amp Headlights, Fog Lights, Lamp Monitor
11 - 7.5 Amp Headlights, Fog Lights, Lamp Monitor
12 - 15 Amp Back Up Lights, Instrument Cluster, Check Control, Memory Mirrors
13 - 7.5 Amp Headlights, Fog Lights, Lamp Monitor, Turn Signal Lights, Hazard Lights
14 - 7.5 Amp Headlights, Fog Lights, Lamp Monitor, Turn Signal Lights, Hazard Lights
15 - 7.5Amp Instrument Cluster, Check Control, On-Board Computer, Windshield Washer, Windshield Wipers
16 - 30 Amp Heated Seats, Lumbar Support, Memory Mirrors, Memory Seat
17 - 7.5 Amp ABS, Anti Theft, Brake Lining Warning, Central Body Electronics, Charging System, Cruise Control, Door Lock Heating, E-Box Fan, Electric Throttle Control, Electronic Transmission Control, Headlight And Foglight Washer, Infrared Locking System, Injection Electronics, Instrument Cluster, Check Control, Interior Lights, Memory Mirrors, Memory Seat, On-Board Computer, Power Windows, Sunroof
18 - 15 Amp Anti Theft, Cellular Telephone, Infrared Locking, Interior Lights, Memory Mirrors, Memory Seat, Radio/CD Player
19 - 30 Amp Automatic Climate Control, Park Ventilation
20 - 7.5 Amp Anti Theft, Automatic Climate Control, Brake Lining Warning, Central Locking System, Electronic Throttle Control, Instrument Cluster/Check Control, On-Board Computer, Park Ventilation, Parking Lights, Taillights, Underhood Lights, Power Windows, Sunroof
21 - 7.5 Amp Automatic Climate Control, Park Ventilation, Rear Window Defogger
22 - 30 Amp Headlight And Fog Light Washer, Windshield Wiper Pressure Control
23 - 7.5 Amp Injection Electronics
24 - 7.5 Amp Injection Electronics
25 - 30 Amp Auxiliary Fan
26 - 30 Amp Glove Box Light, Cigarette Lighter, Ashtray Light, Charging Plug
27 - 30 Amp Automatic Rear Headset, Power Seats
28 - 15 Amp Charging System, E-Box Fan, Injection Electronics, Power Assist Steering, Rear Window Defogger, Windshield Washer Jet Heaters
29 - 7.5 Amp Automatic Climate Control, Automatic Rear Headrest, Auxiliary Fan, Instrument Cluster/Check Control, Power Seats, Rear Window Defogger
30 - 7.5 Amp Central Body Electronics, Central Locking System, Door Lock Heating, Interior Lights, Memory Mirrors, Memory Seat, Power Windows, Sunroof
31 - 7.5 Amp Anti Theft, Cellular Telephone, Central Locking System, Infrared Locking system, Power Windows, Sunroof
33 - 15 Amp Glove Box Light, Cigarette Lighter, Ashtray Light, Flashlight Charging Plug, Instrument Cluster/Check Control, Interior Lights, License/Trunk Lights
34 - 15 Amp Not Used
40 - 30 Amp Automatic Rear Headrest, Power Seats
41 - 30 Amp Radio/CD Player
42 - 30 Amp Memory Mirrors, Memory Seats
43 - 30 Amp Power Seats
44 - 30 Amp Central Body Electronics, Headlight And Fog Light Washers, Interior Lights, Memory Mirrors, Memory Seat, Power Windows, Sunroof, Windshield Washer, Windshield Wipers, Windshield Wiper Pressure Control
45 - 30 Amp Accessory Connector (Not Used)
46 - 30 Amp Rear Window Defogger
47 - 30 Amp Central Body Electronics
50 - 30 Amp Accessory Connector (Not Used)
