Wiring Diagrams

NOTE: For wiring diagrams for 1992 models, see WIRING DIAGRAMS section.

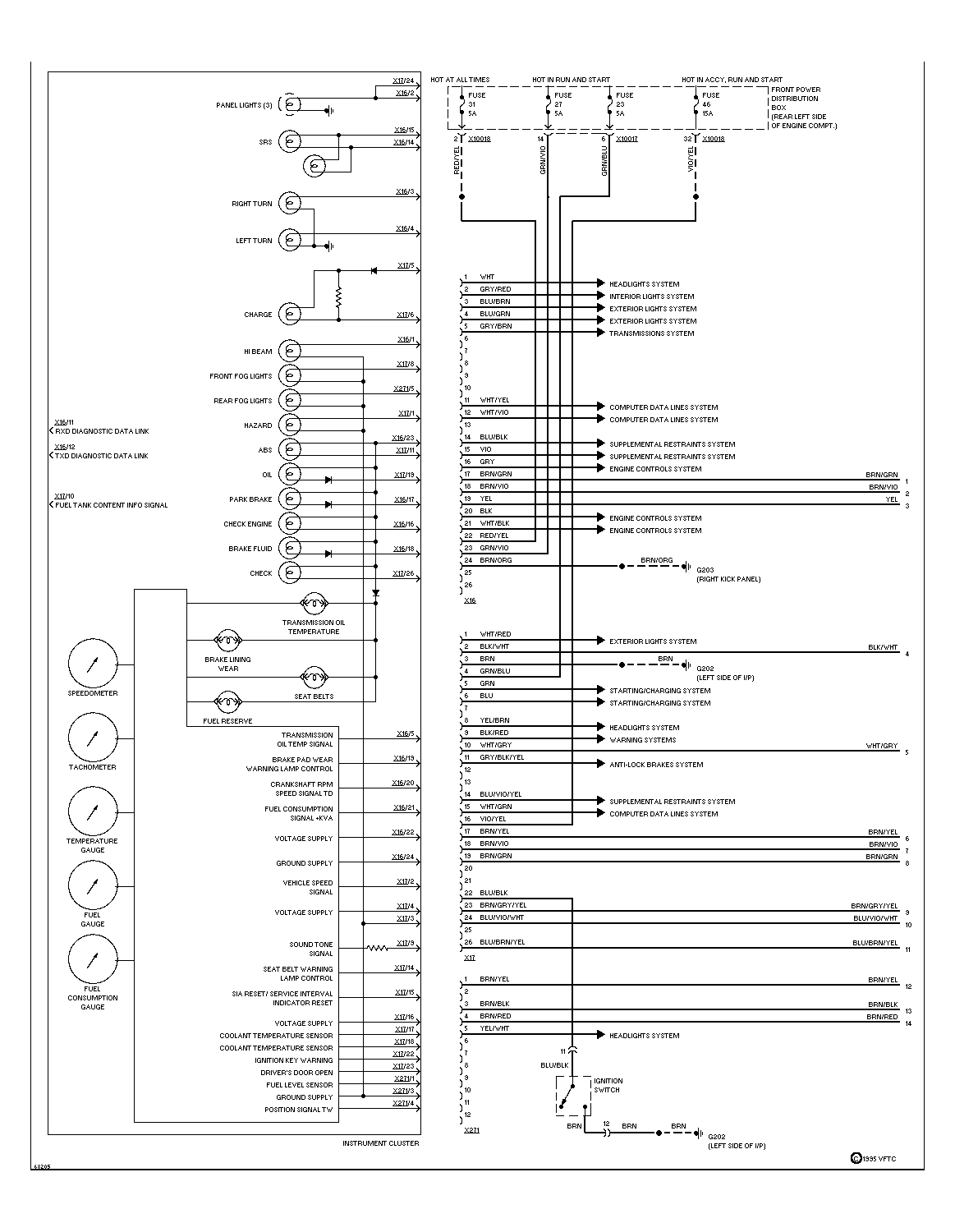

Fig 1: Instrument Panel Schematic (318i, 318is, 325i, 325iC & 325is - 1 Of 2)

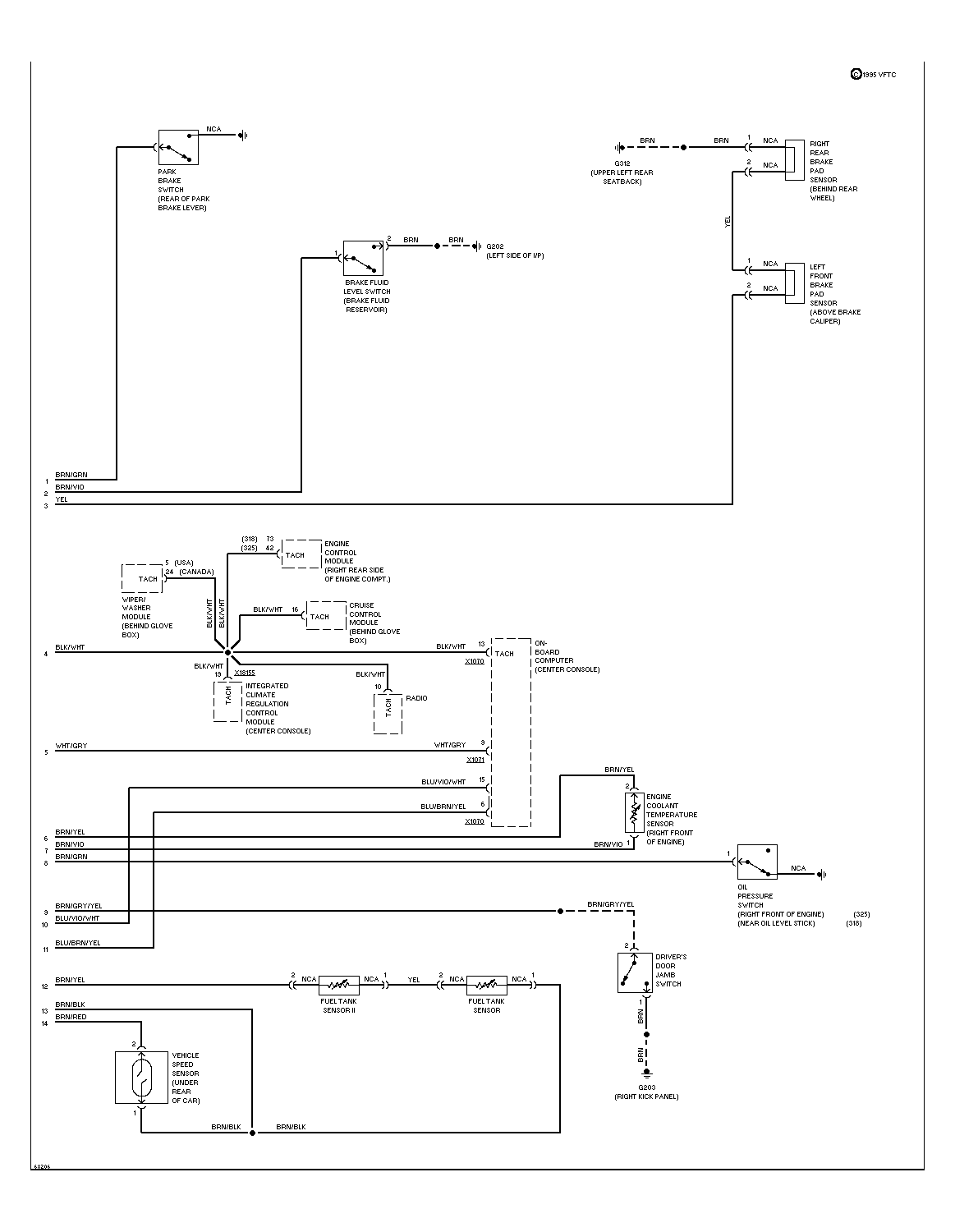

Fig 2: Instrument Panel Schematic (318i, 318is, 325i & 325is - 2 Of 2)

Fig 3: Instrument Panel Schematic (325iC - 1 Of 2)

Fig 4: Instrument Panel Schematic (325iC - 2 Of 2)
