Special Tools

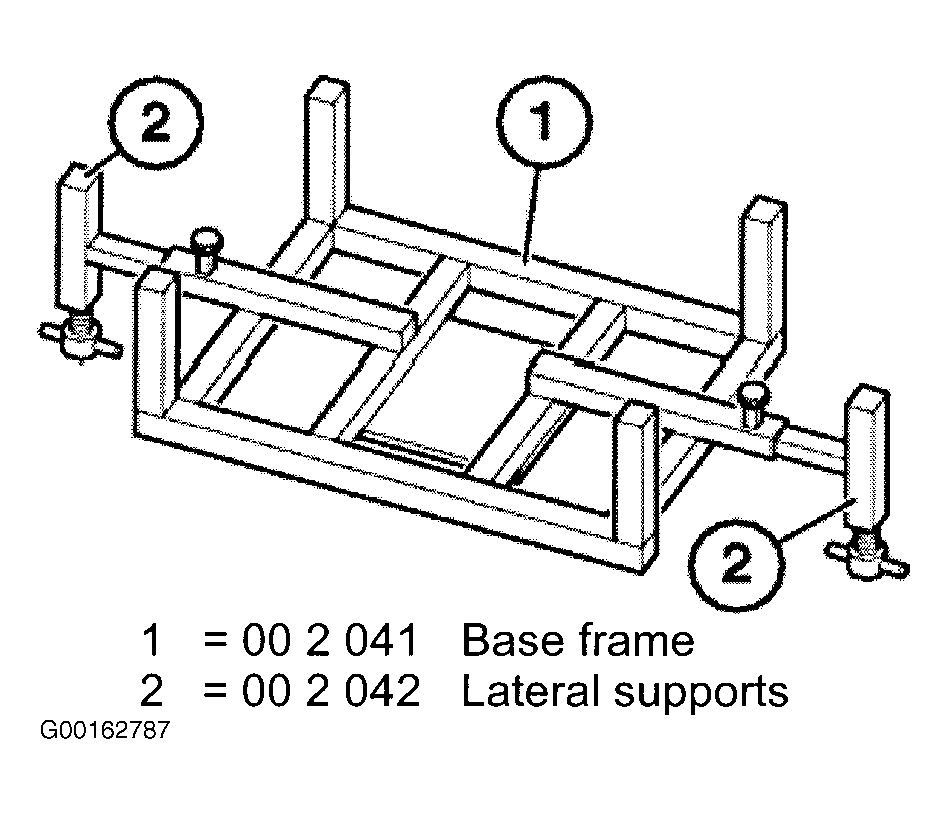

Fig 1: Identifying Basic Take-Up Fixture (00 2 040)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Formed Disc (33 3 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Hydro-Lifter Basic Unit (00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.

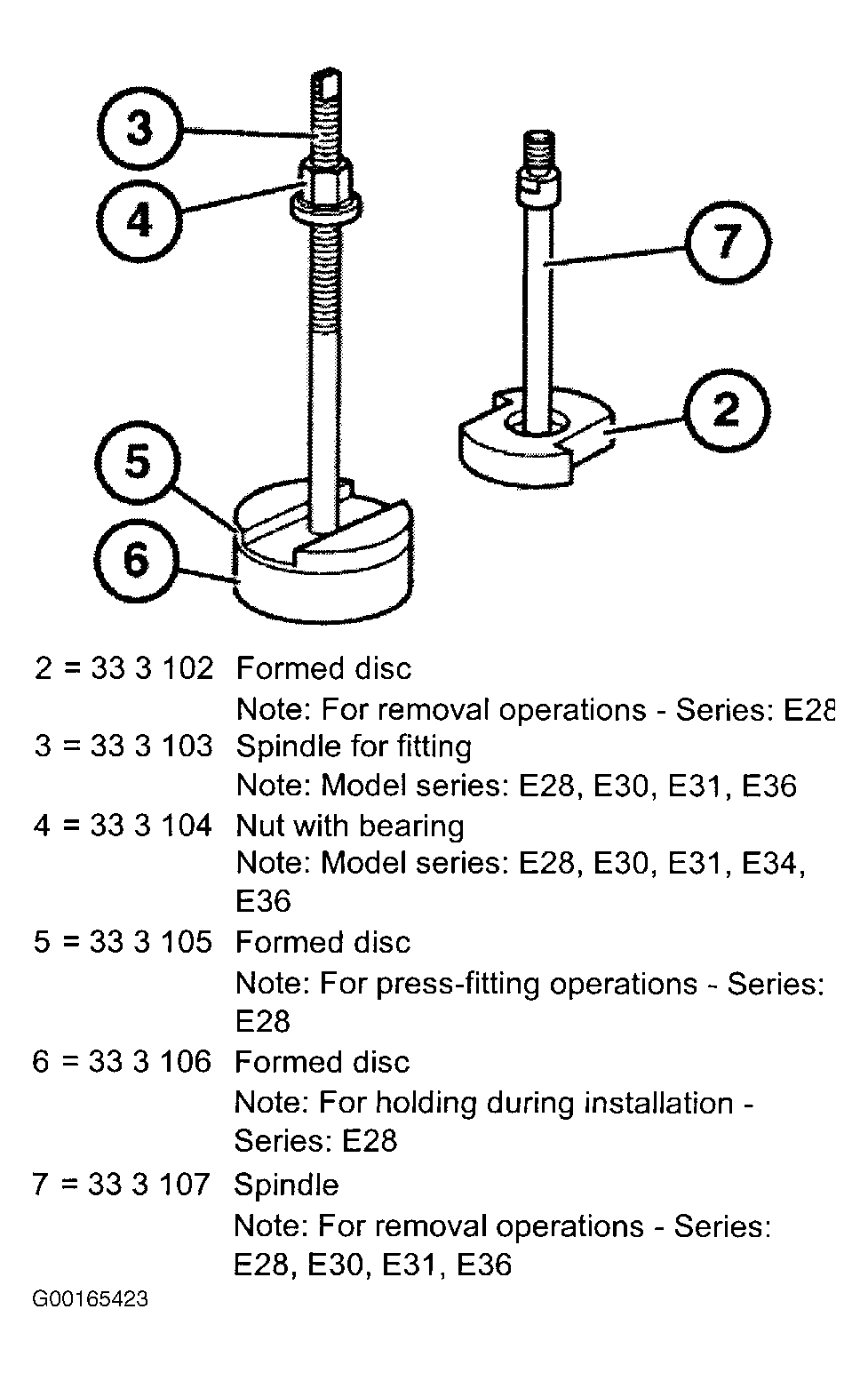

Fig 4: Identifying Set Of Tools (33 3 100)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Set Of Tools (33 3 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Identifying Set Of Tools (33 3 310)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Identifying Set Of Tools (33 3 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Identifying Set Of Tools (33 3 330)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Identifying Set Of Tools (33 3 350)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Identifying Setting Gauge (33 3 280)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Identifying Universal Puller Kukko 21/5, 22-2 (00 8 550)

Courtesy of BMW OF NORTH AMERICA, INC.
