Removal & Installation

Remove lower control arm. See LOWER CONTROL ARM .
Press out rubber mount (1) with special tool (33 3 351/352/354). See Fig 1 .
Press in new rubber mount (1) with special tool (33 3 351/353/354). See Fig 2 .
Install lower control arm. See LOWER CONTROL ARM .

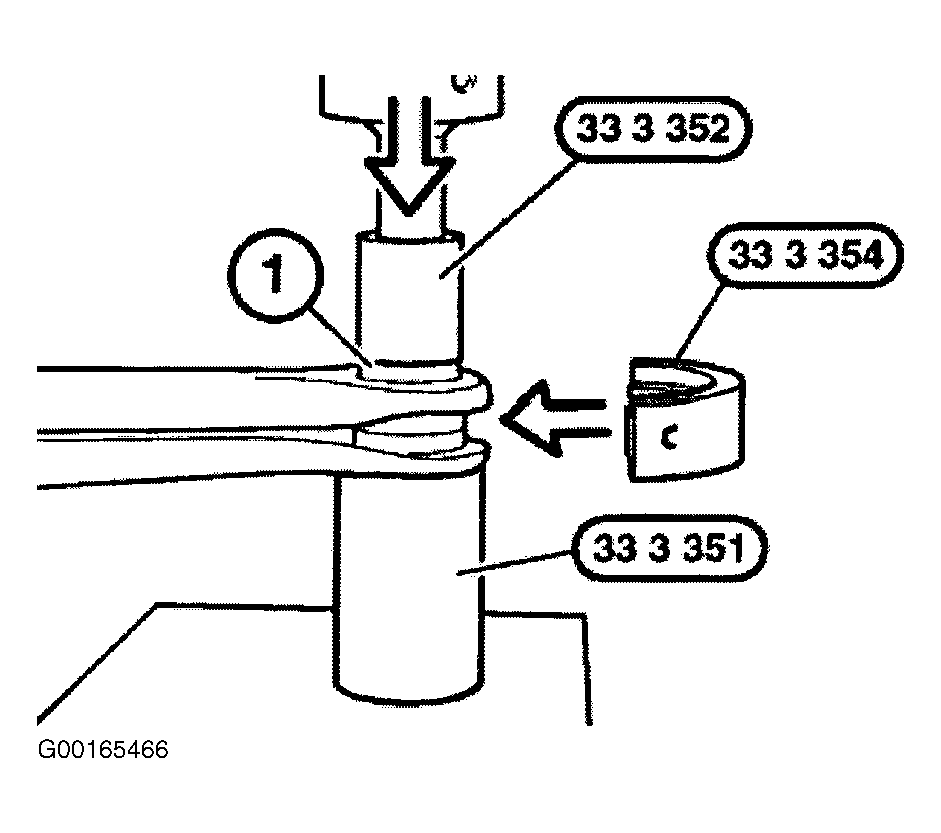

Fig 1: Pressing Out Lower Control Arm Rubber Mount

G00165466

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Pressing In Rubber Mount On Lower Control Arm

G00165467

Courtesy of BMW OF NORTH AMERICA, INC.
