Axle Carrier Assembly: Removal
- Raise and support vehicle. Remove rear wheels.
- Disconnect handbrake cables from handbrake lever. See appropriate article in BRAKES.
- Remove exhaust system.
- Disconnect drive shaft. See appropriate DRIVE SHAFTS & UNIVERSAL JOINTS article in DRIVE AXLES.

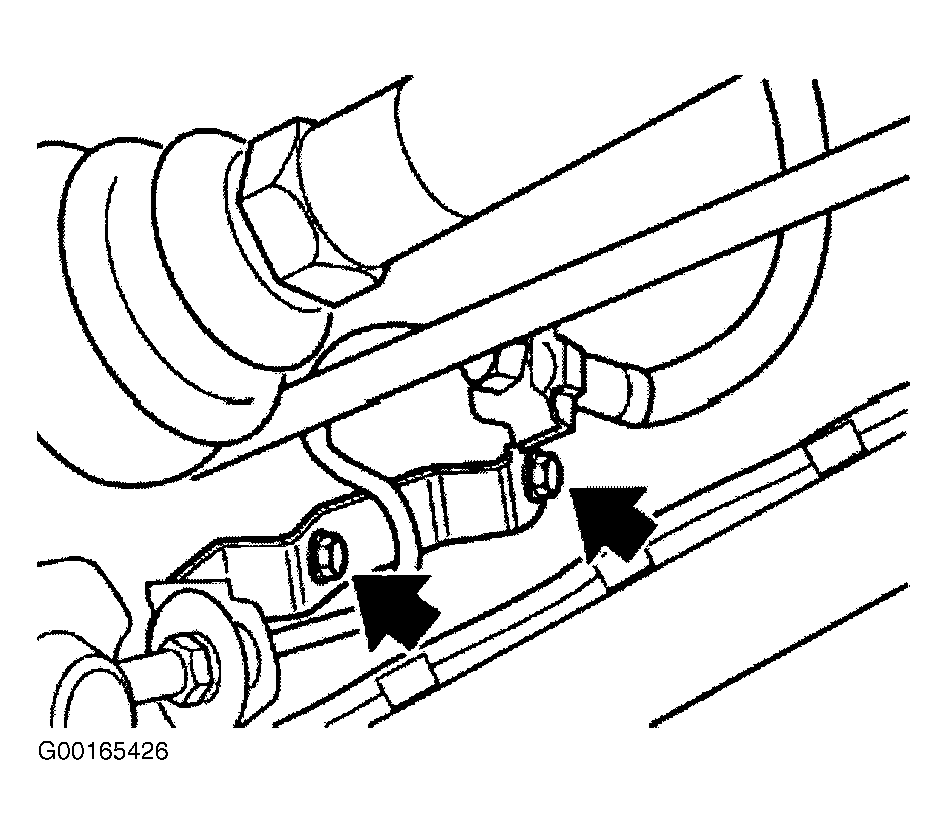

- Unscrew bolts of left and right brake line holders. See Fig 1
. Unscrew brake calipers, push them in between axle shaft and control arm and suspend from car with a piece of wire. Disconnect ABS plug. Disconnect brake pad wear sensor.

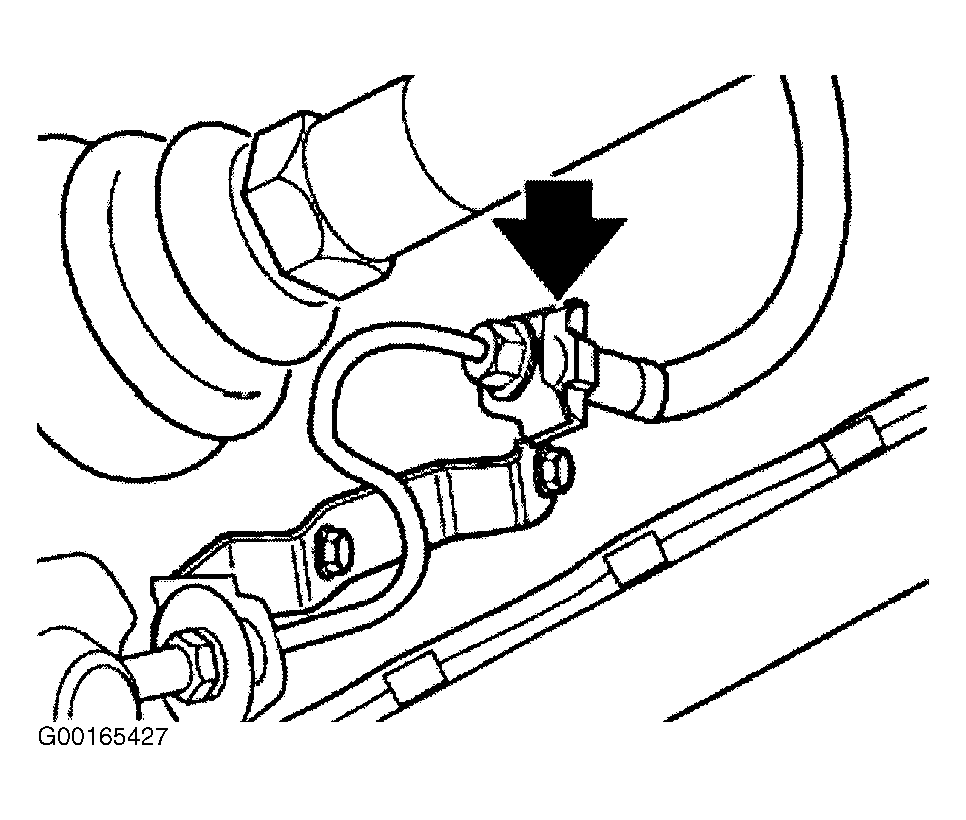

- On vehicles with drum brakes, Disconnect left and right brake lines. See Fig 2
.

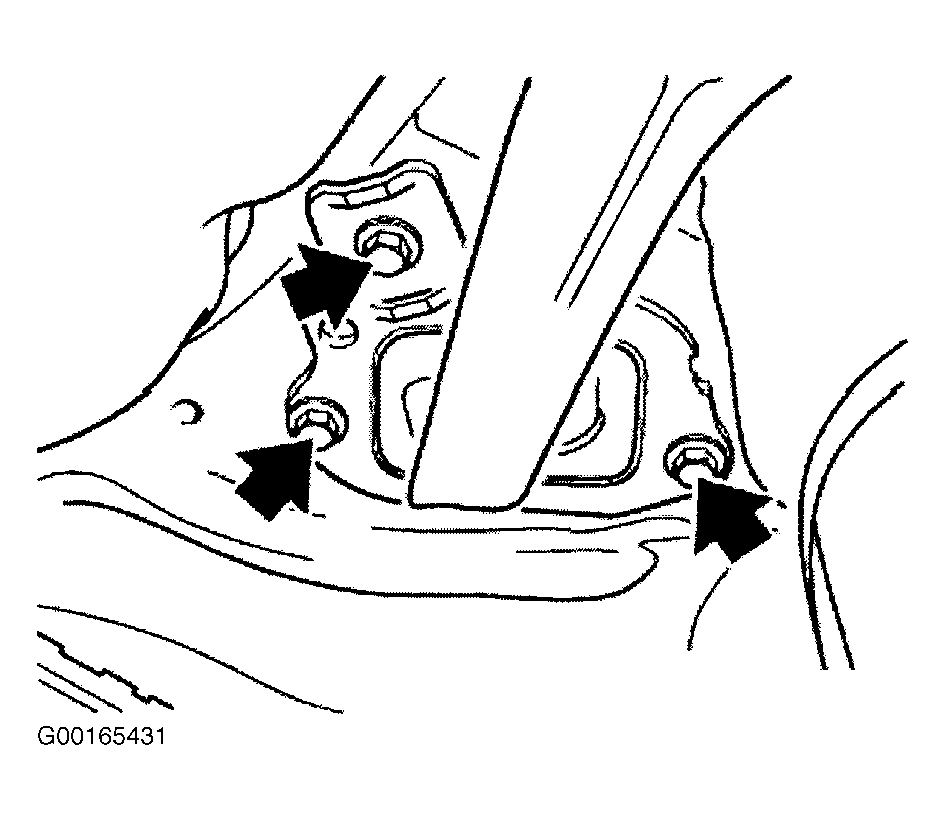

- Support trailing arm from underneath with a lifter. Unscrew bolt (1) and lower lifter. See Fig 3
.

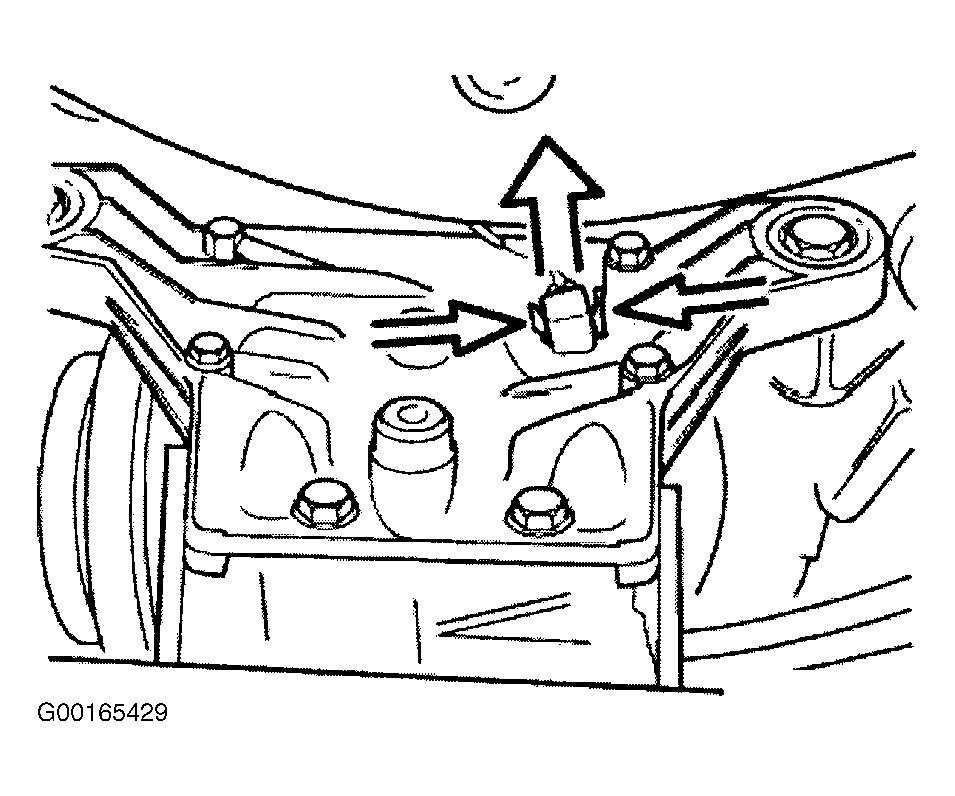

- Pull off speedometer signal plug. See Fig 4
.
- Unscrew heat shield.
- Unscrew bracket. See Fig 5
.
- Pull parking brake cables out of guides.

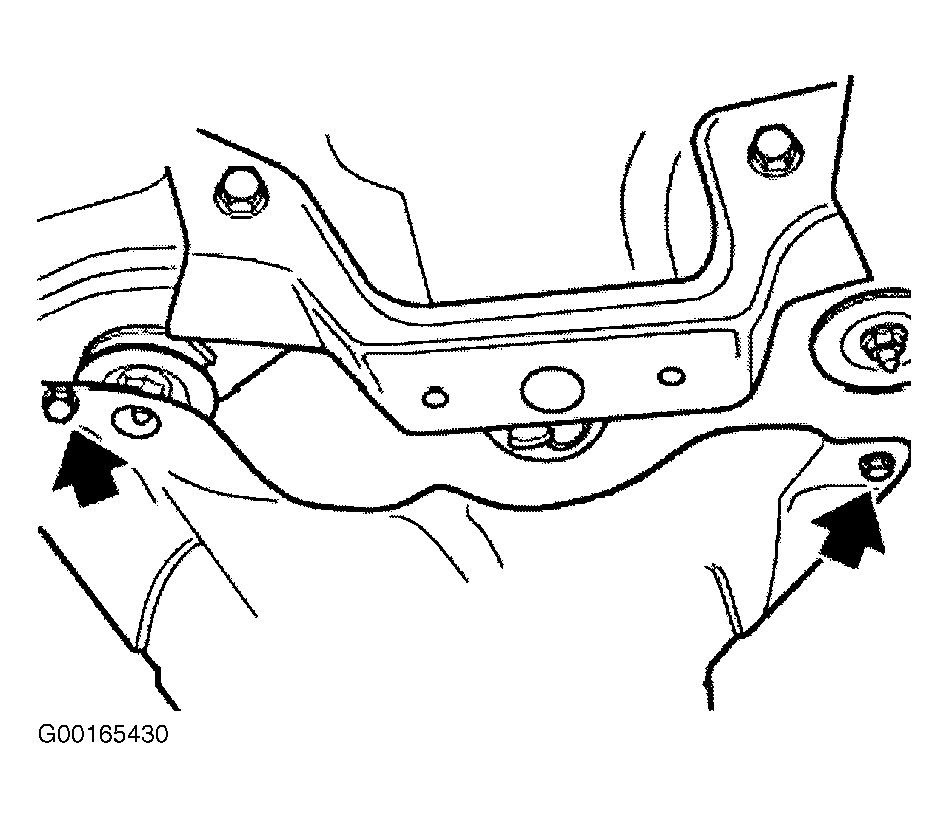

- Unscrew bolts on trailing arm console. See Fig 6
.

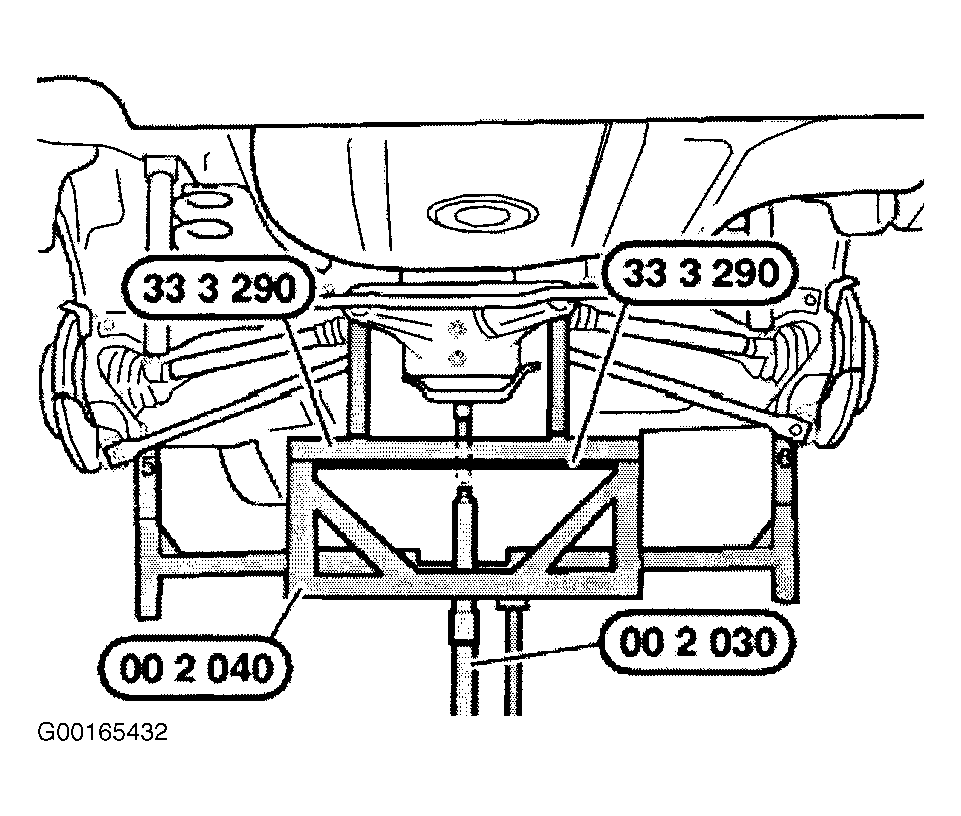

- Position rear axle special tool (00 2 030, 00 2 040 and 33 3 290). See Fig 7
.

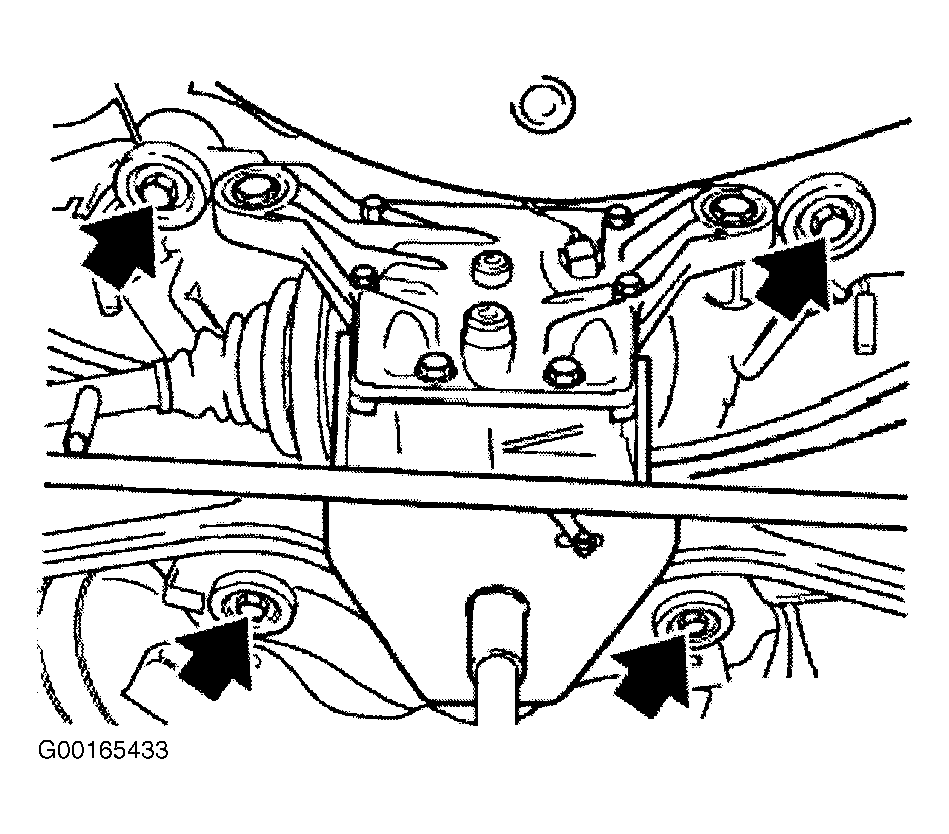

- Unscrew rear axle carrier mounting bolts and nuts. See Fig 8
.

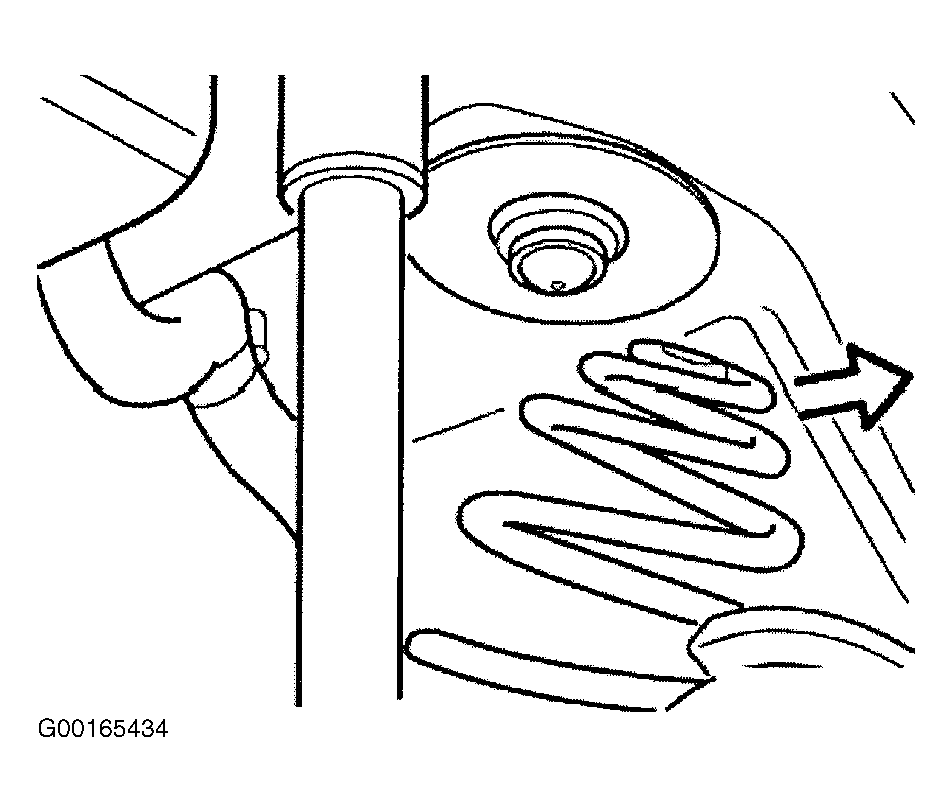

- Lower rear axle slowly. Remove coil springs. See Fig 9
.
