Disassembly & Inspection Of Divider Plate

1. Remove divider plate and ensure restrictors and plastic balls stay in position in divider plate. Remove and discard divider plate gasket, note positions and diameters of plastic balls and remove.
2. Note position and hole size for restrictors and remove. Clean divider plate, bolts and restrictors and inspect all components for signs of wear or damage.

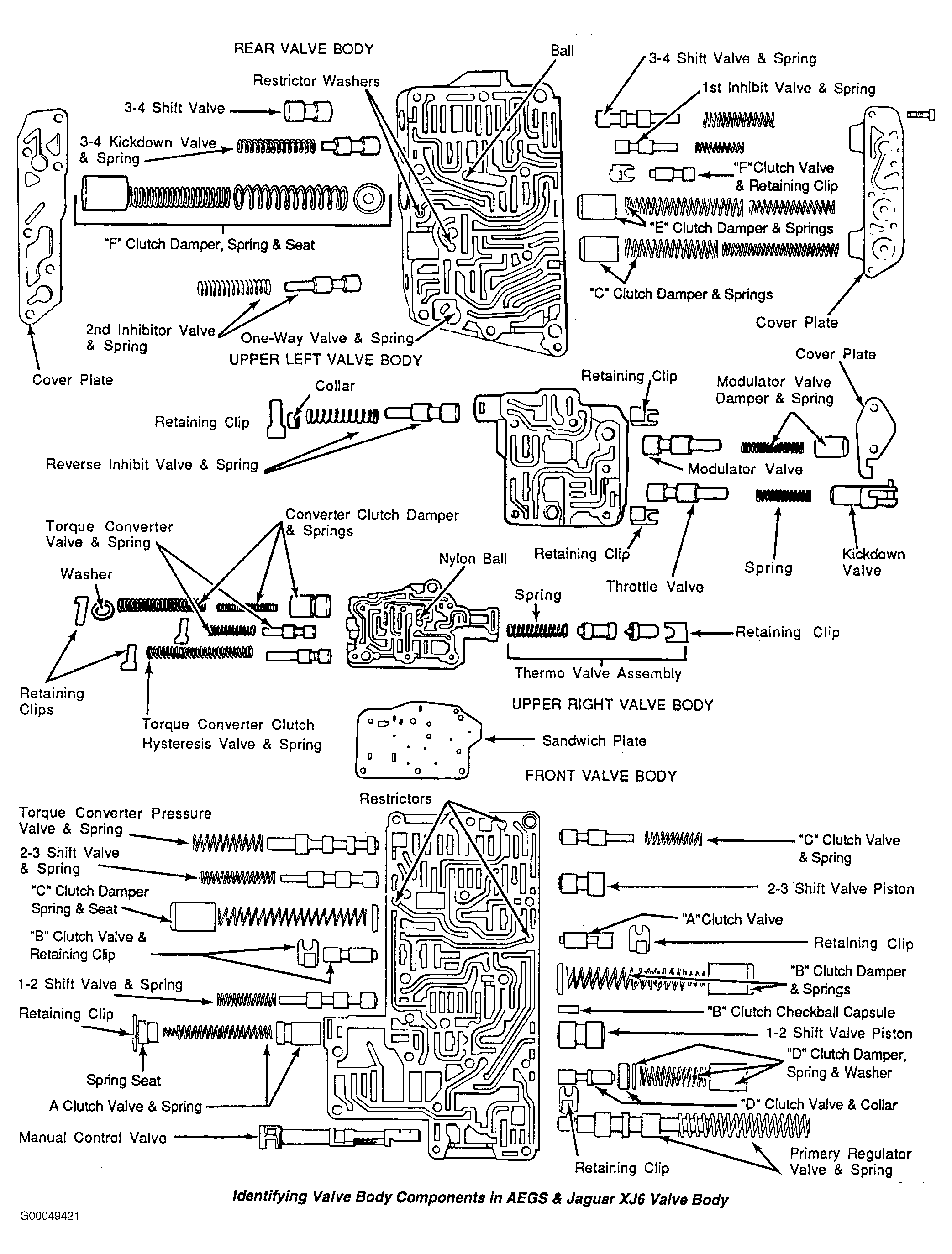

Fig 1: Identifying Valve Body Components In AEGS & Jaguar XJ6 Valve Body

Courtesy of BMW OF NORTH AMERICA, INC.

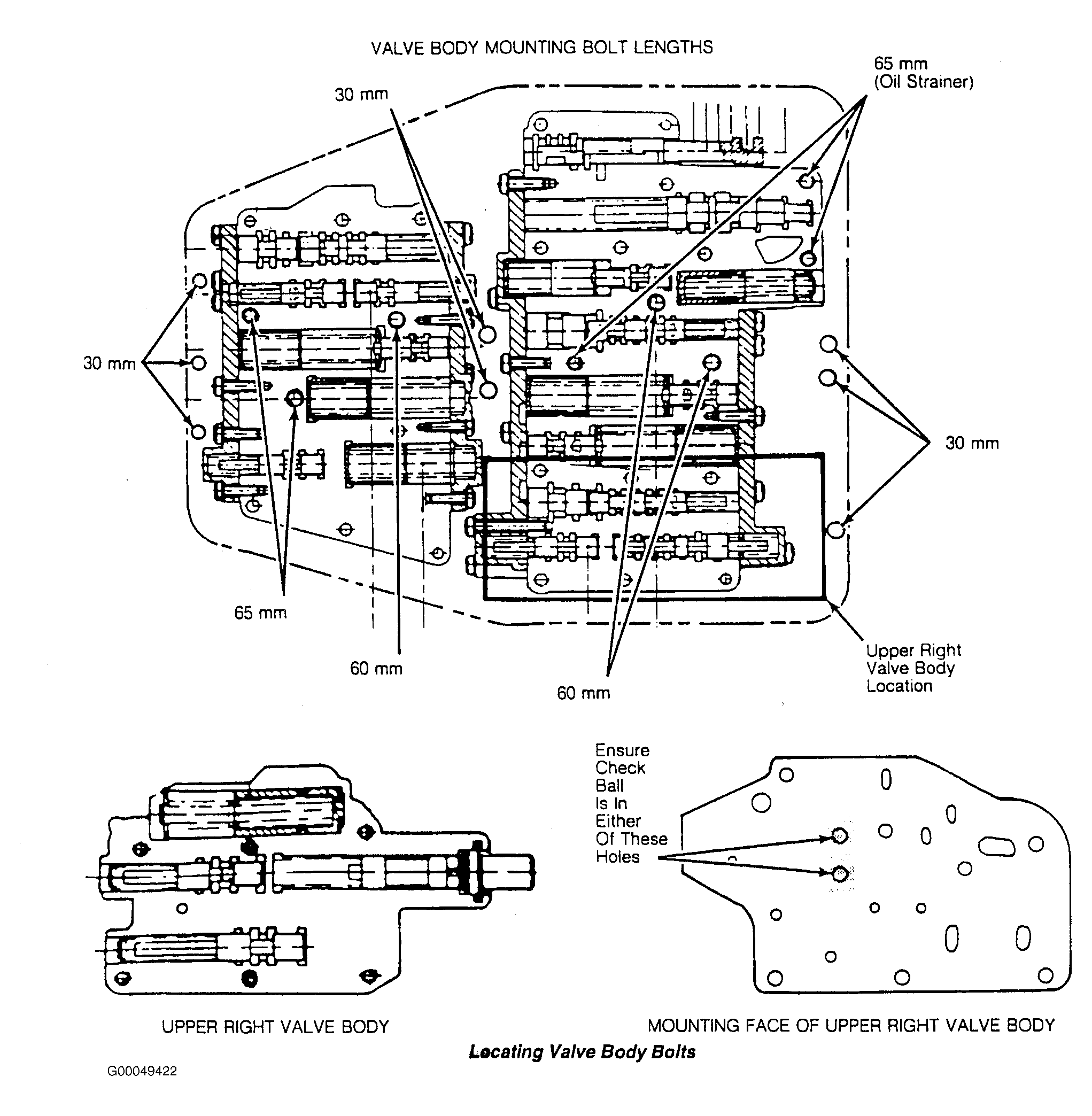

Fig 2: Locating Valve Body Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
