Rear Planetary Gear: Reassembly

Ensure large snap rings are on both sides of input ring gear when assembled to intermediate shaft. When installing mainshaft to output shaft, place washer onto output shaft and install roller bearing. Ensure all snap rings are properly installed and fully seated.

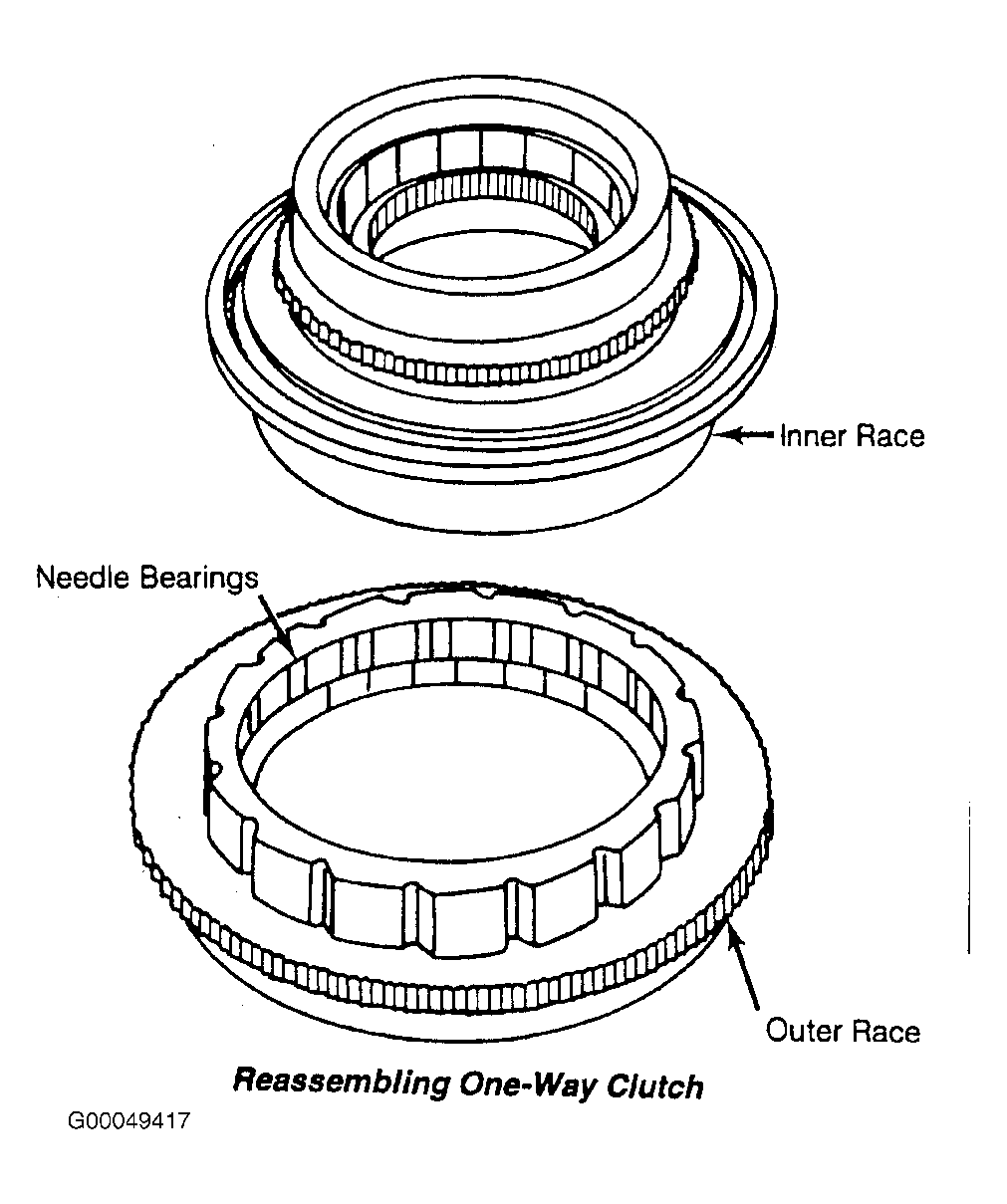

Fig 1: Reassembling One-Way Clutch

Courtesy of BMW OF NORTH AMERICA, INC.

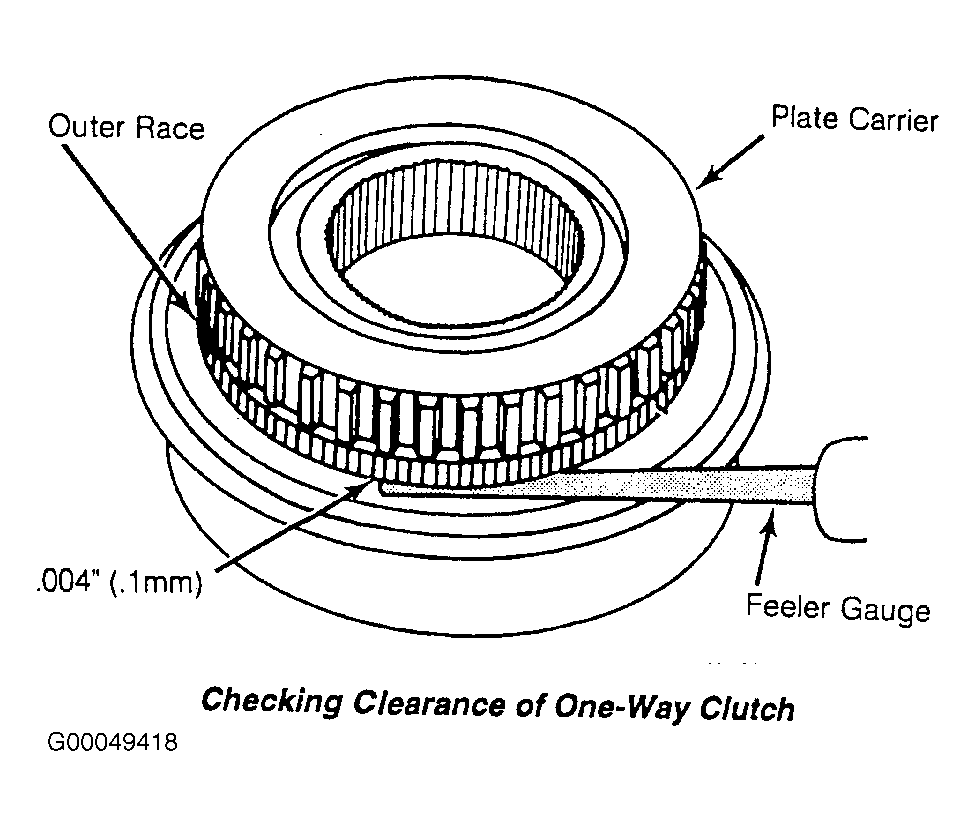

Fig 2: Checking Clearance Of One-Way Clutch

Courtesy of BMW OF NORTH AMERICA, INC.

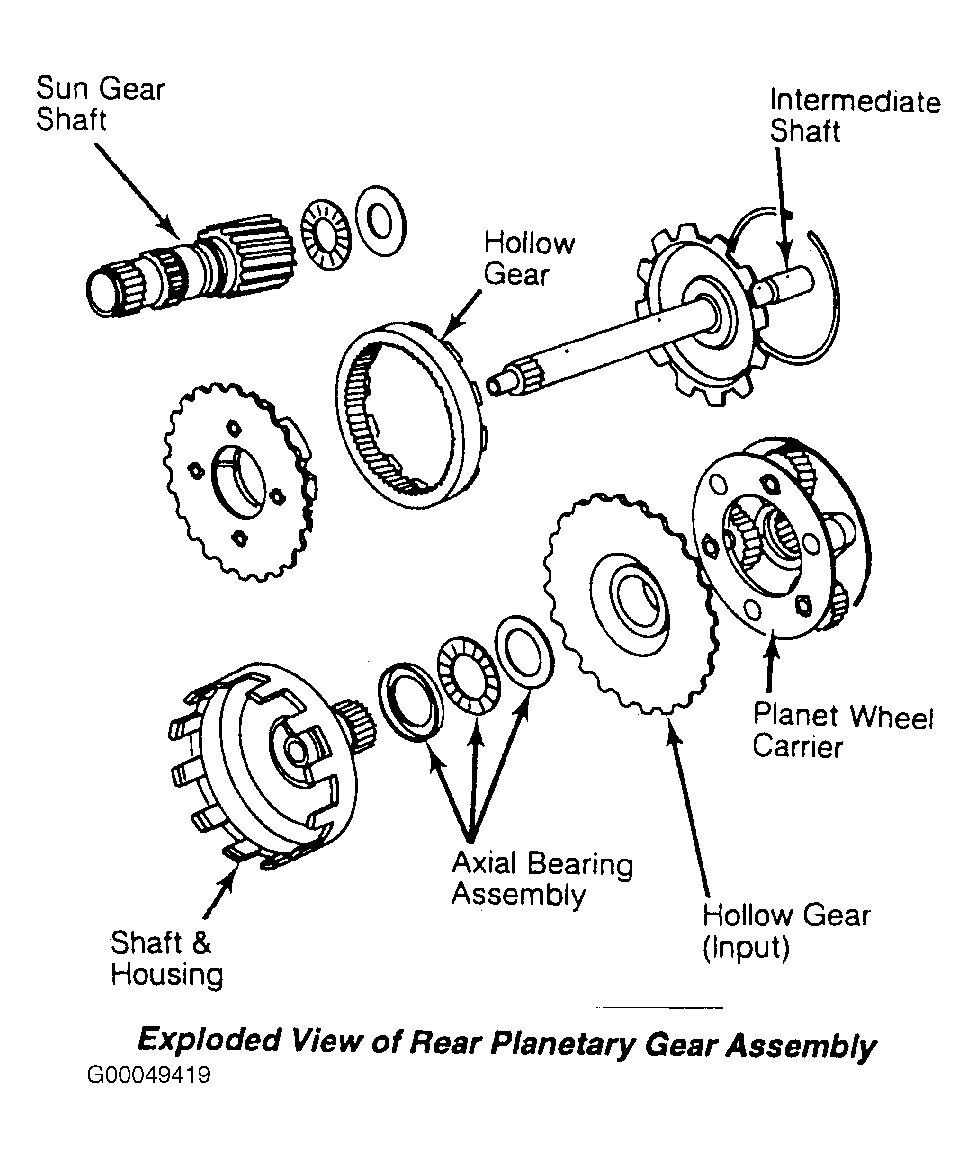

Fig 3: Exploded View Rear Planetary Gear Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

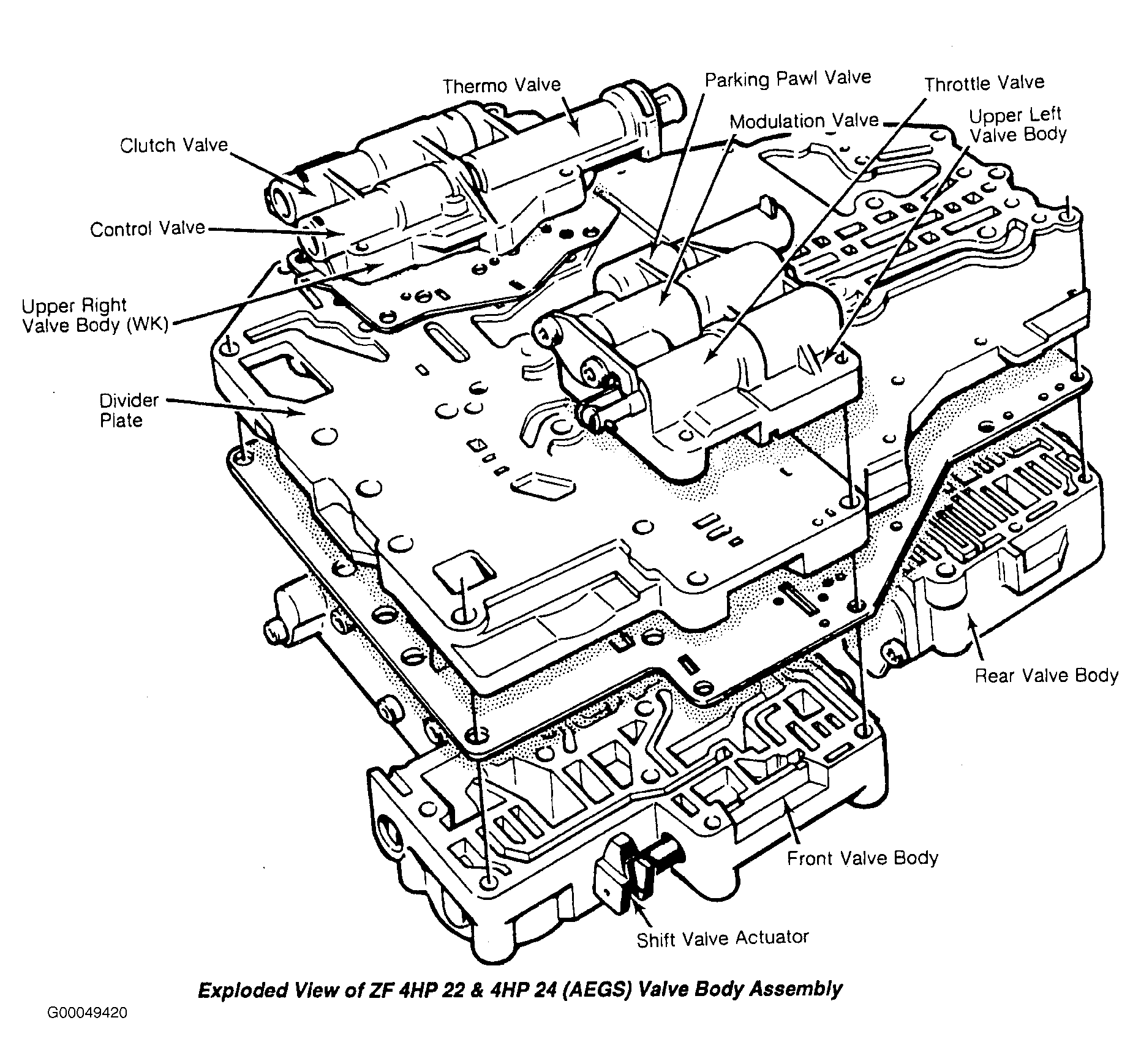

Fig 4: Exploded View ZF 4HP 22 & 4HP 24 (AEGS) Valve Body Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
