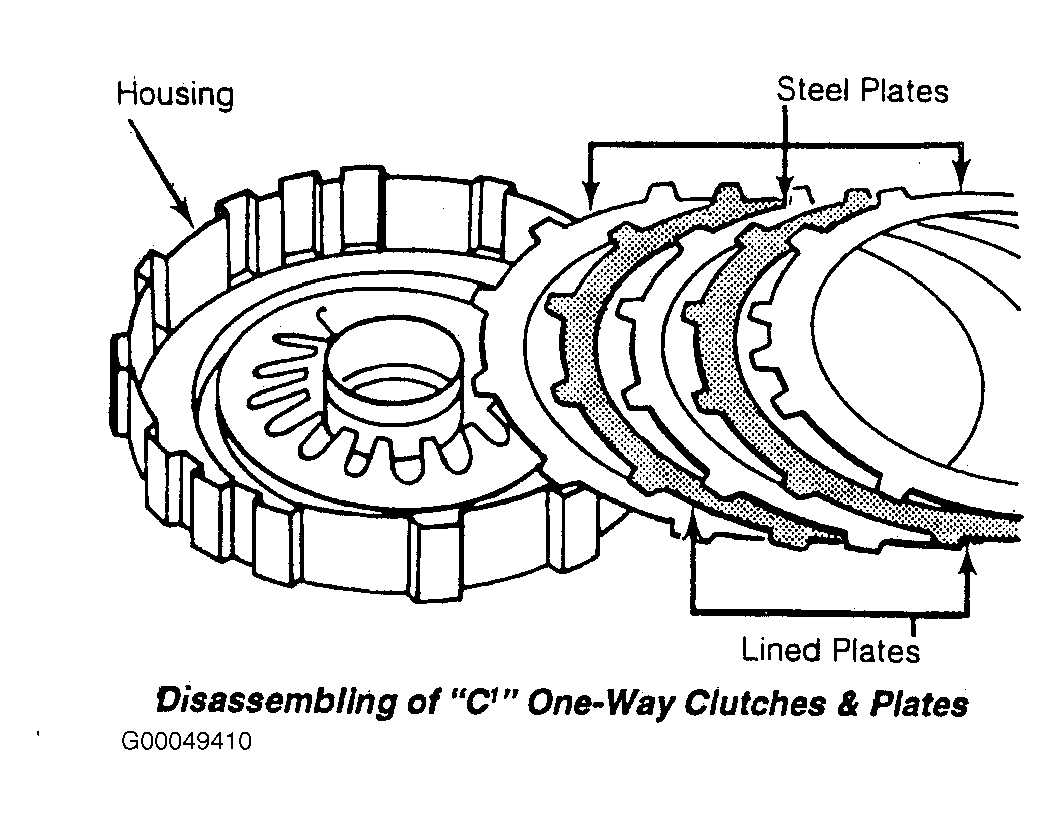

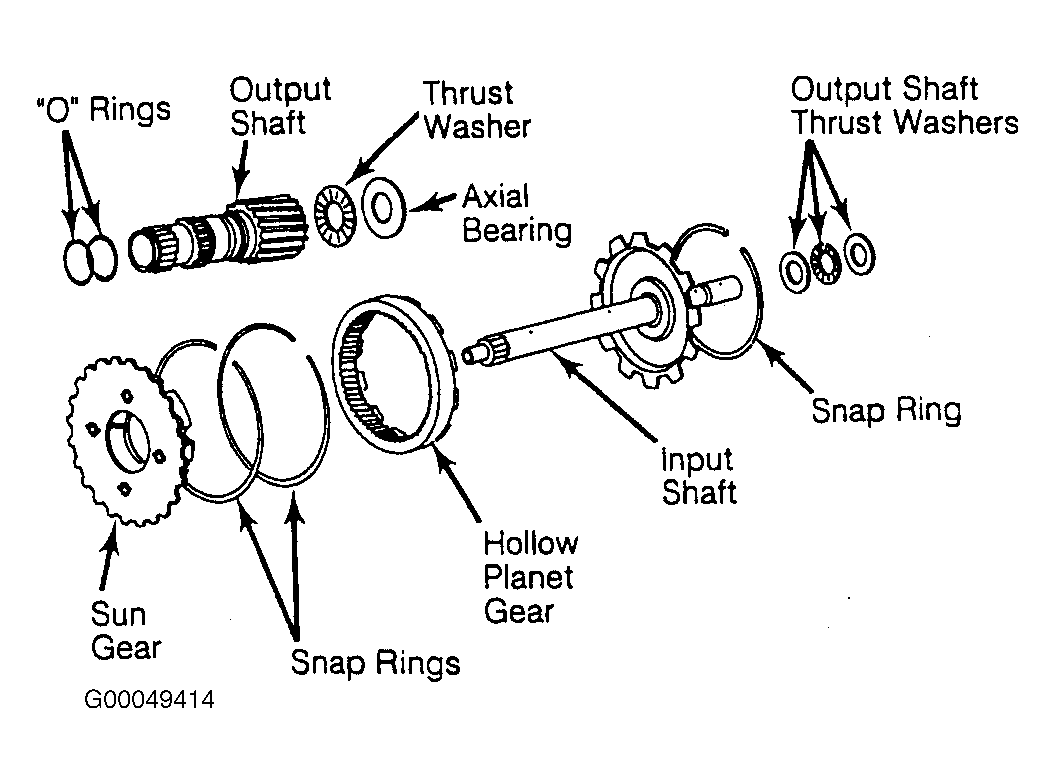

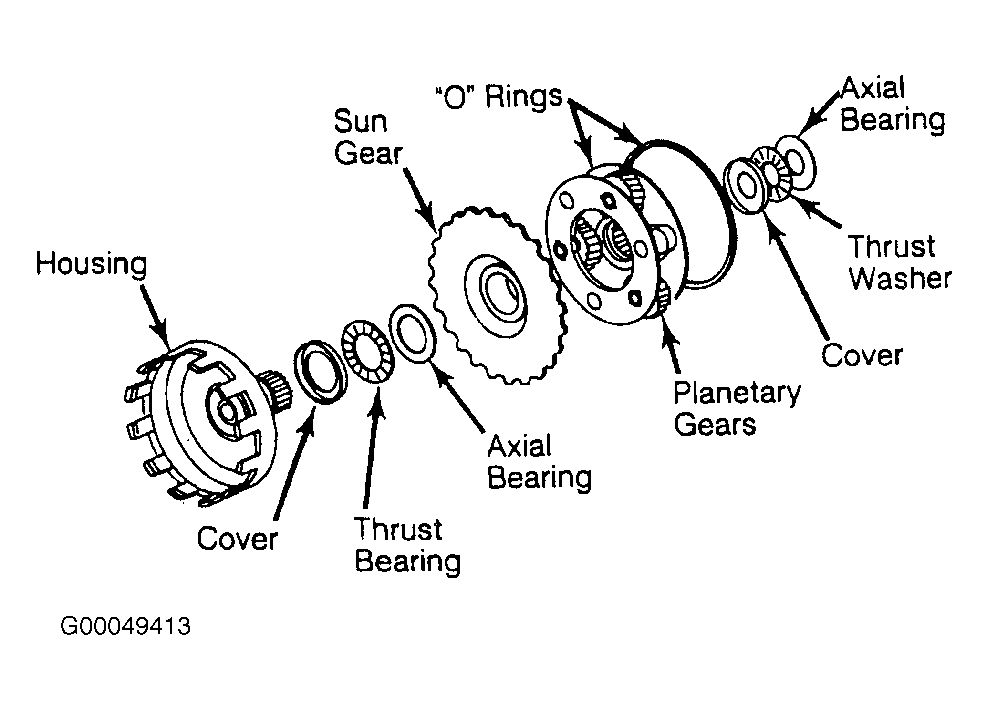

Clutches "C1" & "D": Reassembly
- Coat all discs and plates with ATF. Ensure all plates and discs are installed in proper sequence and number as when removed. See PLATE & DISC USAGE chart.
- If discs or plates are replaced, soak new parts in ATF for 20 minutes before installing. When installing one-way clutch, bent over tabs or OBEN (top) must be seen. When inserting end plate, ensure that center tooth of group of 3 teeth engage in opening of cylinder.
PLATE & DISC USAGE
| Application | No. Of Plates | |
|---|---|---|
| Clutch "A" | ||
| Spring Plate | 2 | |
| Lined Plates | 5 | |
| Steel Plates .07" (1.8 mm) | 6 | |
| Clutch "B" | ||
| End Plate .177" (4.50 mm) | 1 | |
| Lined Plates | 4 | |
| Steel Plates .08" (2.1 mm) | 4 | |
| Clutch "C" | ||
| Lined Plates | 2 | |
| Steel Plates | 2 | |
| End Plate .177" (4.50 mm) | 1 | |
| Brake "D" | ||
| Lined Plates | 2 | |
| Steel Plate .06" (1.5 mm) | 1 | |
| Steel Plate .08" (2.1 mm) | 1 | |
| Brake "E" | ||
| End Plate .047" (1.20 mm) | 1 | |
| Lined Plates .07" (1.8 mm) | 4 | |
| Steel Plates | 4 | |
| Brake "C" | ||
| Lined Plates | 4 | |
| Steel Plates .06" (1.5 mm) | 4 | |
| End Plate | 1 | |
| Brake "F" | ||
| Lined Plates | 3 | |
| Steel Plates .08" (2.1 mm) | 3 | |
| End Plates .177" (4.50 mm) | 1 | |
