Clutch "E": Reassembly

  1. Insert diaphragm spring with curved surface facing up. Replace "O" rings and seals, lubricate "O" rings with a light coat of ATF.

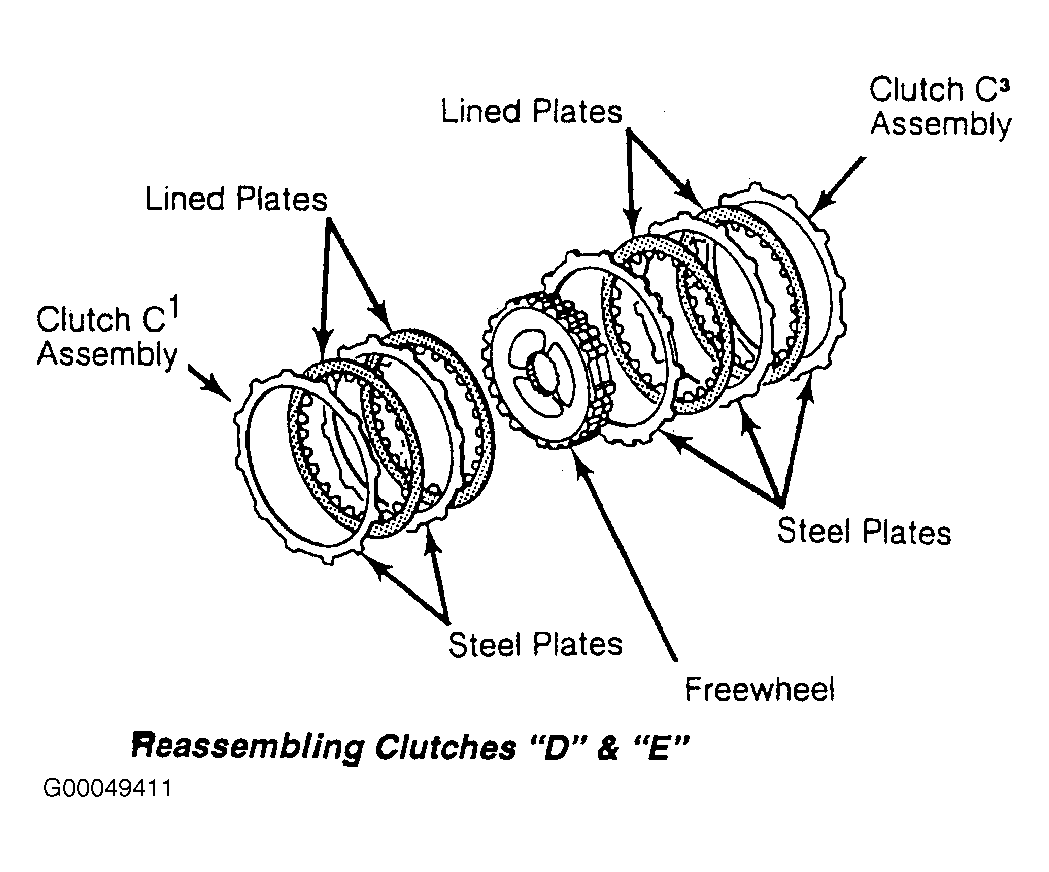

  2. Place planetary plate with one-way clutch on hub of cylinder "E". If discs or plates are replaced, soak in ATF before installing. See Figure .
