Clutch "A": Reassembly

Coat all discs and plates with ATF. Insert input shaft into hub and retain with snap ring. Place diaphragm spring in hub with curved surface facing downward. Replace all seals.
Alternate plates and discs until same number and position of plates and discs are installed as were removed. See Fig 7 . Install spacer plates and carrier plate. Compress clutch assembly and install large snap ring.

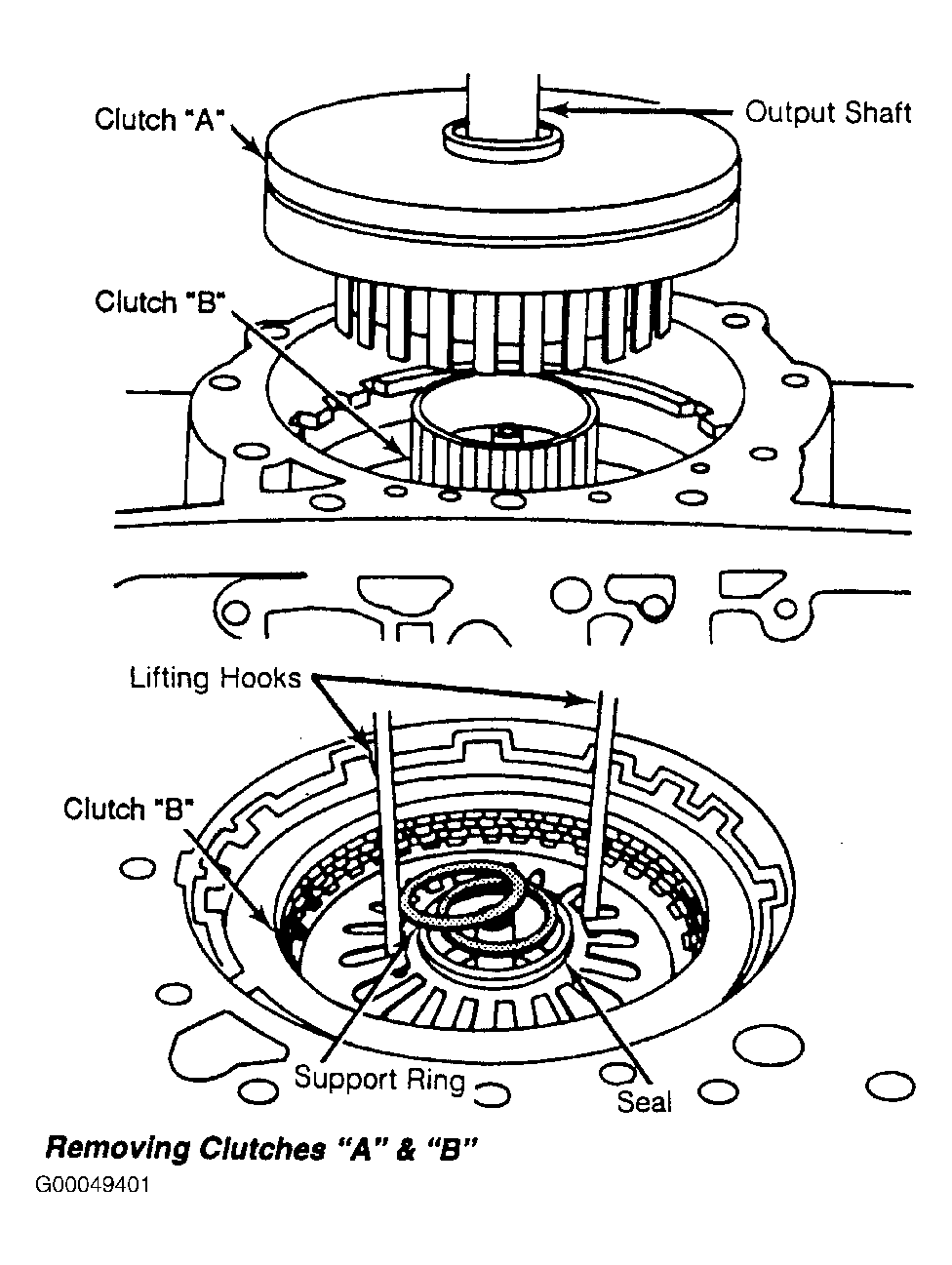

Fig 1: Removing Clutches "A" & "B"

G00049401

Courtesy of BMW OF NORTH AMERICA, INC.

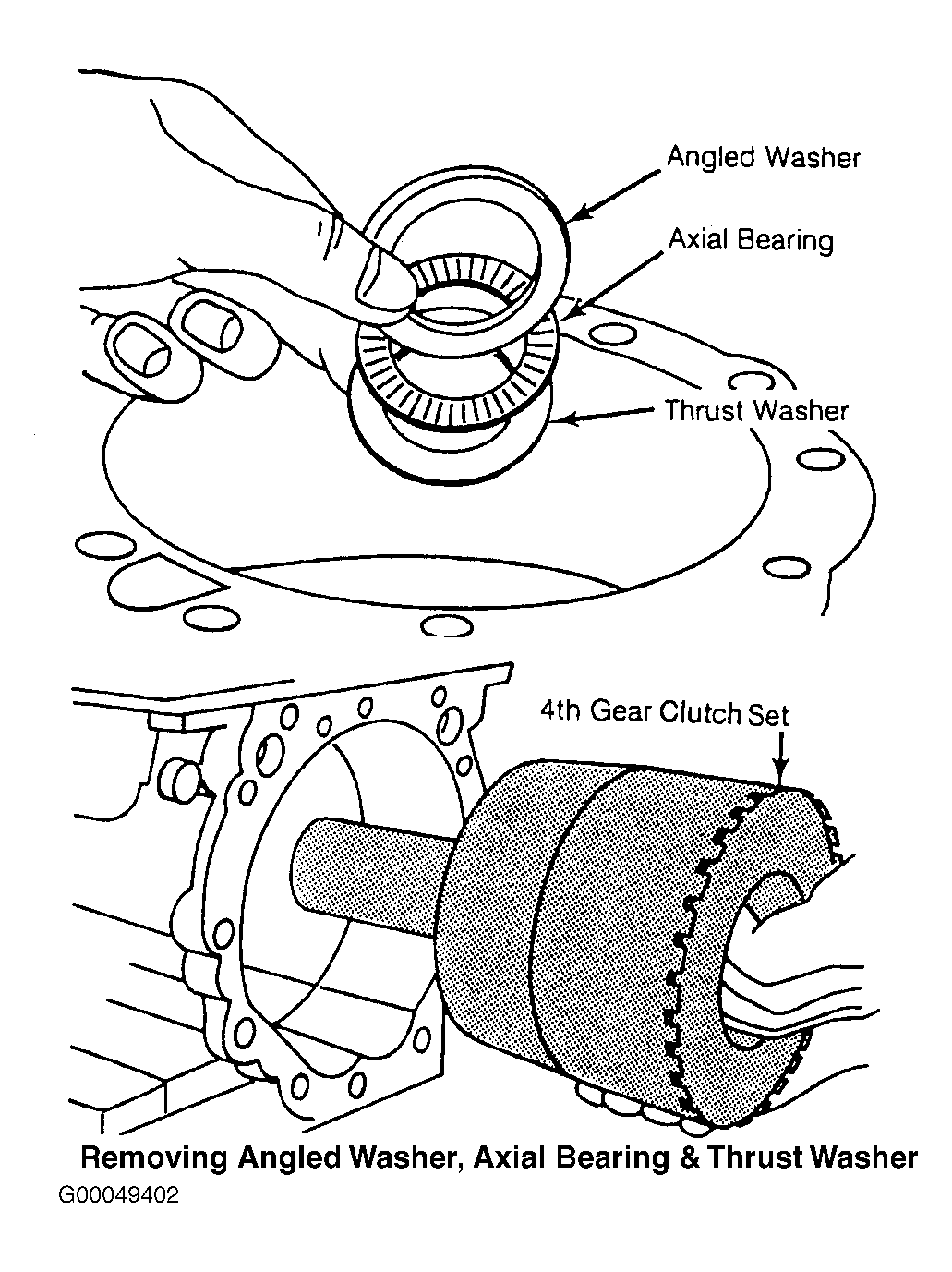

Fig 2: Removing Angled Washer, Axial Bearing, & Thrust Washer

G00049402

Courtesy of BMW OF NORTH AMERICA, INC.

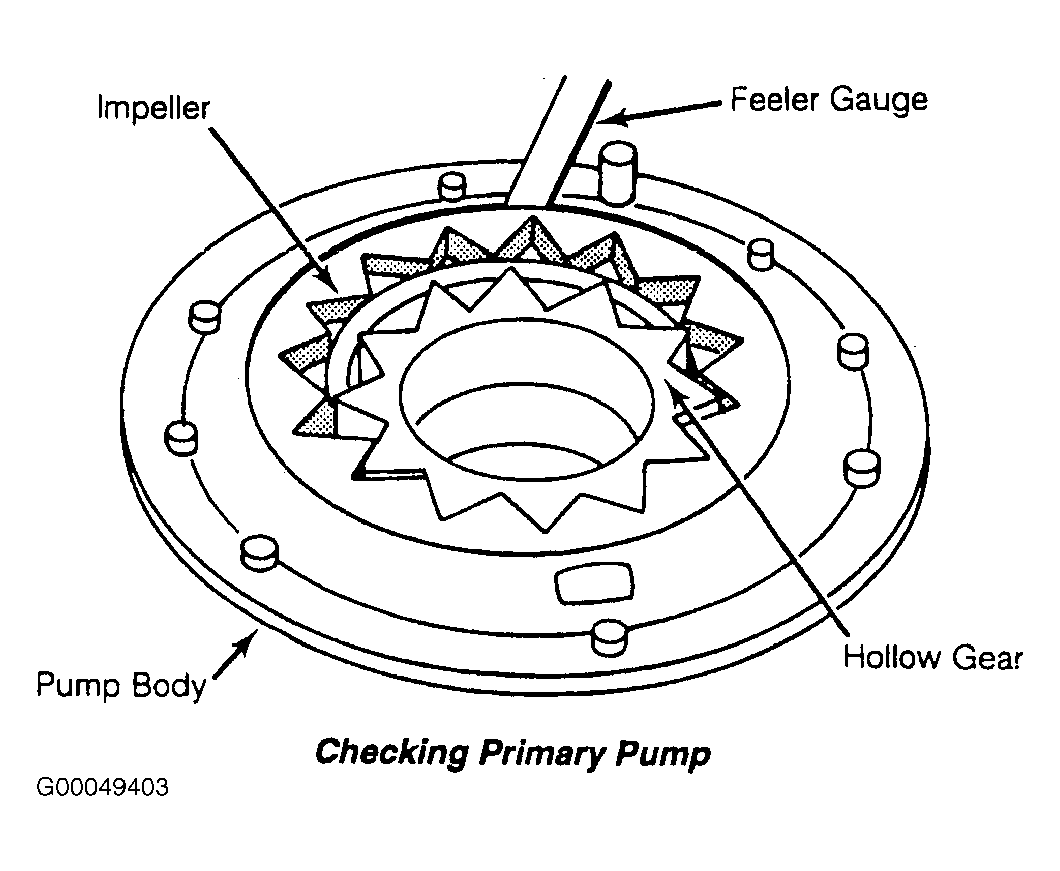

Fig 3: Checking Primary Pump

G00049403

Courtesy of BMW OF NORTH AMERICA, INC.

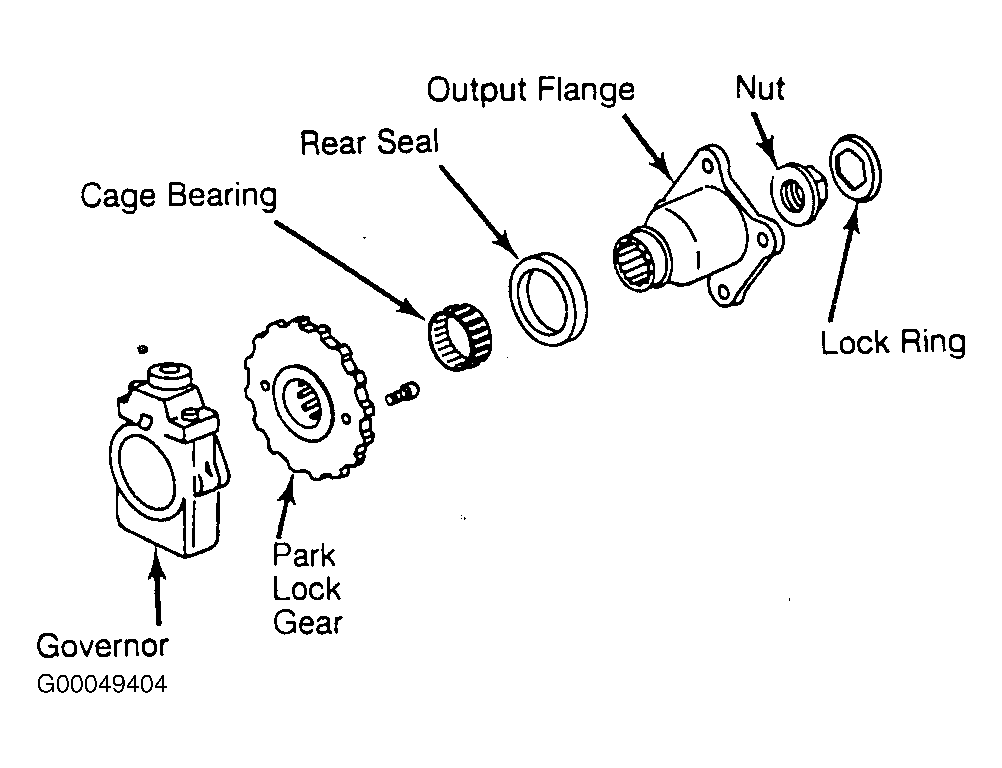

Fig 4: Assembling Centrifugal Governor

G00049404

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Exploded View Centrifugal Governor

G00049405

Courtesy of BMW OF NORTH AMERICA, INC.

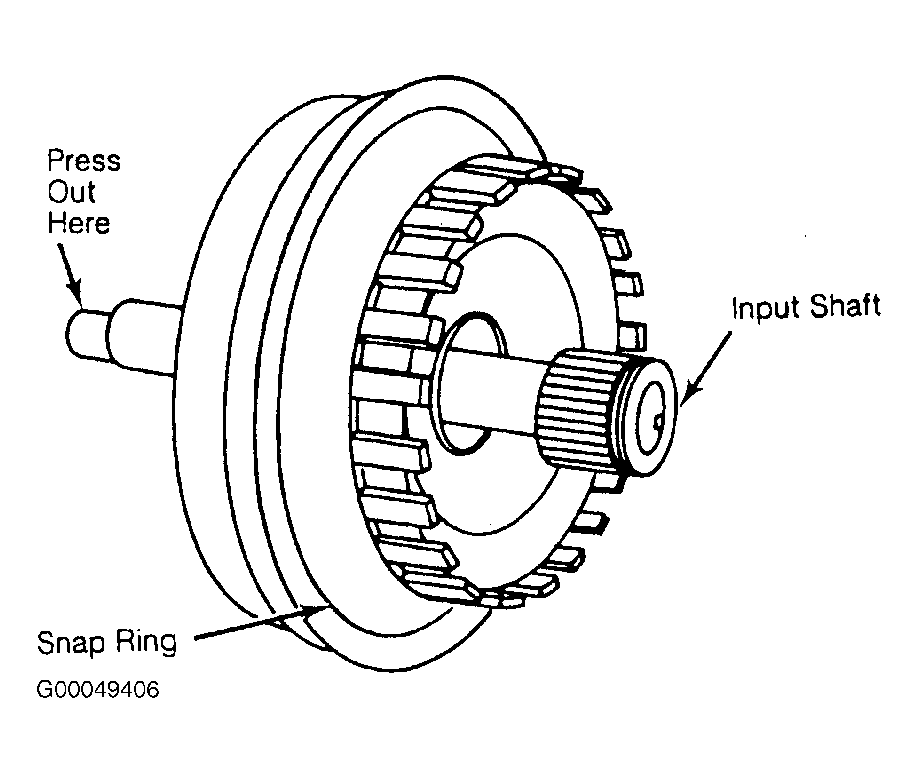

Fig 6: Disassembling Clutch "A"

G00049406

Courtesy of BMW OF NORTH AMERICA, INC.

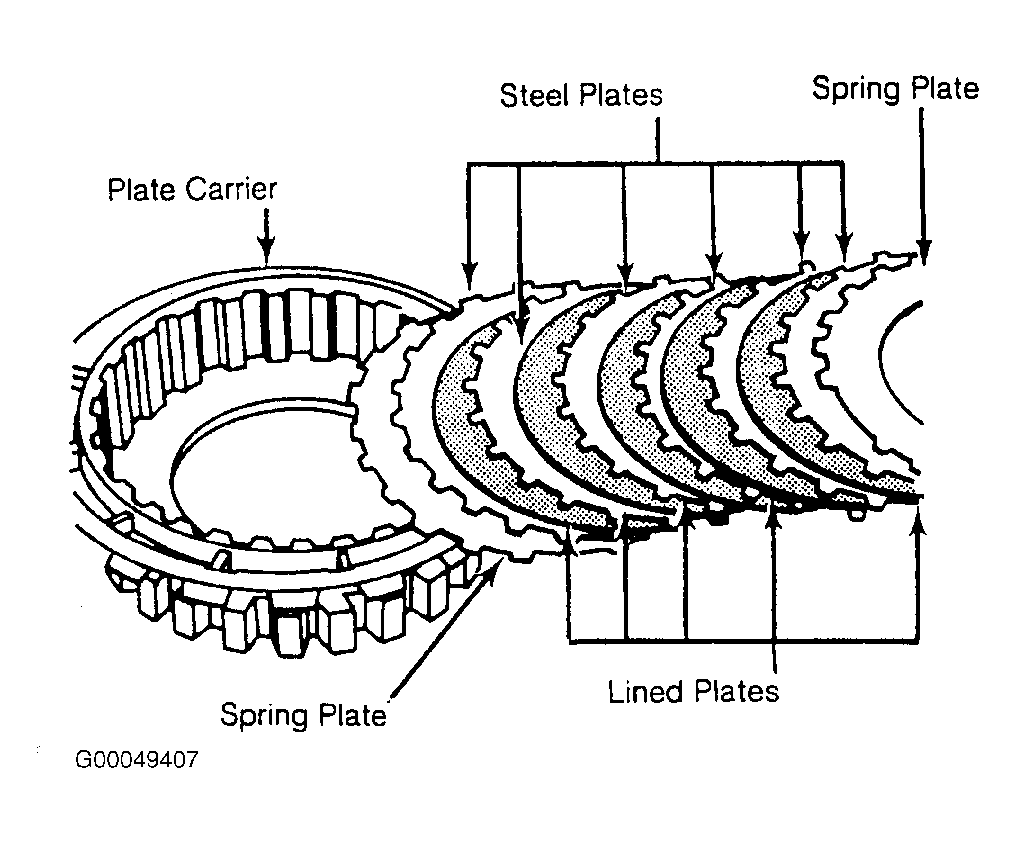

Fig 7: Reassembling Clutch "A"

G00049407

Courtesy of BMW OF NORTH AMERICA, INC.

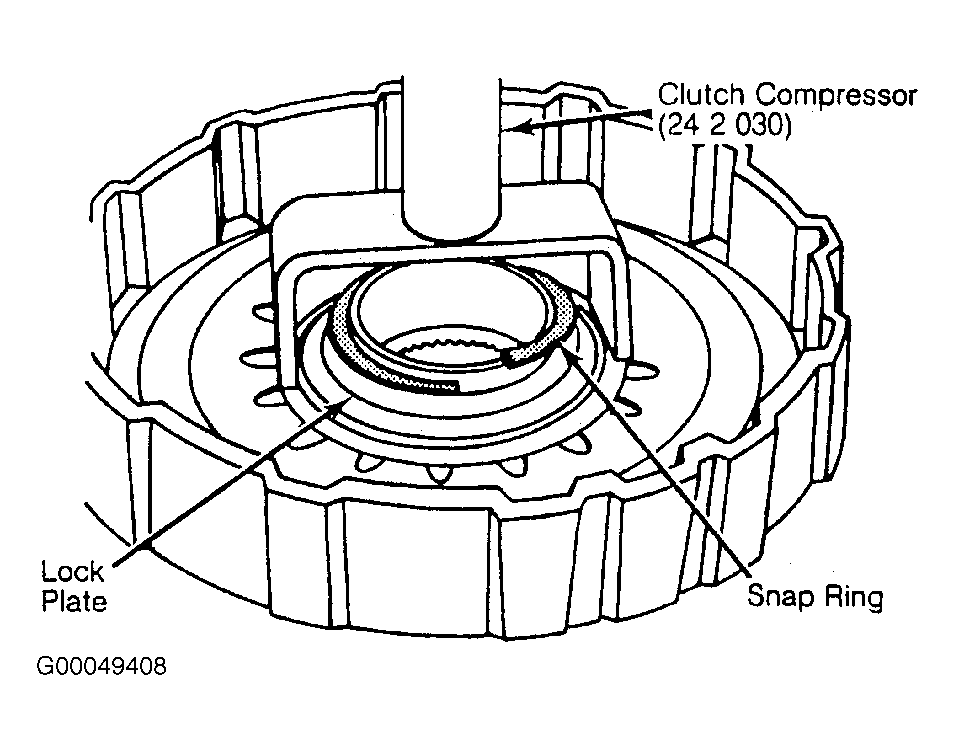

Fig 8: Disassembling Clutch "B"

G00049408

Courtesy of BMW OF NORTH AMERICA, INC.

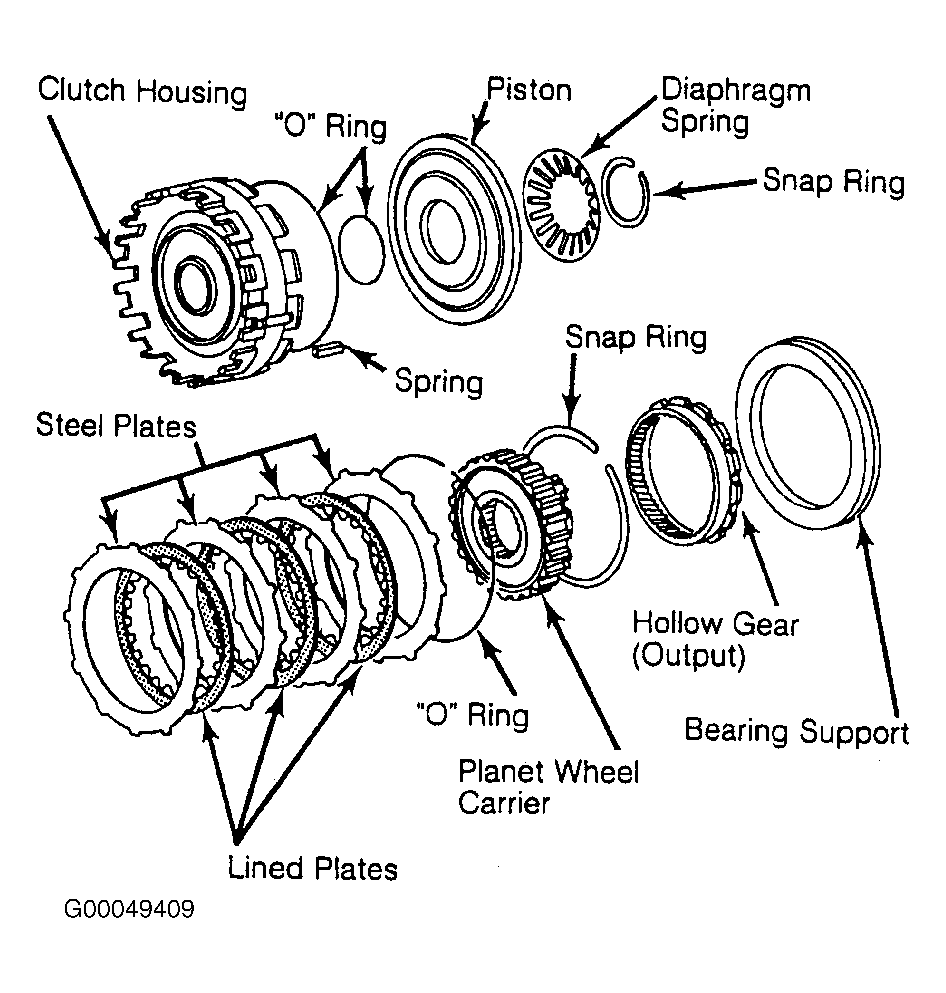

Fig 9: Exploded View Clutch "B" Assembly

G00049409

Courtesy of BMW OF NORTH AMERICA, INC.
