Wiring Diagrams

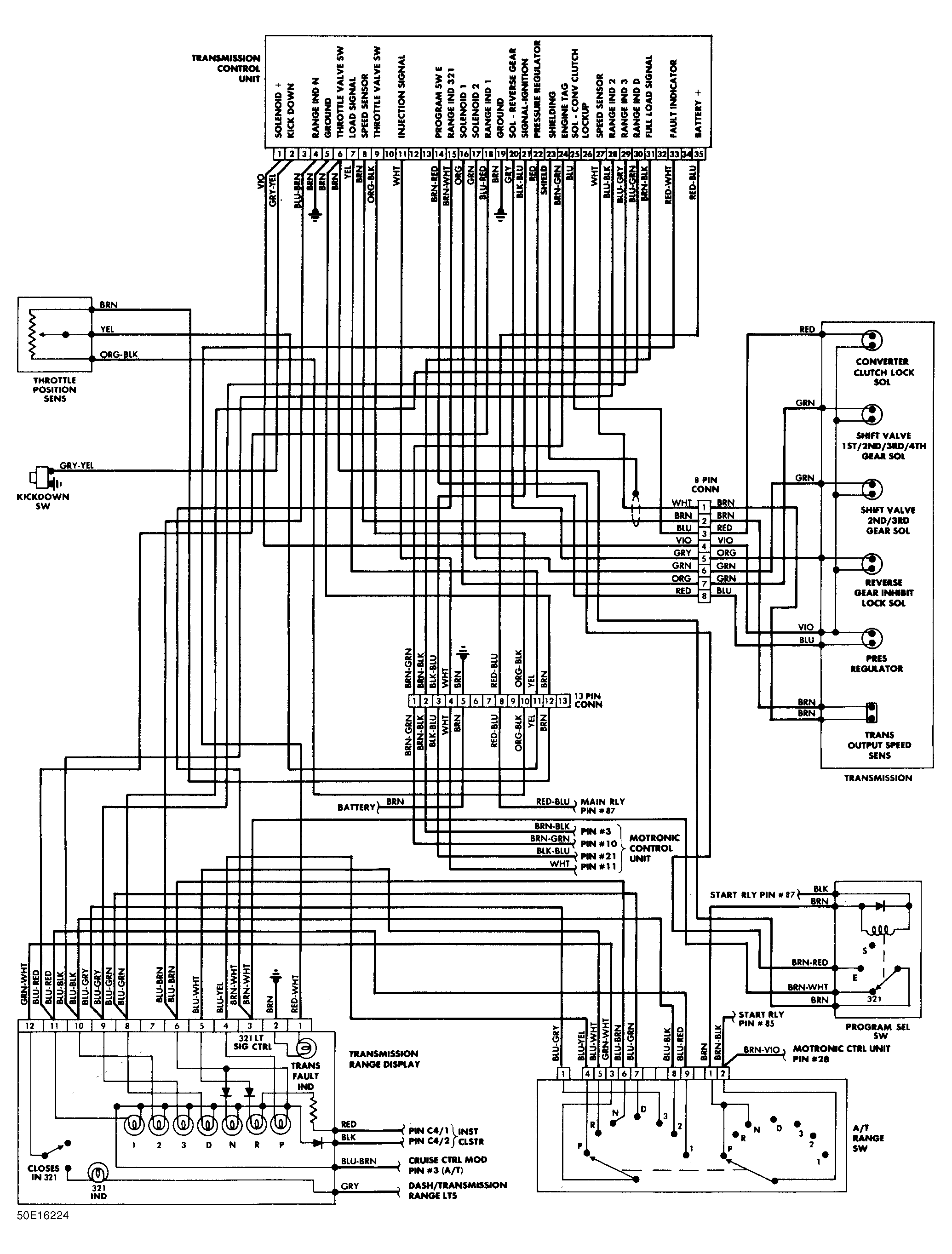

Fig 1: Wiring Diagram (1986-87 BMW Models)

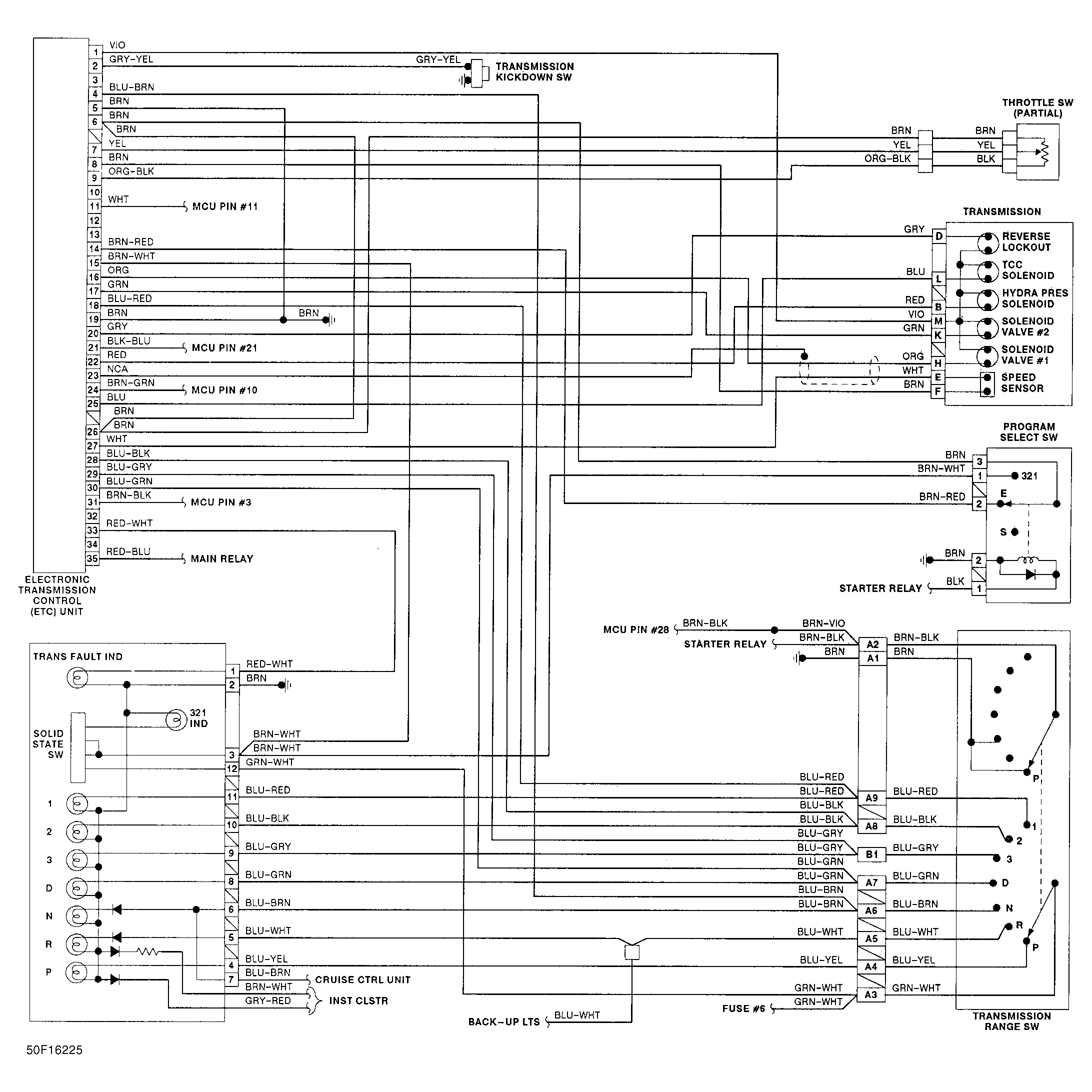

Fig 2: Wiring Diagram (1988 BMW 535i)

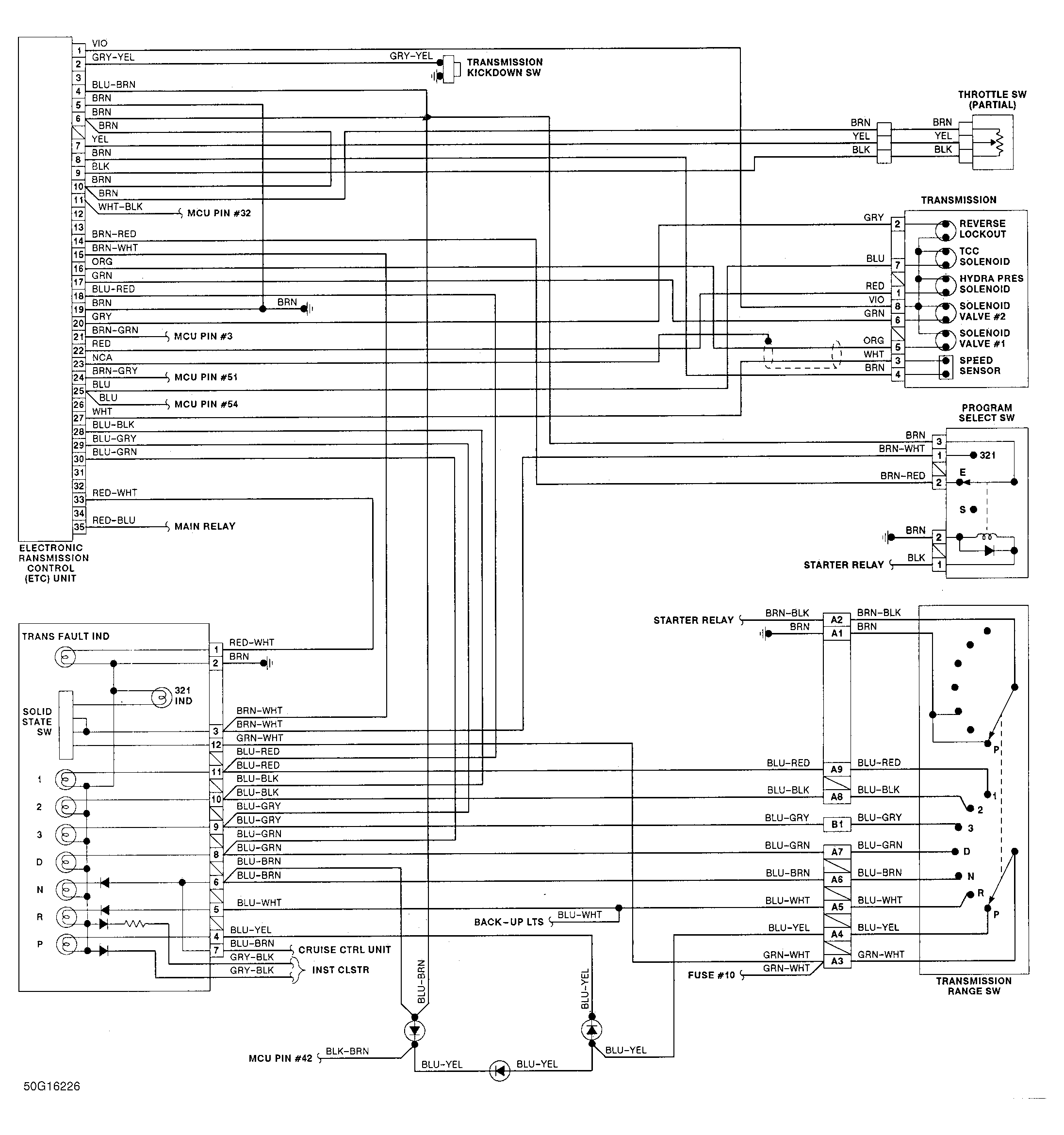

Fig 3: Wiring Diagram (1988-89 BMW 635CSi)

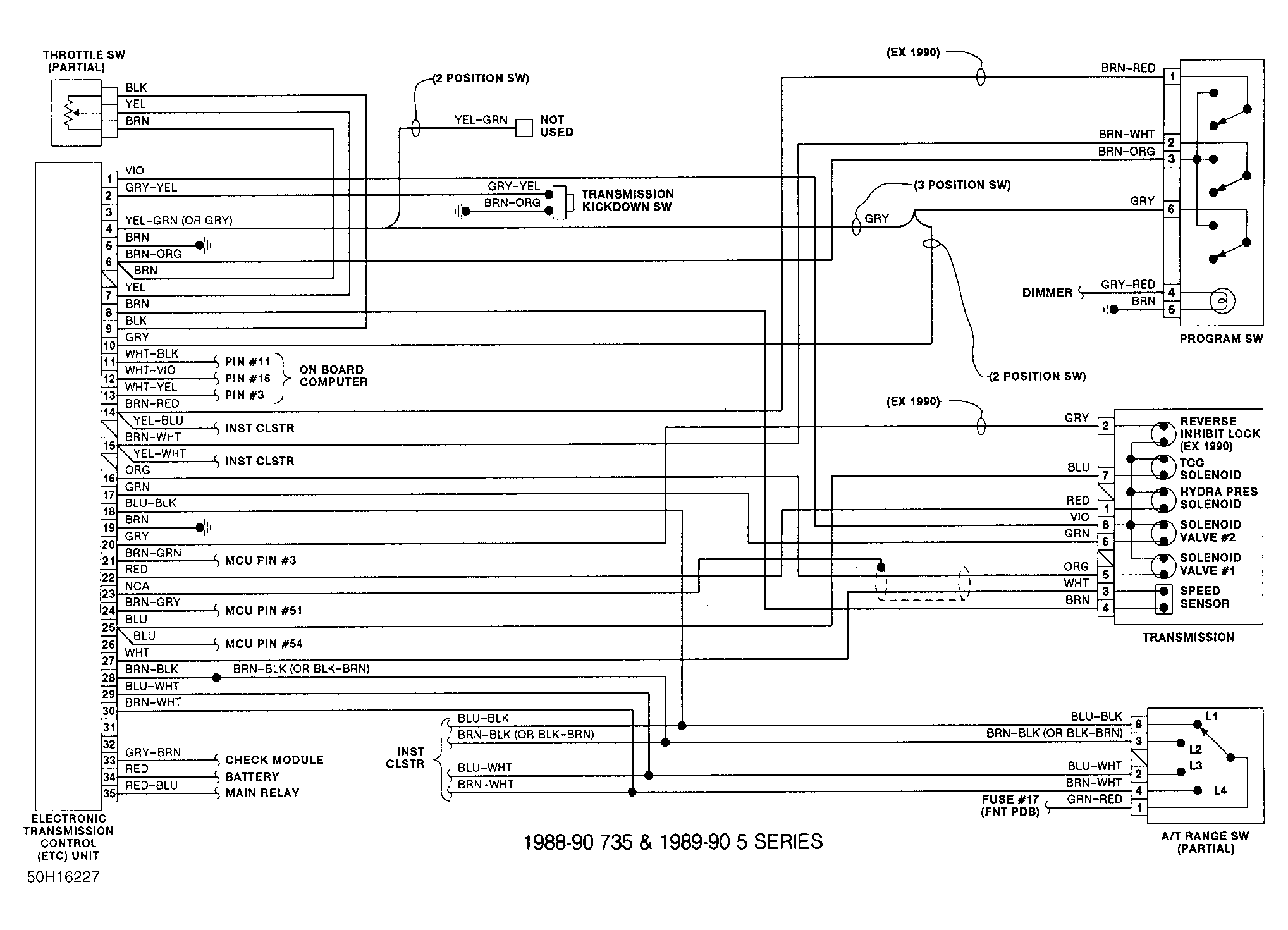

Fig 4: Wiring Diagram (1989-90 BMW 735 & 1989-90 5-Series)

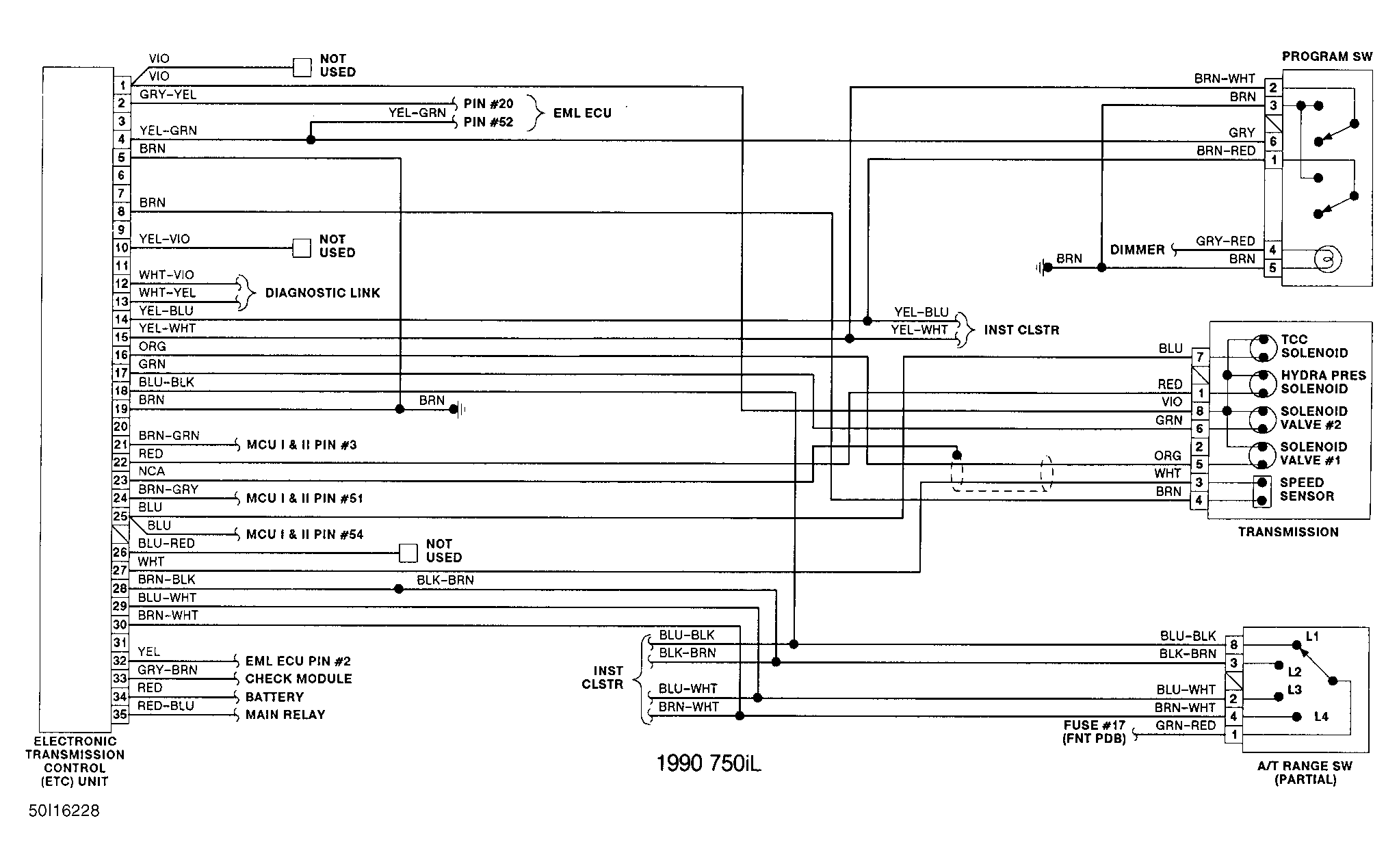

Fig 5: Wiring Diagram (1990 BMW 750iL)

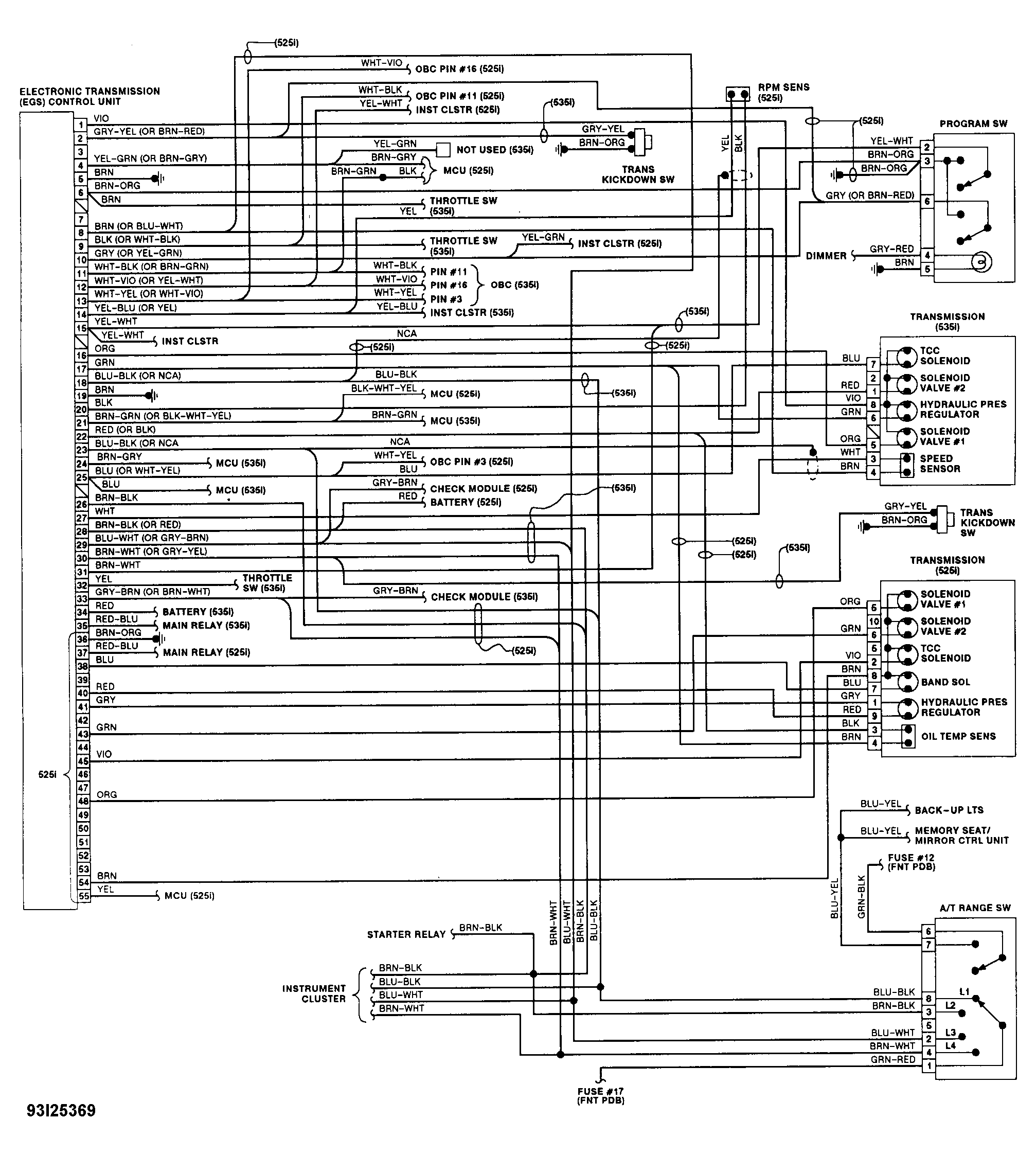

Fig 6: Wiring Diagram (1991-92 BMW 525i & 535i)

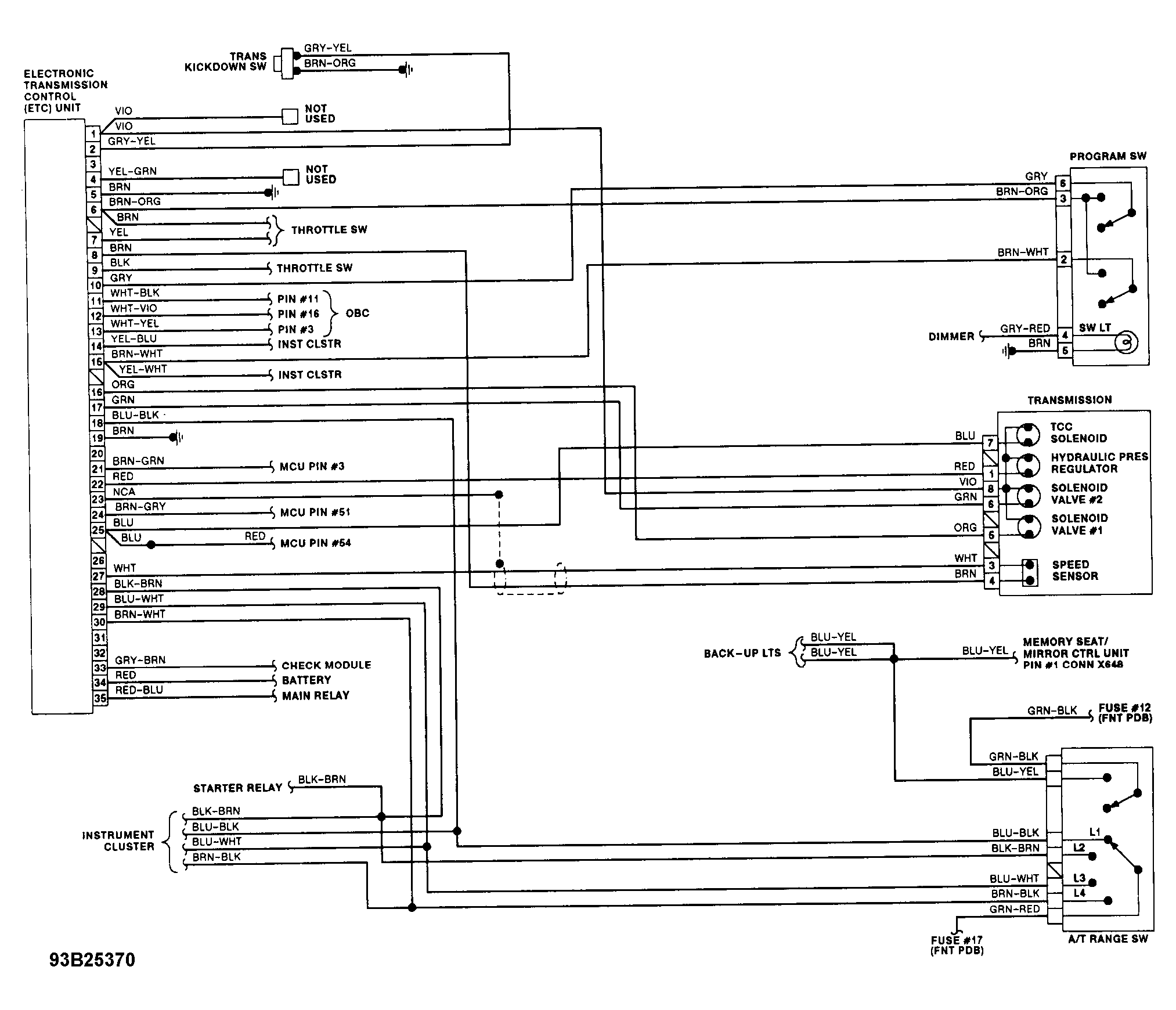

Fig 7: Wiring Diagram (1991-92 BMW 735i & 735iL)

Fig 8: Wiring Diagram (1993 BMW 535i)
