Valve Body Reassembly
- To reassemble, reverse disassembly procedure. Install and align divider plate assembly on front valve body. Ensure manual valve lug engages in divider plate channel.
- Holding front valve body firmly to divider plate, invert assembly but DO NOT tighten securing bolts. Install and seat valve body on divider plate oil feed pipe.
- Install and align upper left valve body on divider plate. DO NOT tighten bolts at this time. Install and align upper right valve body on divider plate. DO NOT tighten bolts at this time.

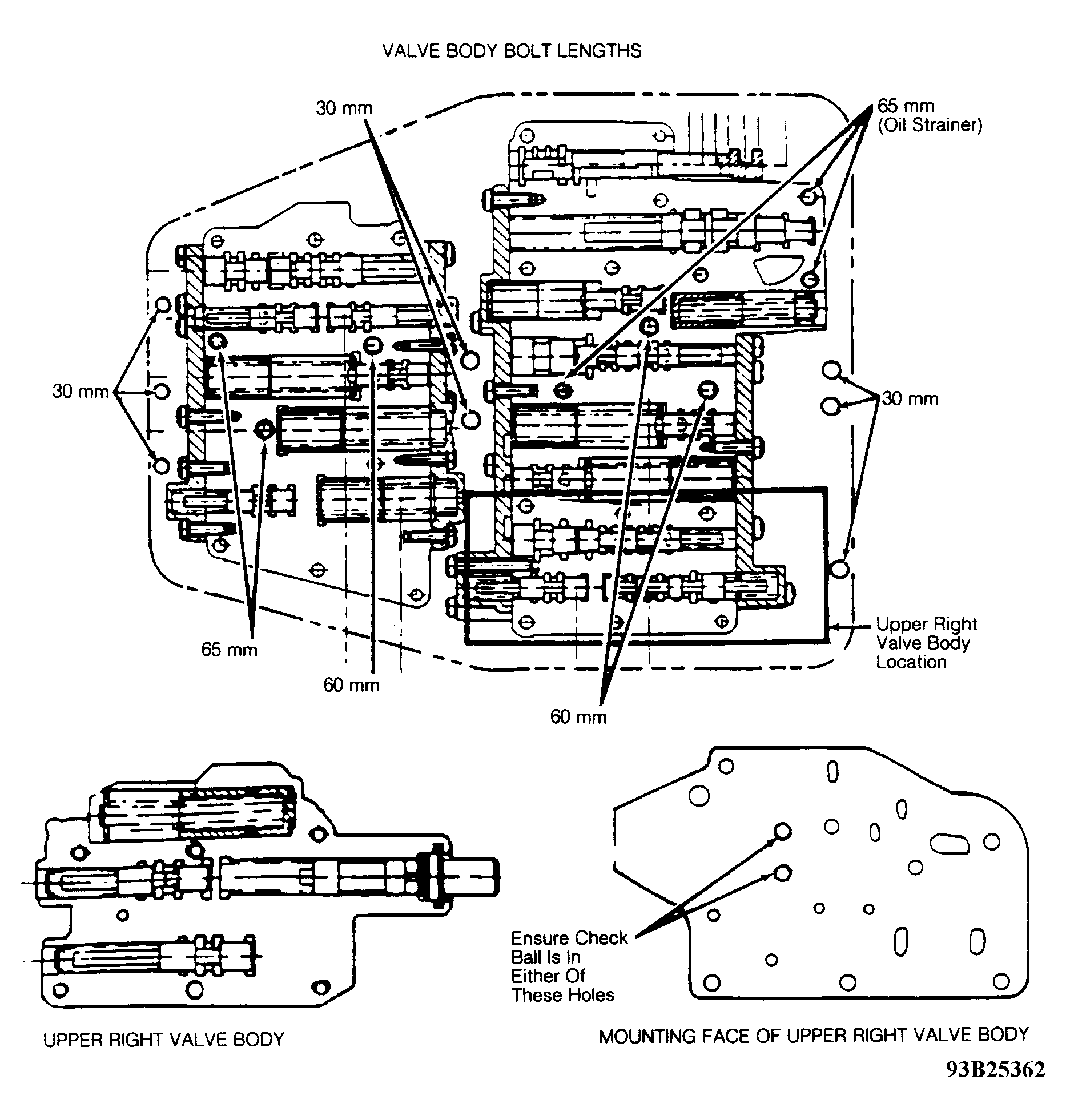

- Invert main valve body assembly and install rear valve body. Ensure proper length bolts are installed in correct area. See Fig 1 .
