Disassembly & Inspection Of Divider Plate

1. Remove divider plate and ensure restrictors and plastic balls stay in position in divider plate. Remove and discard divider plate gasket, note positions and diameters of plastic balls and remove.
2. Note position and hole size of restrictors and remove them. Clean divider plate, bolts and restrictors and inspect all components for signs of wear or damage.

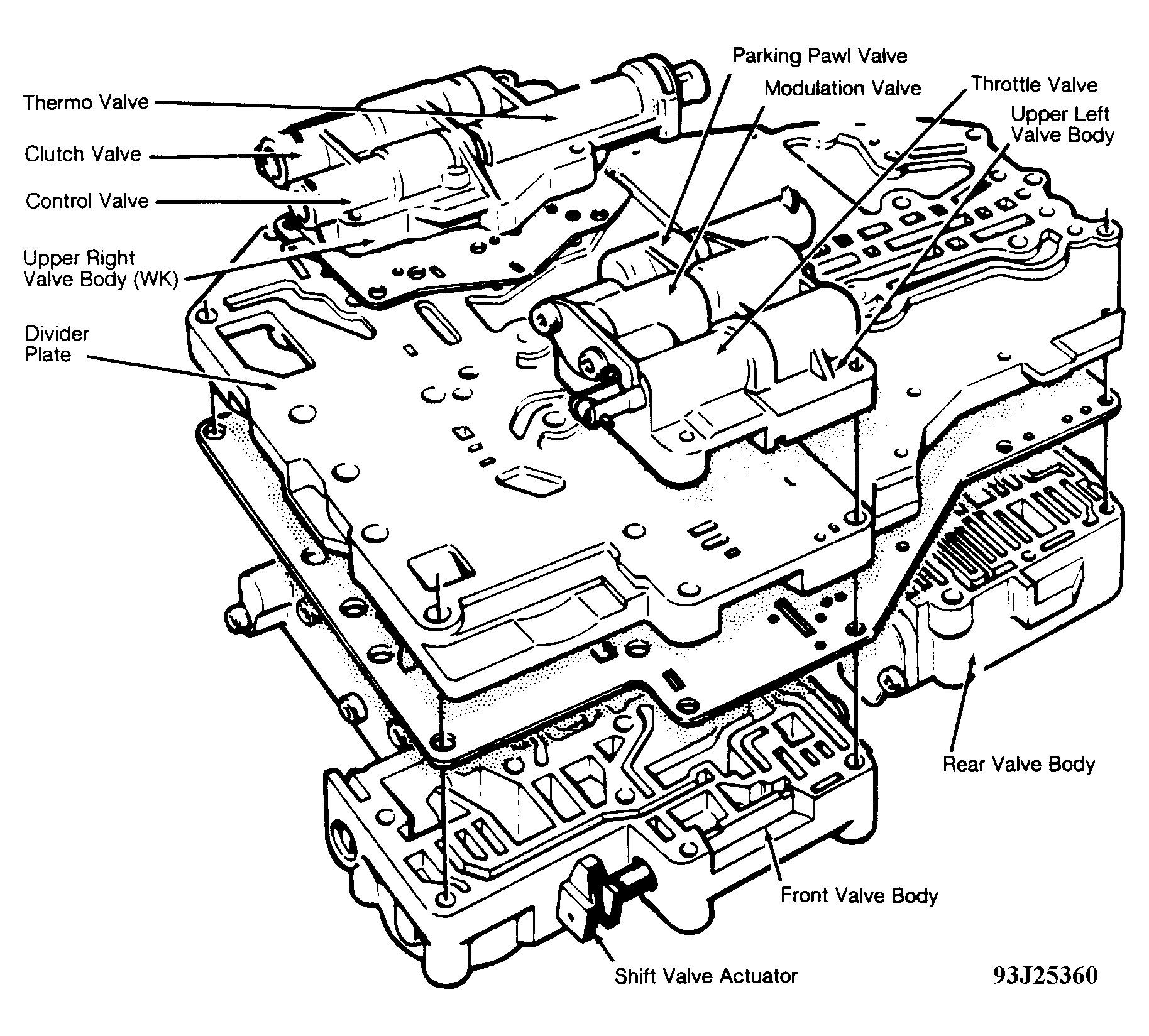

Fig 1: Exploded View Of Typical Valve Body Assembly

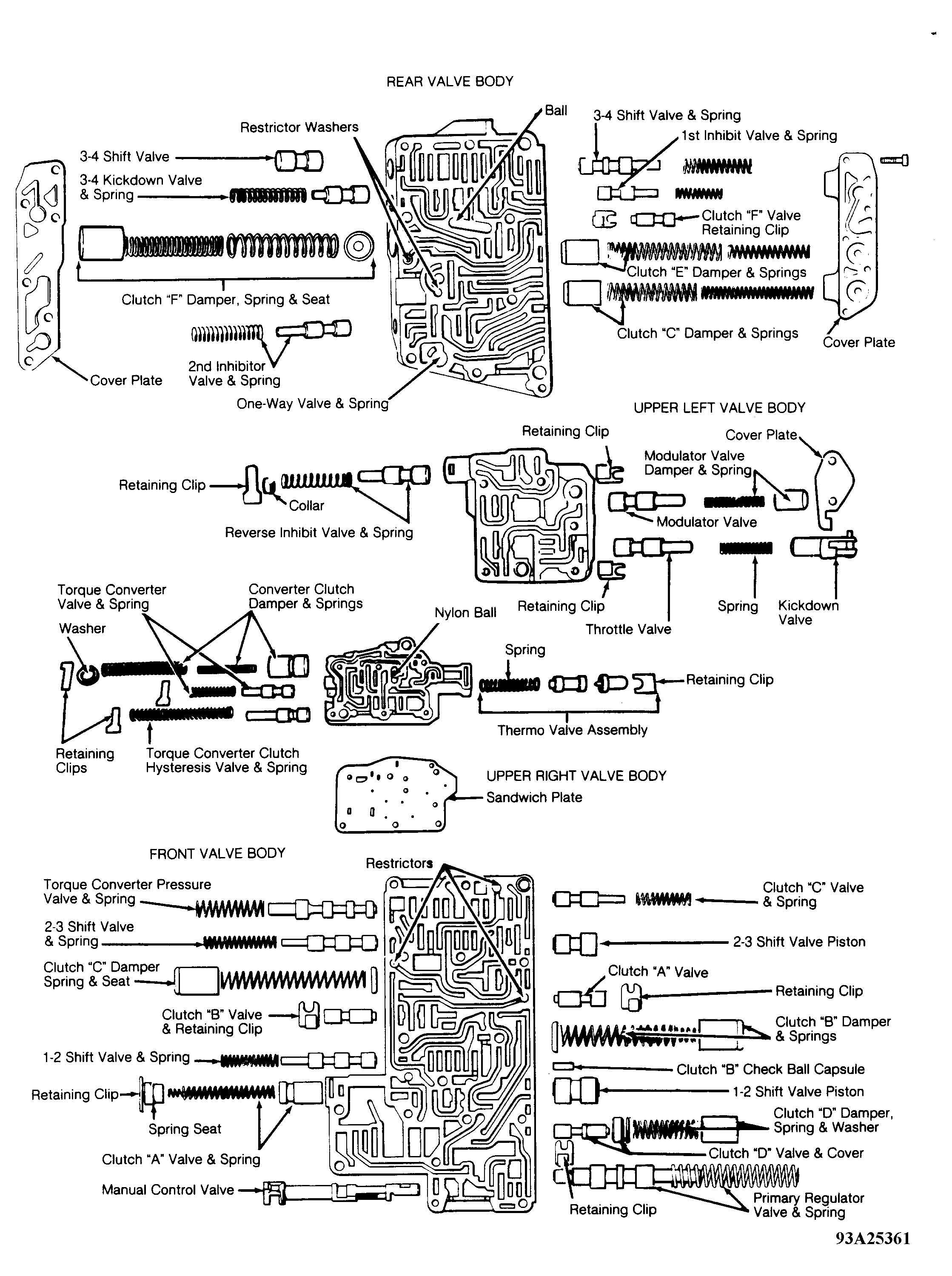

Fig 2: Identifying Typical Valve Body Components
