Rear Planetary Gear: Reassembly

To reassemble, reverse disassembly procedure.

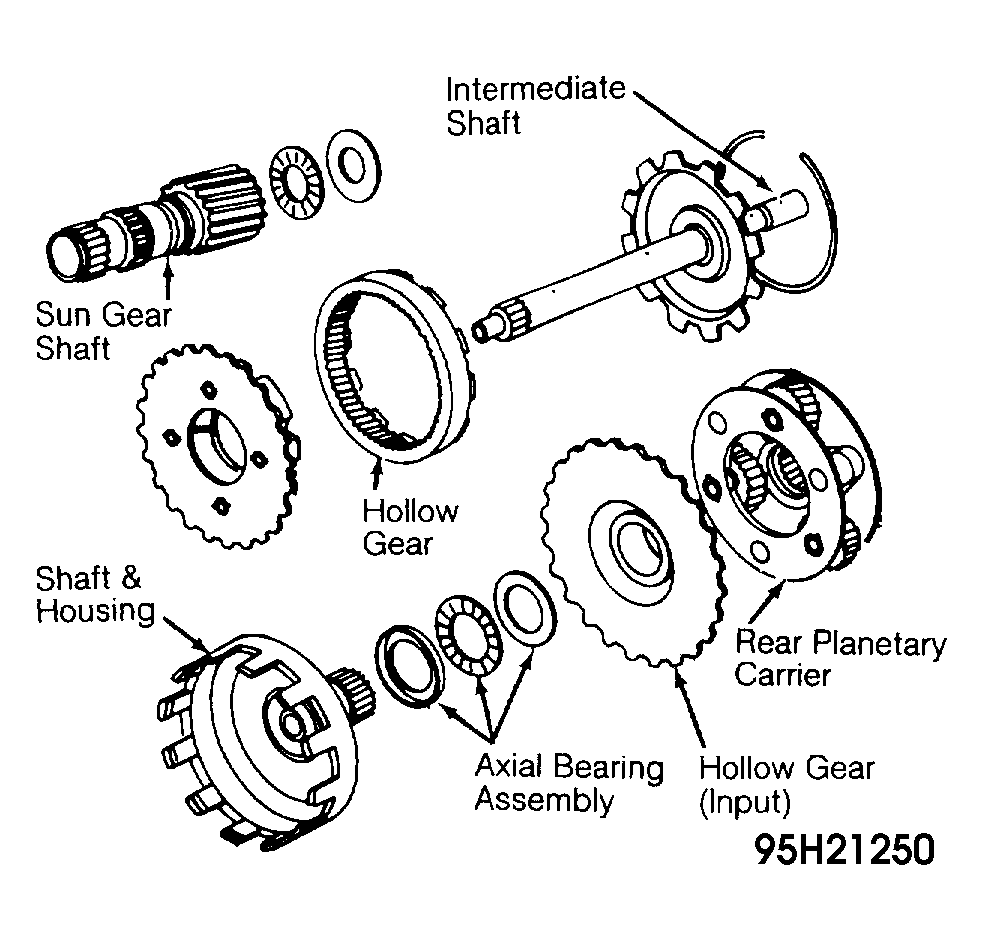

Fig 1: Exploded View Of Rear Planetary Gear Assembly

G95H21250

Courtesy of BMW OF NORTH AMERICA, INC.
