Clutch "E" & "F": Reassembly

To reassemble, reverse disassembly procedure using NEW "O" rings and seal rings. Coat all components with ATF. Ensure spring is installed with raised area facing upward, away from cylinder.
Ensure original number of discs and plates are installed and in correct sequence. See Fig 1 and Fig 2 .

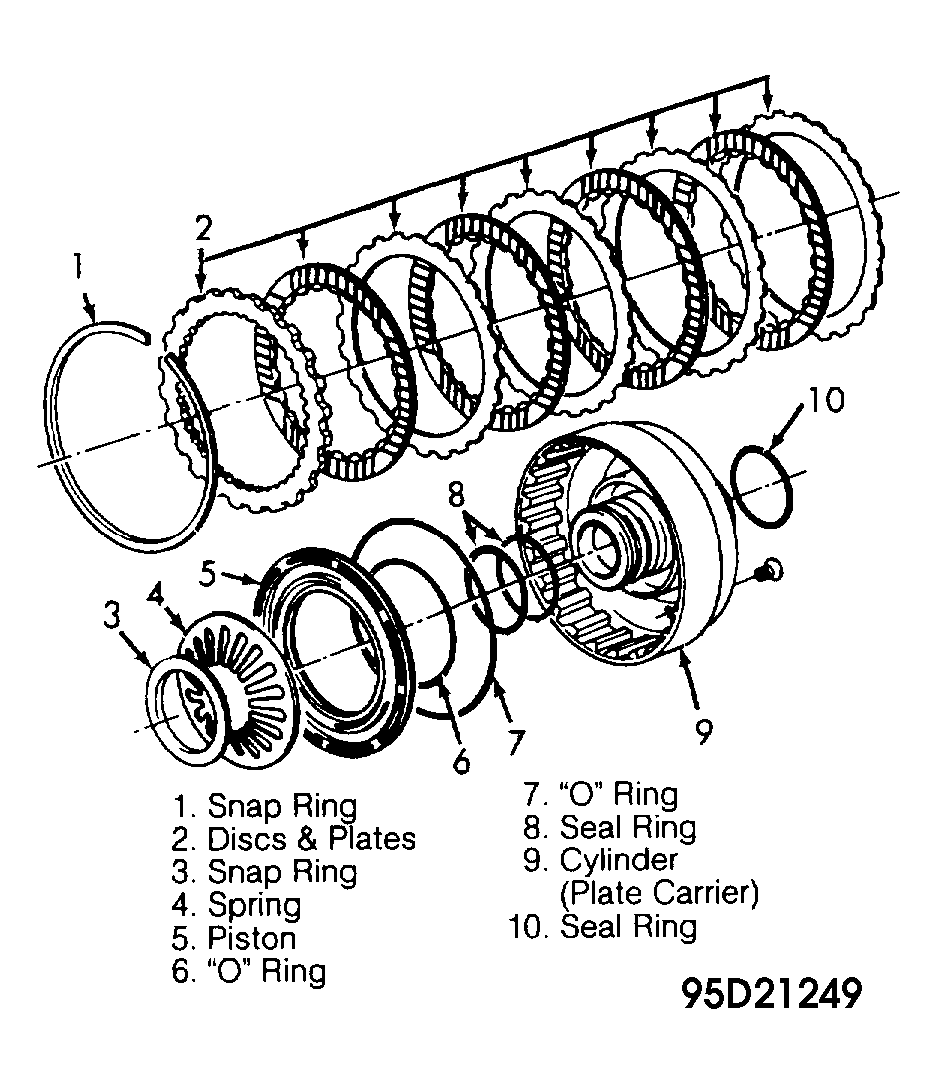

Fig 1: Exploded View Of Clutch "E"

Courtesy of BMW OF NORTH AMERICA, INC.

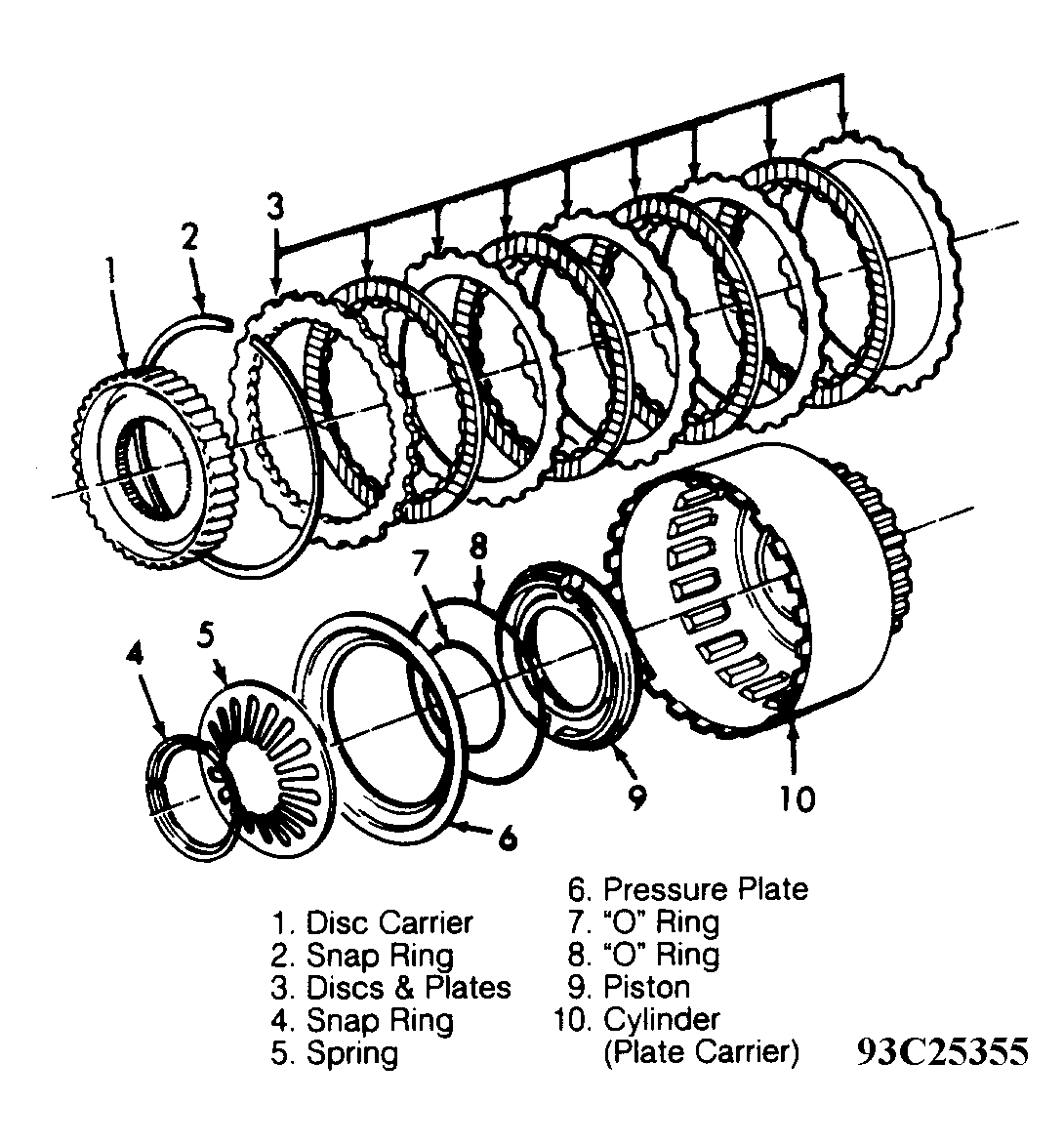

Fig 2: Exploded View Of Clutch "F"

Courtesy of BMW OF NORTH AMERICA, INC.
