Clutch "D": Reassembly

  1. To reassemble, reverse disassembly procedure using NEW "O" rings. Coat all components with ATF. Ensure spring is installed with raised area facing upward, away from plate carrier.
  2. Ensure original number of discs and plates are installed and in correct sequence. See Fig 1

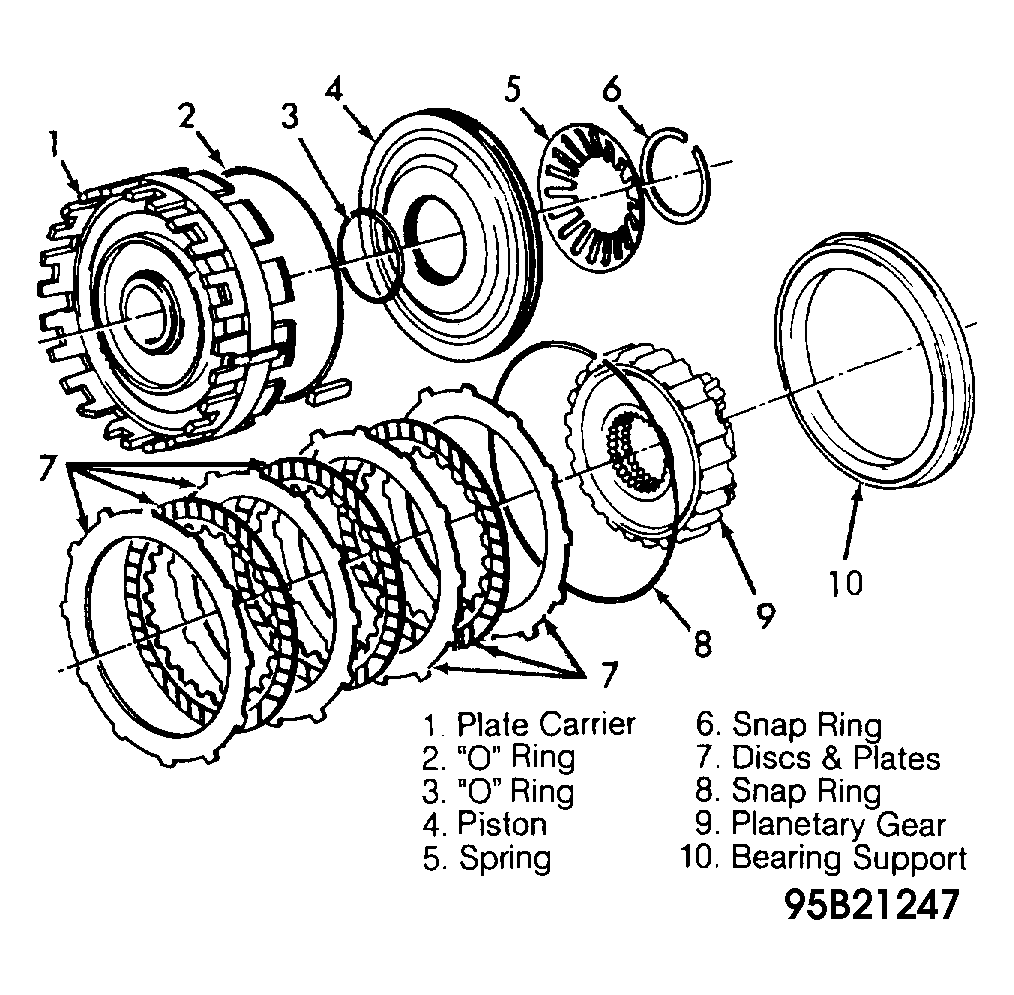

Fig 1: Exploded View Of Clutch "D"
G95B21247Courtesy of BMW OF NORTH AMERICA, INC.
