Clutch "B": Reassembly

  1. To reassemble, reverse disassembly procedure using NEW "O" rings and NEW lock plate. Coat all components with ATF. Ensure tabs on lock plate are fully bent over. Ensure spring is installed with raised area facing upward, away from plate carrier.
  2. Ensure original number of discs and plates are installed and in correct sequence. See Fig 1

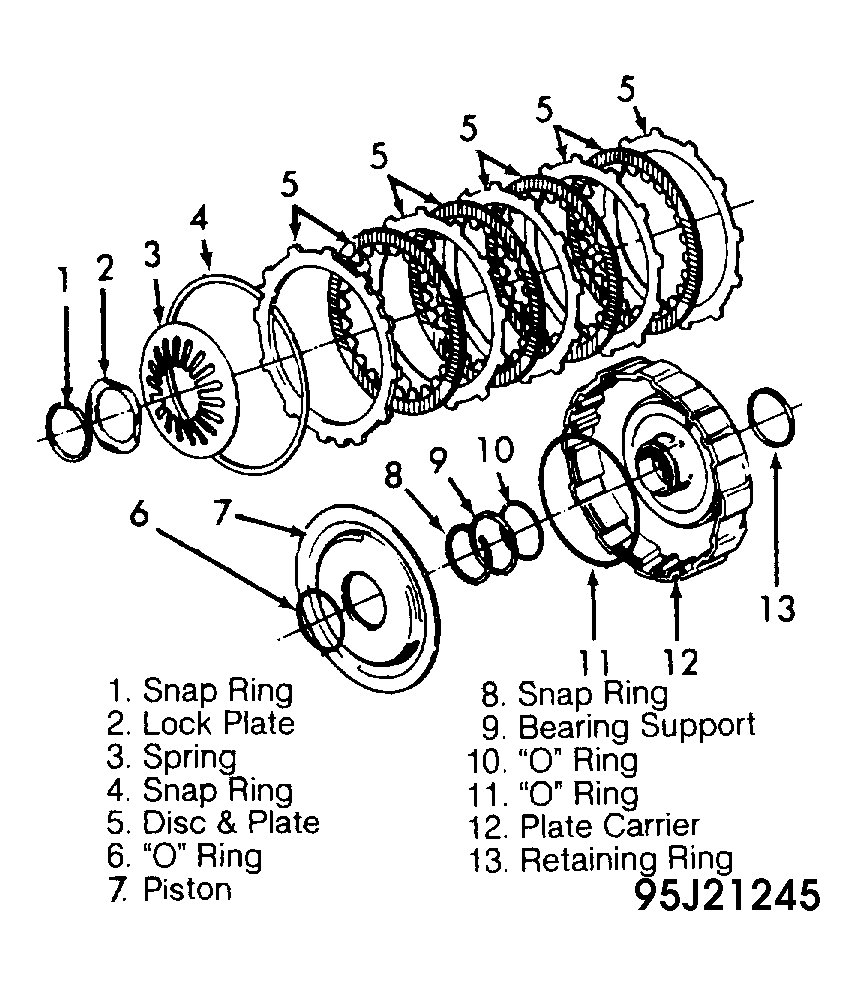

Fig 1: Exploded View Of Clutch "B"
G95J21245Courtesy of BMW OF NORTH AMERICA, INC.
