Clutch "A": Reassembly

To reassemble, reverse disassembly procedure using NEW "O" rings. Coat all components with ATF. Ensure spring is installed in clutch drum with curved surface facing downward toward clutch drum. Ensure discs and plates are installed in correct sequence. See Fig 1 . Install input shaft. Install NEW "O" ring on end of input shaft.

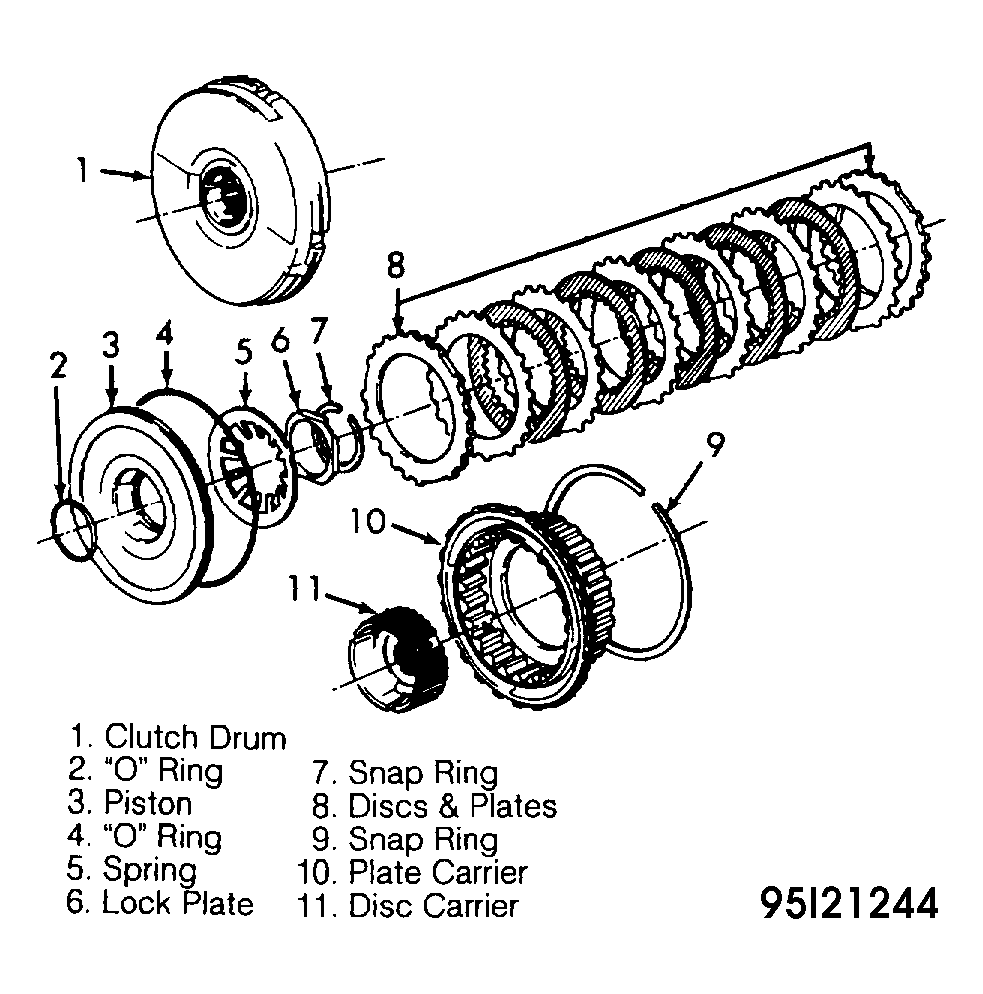

Fig 1: Exploded View Of Clutch "A"

Courtesy of BMW OF NORTH AMERICA, INC.
