Axle Flange & Oil Seal: Installation

Dip seal in gear oil. Drive seal into case until it rests against stop. Insert new snap ring into recessed groove in case. Replace drive flange. Ensure snap ring is fully locked in groove.

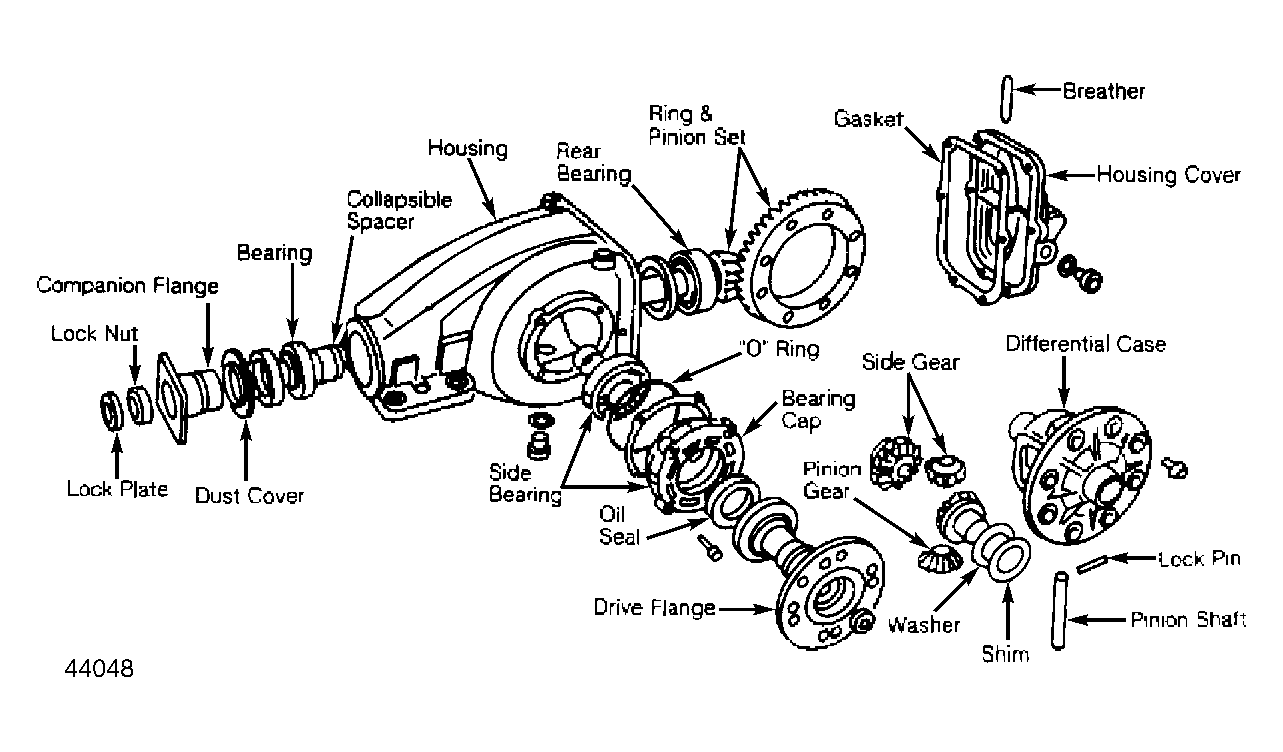

Fig 1: Exploded View of BMW Integral Carrier Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
