Wiring Diagrams

WARNING: This page is about a different car, the 1989 BMW 735iL and 1989 BMW 735i. However, it is still accessible from the selected car via links, so may be relevant.

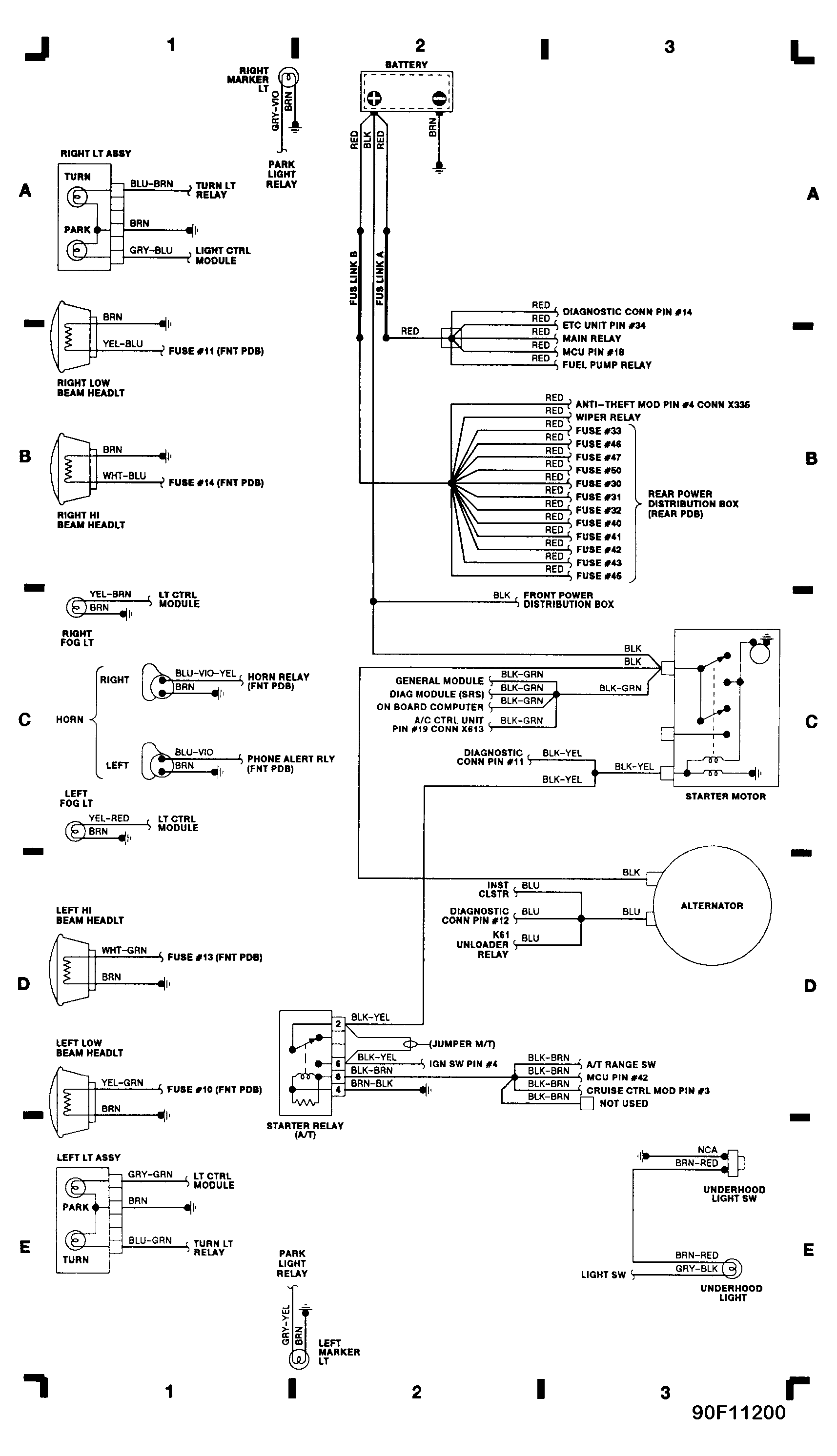

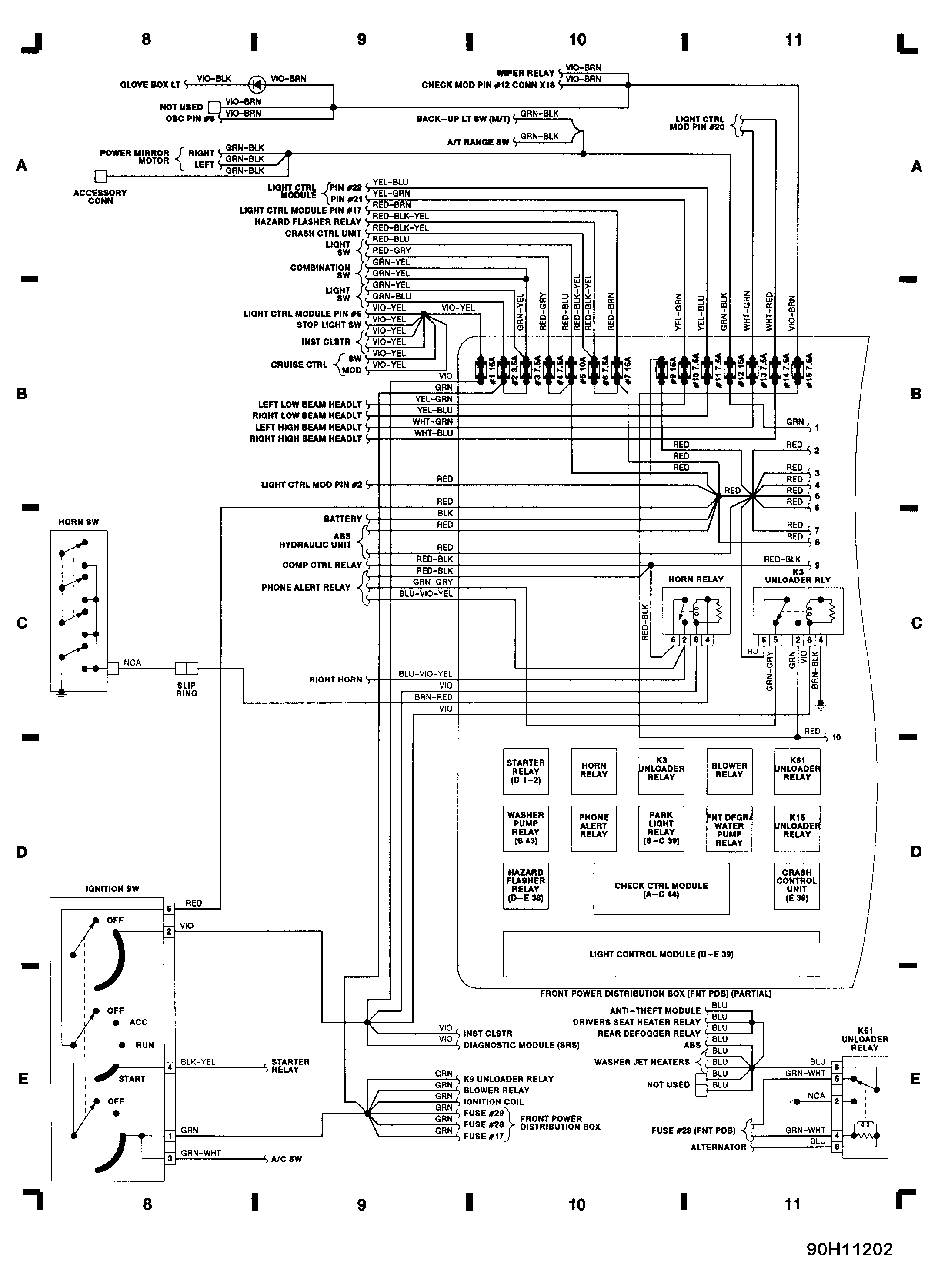

Fig 1: Engine Compartment & Headlights

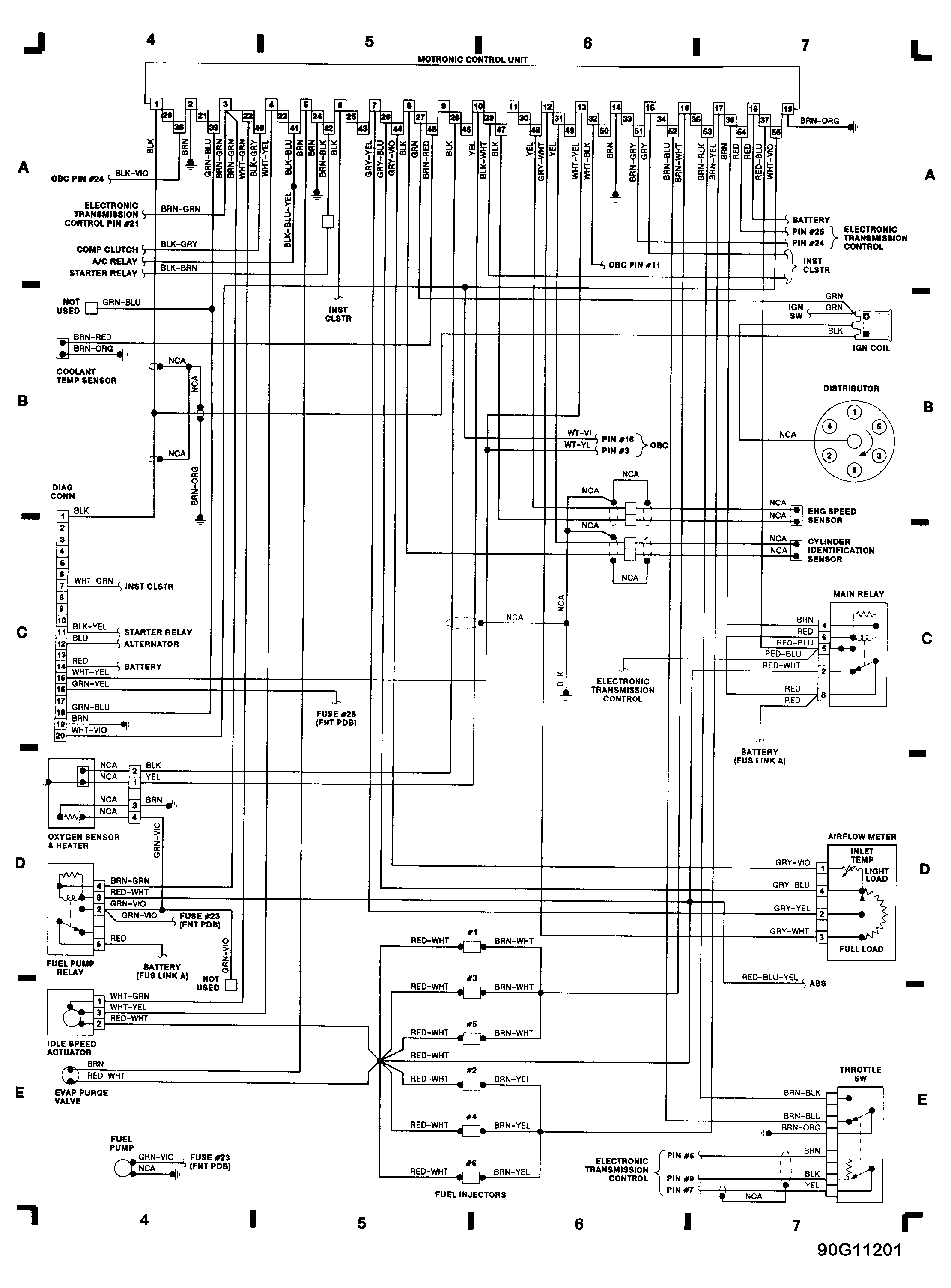

Fig 2: Computer Engine Control

Fig 3: Fuse Block

Fig 4: Fuse Block (Continued)

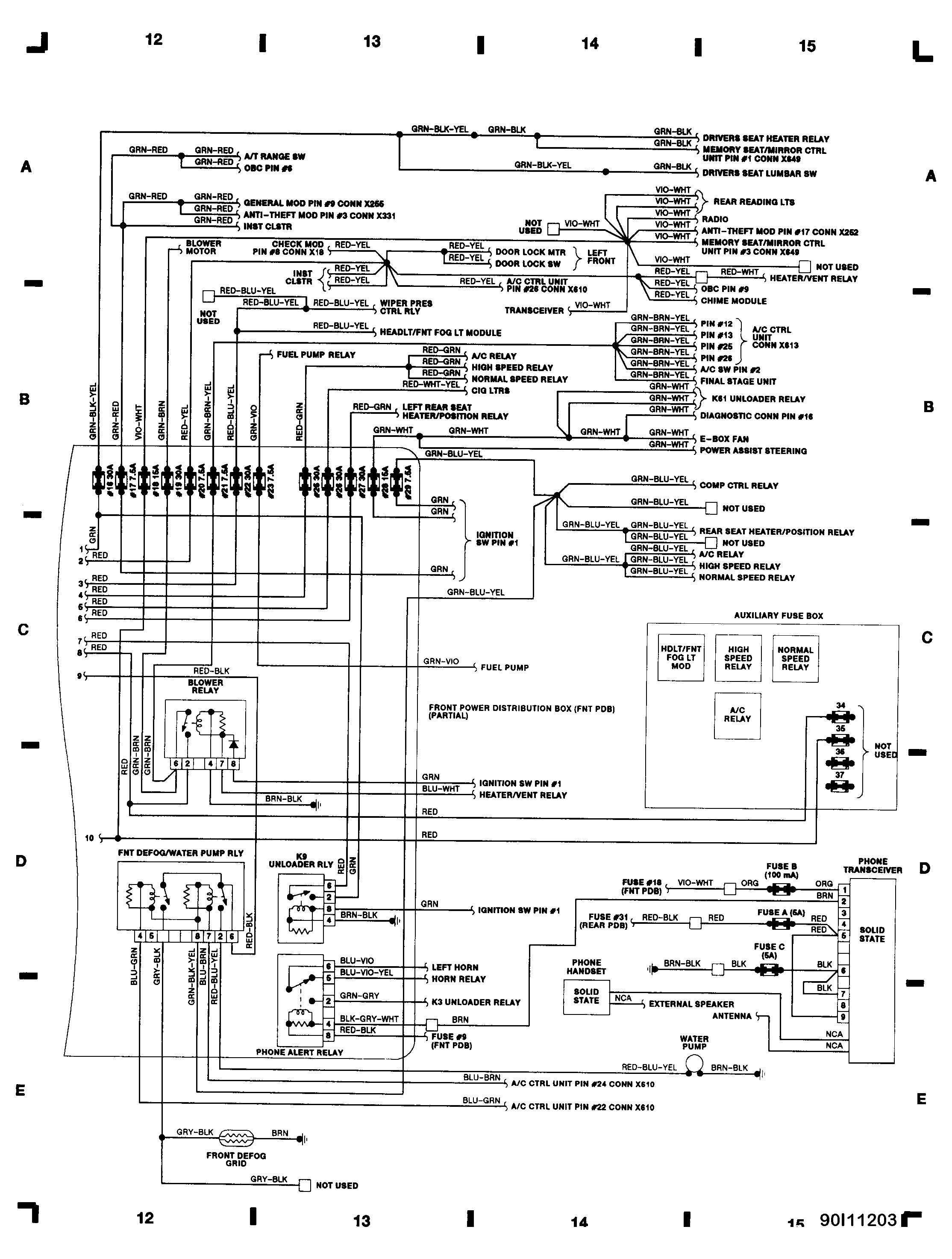

Fig 5: Auxiliary Fuse Block

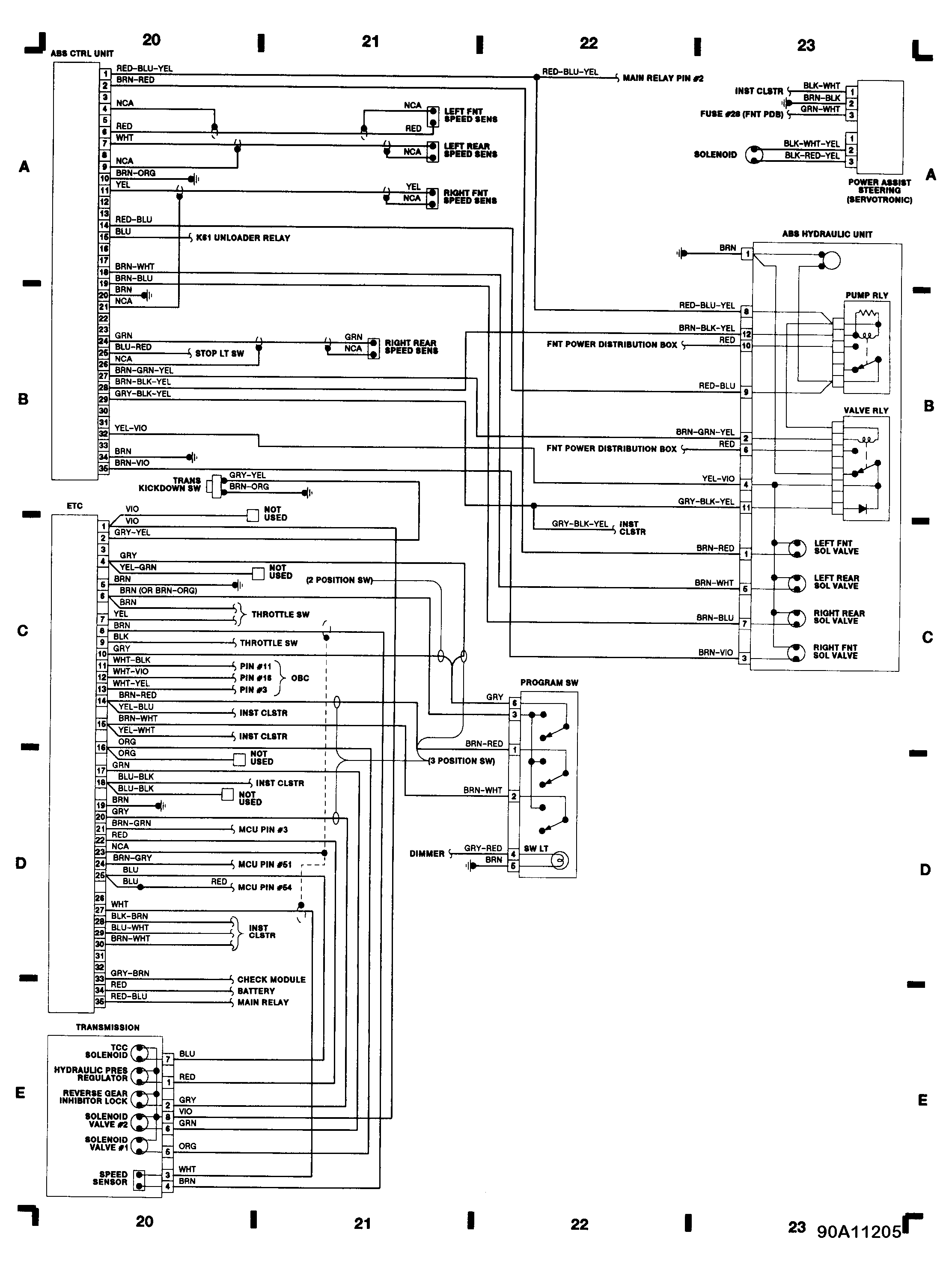

Fig 6: Anti-Lock Brake System and Automatic Transmission Control

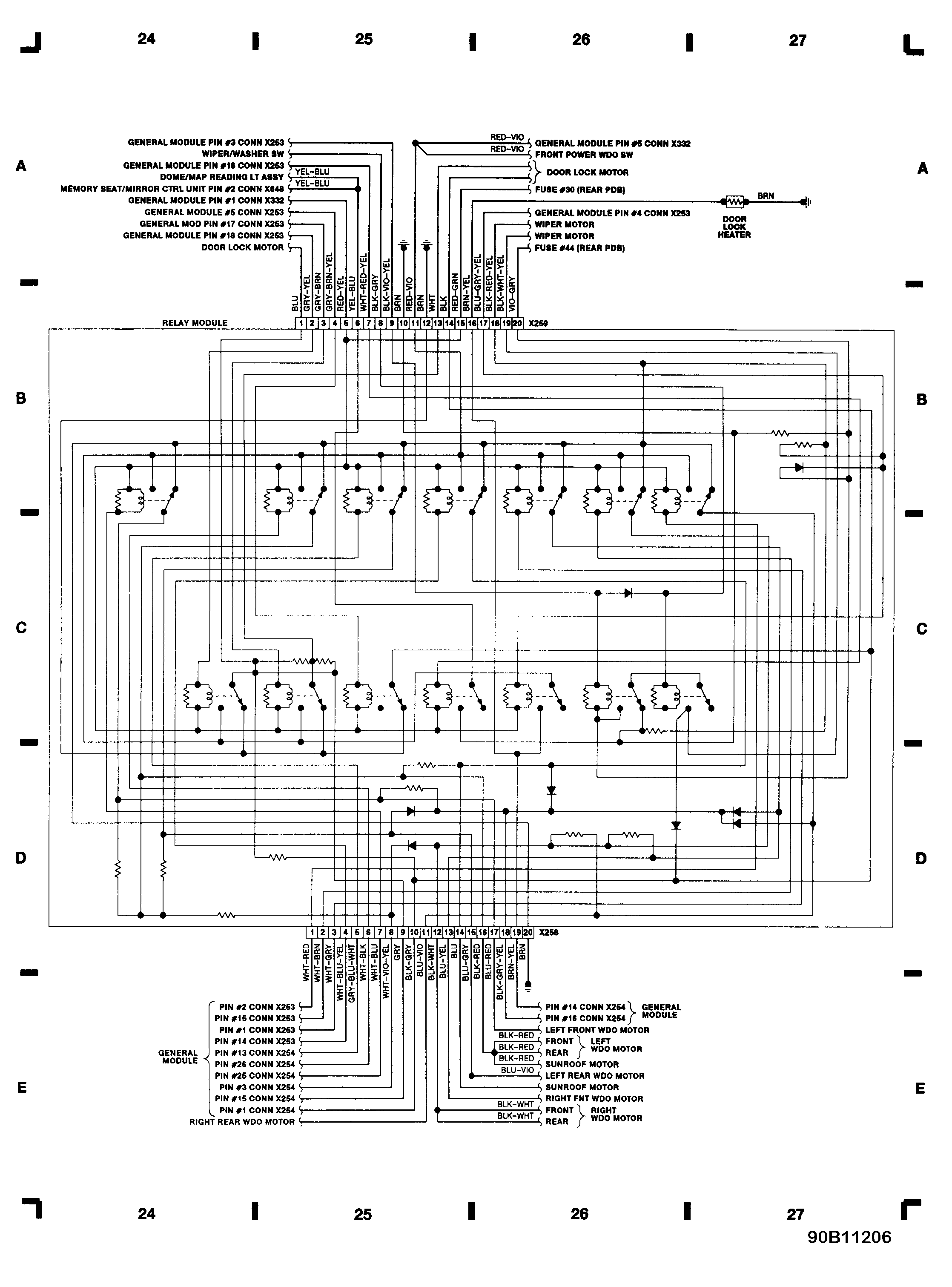

Fig 7: Relay Module

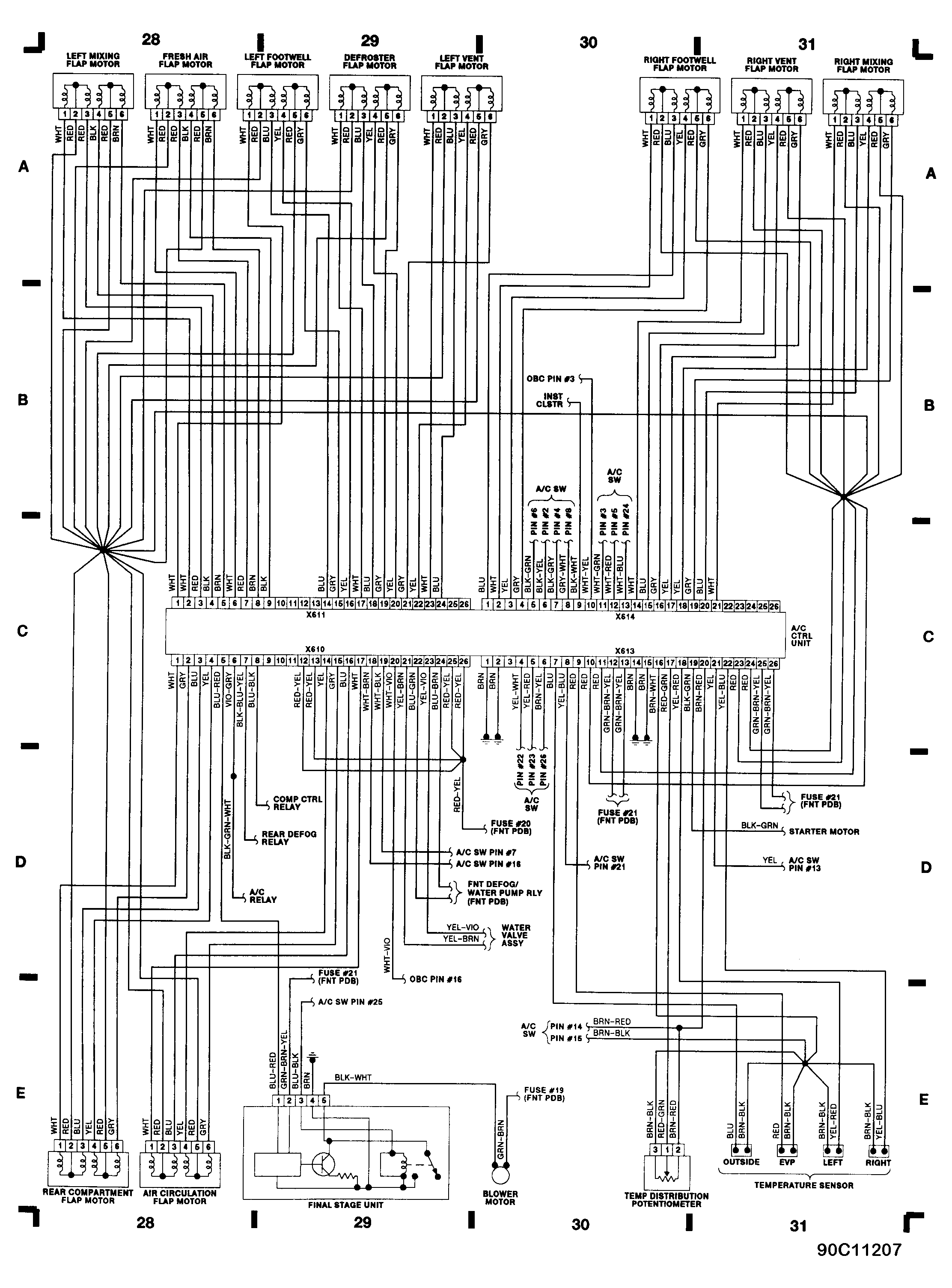

Fig 8: A/C & Heating Control System

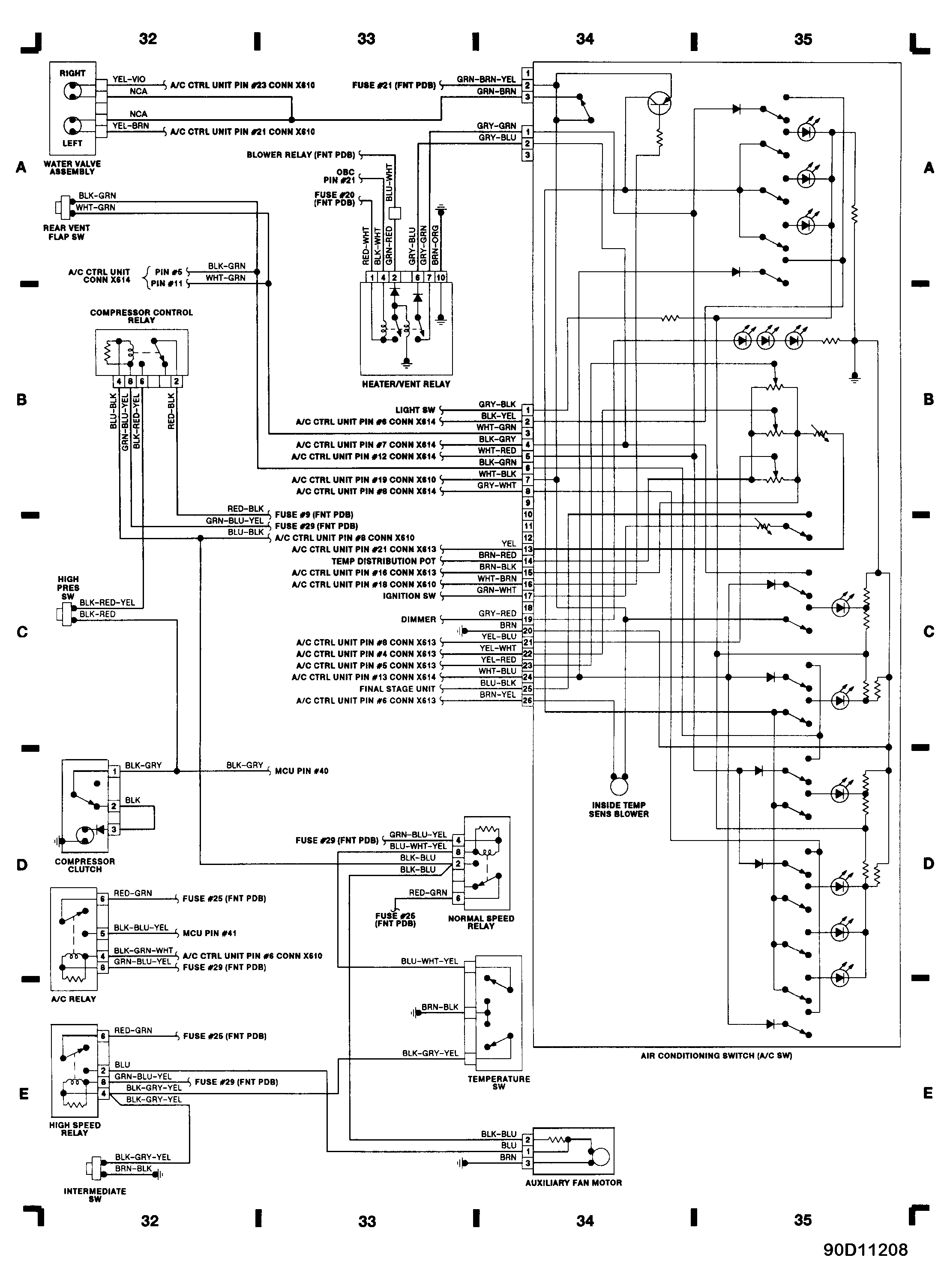

Fig 9: A/C & Heating Switches

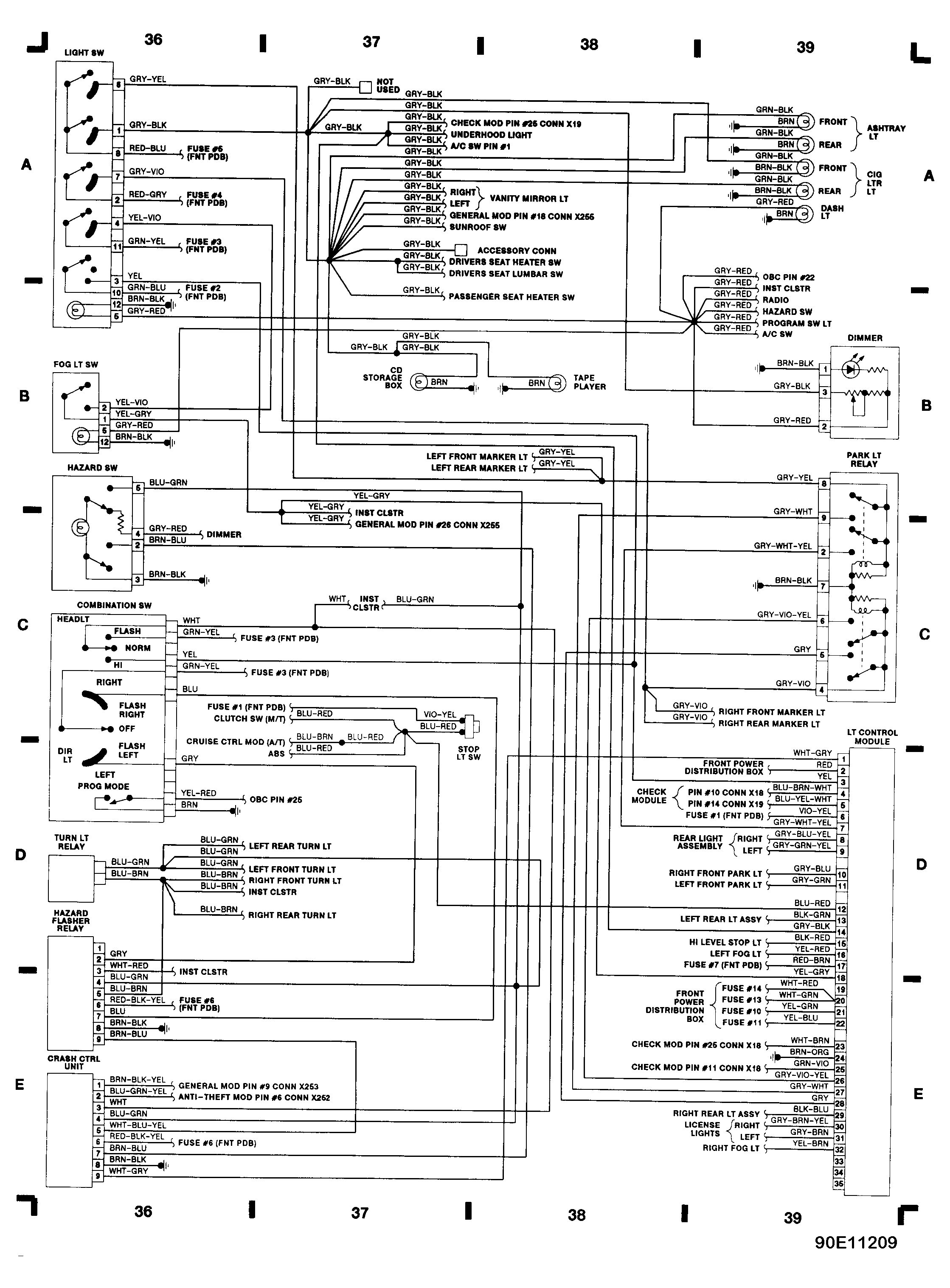

Fig 10: Light Control System

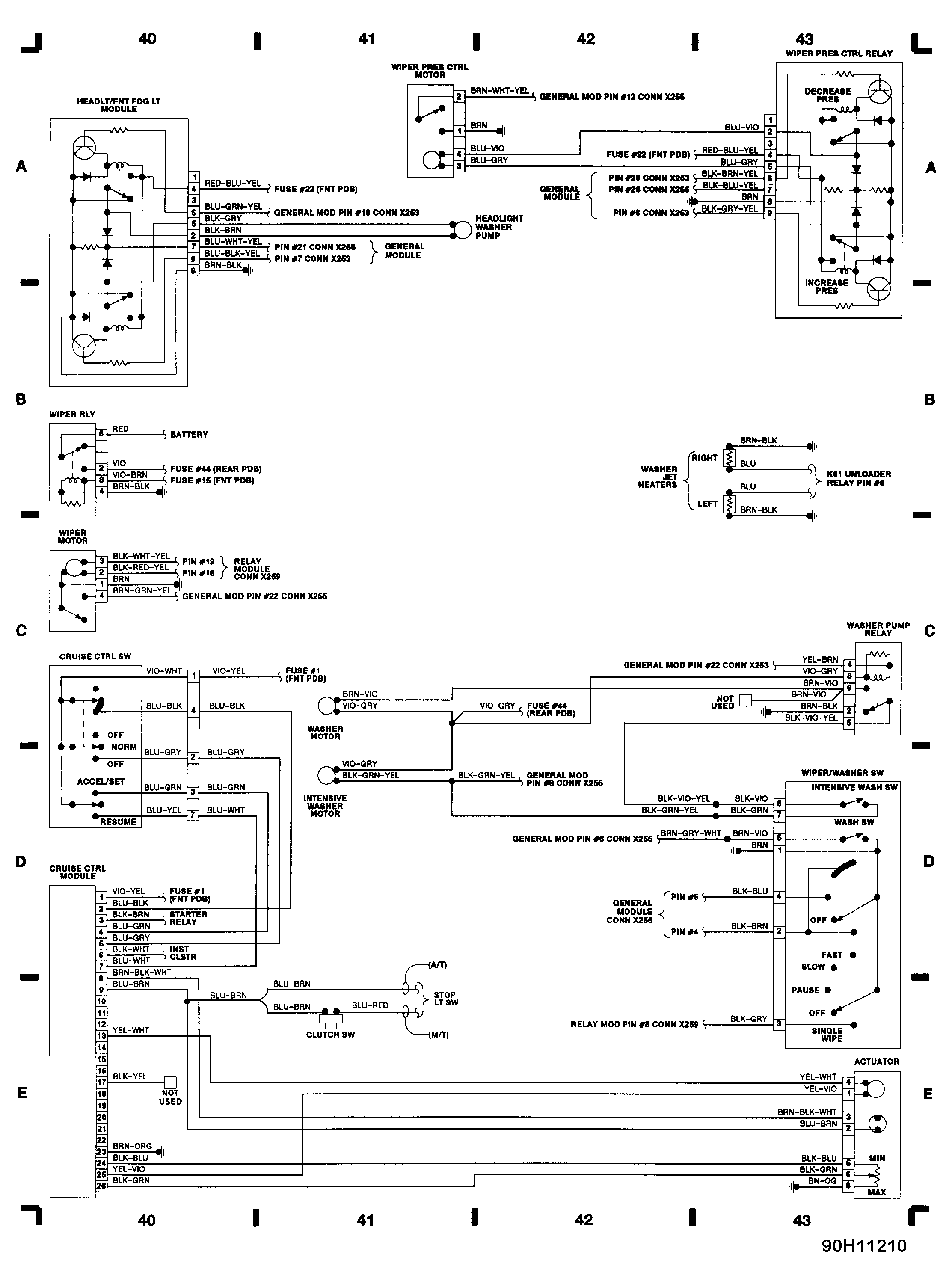

Fig 11: Wiper/Washer System and Cruise Control

Fig 12: Diagnostic System

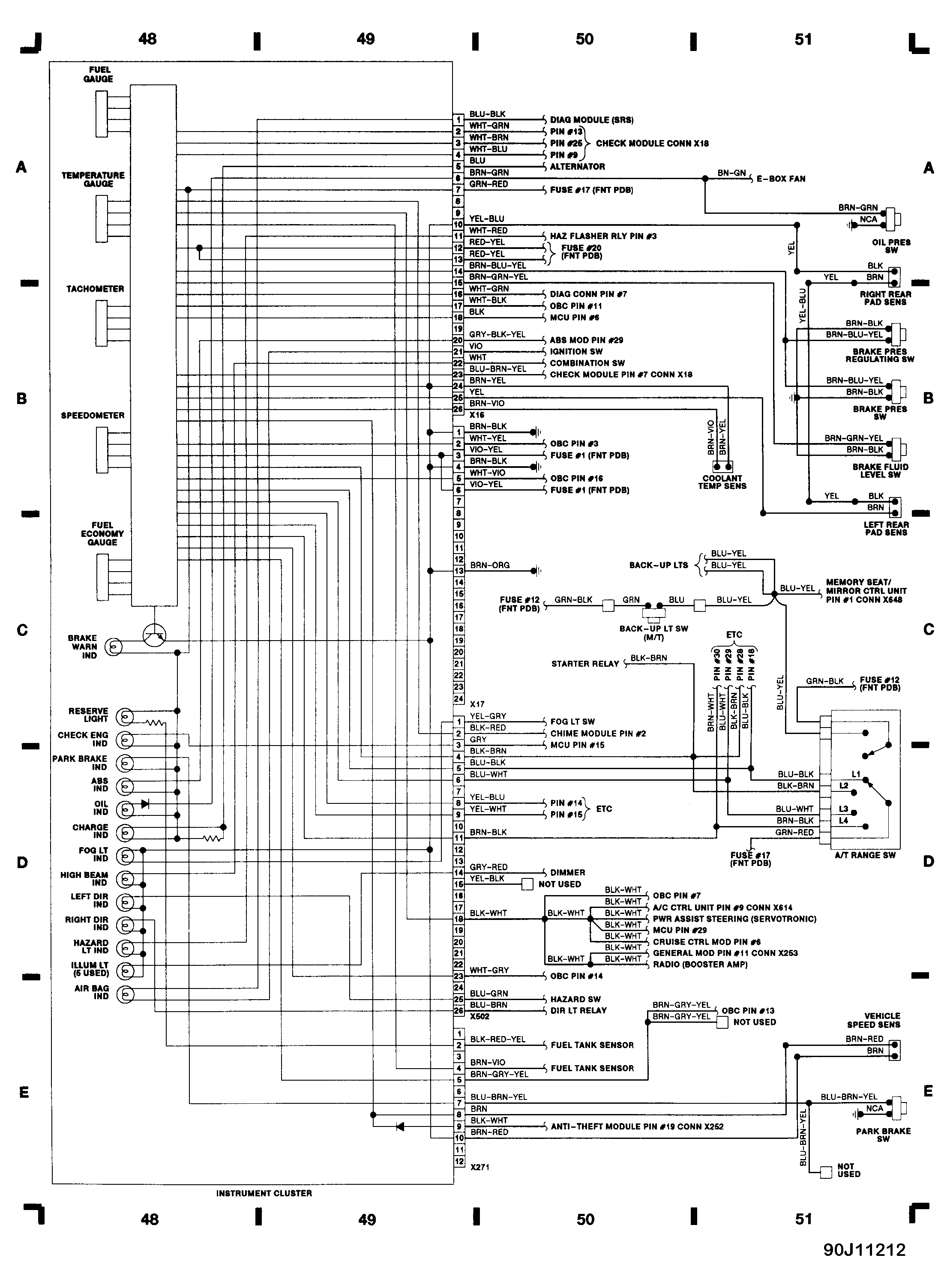

Fig 13: Instrument Panel

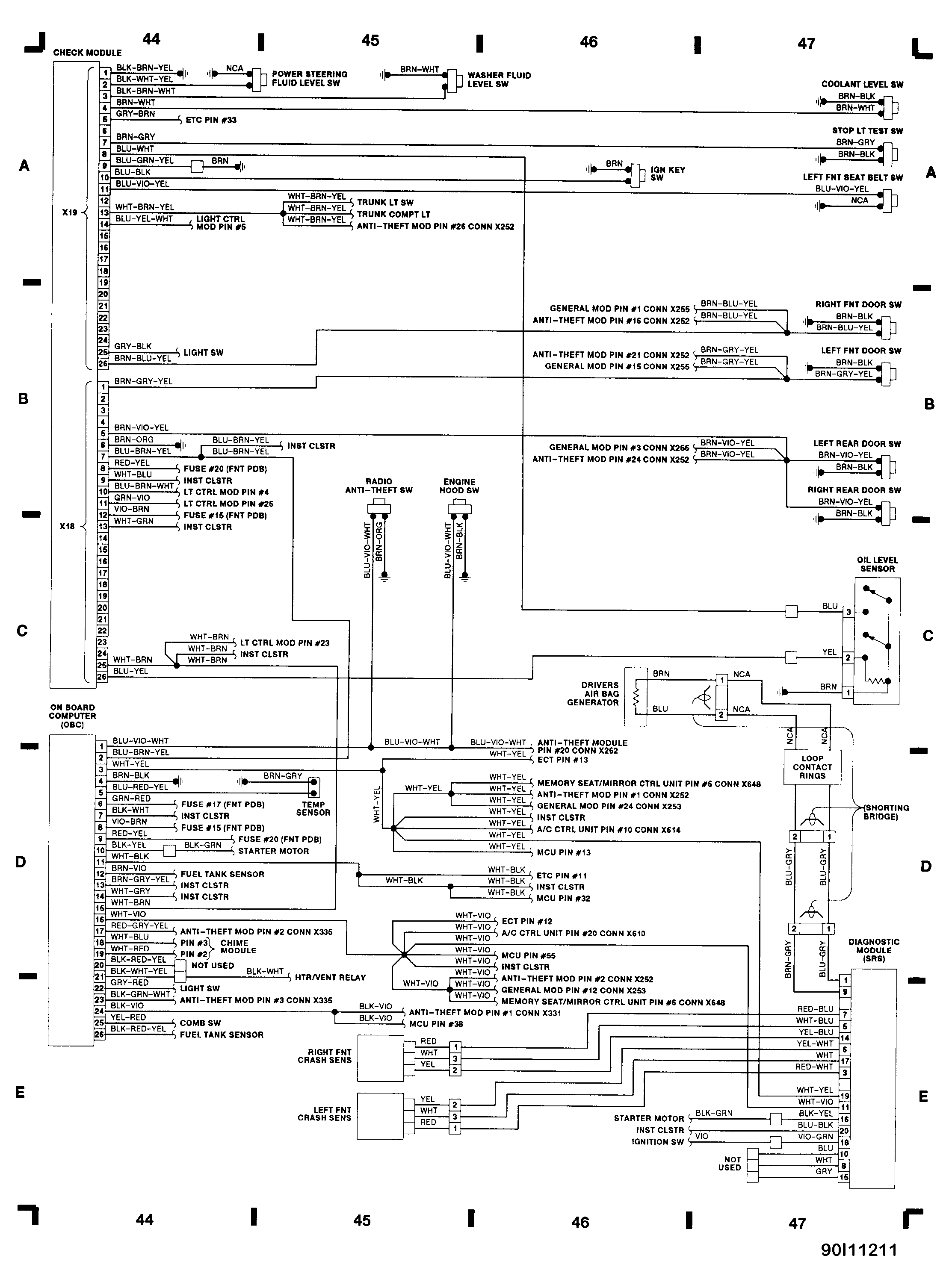

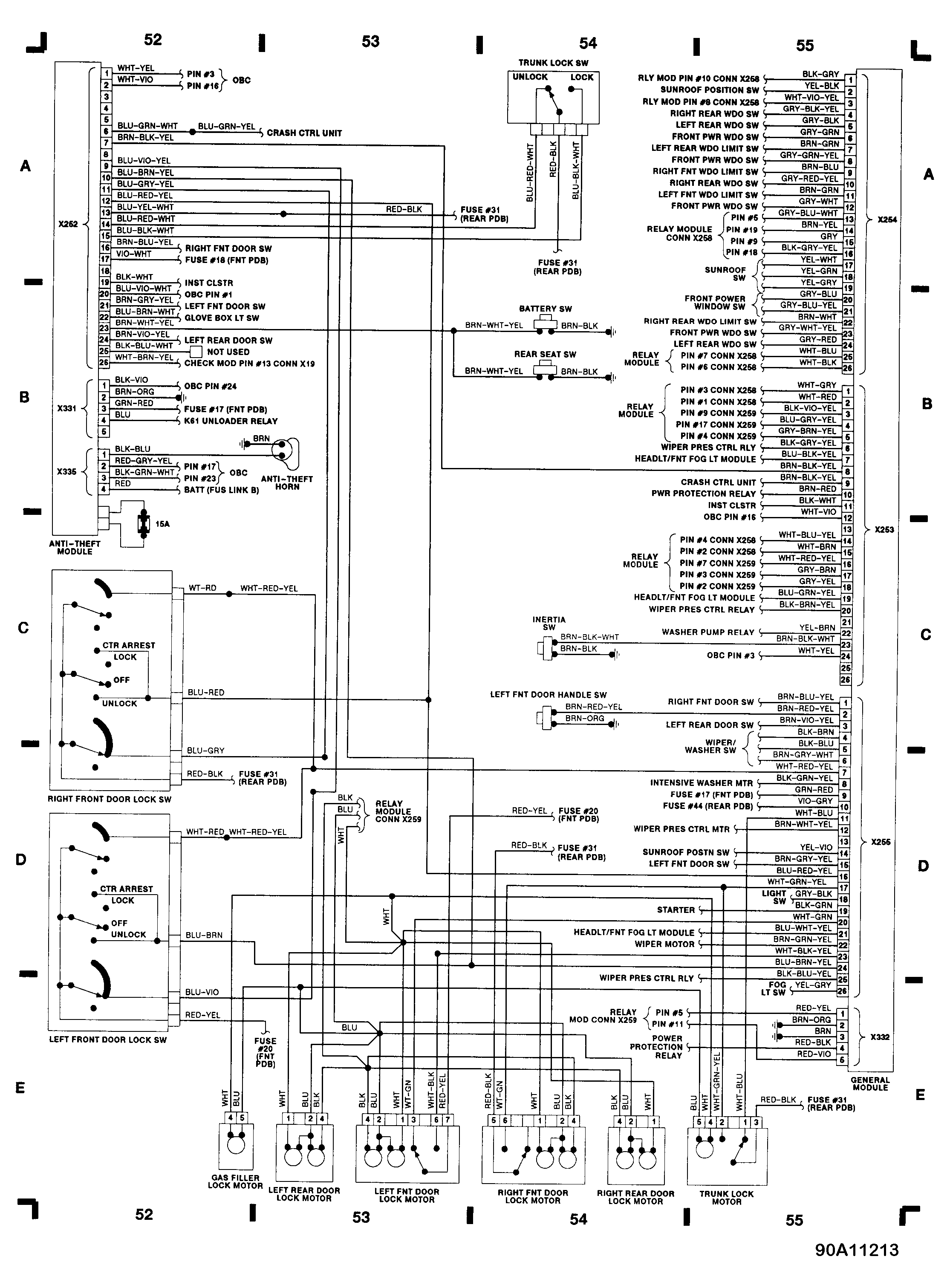

Fig 14: Anti-Theft System

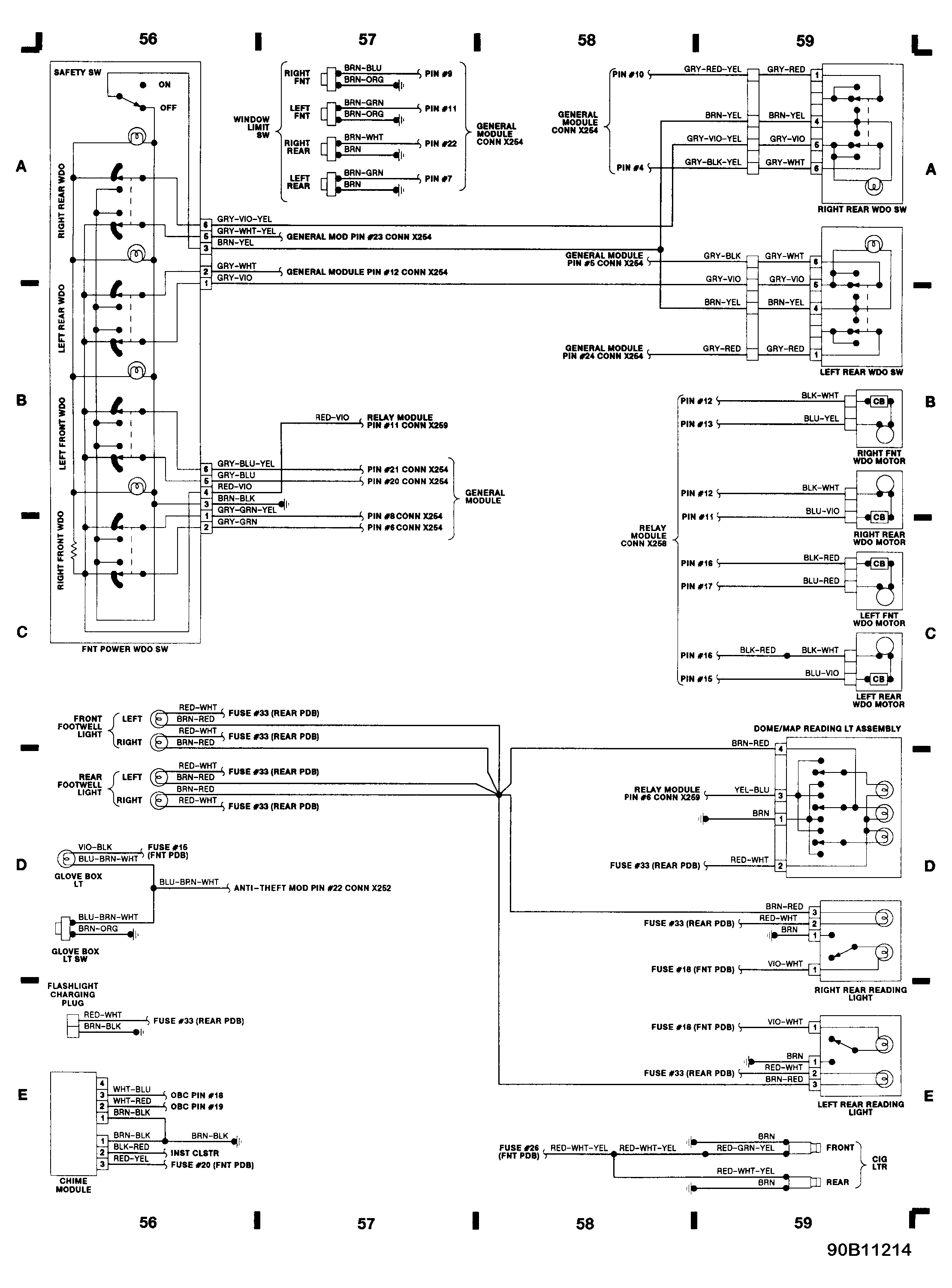

Fig 15: Power Window System

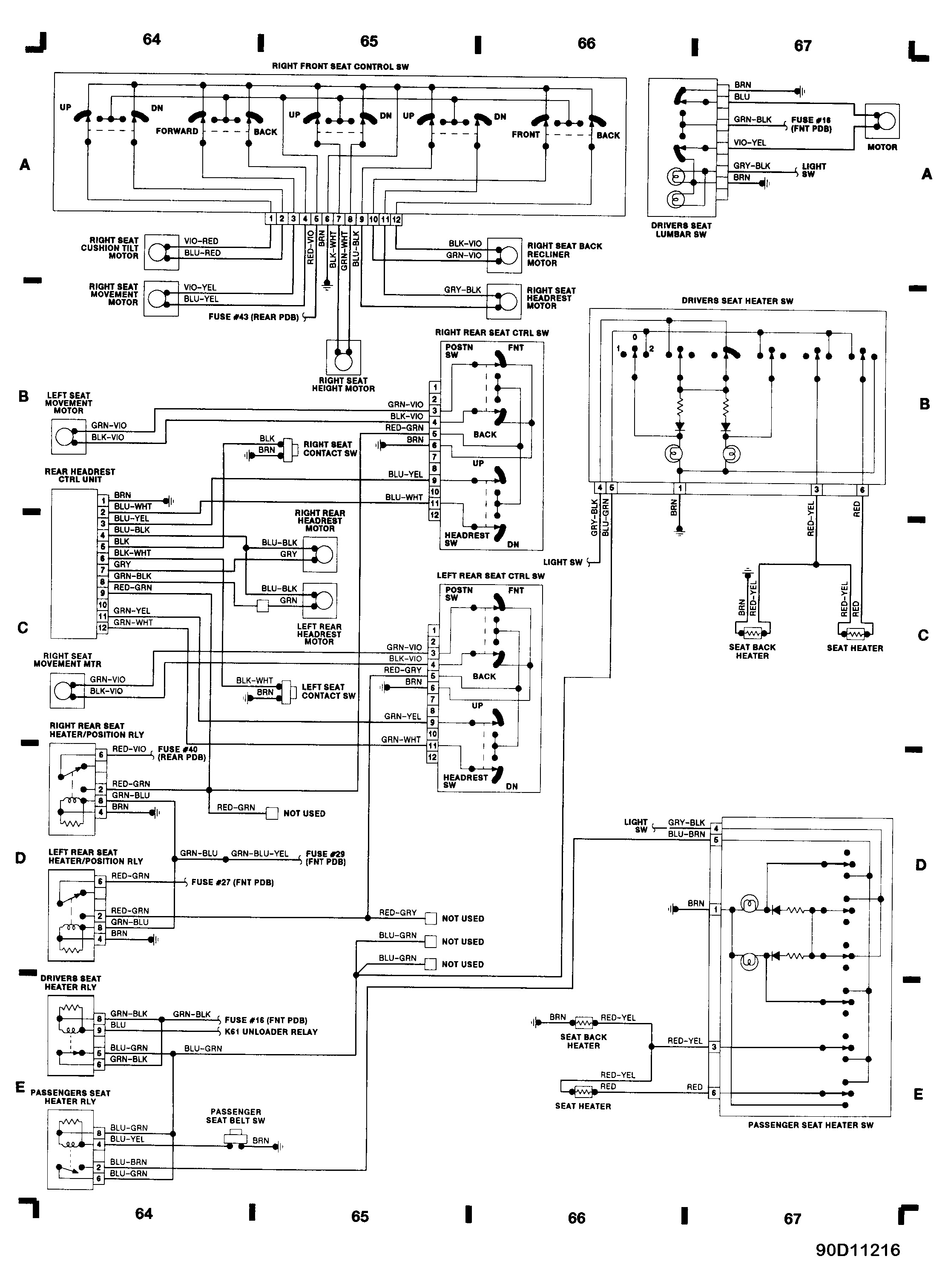

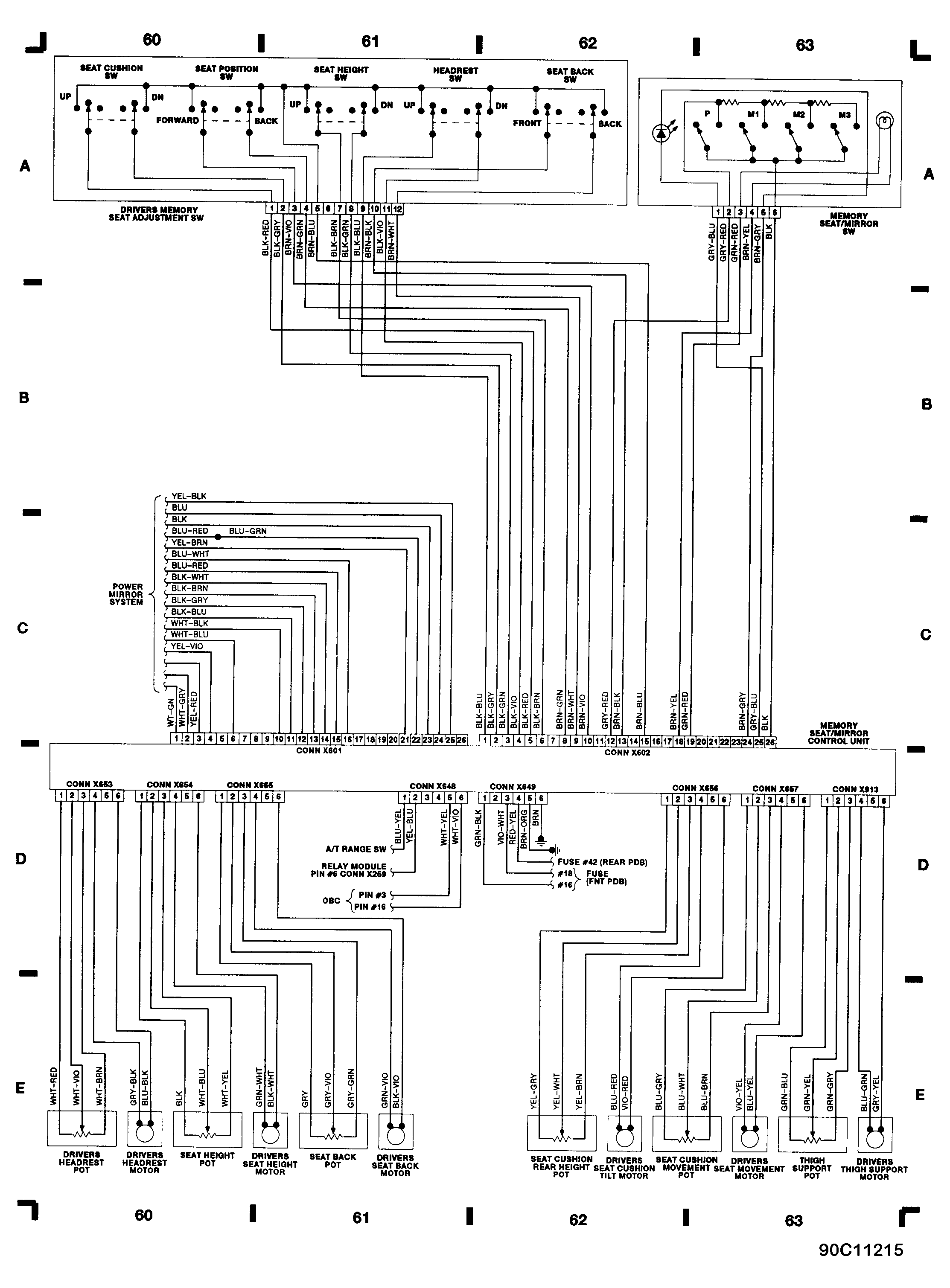

Fig 16: Power Seats

Fig 17: Power Seats (Continued)

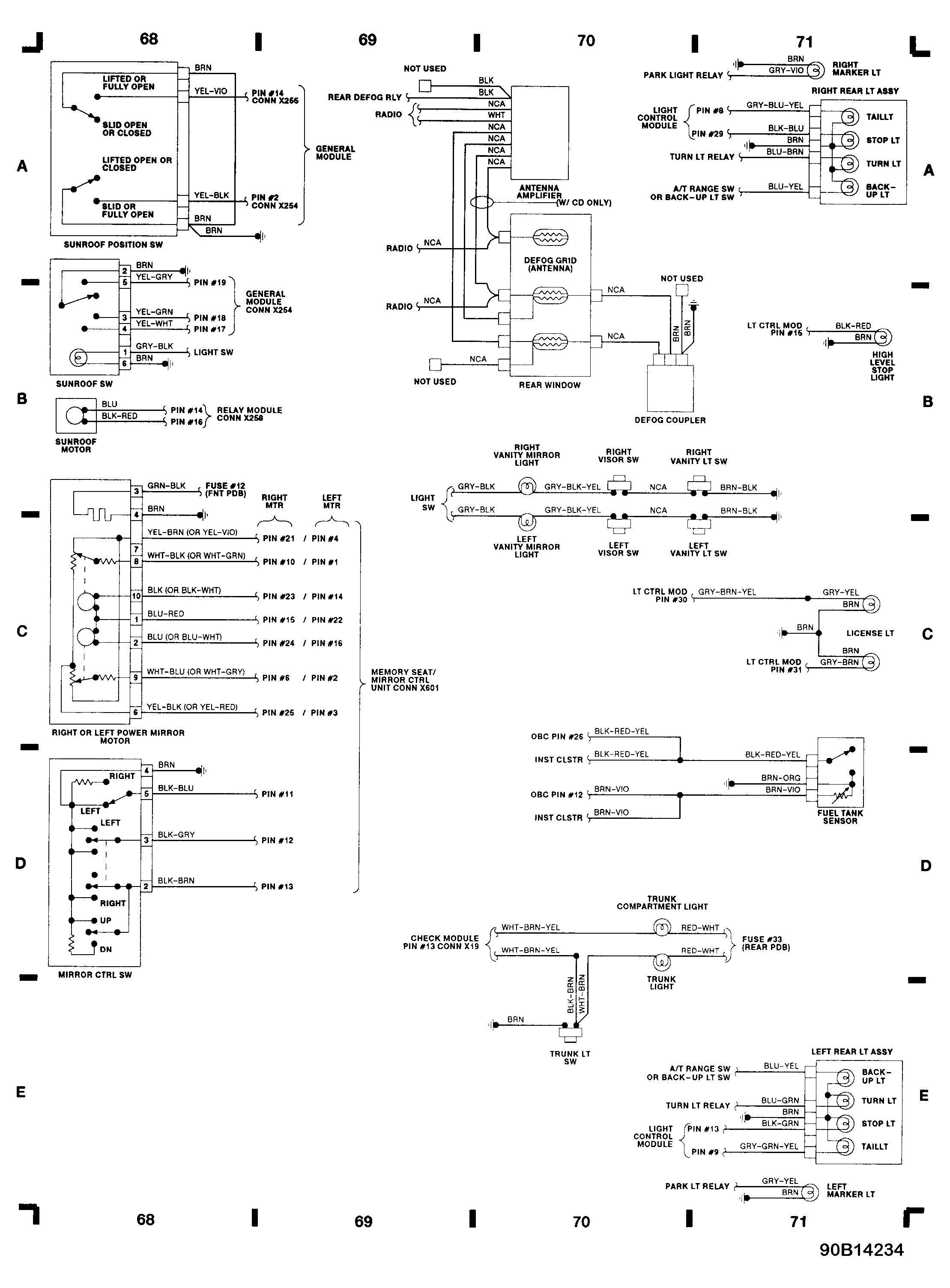

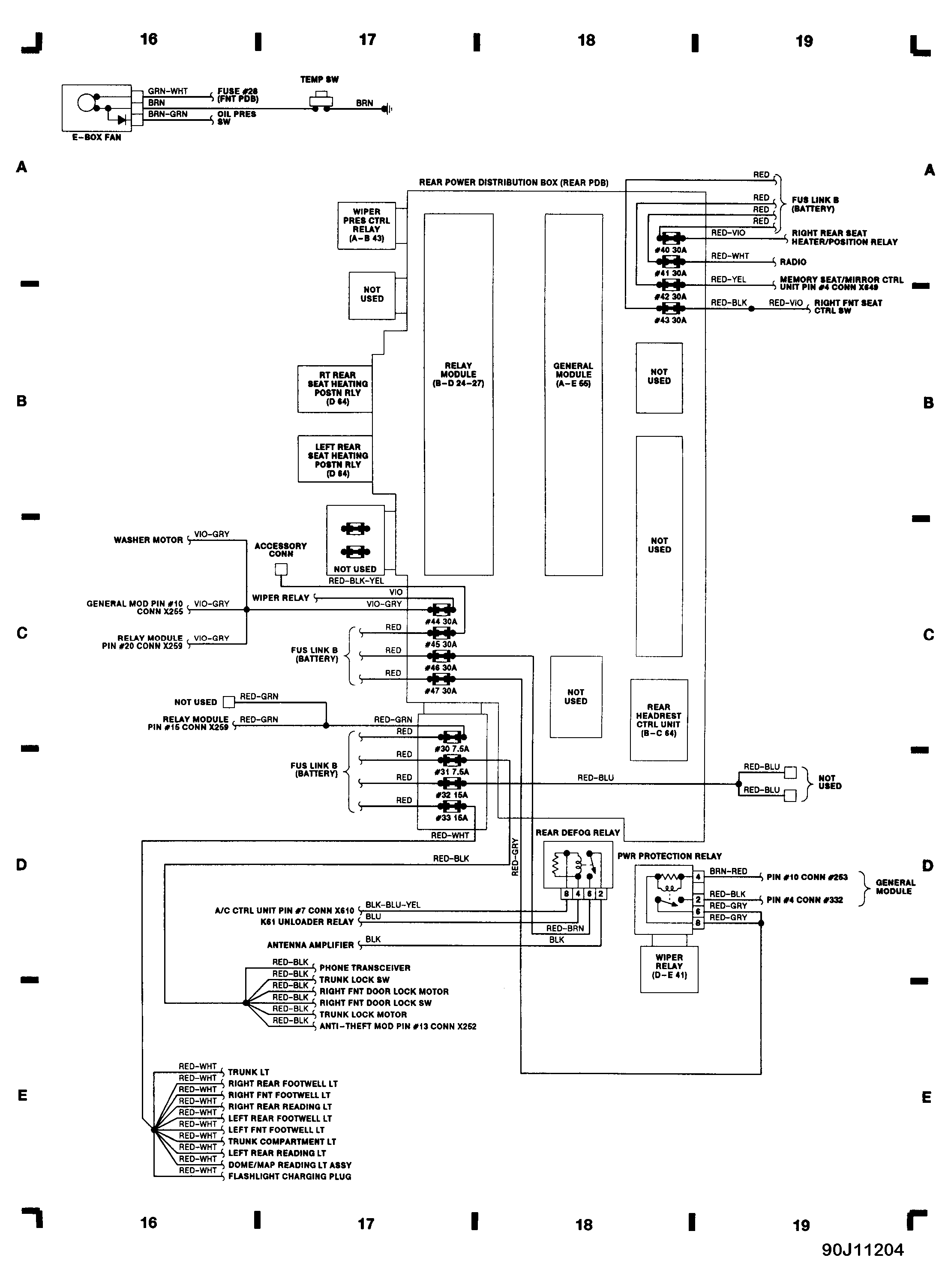

Fig 18: Passenger Compartment & Taillights
