Wiring Diagrams

WARNING: This page is about a different car, the 1989 BMW 325is, 1989 BMW 325iX, and 1989 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

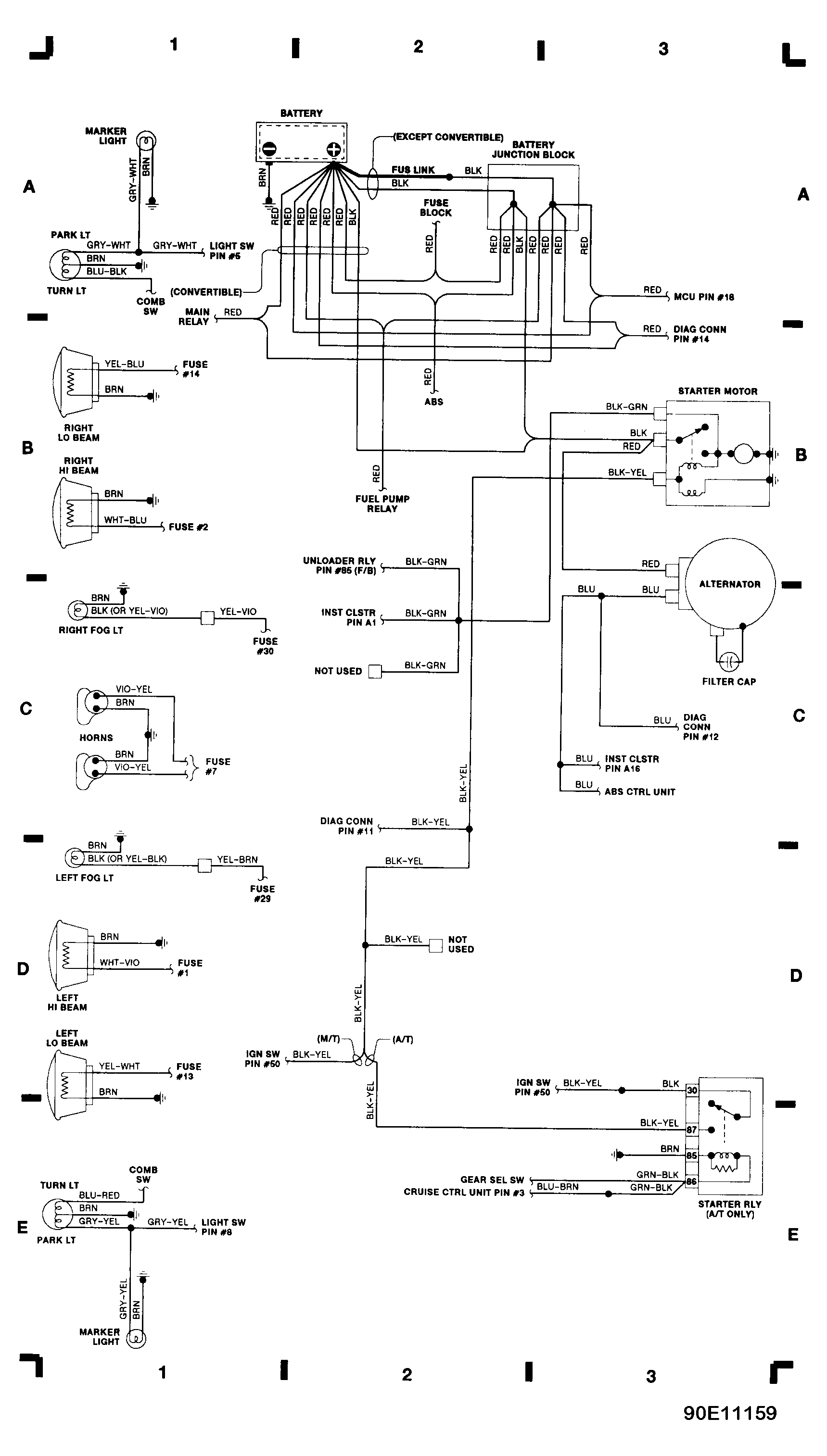

Fig 1: Engine Compartment & Headlights

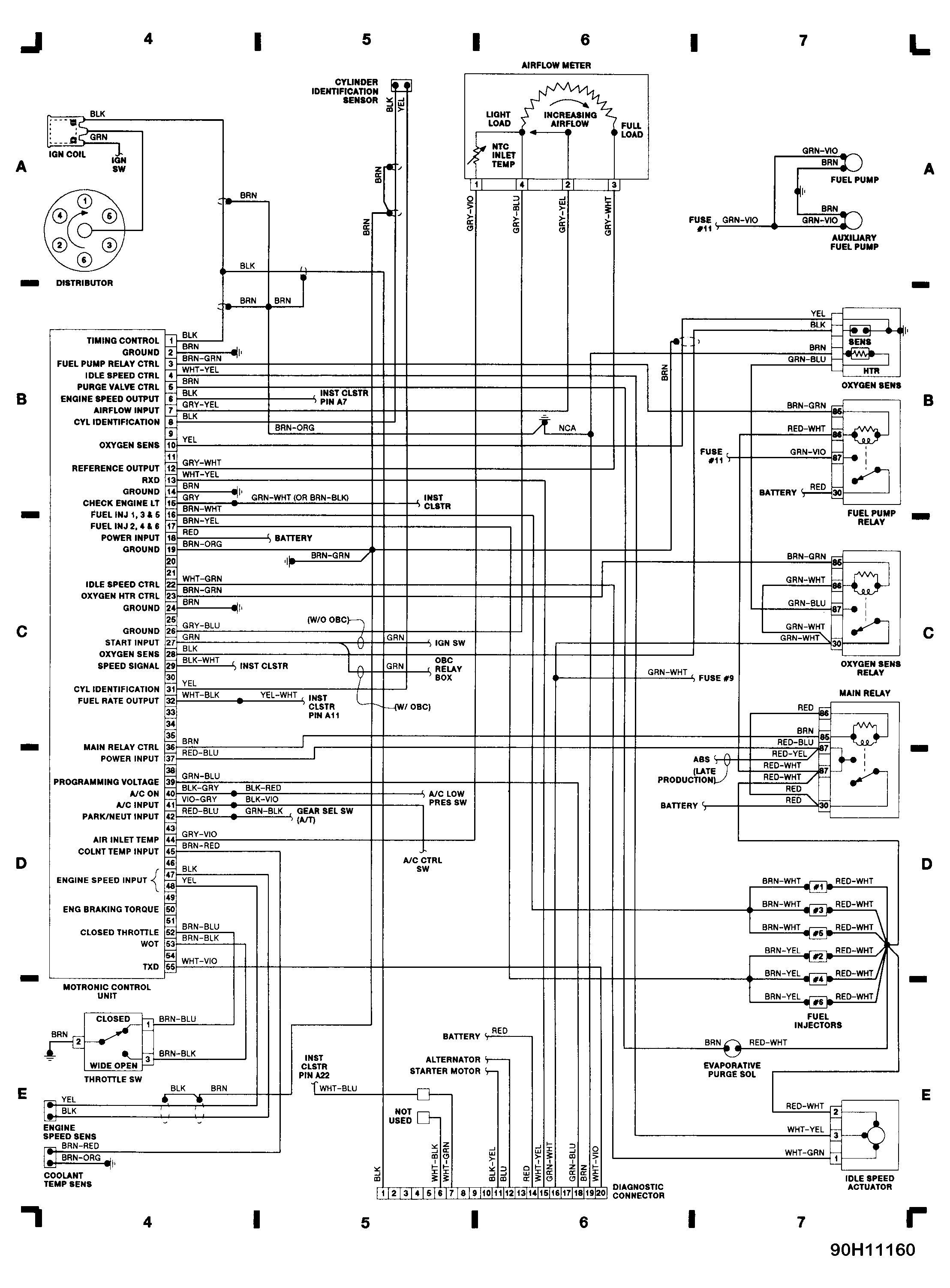

Fig 2: Computer Engine Control

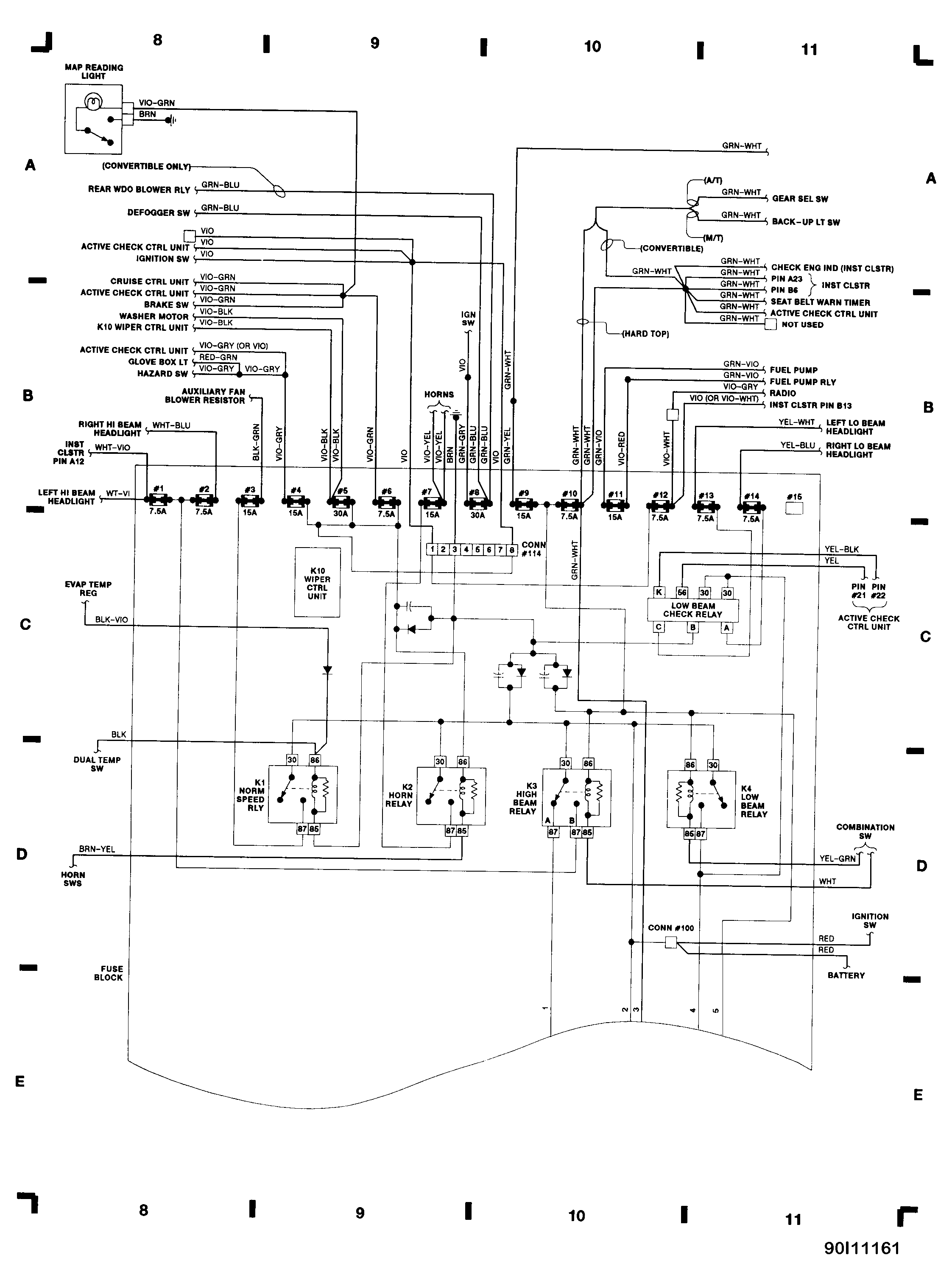

Fig 3: Fuse Block

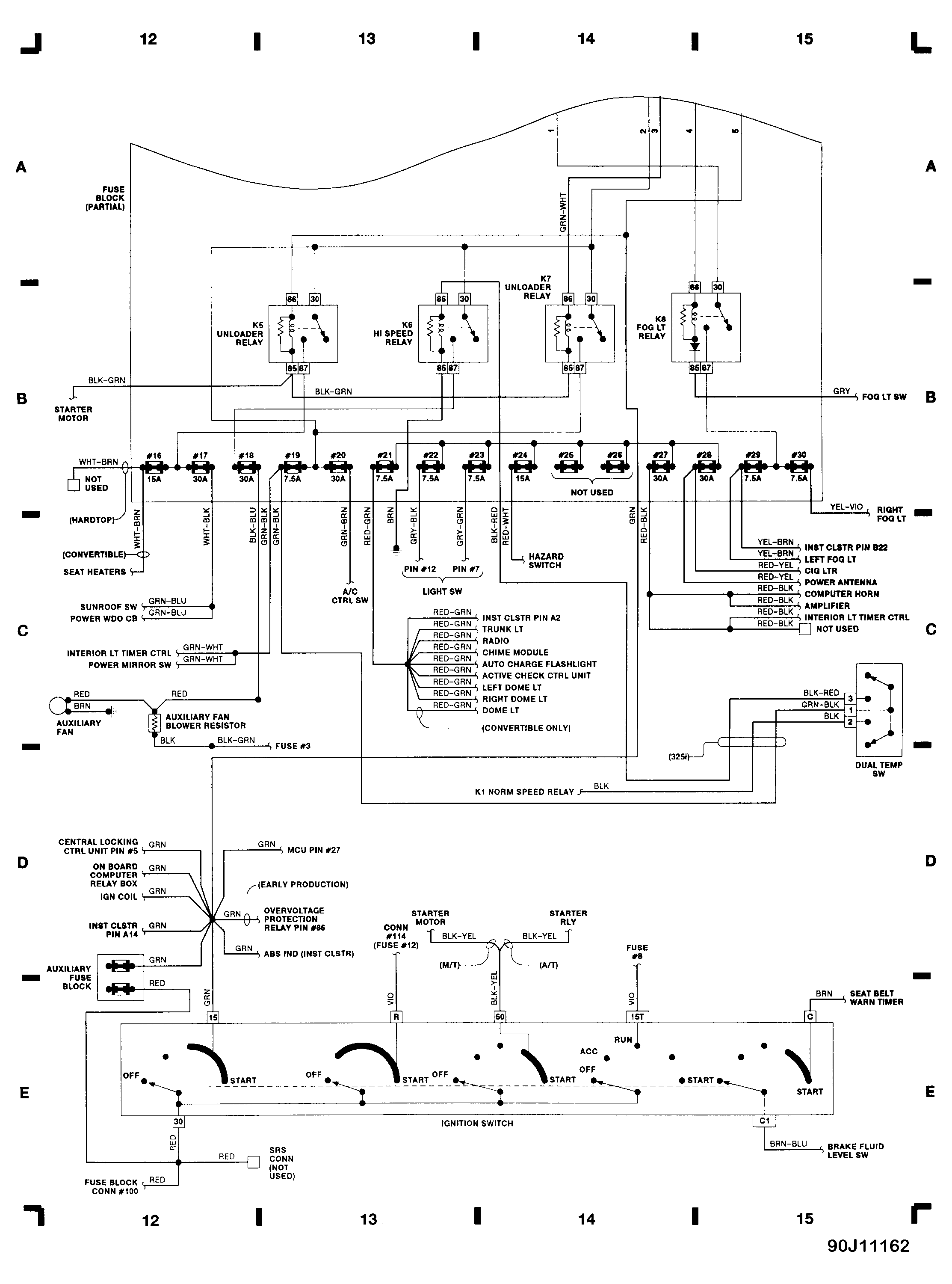

Fig 4: Fuse Block (Continued)

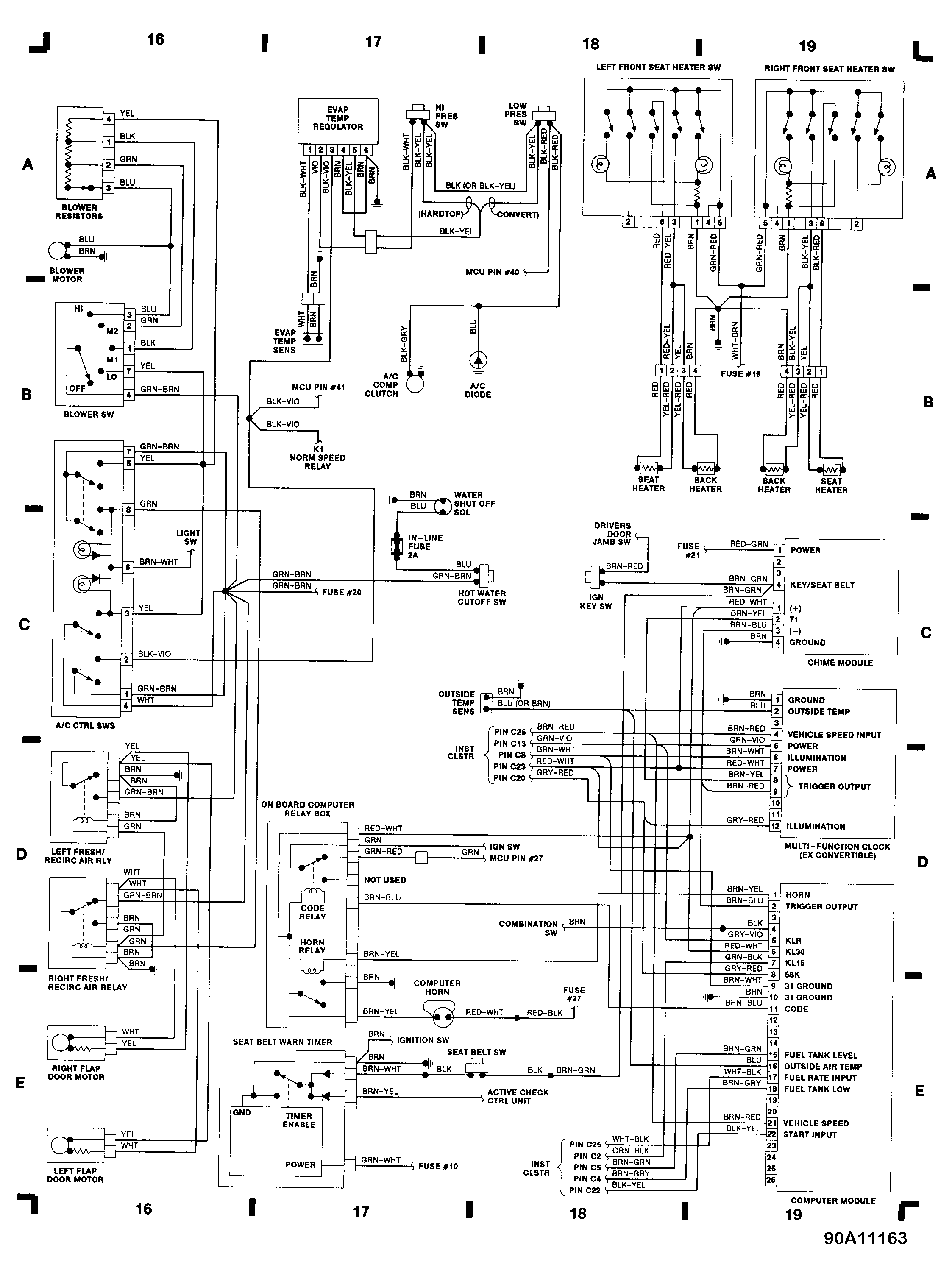

Fig 5: A/C & Heating and Accessories

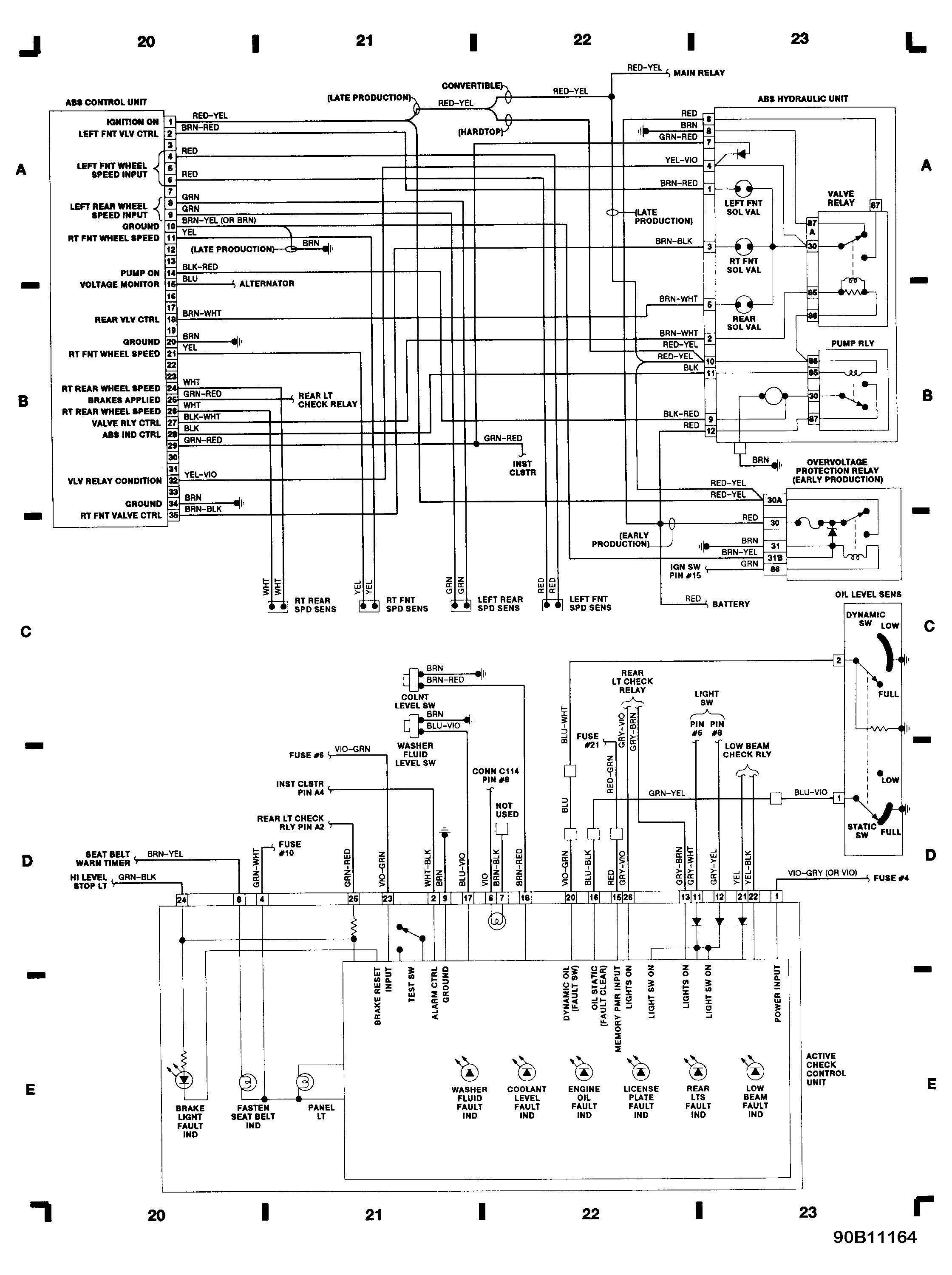

Fig 6: Anti-Lock Brake System

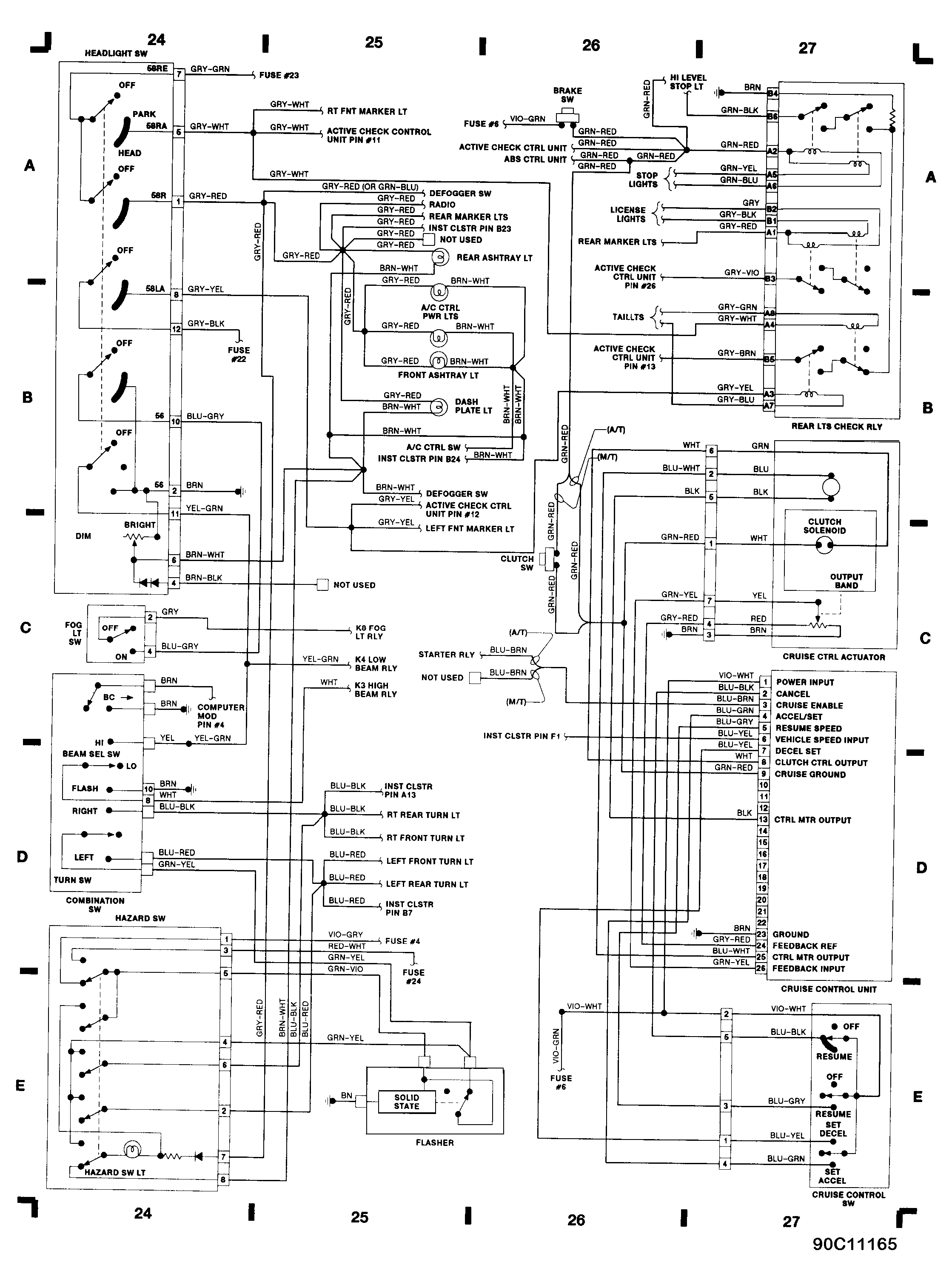

Fig 7: Steering Column and Cruise Control

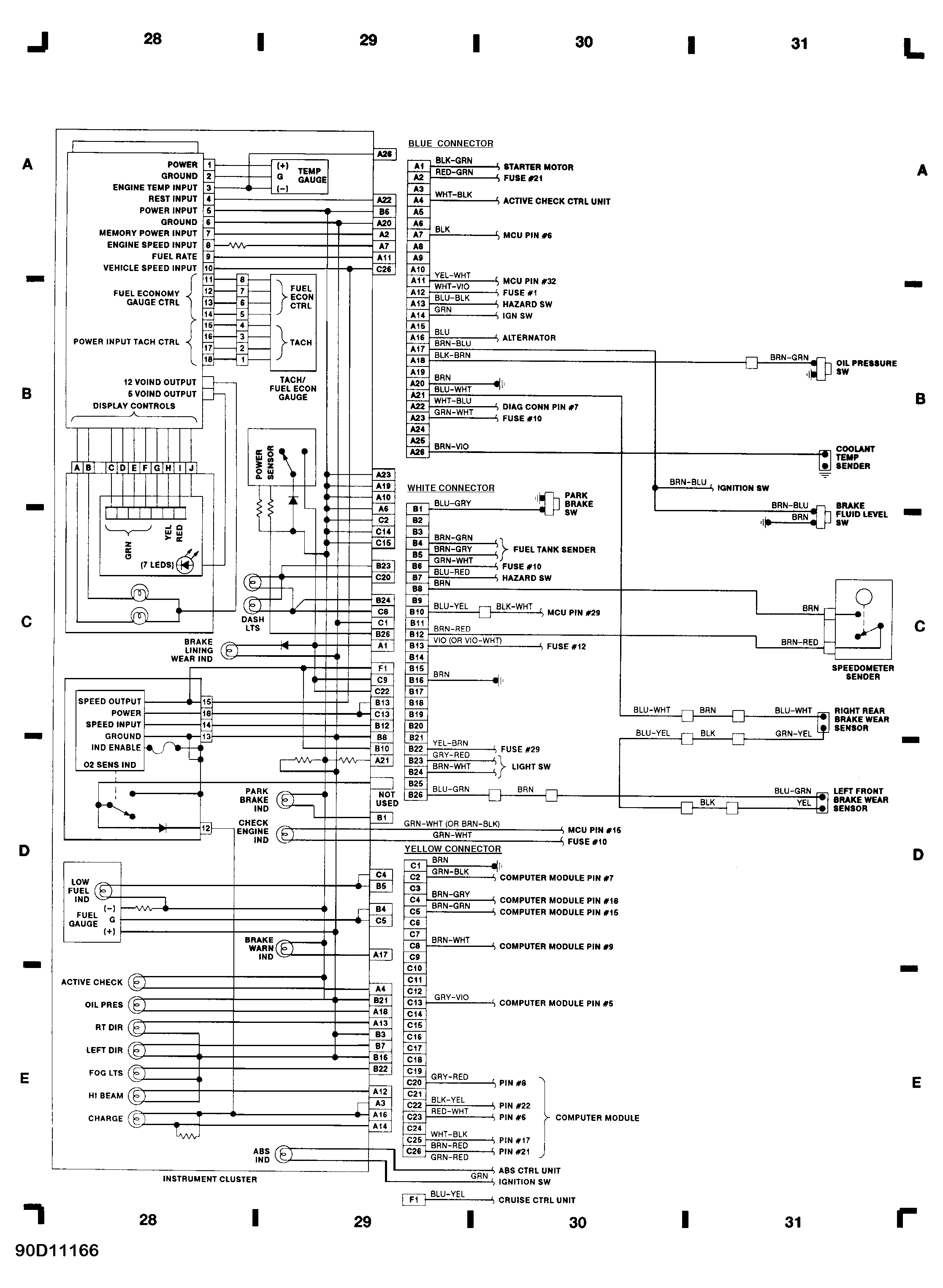

Fig 8: Instrument Panel

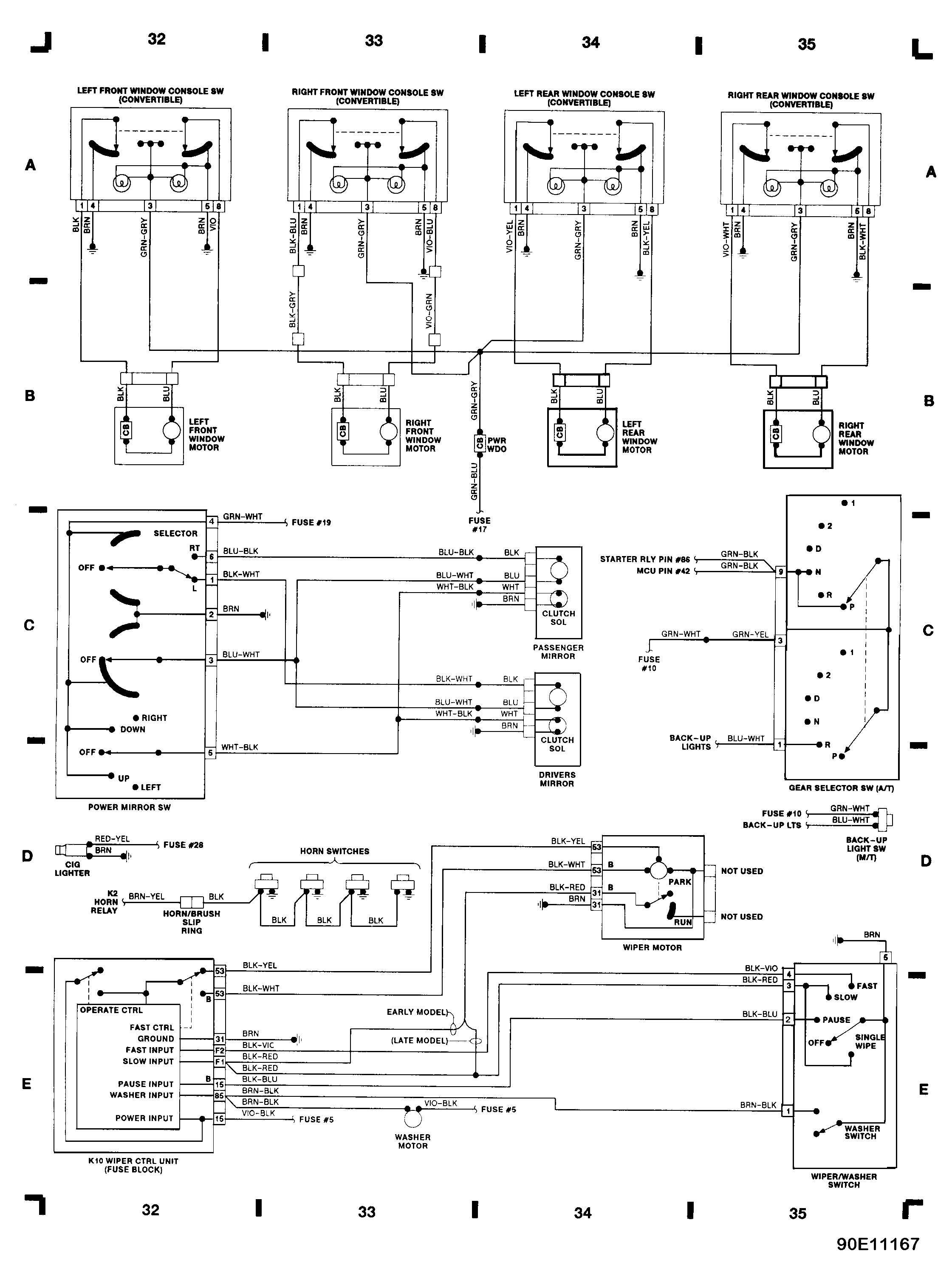

Fig 9: Accessories

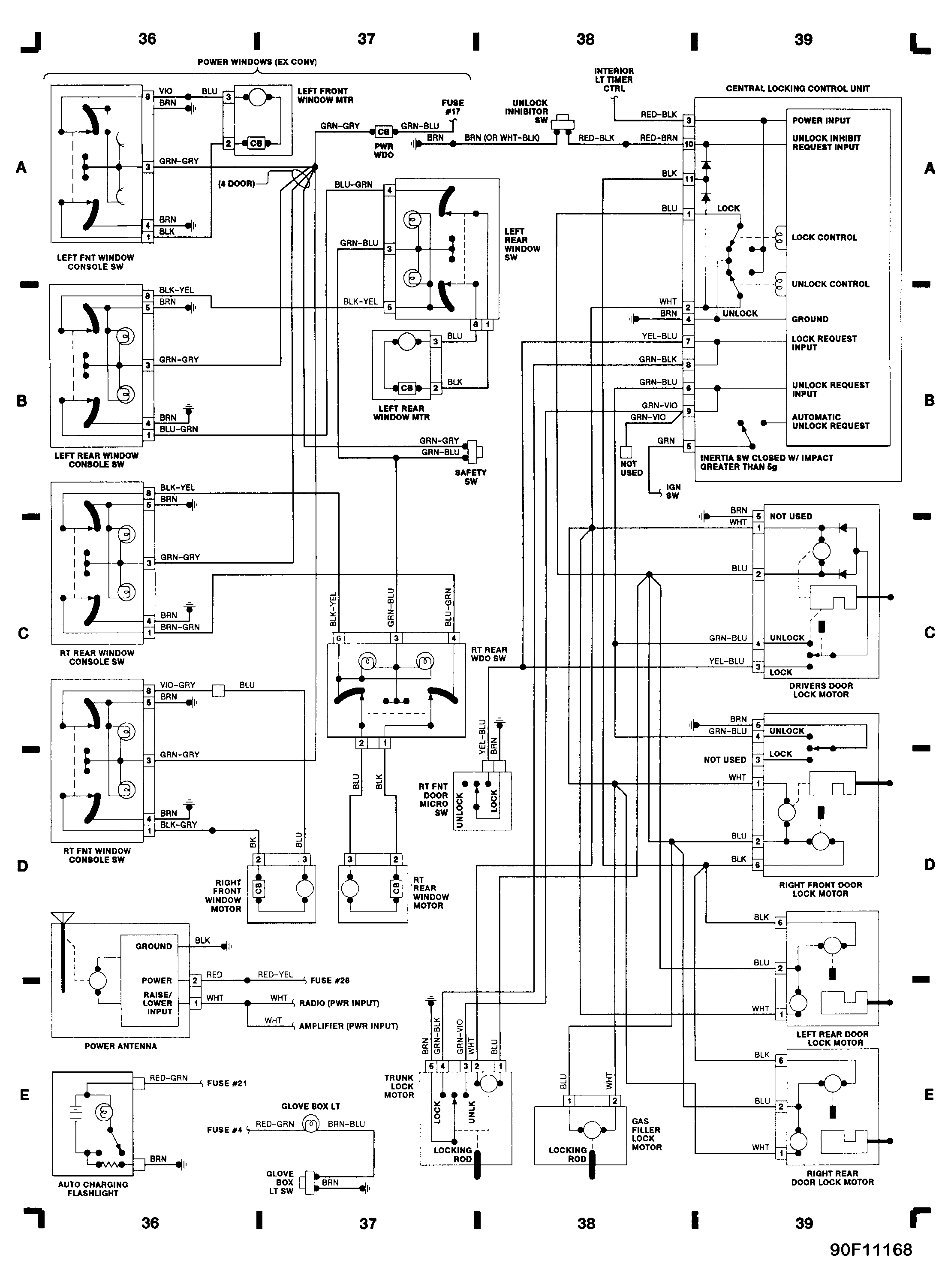

Fig 10: Power Windows & Power Locks

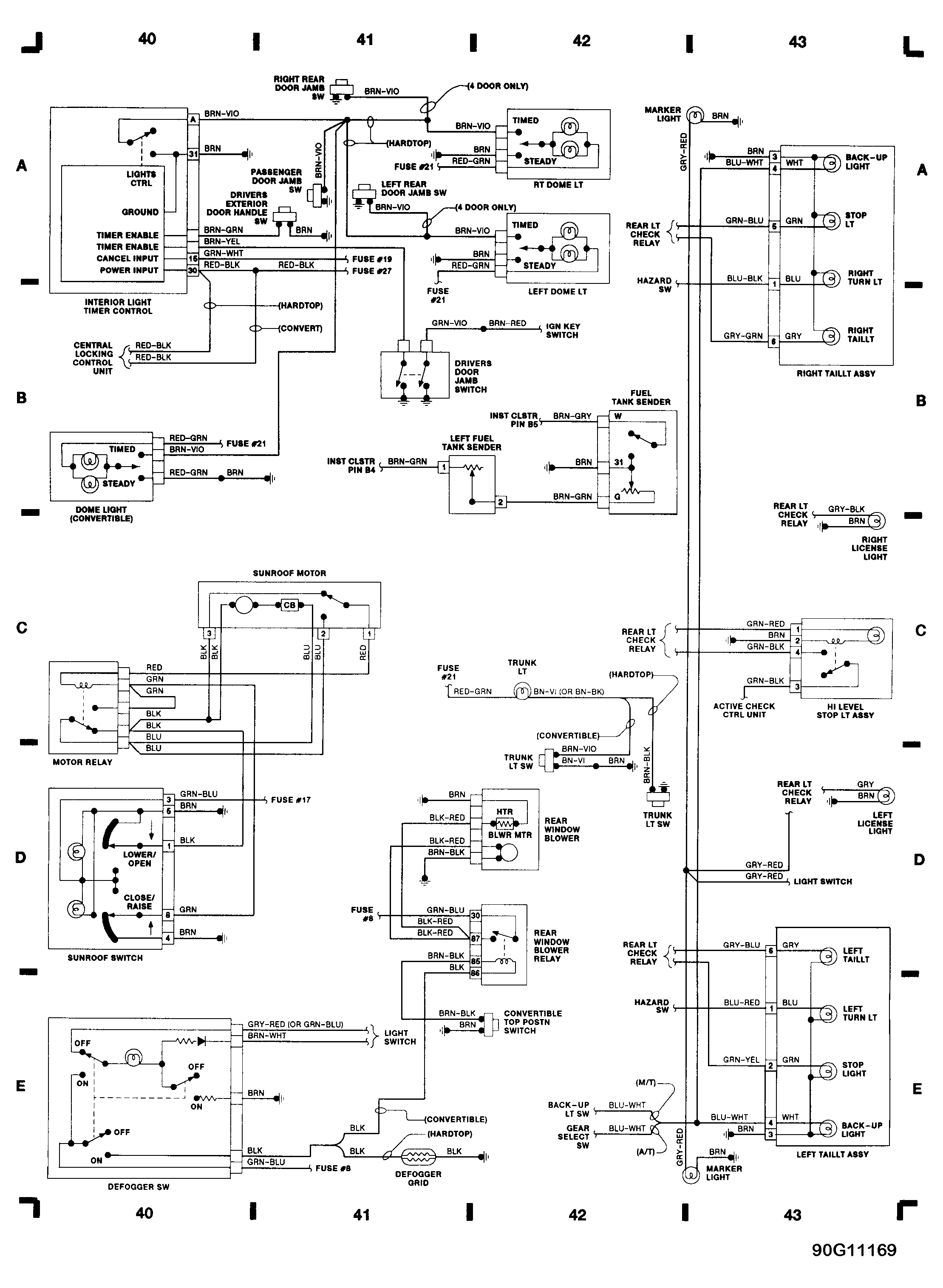

Fig 11: Passenger Compartment & Taillights
