Wiring Diagrams

WARNING: This page is about a different car, the 1988 BMW 635CSi. However, it is still accessible from the selected car via links, so may be relevant.

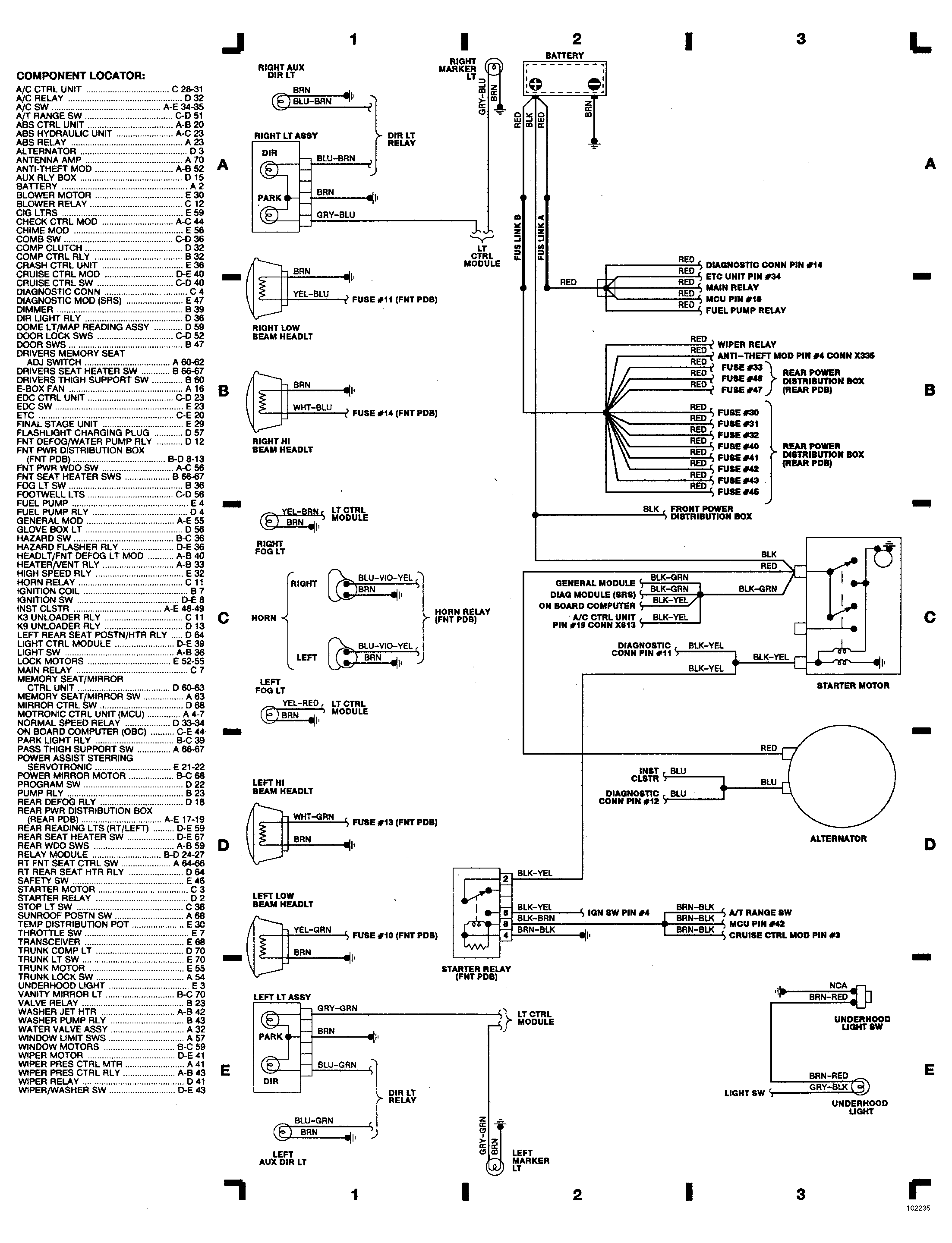

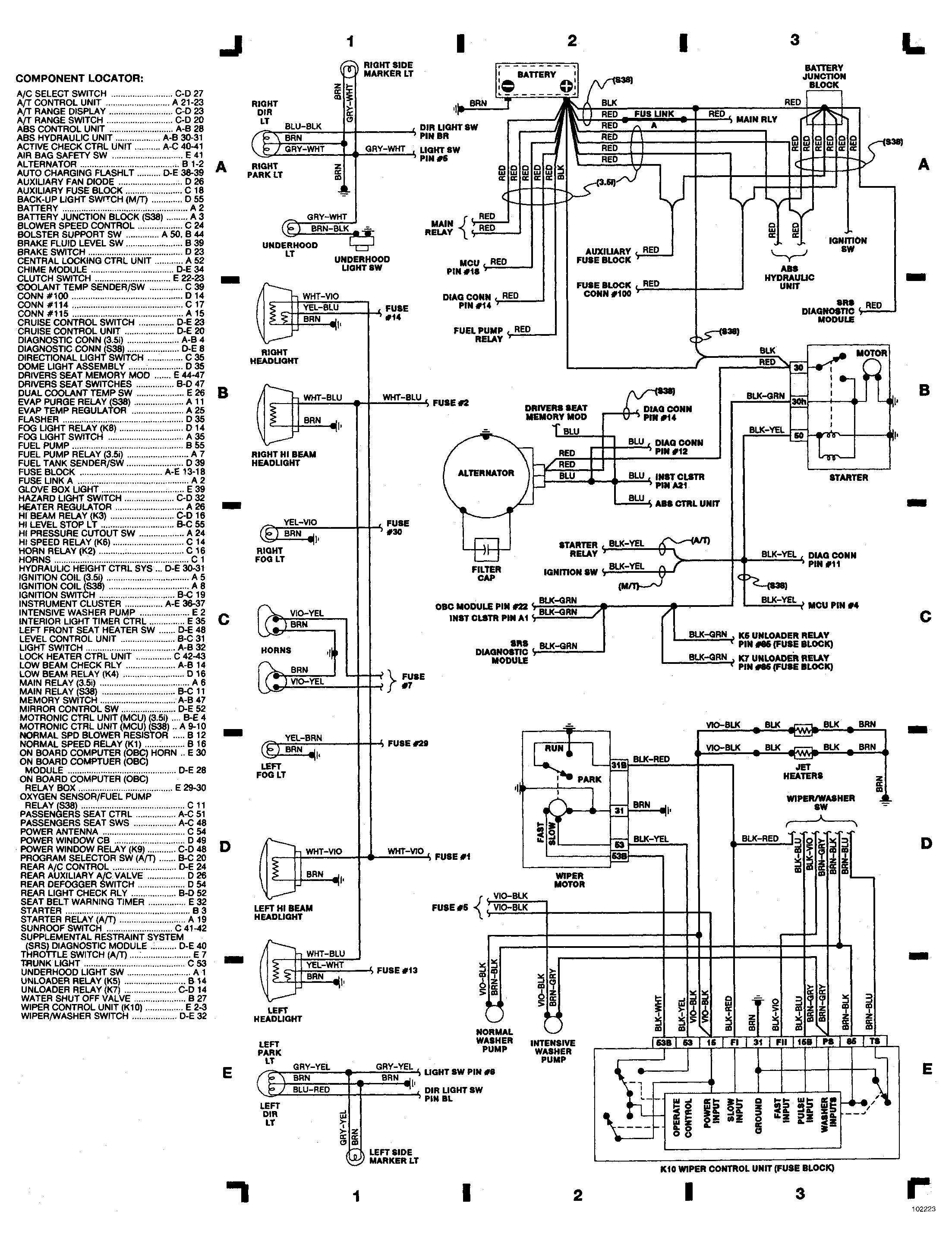

Fig 1: Engine Compartment

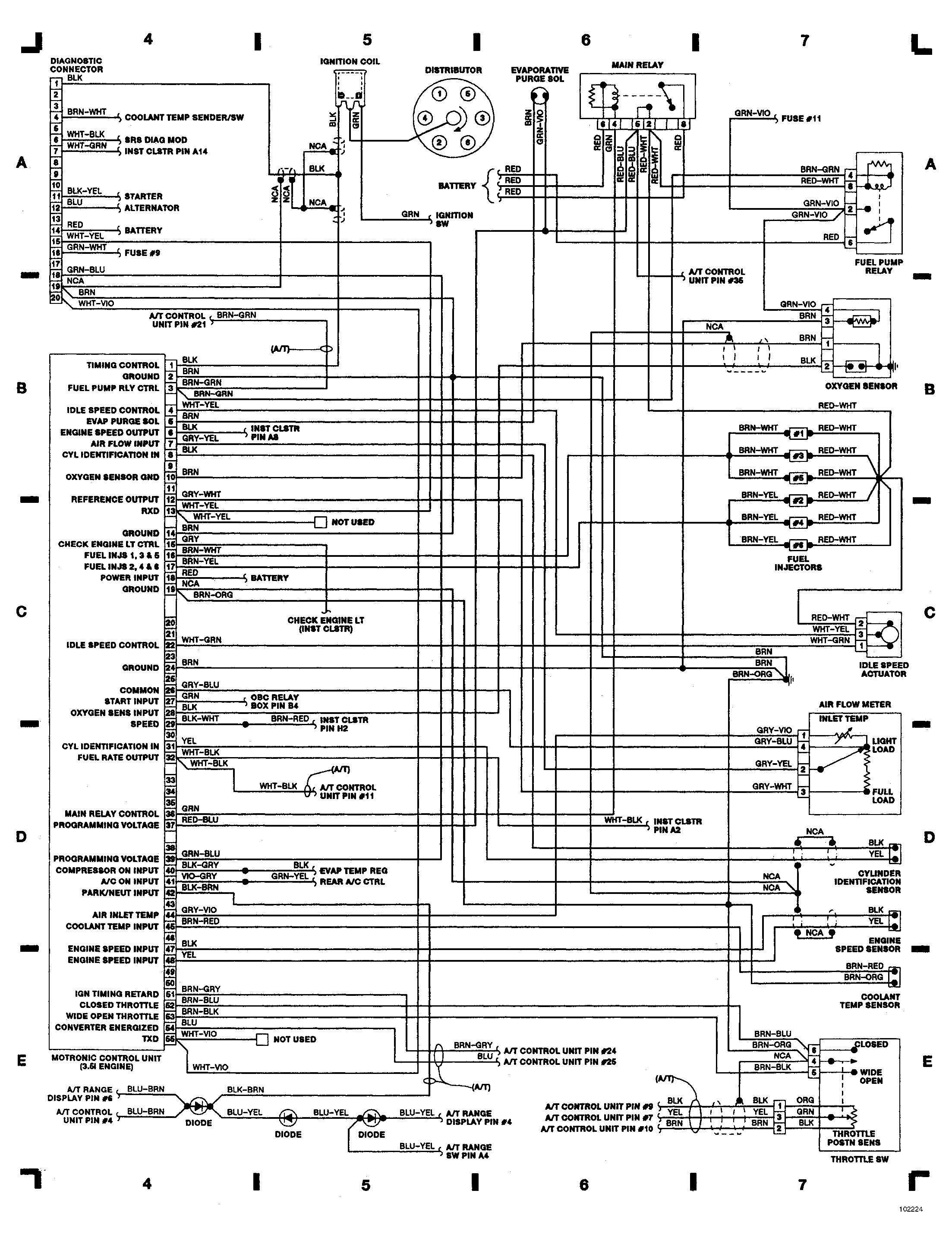

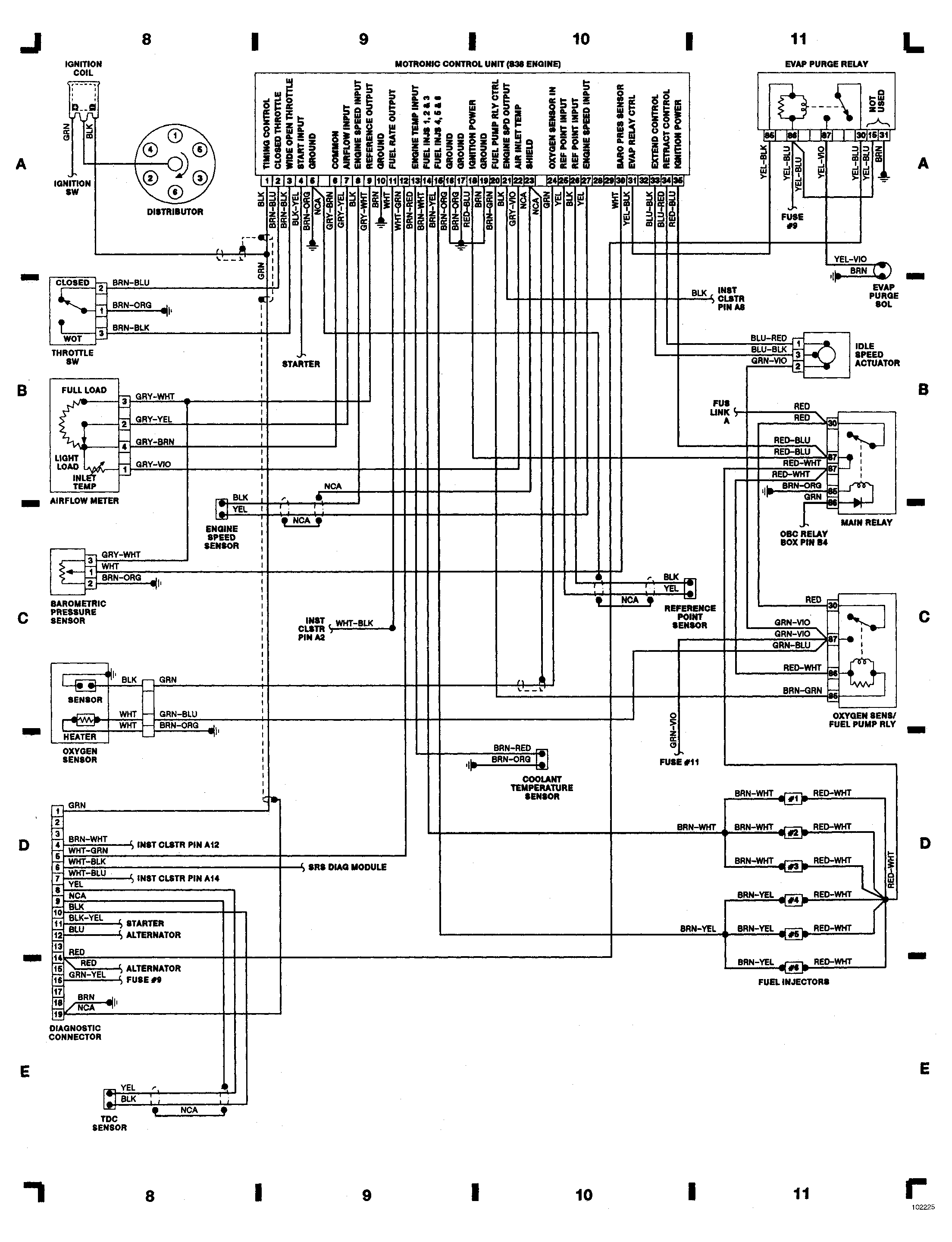

Fig 2: Engine Compartment (Cont.)

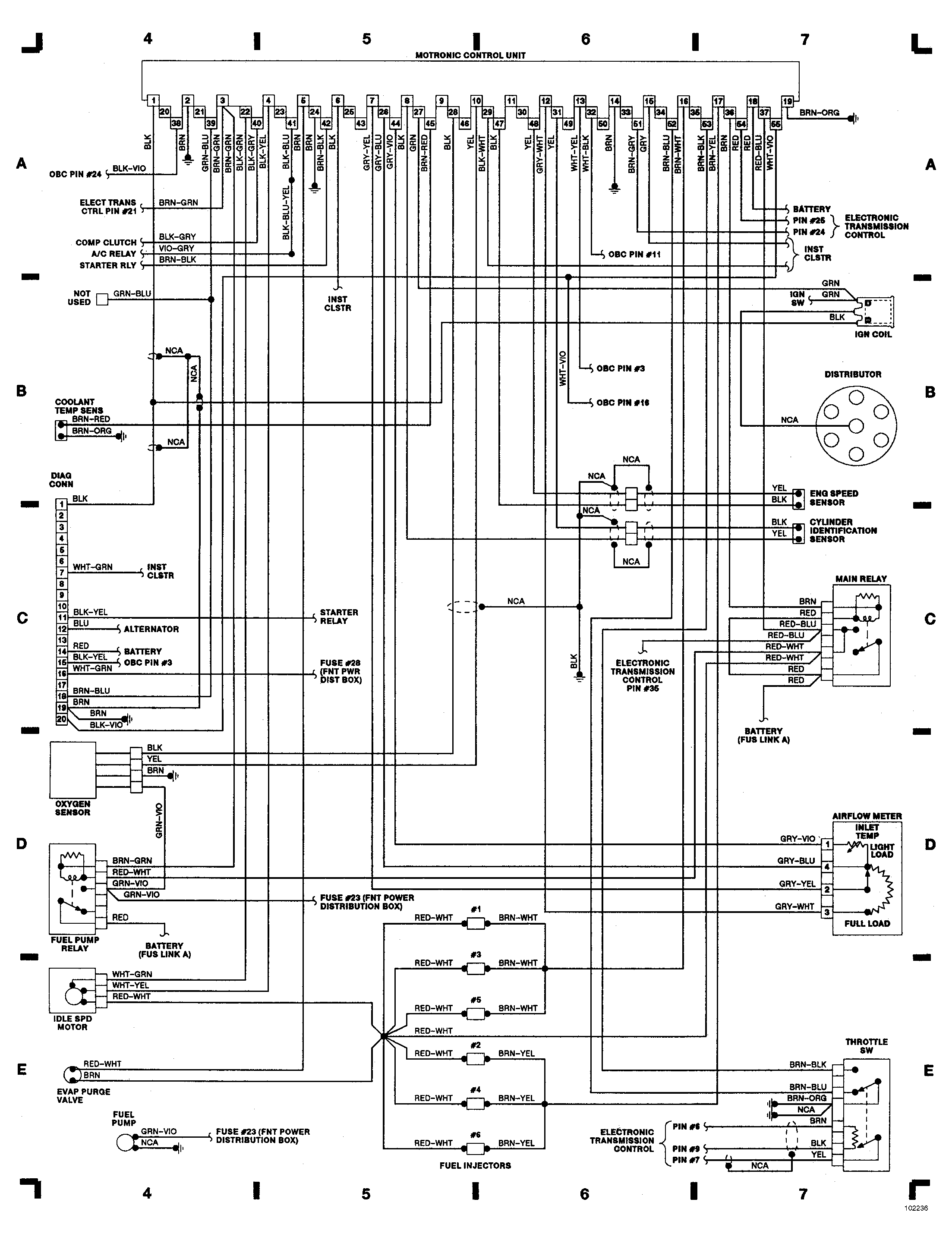

Fig 3: Engine Compartment (Cont.)

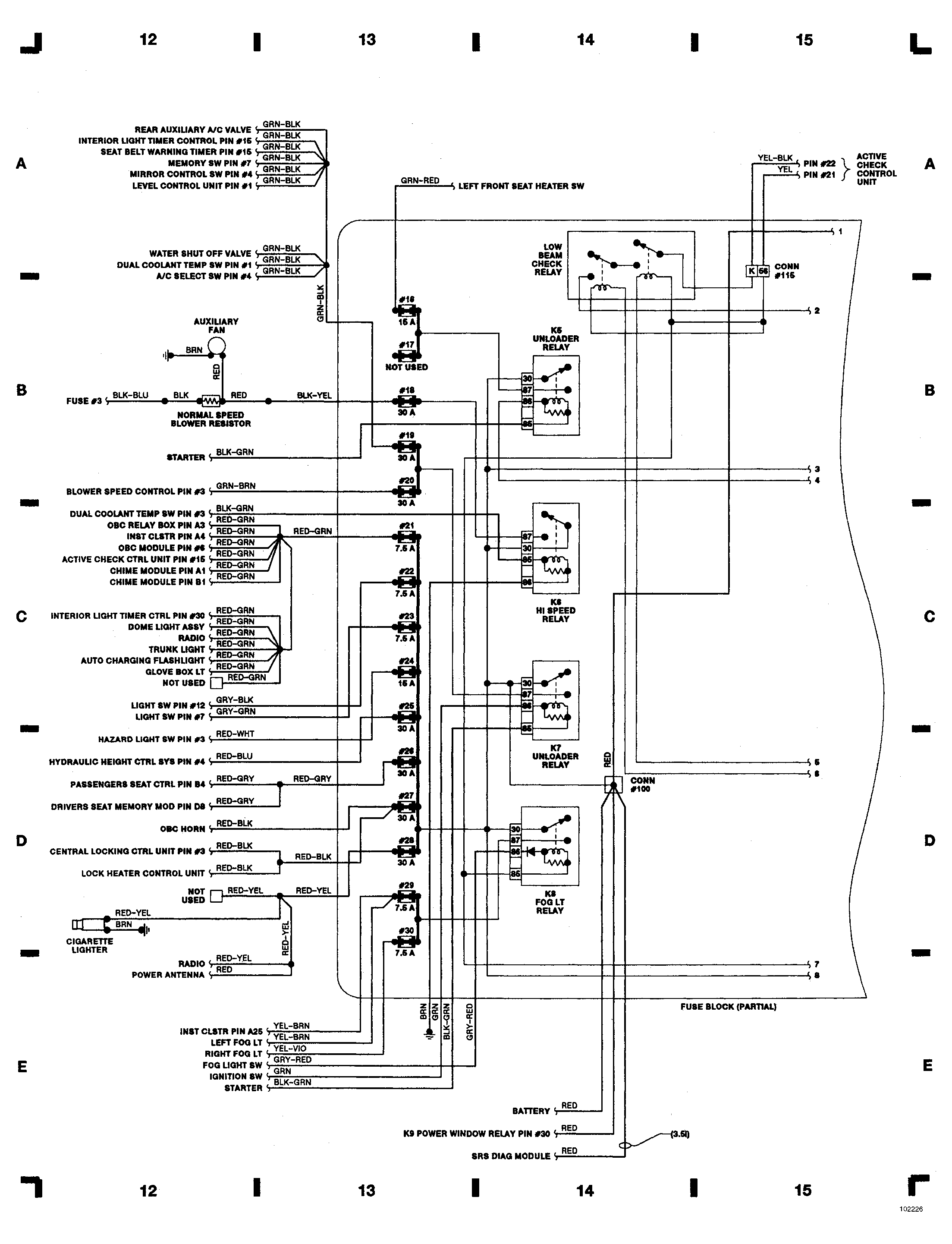

Fig 4: Fuse Block

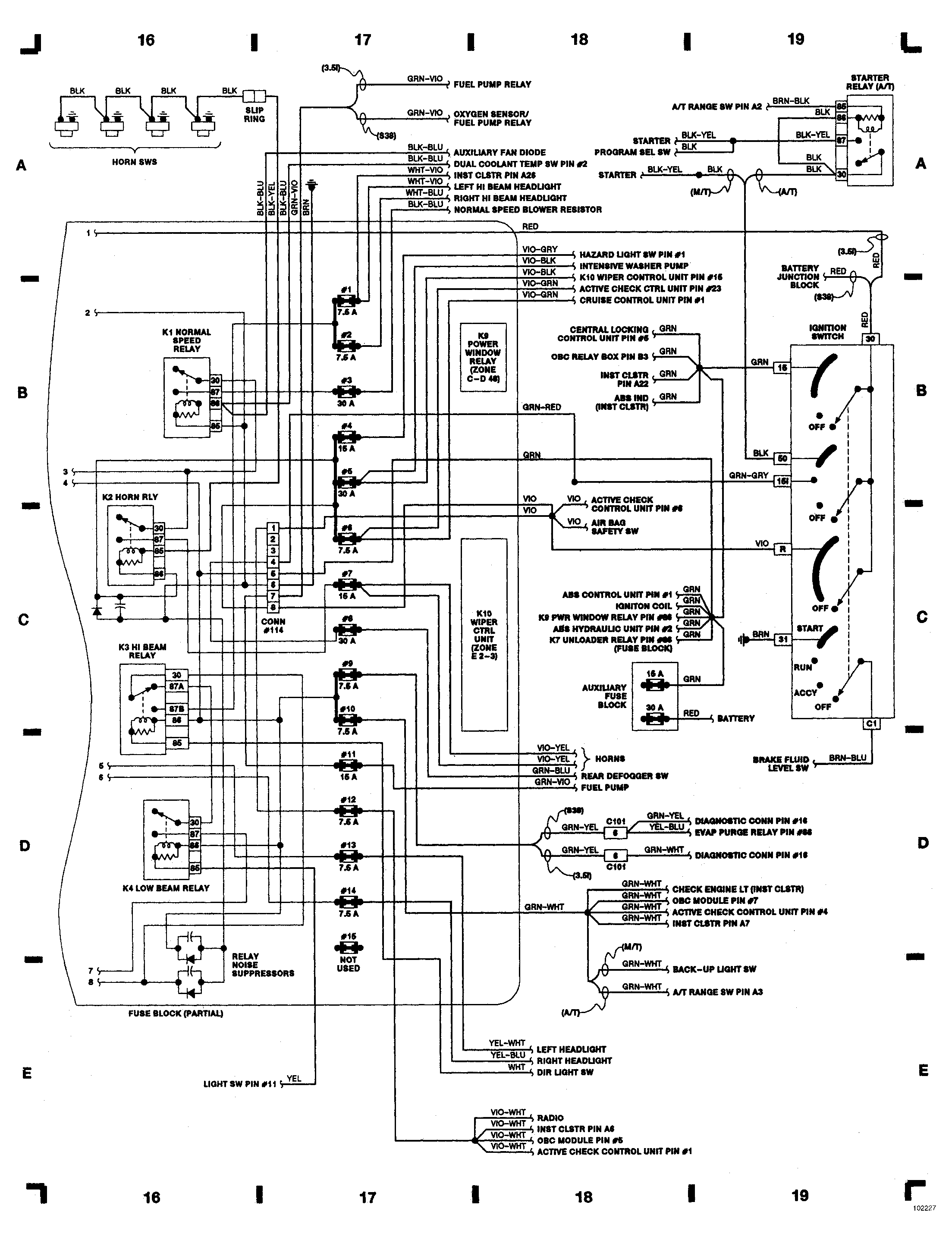

Fig 5: Fuse Block (Cont.)

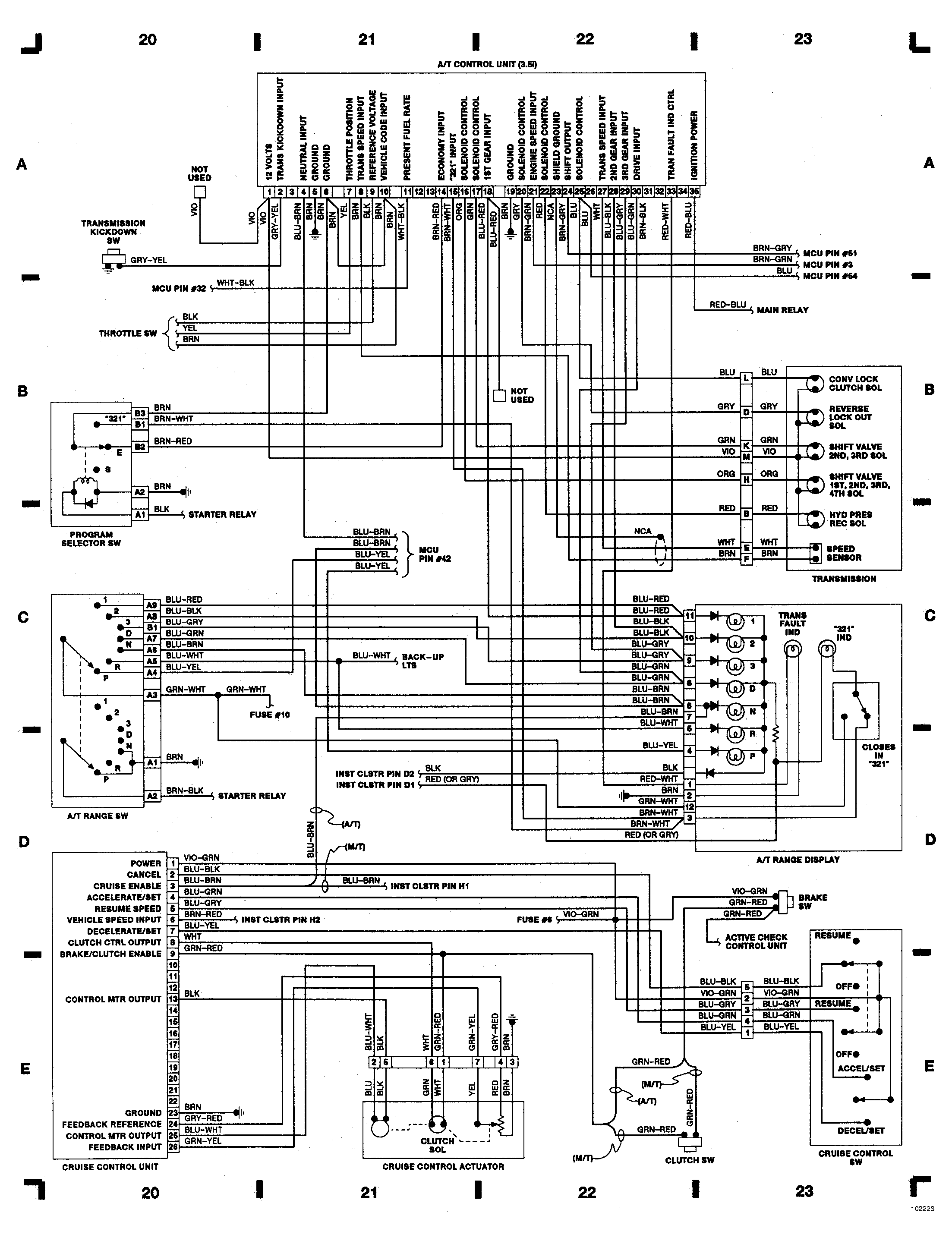

Fig 6: Underdash

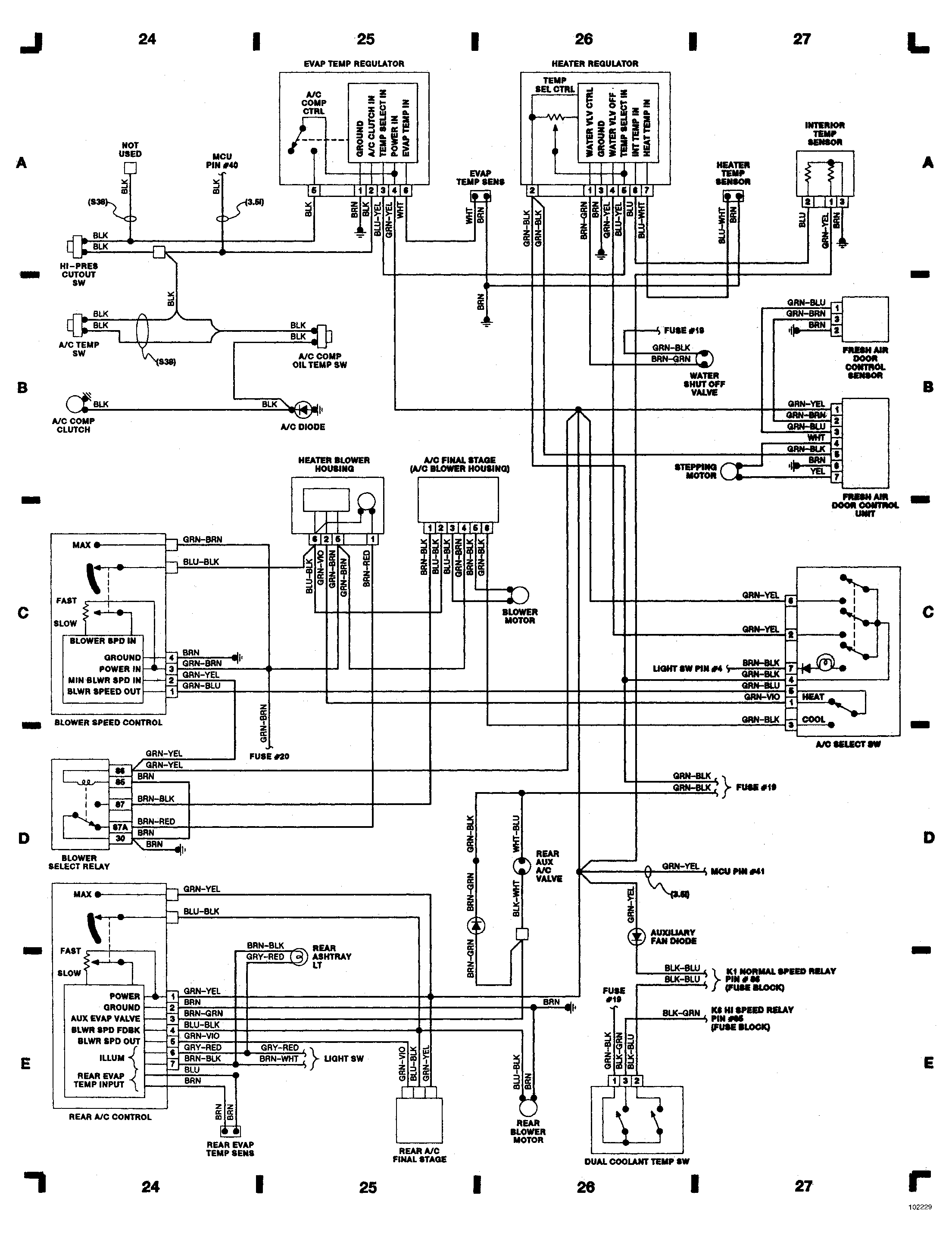

Fig 7: Underdash (Cont.)

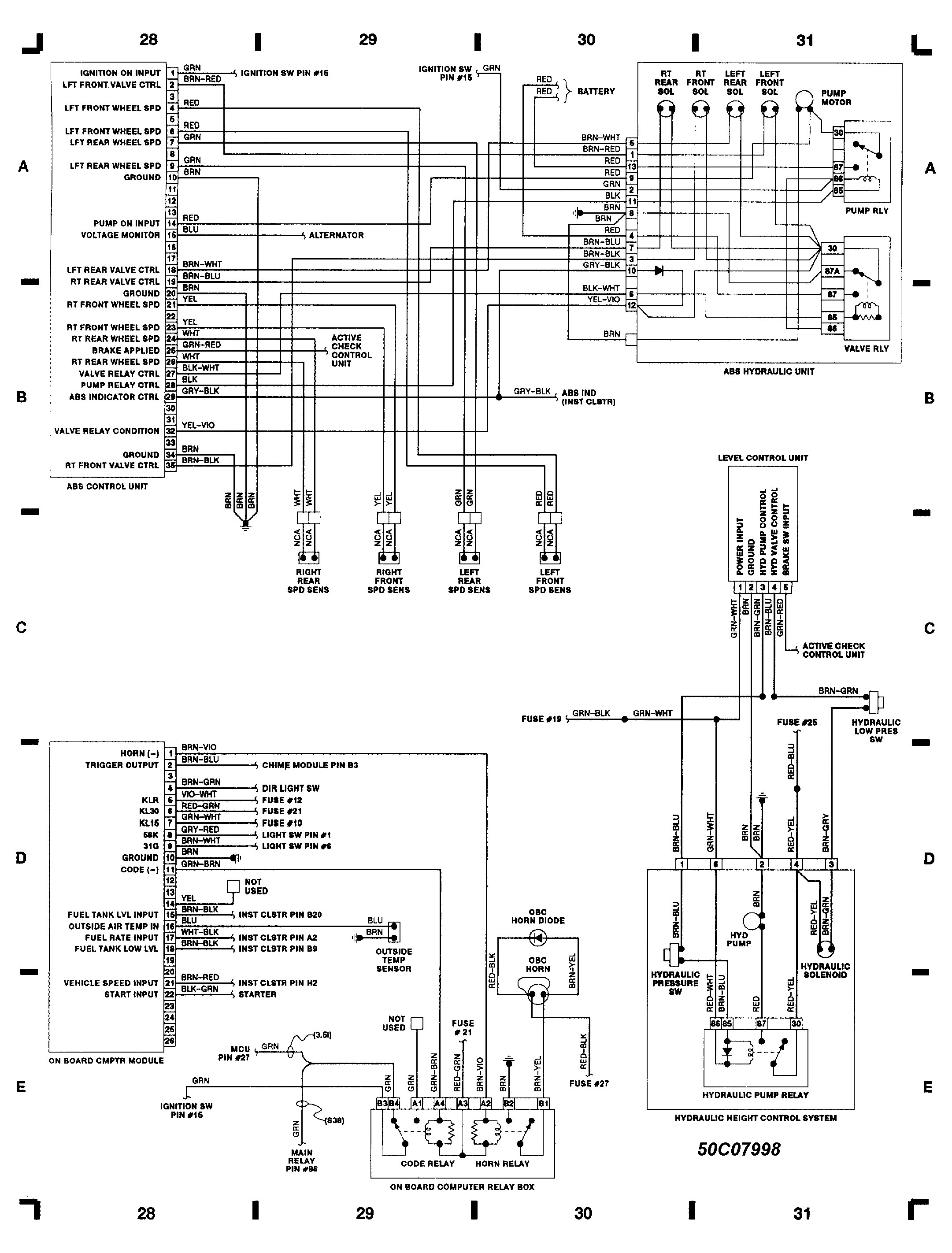

Fig 8: Underdash (Cont.)

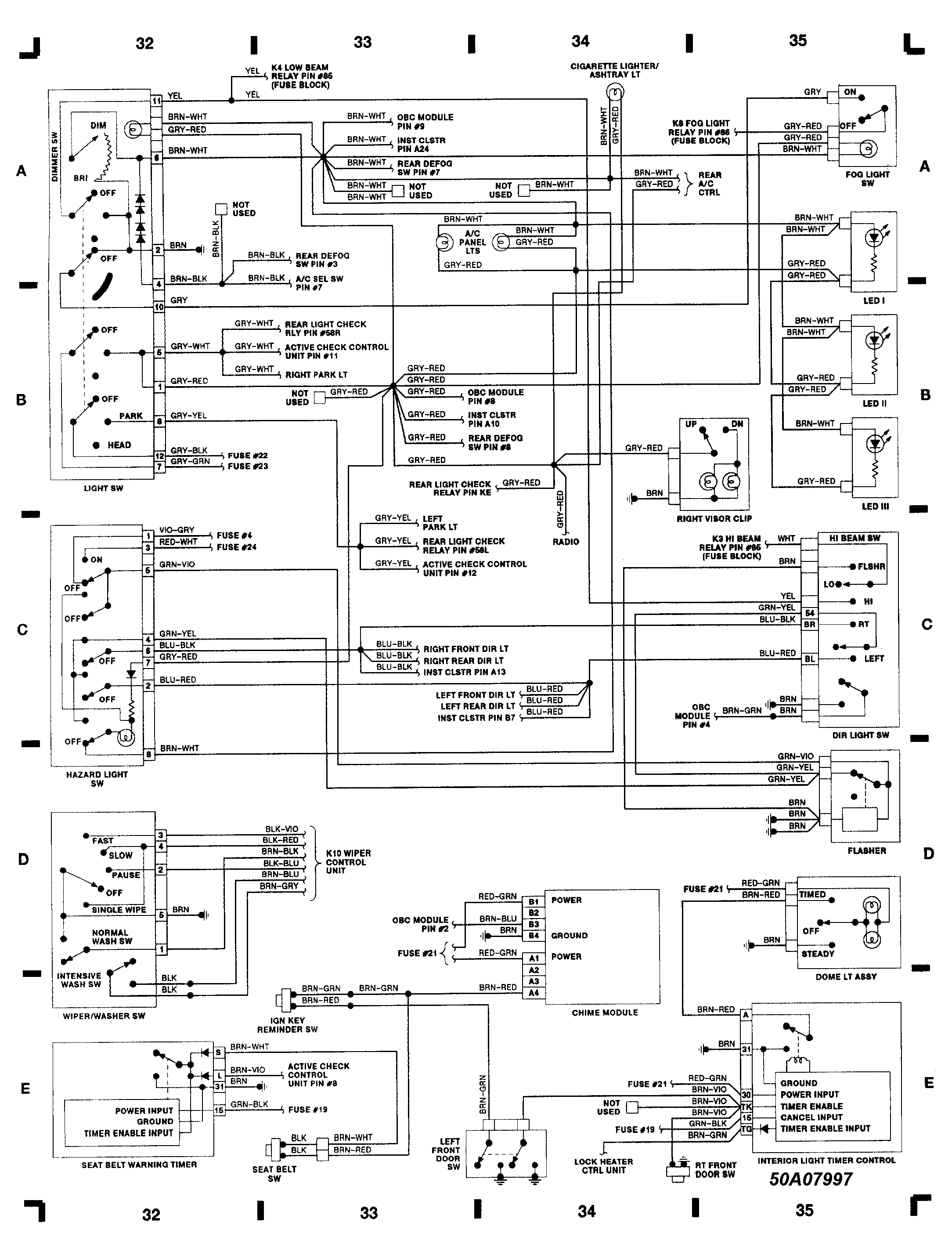

Fig 9: Underdash (Cont.)

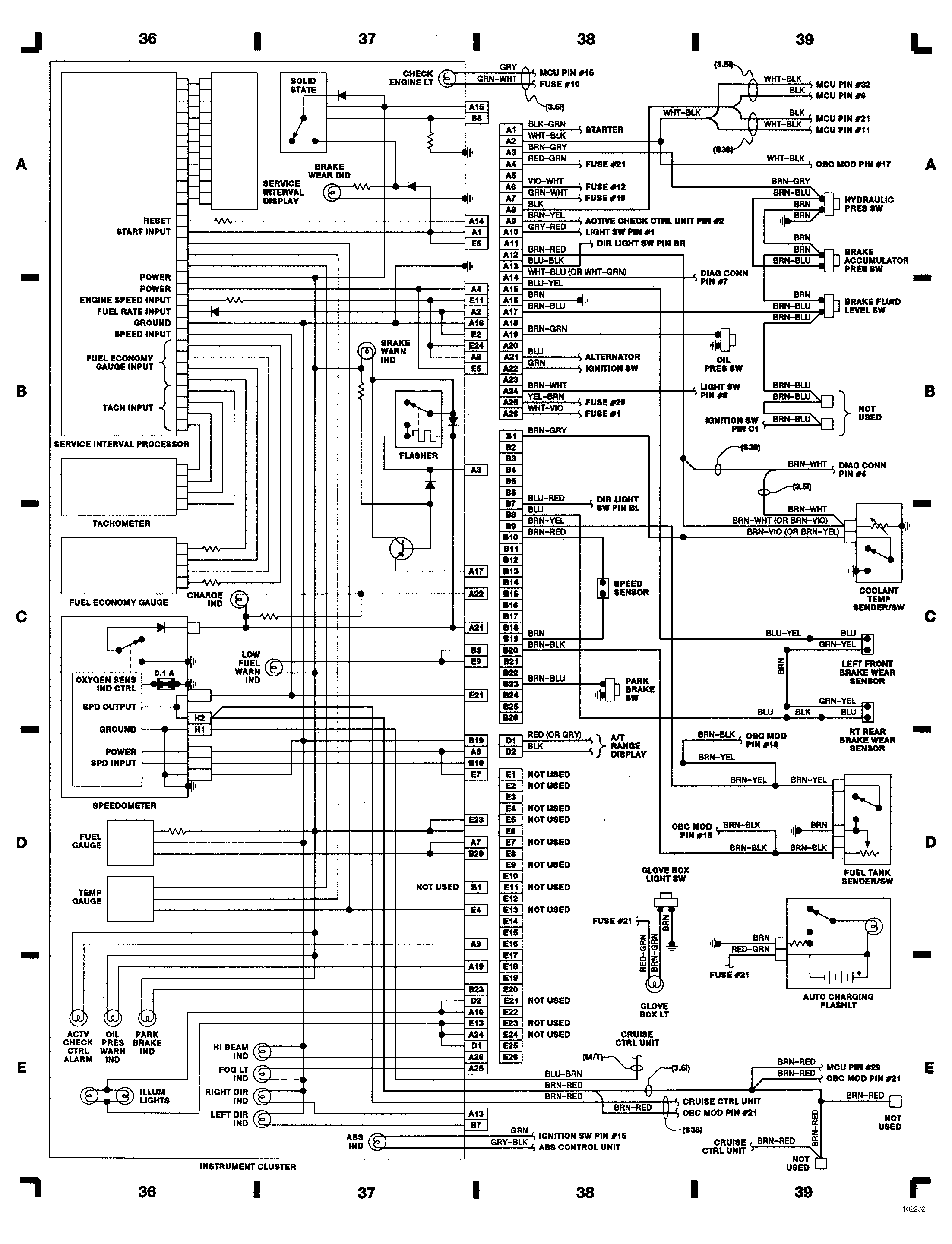

Fig 10: Instrument Panel

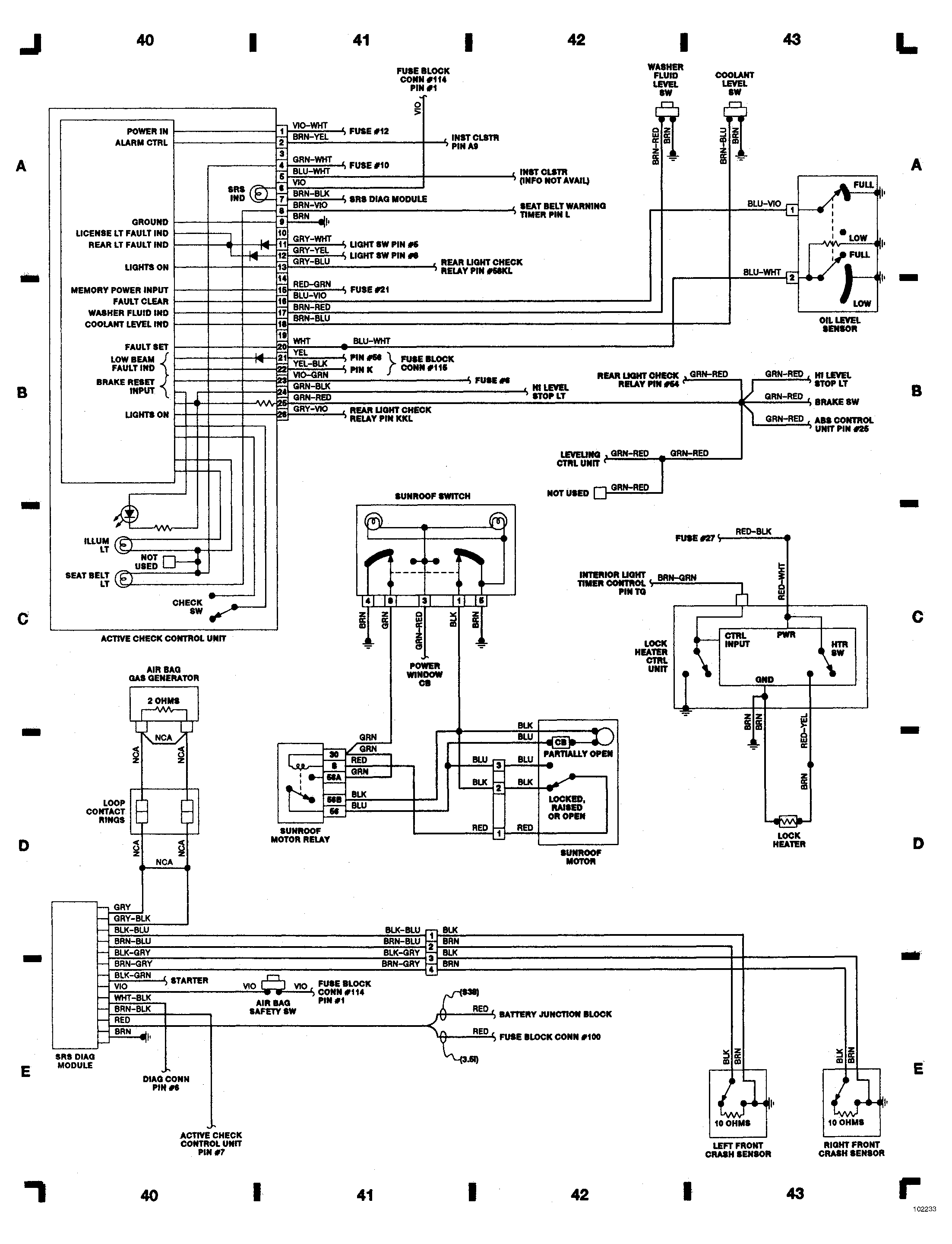

Fig 11: Rear Compartment & Accessories

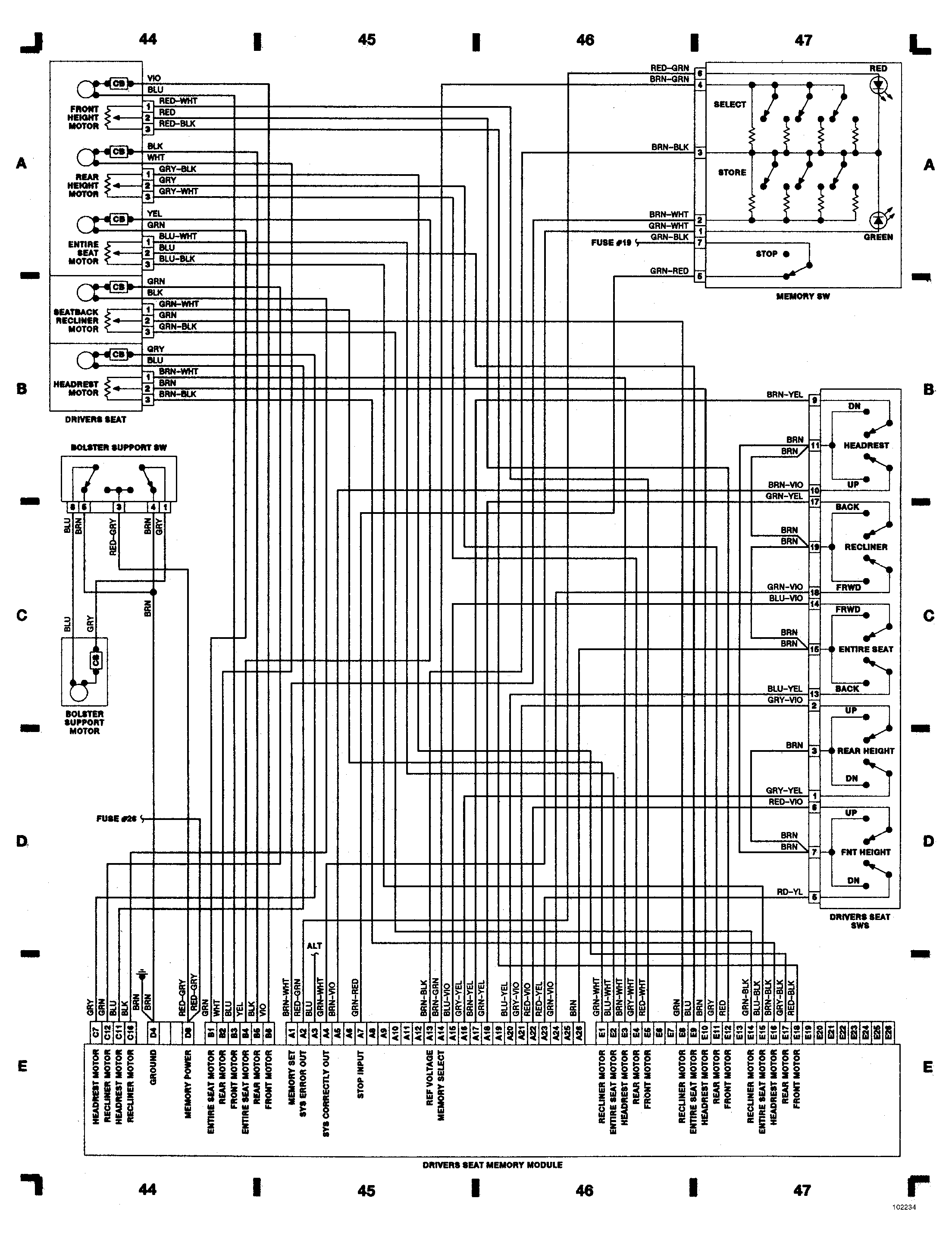

Fig 12: Rear Compartment & Accessories (Cont.)

Fig 13: Rear Compartment & Accessories (Cont.)

Fig 14: Rear Compartment & Accessories (Cont.)
