Wiring Diagrams

WARNING: This page is about a different car, the 1988 BMW 535is and 1988 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

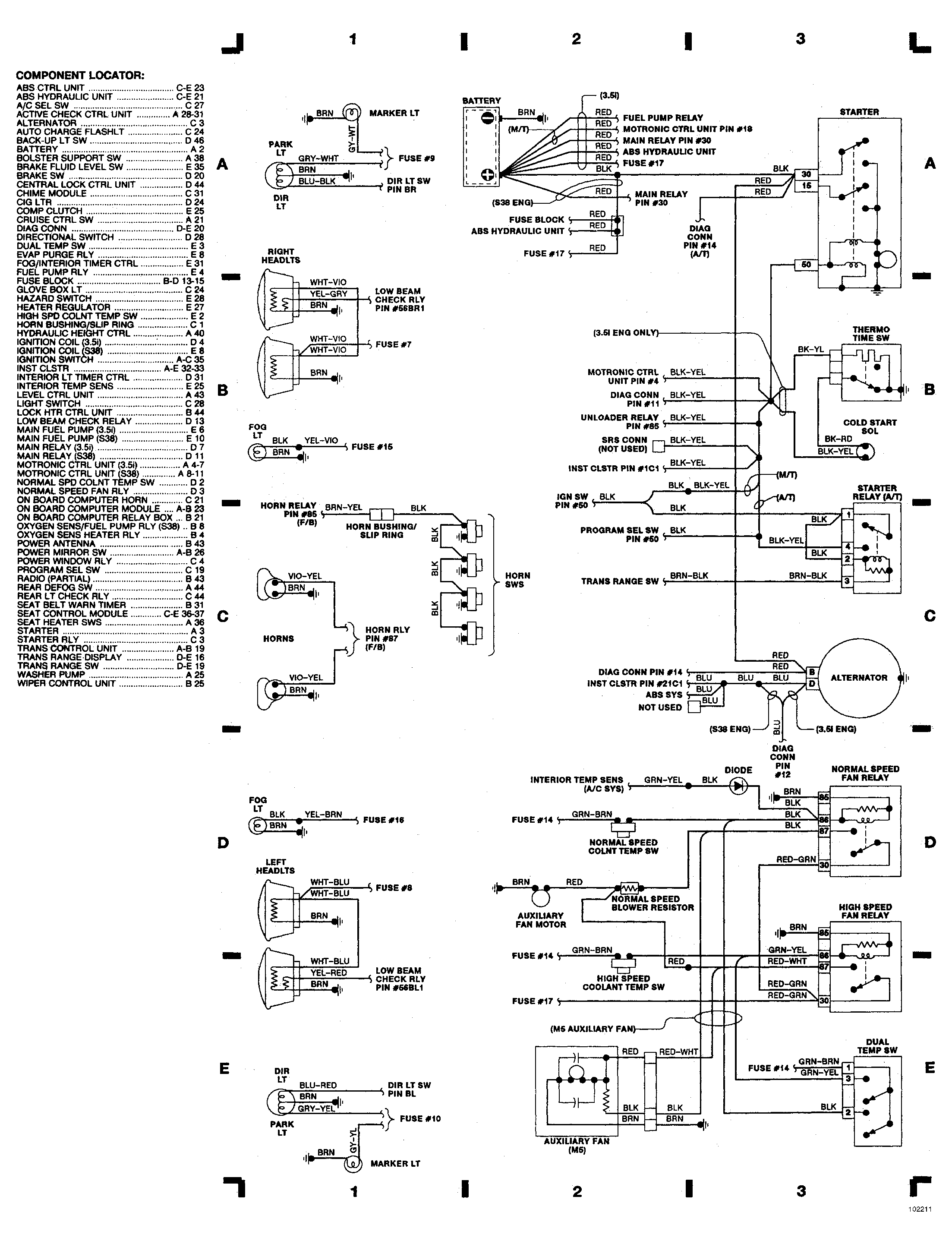

Fig 1: Engine Compartment

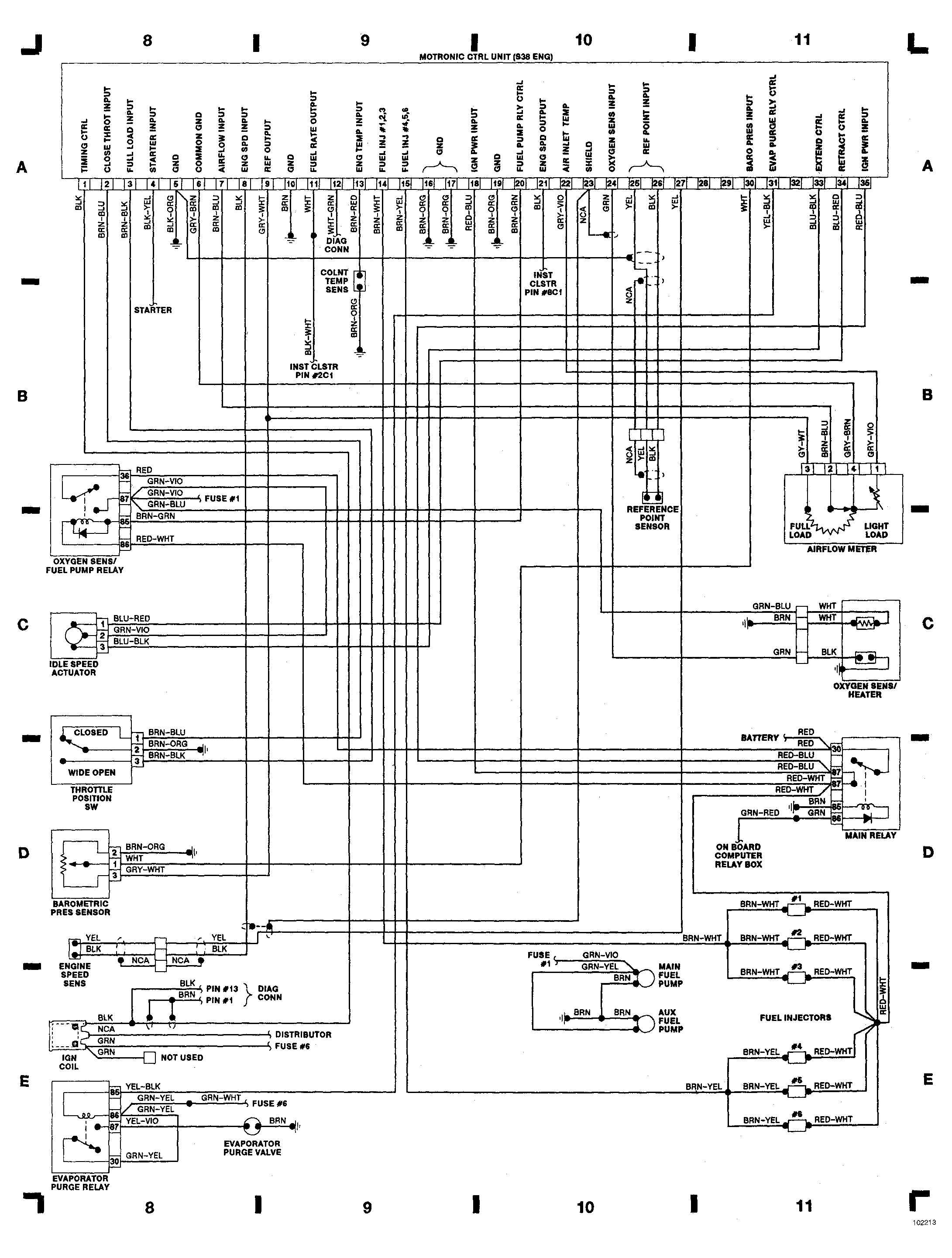

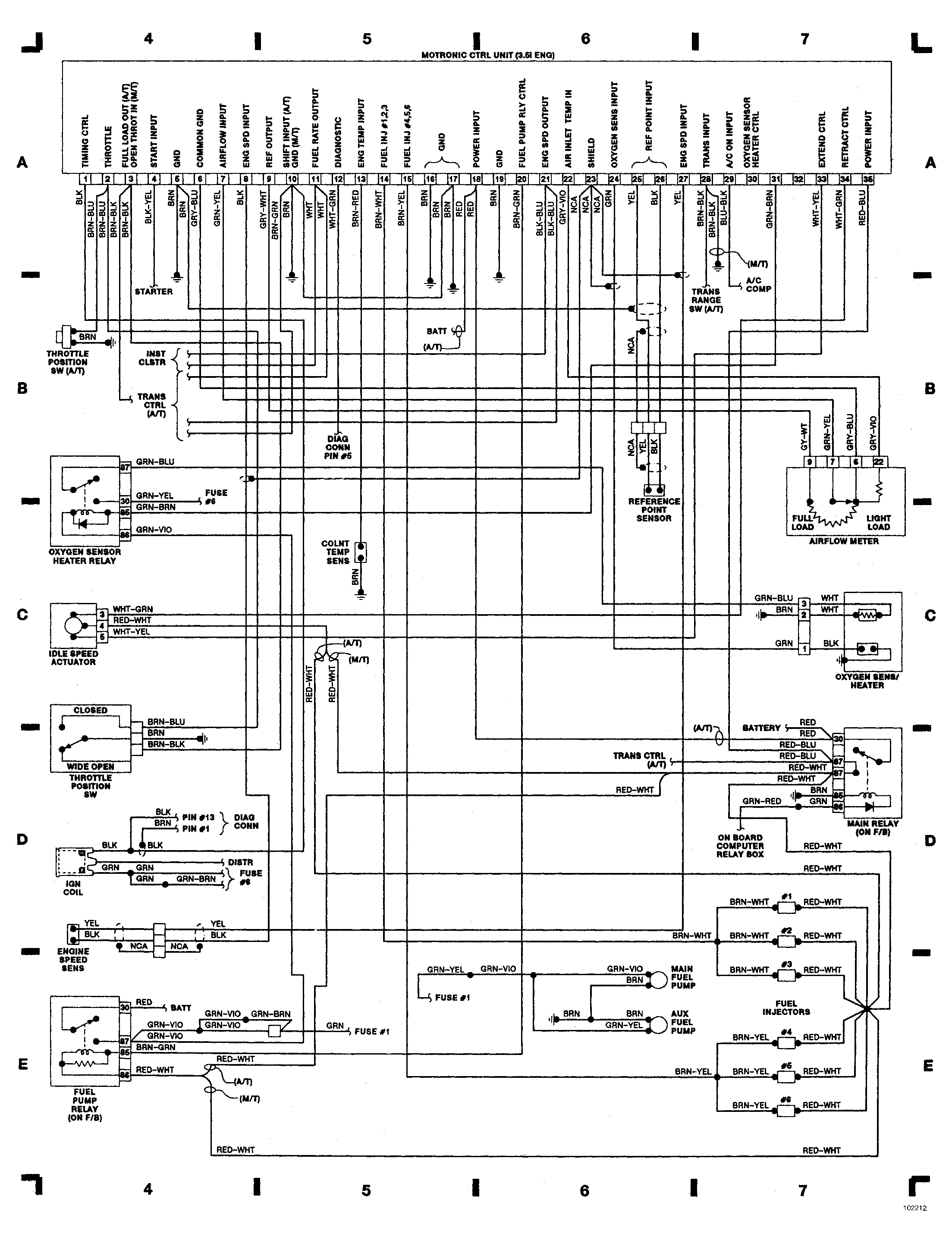

Fig 2: Engine Compartment (Cont.)

Fig 3: Engine Compartment (Cont.)

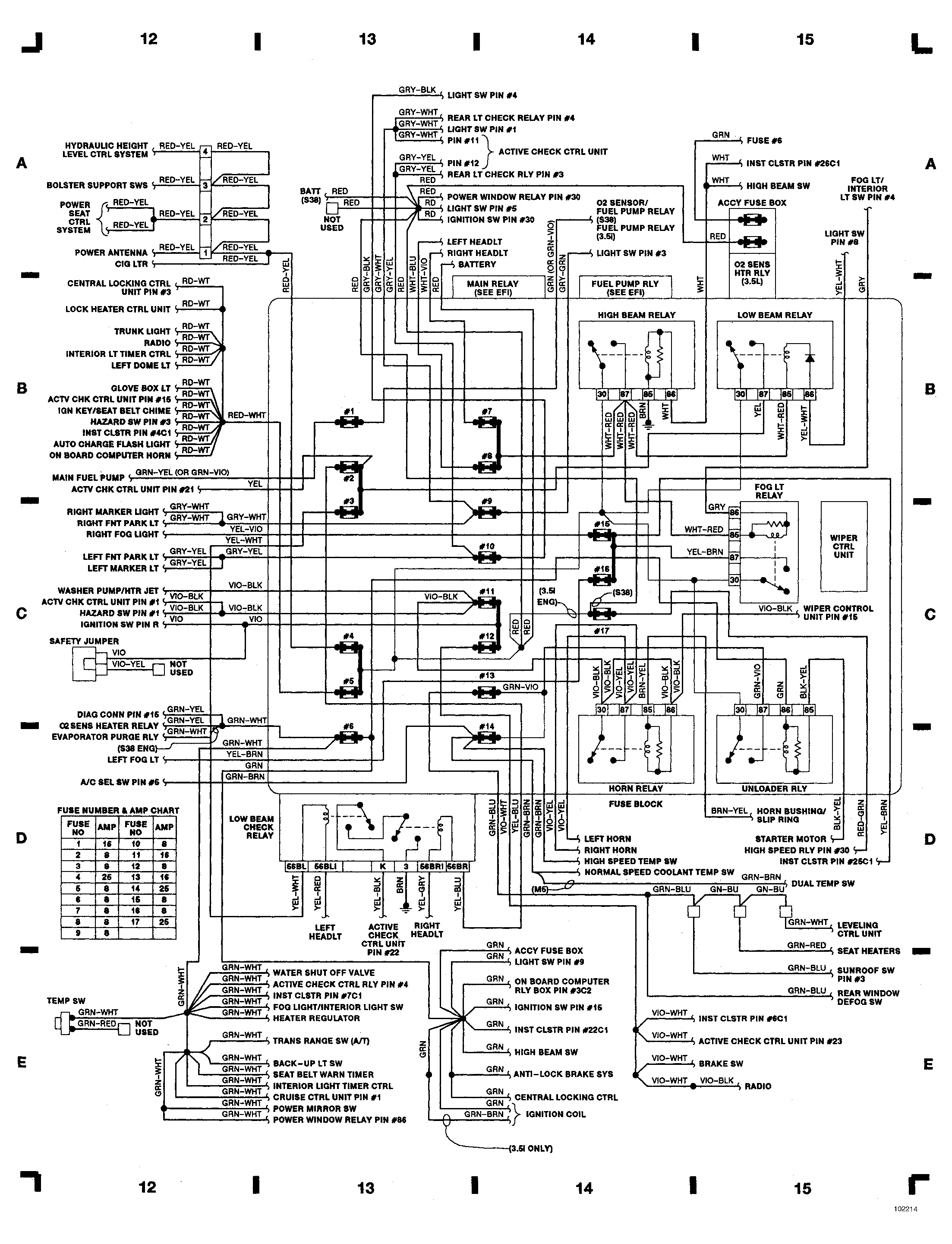

Fig 4: Fuse Block

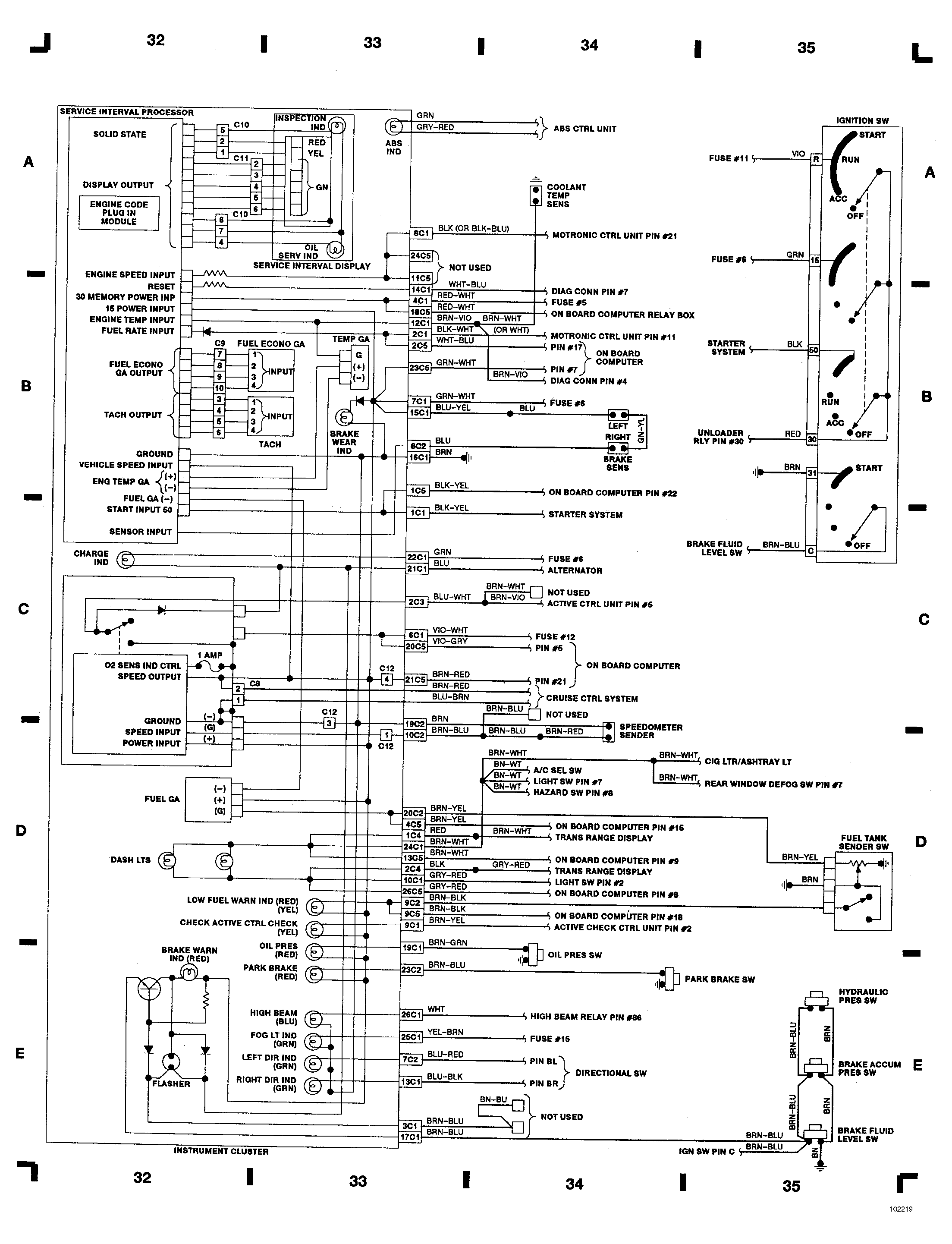

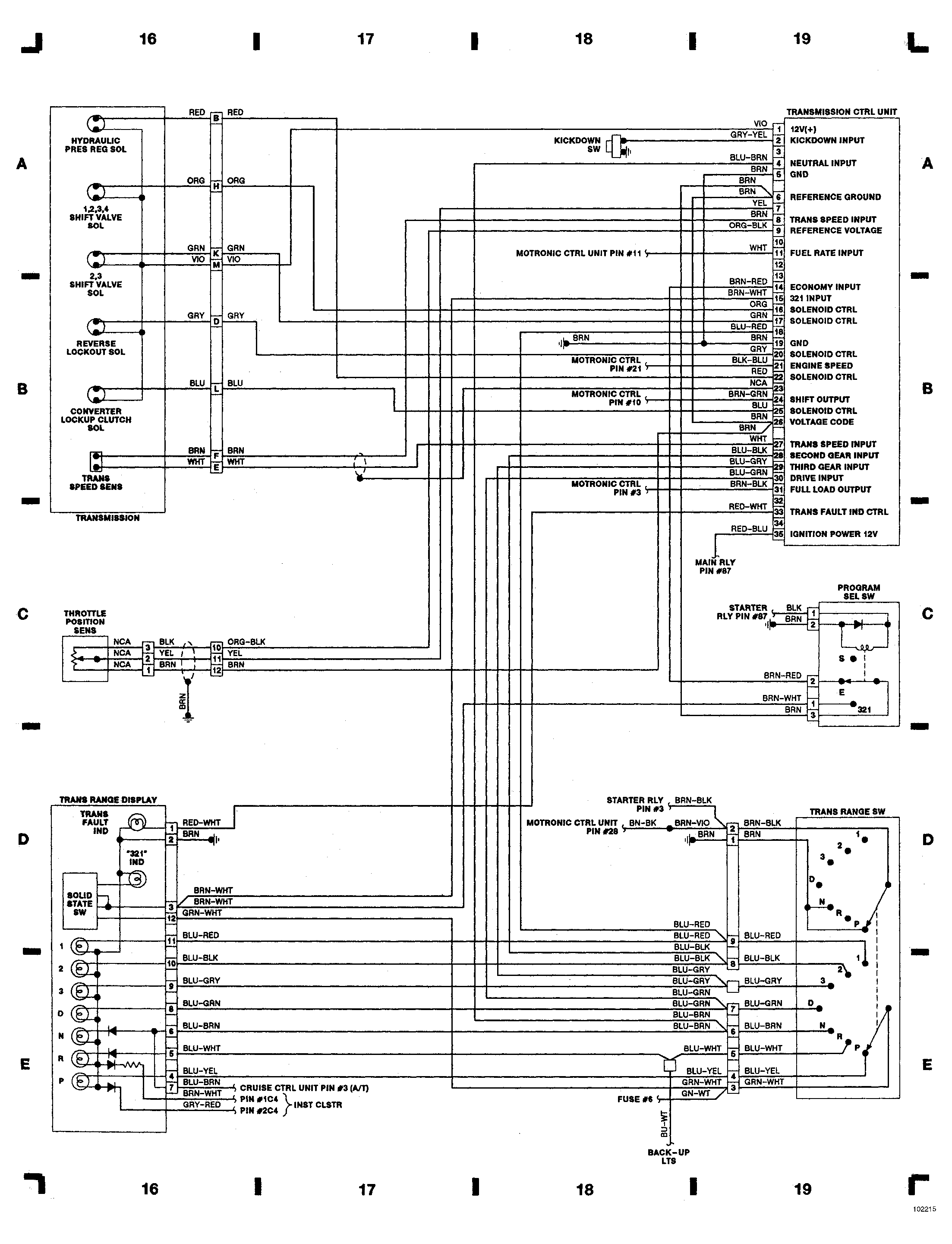

Fig 5: Underdash

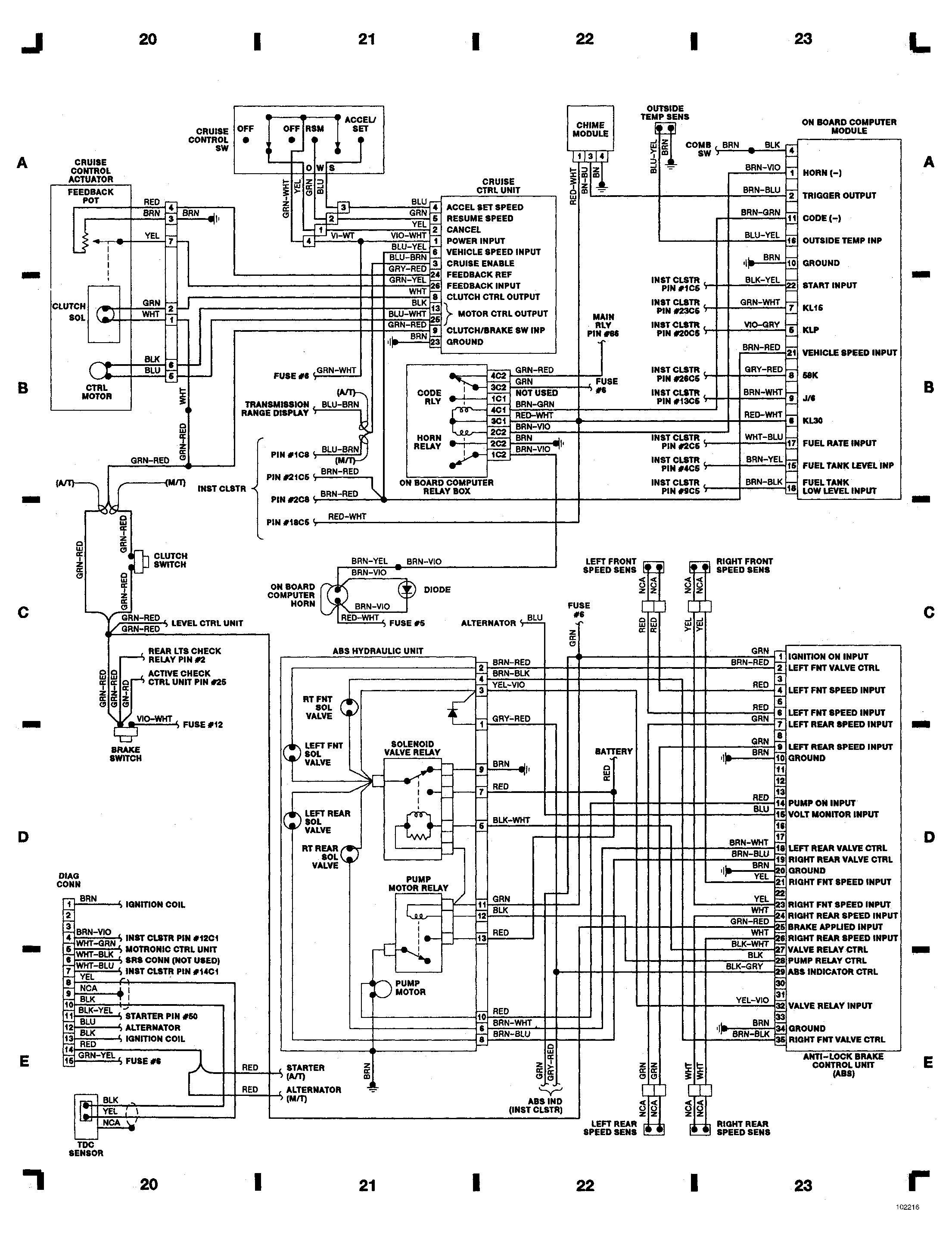

Fig 6: Underdash (Cont.)

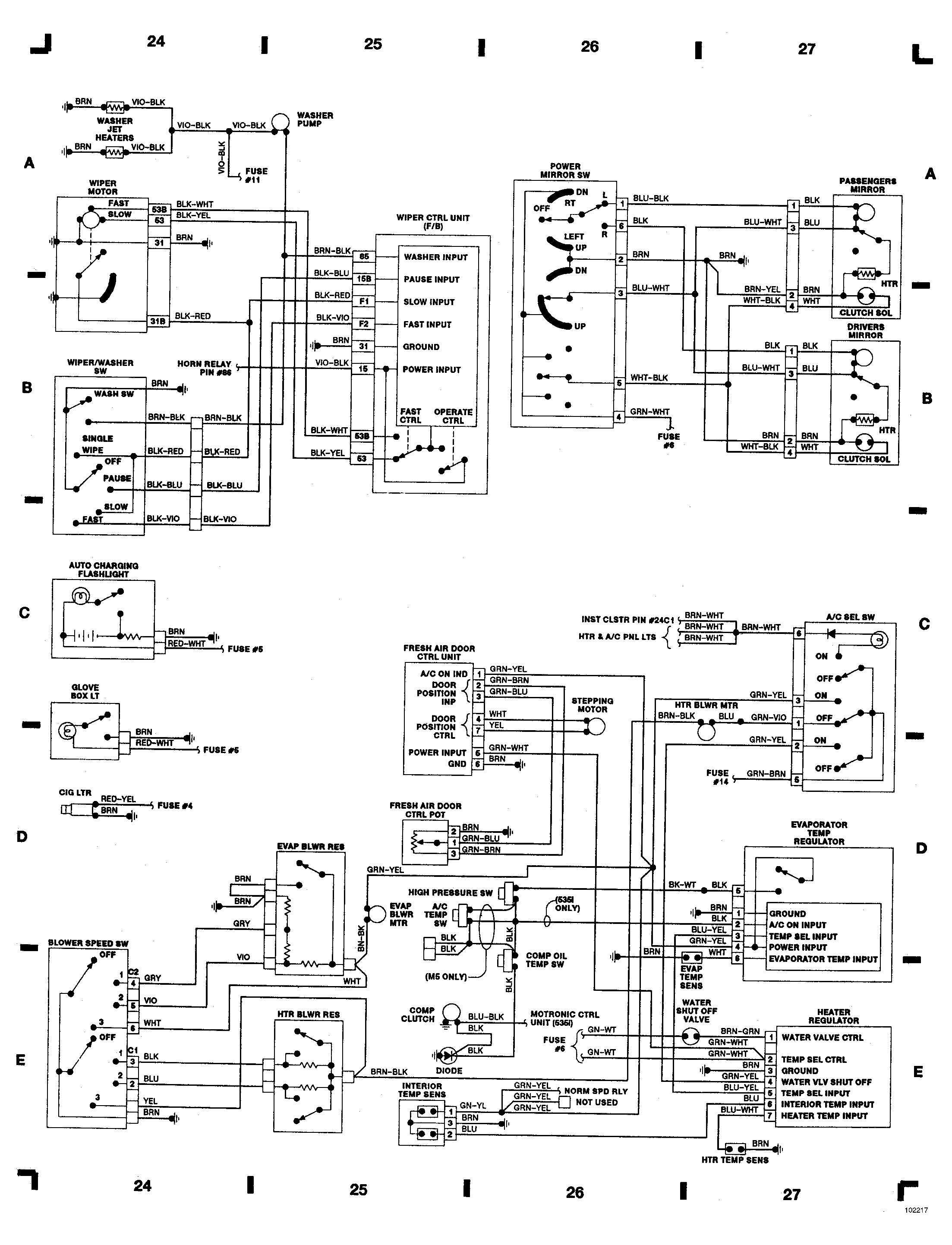

Fig 7: Underdash (Cont.)

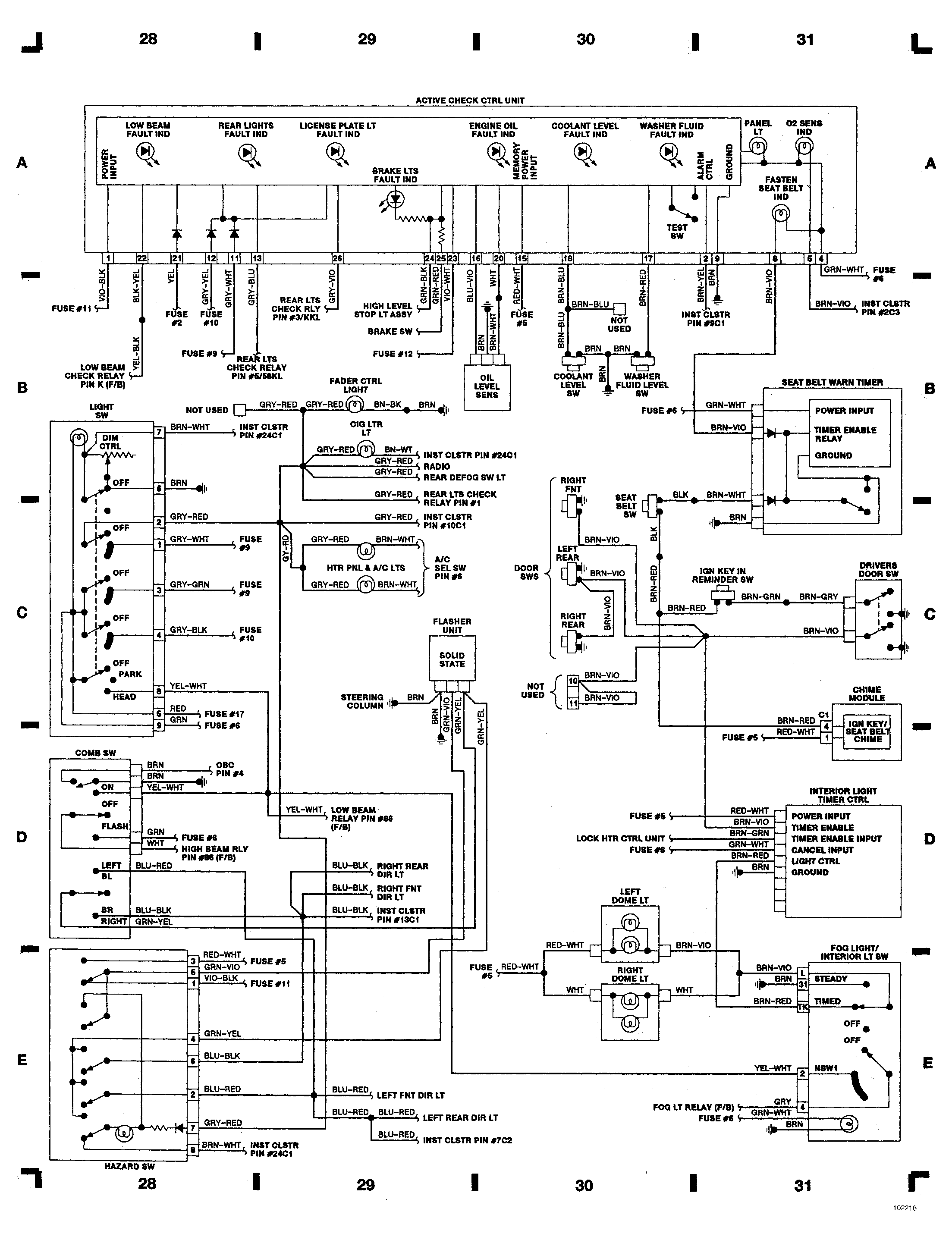

Fig 8: Underdash (Cont.)

Fig 9: Instrument Panel

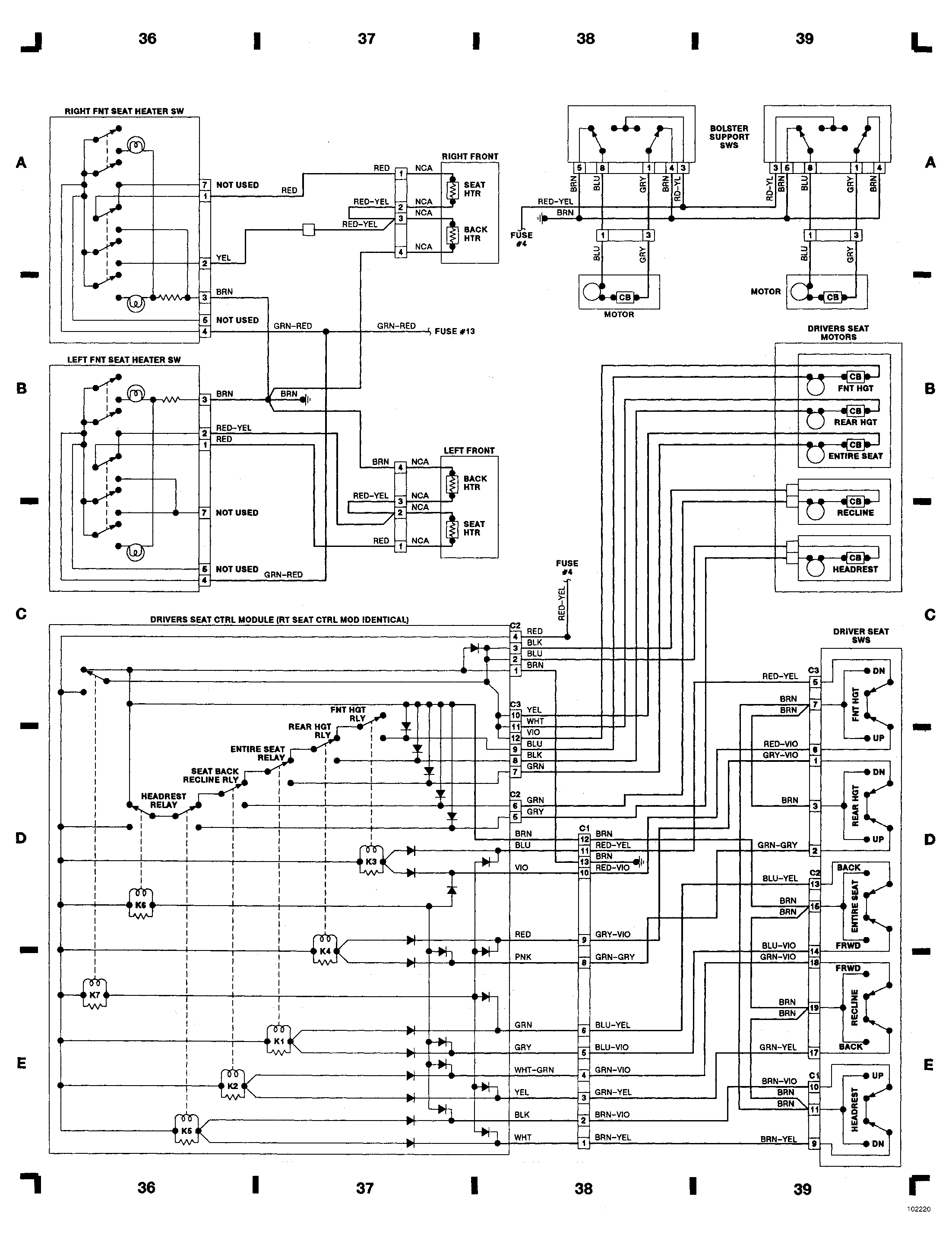

Fig 10: Rear Compartment & Accessories

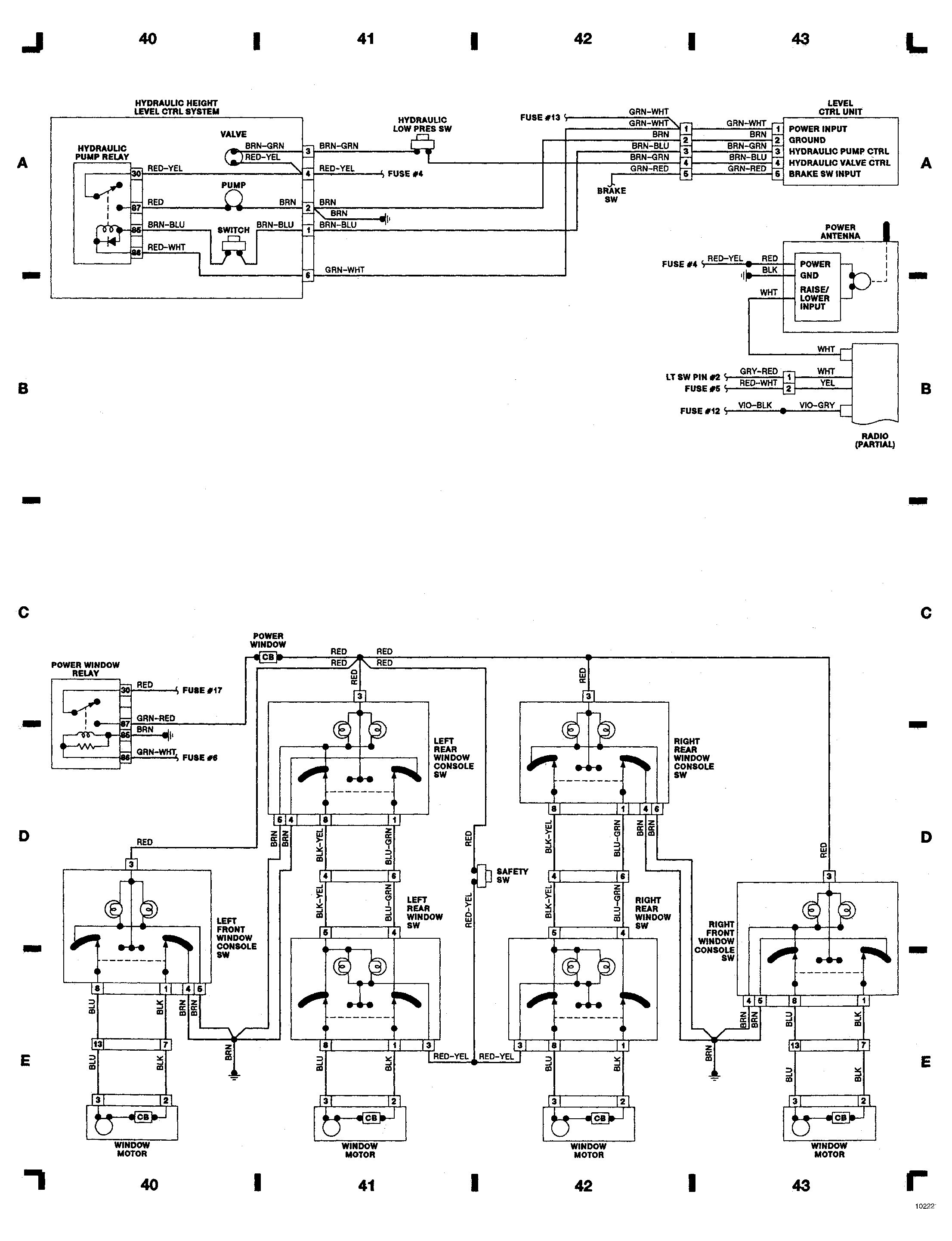

Fig 11: Rear Compartment & Accessories (Cont.)

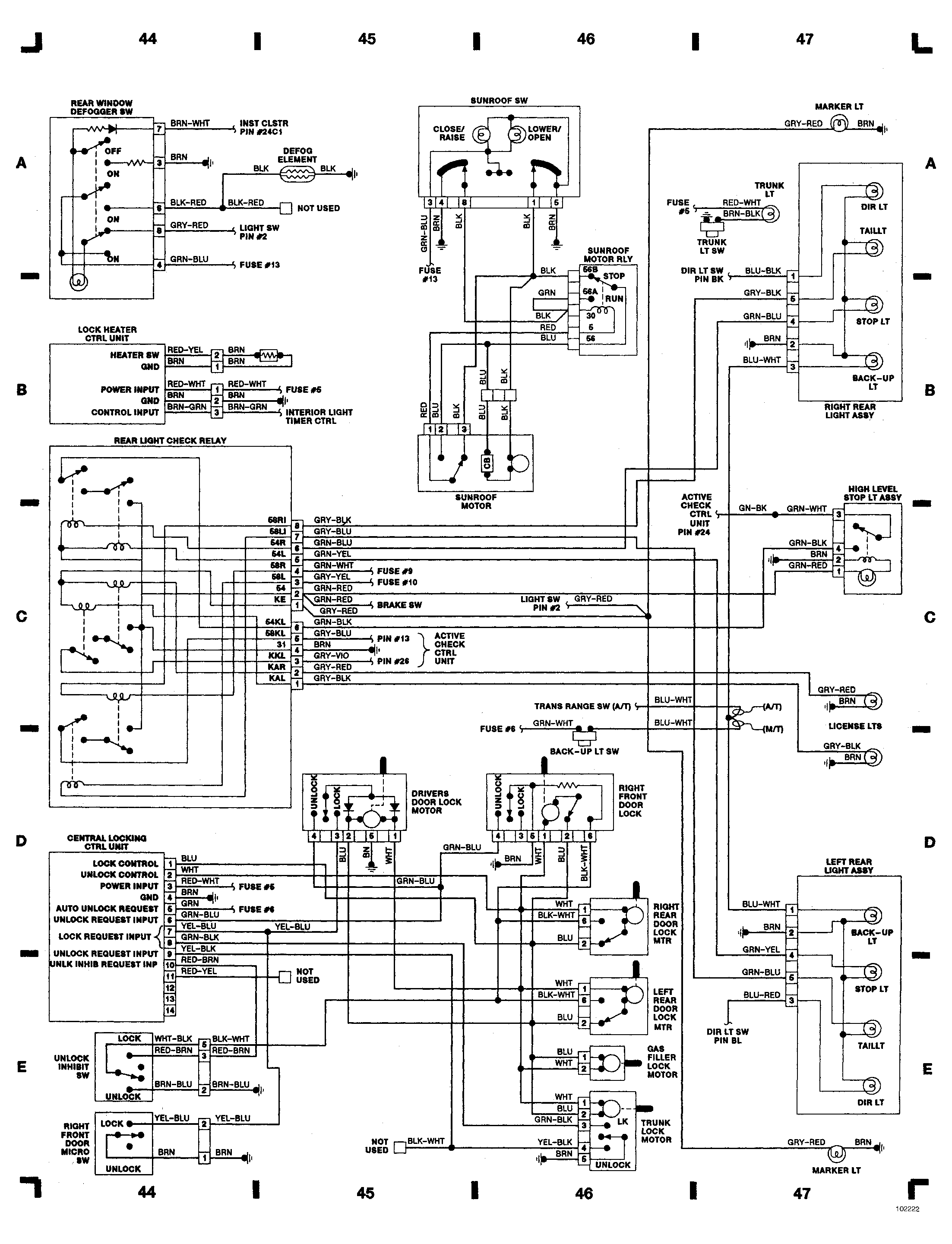

Fig 12: Rear Compartment & Accessories (Cont.)
