Wiring Diagrams

WARNING: This page is about a different car, the 1988 BMW 528e. However, it is still accessible from the selected car via links, so may be relevant.

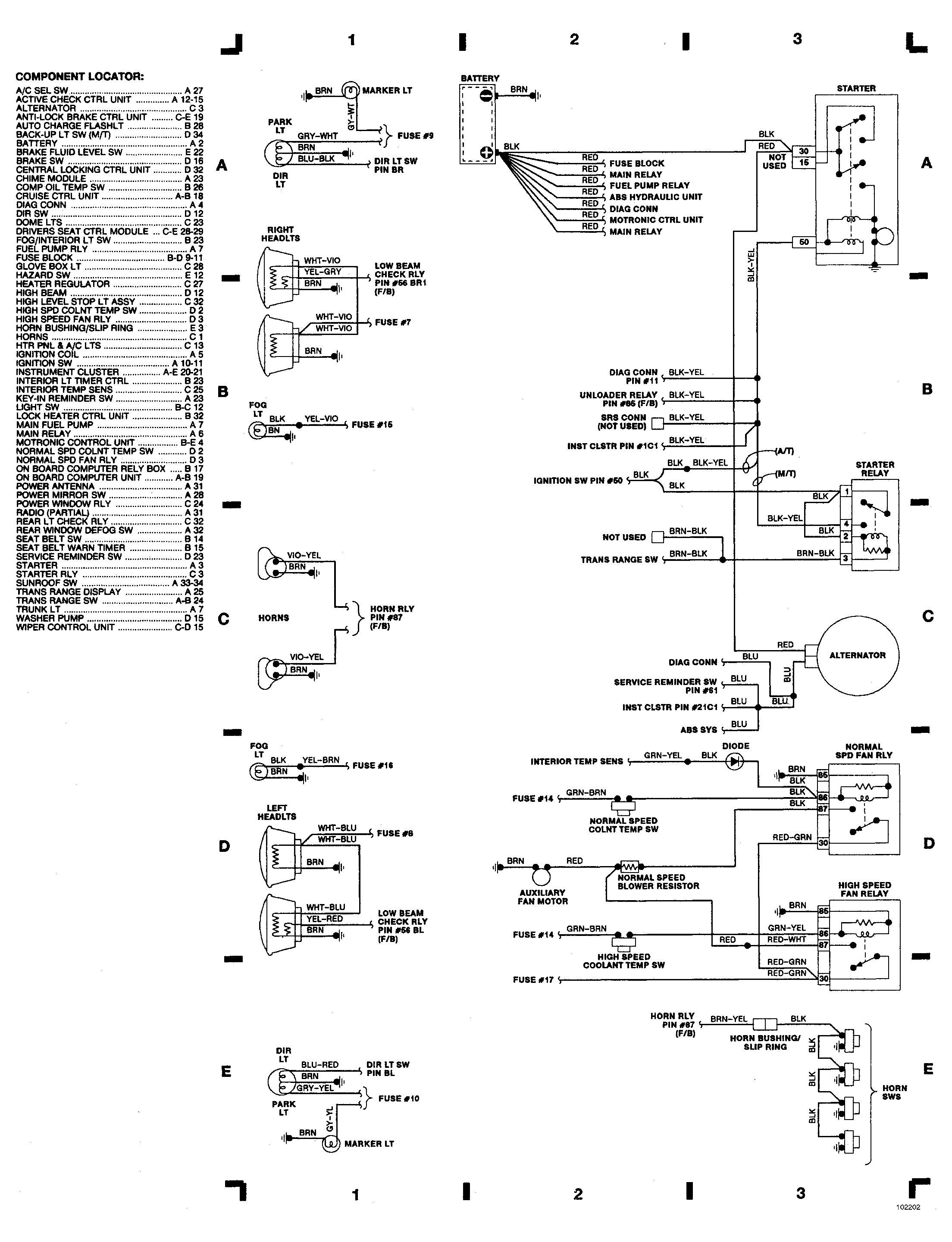

Fig 1: Engine Compartment

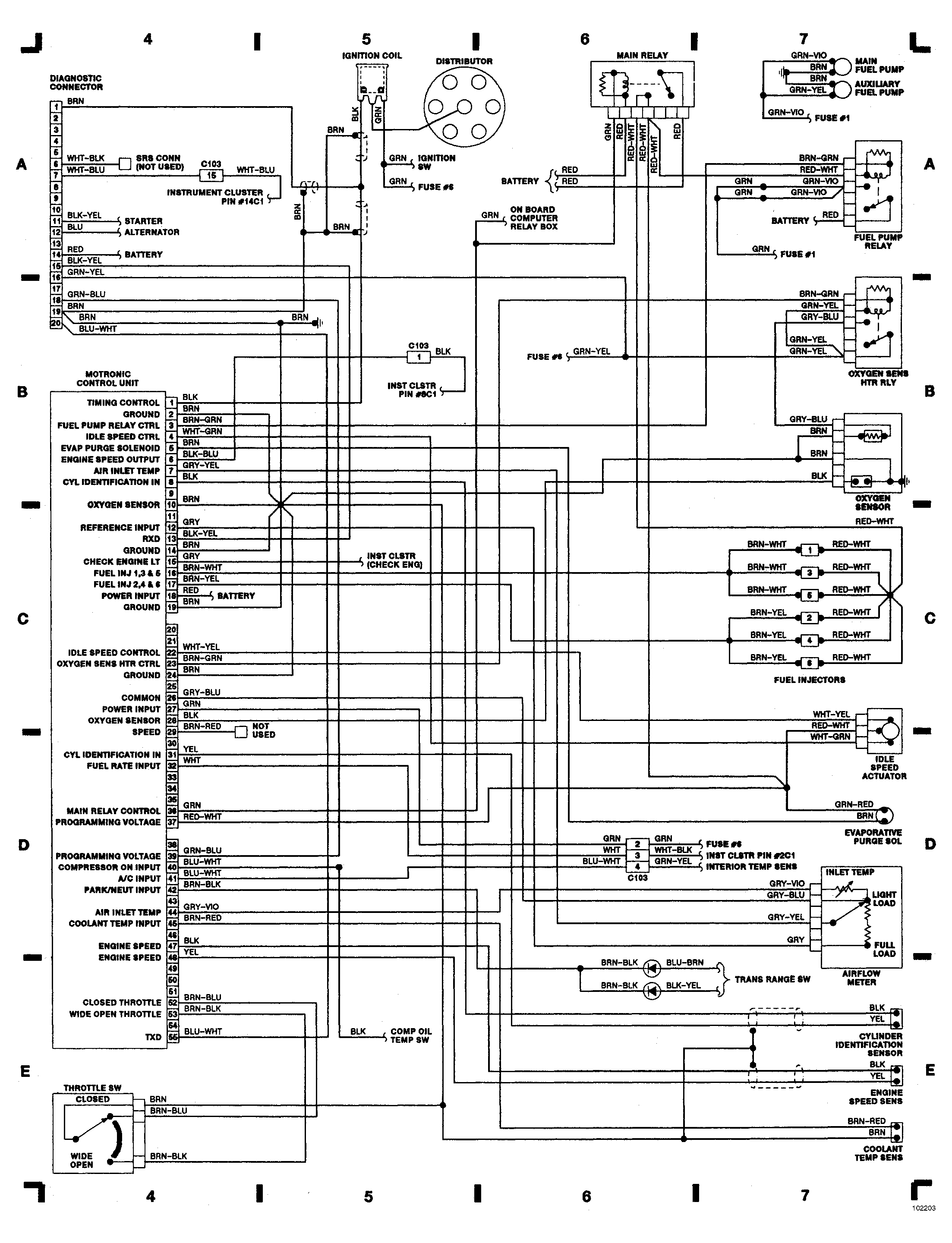

Fig 2: Engine Compartment (Cont.)

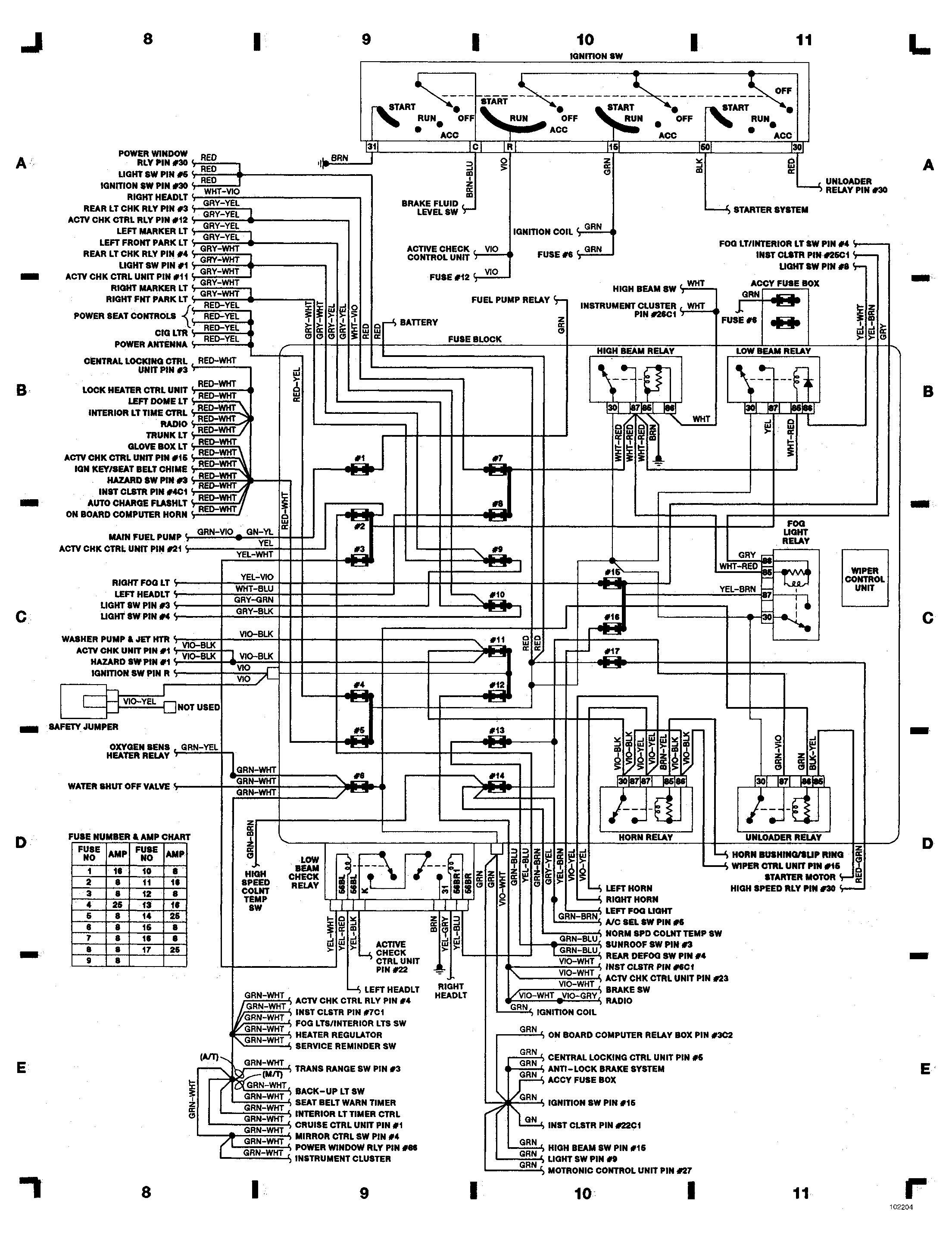

Fig 3: Fuse Block

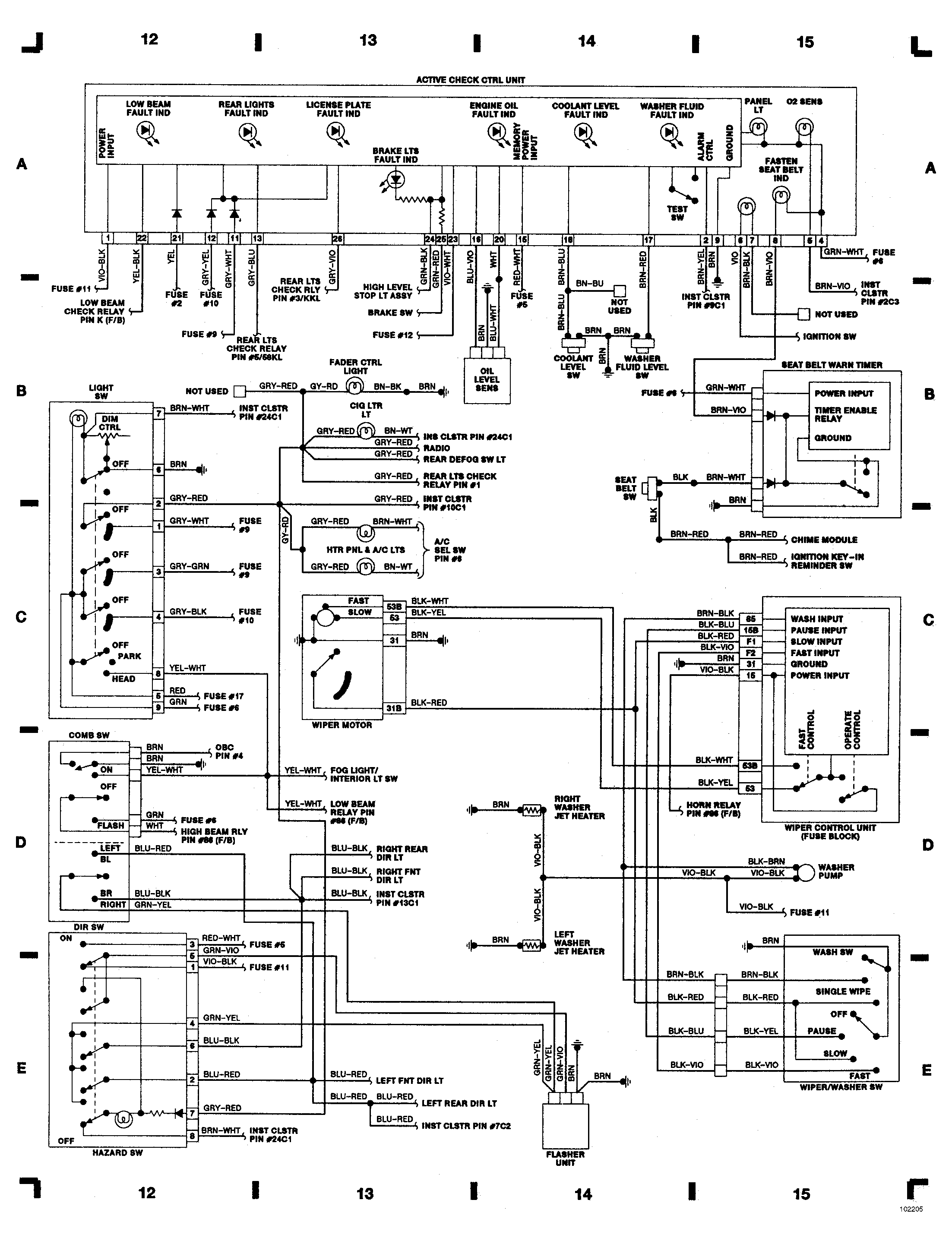

Fig 4: Underdash

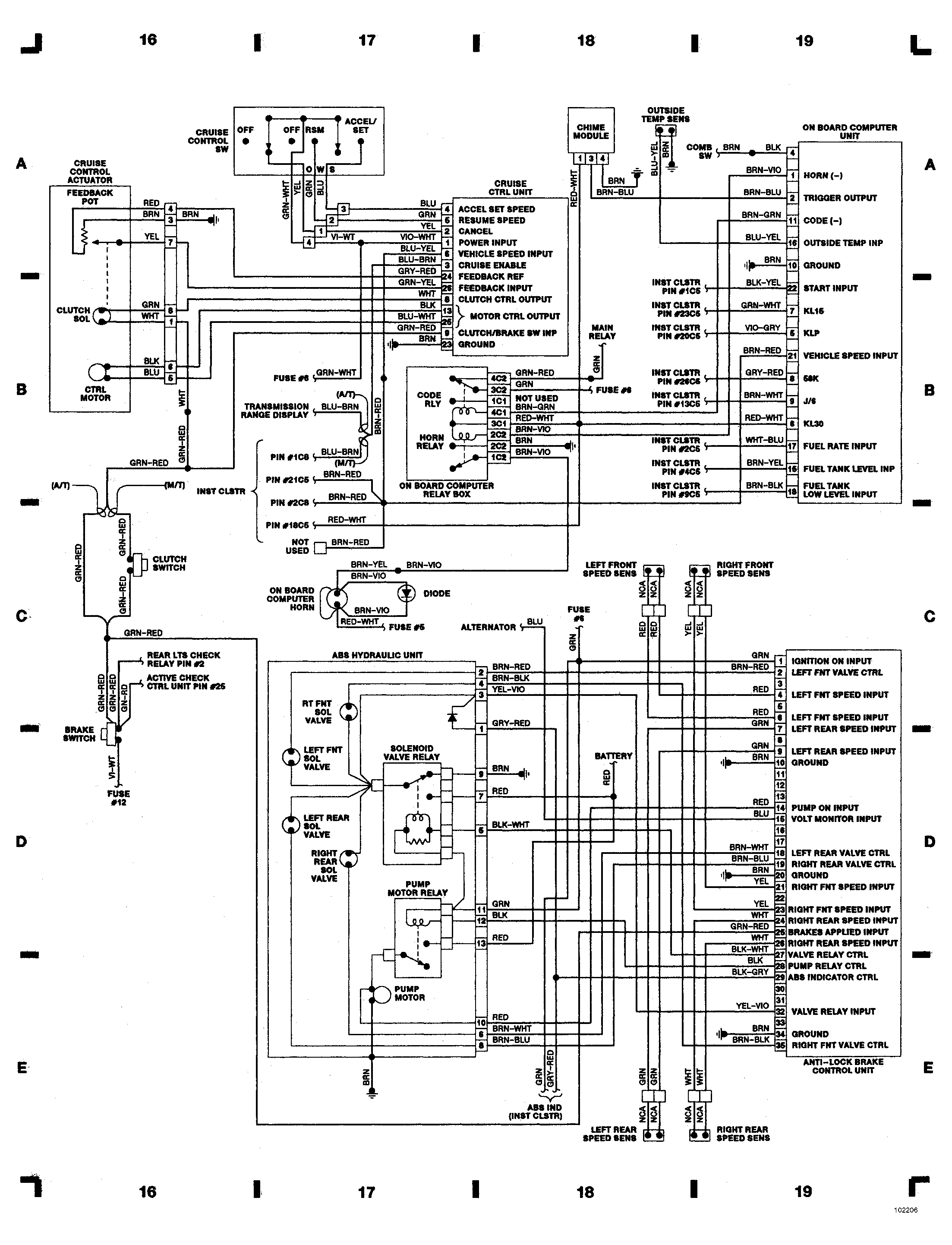

Fig 5: Underdash (Cont.)

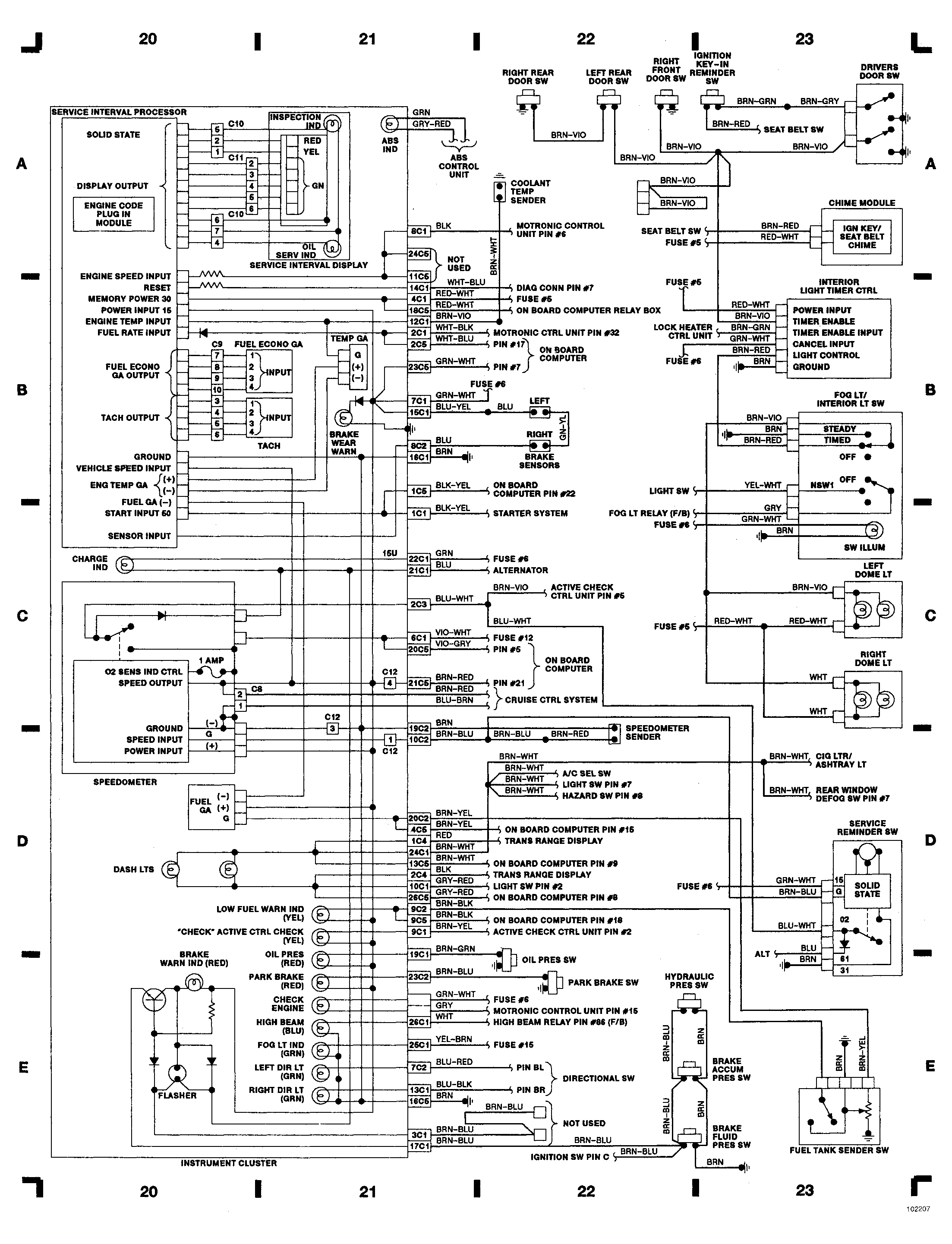

Fig 6: Instrument Panel

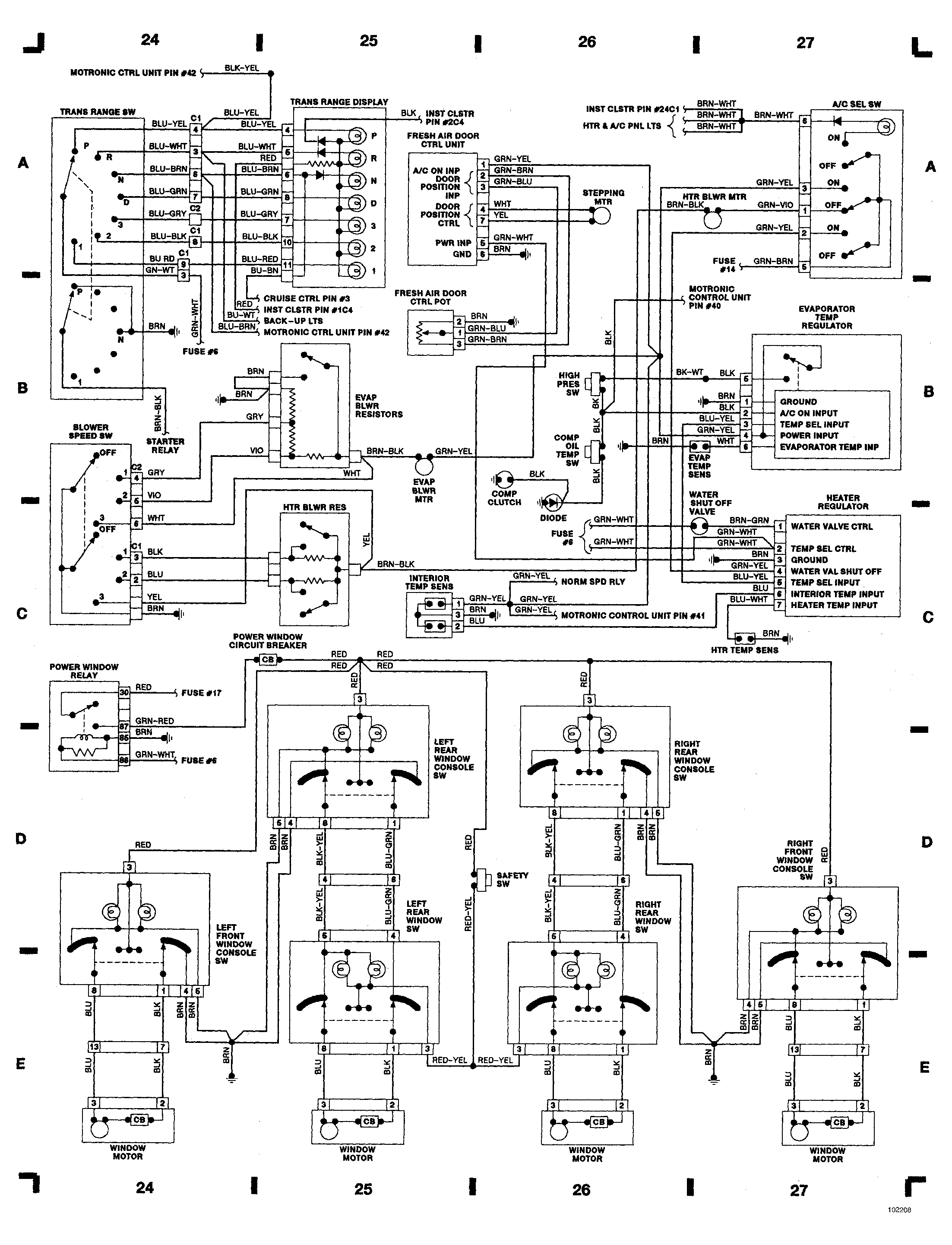

Fig 7: Rear Compartment & Accessories

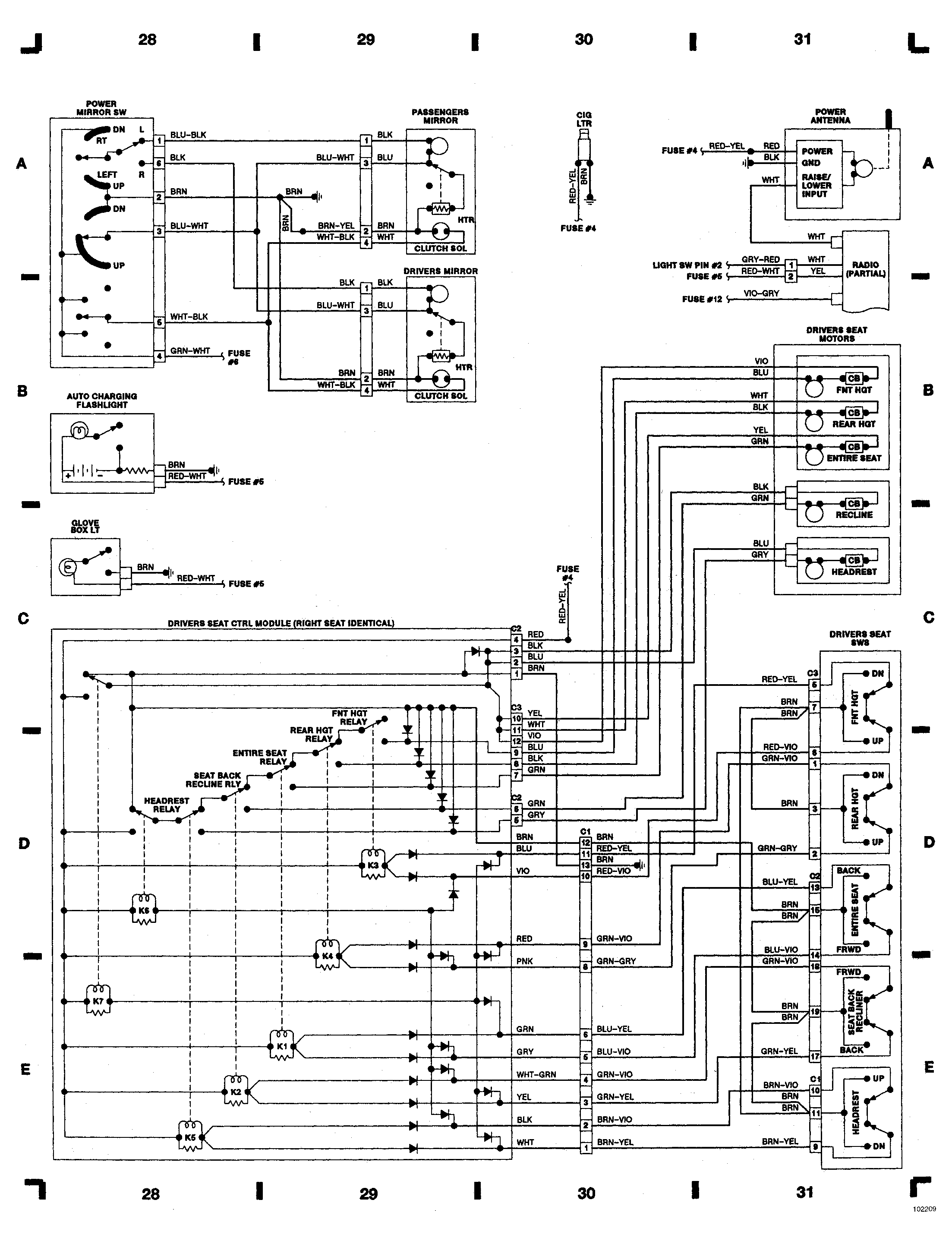

Fig 8: Rear Compartment & Accessories (Cont.)

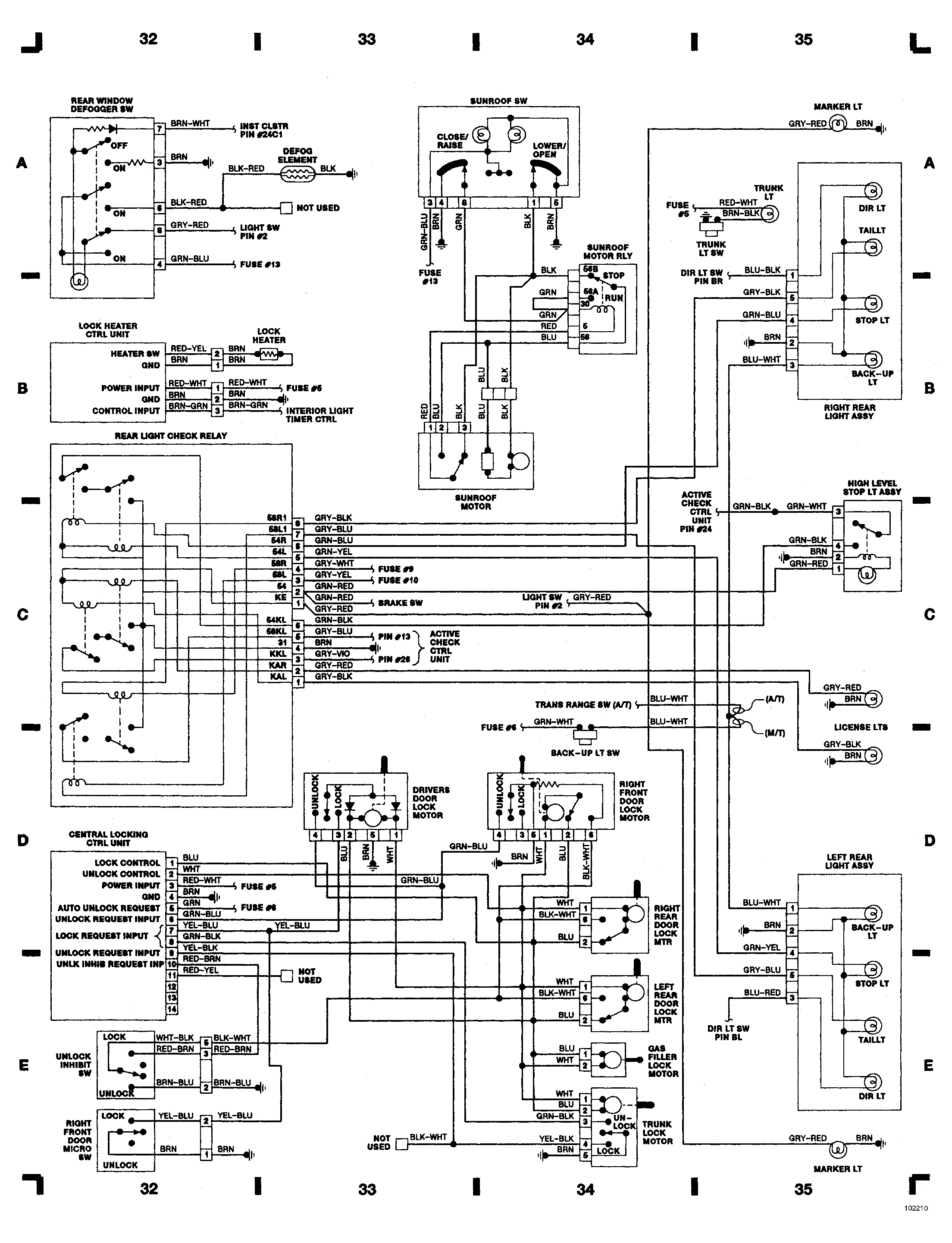

Fig 9: Rear Compartment & Accessories (Cont.)
