Wiring Diagrams

WARNING: This page is about a different car, the 1988 BMW 325is, 1988 BMW 325iX, 1988 BMW 325i, and 1988 BMW 325. However, it is still accessible from the selected car via links, so may be relevant.

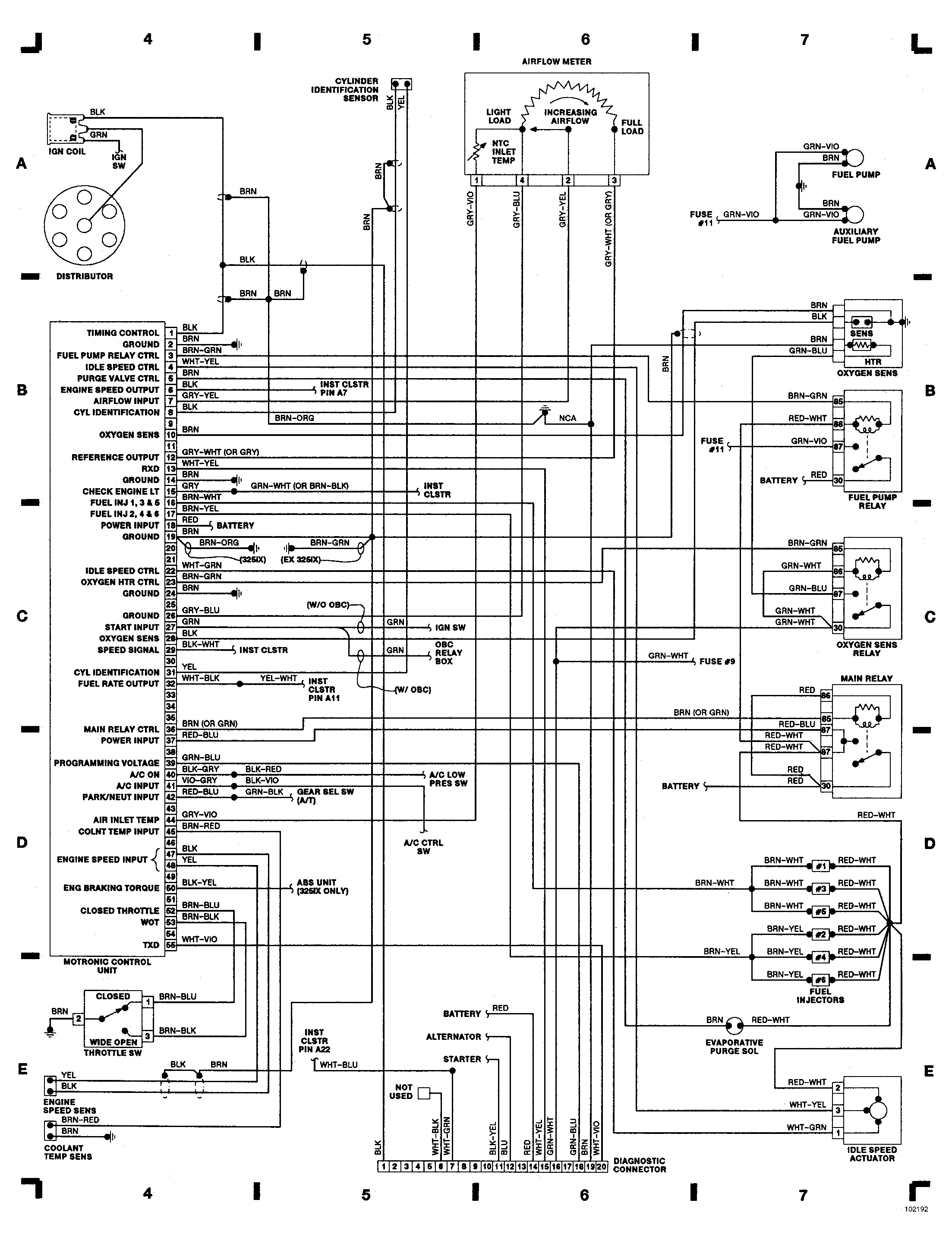

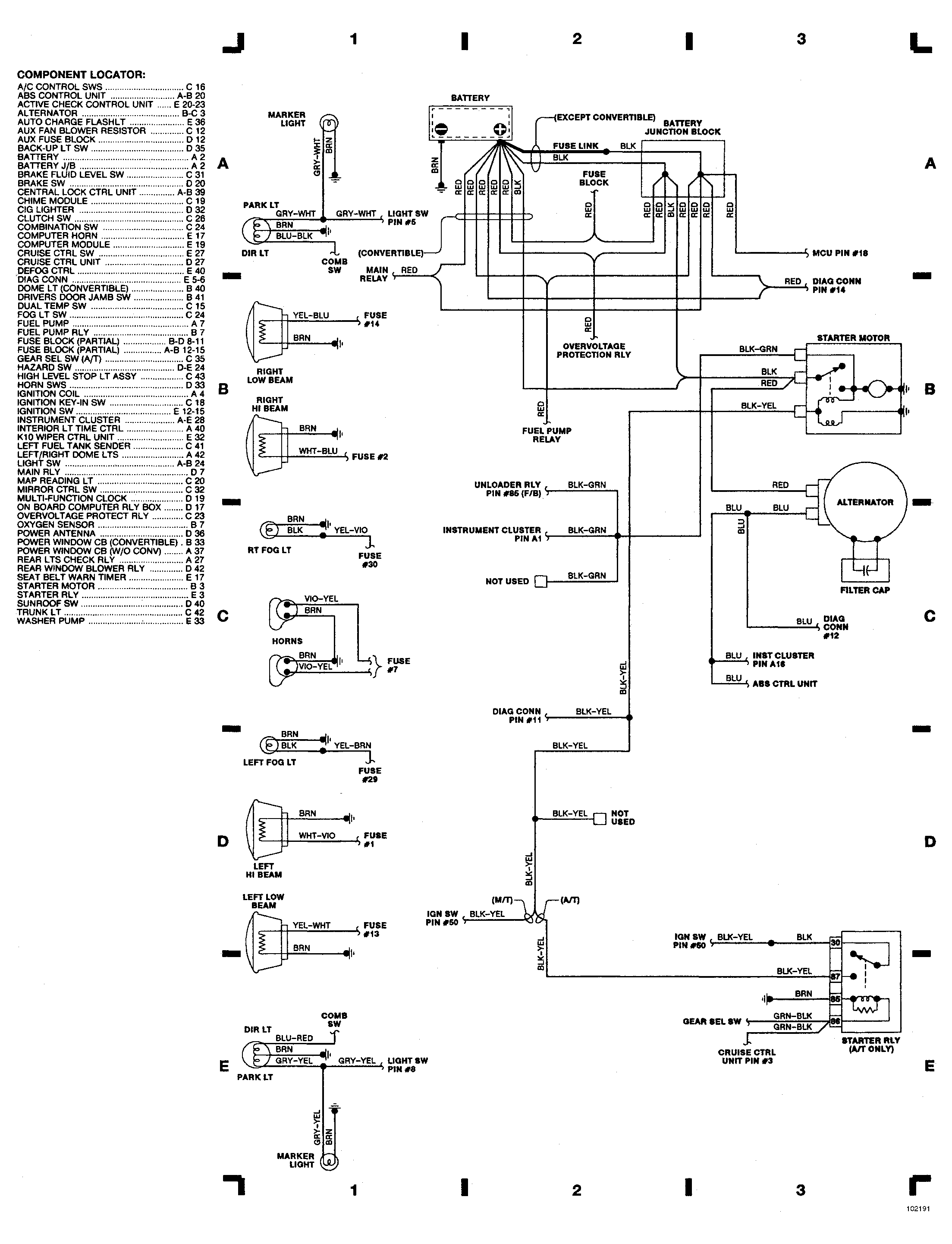

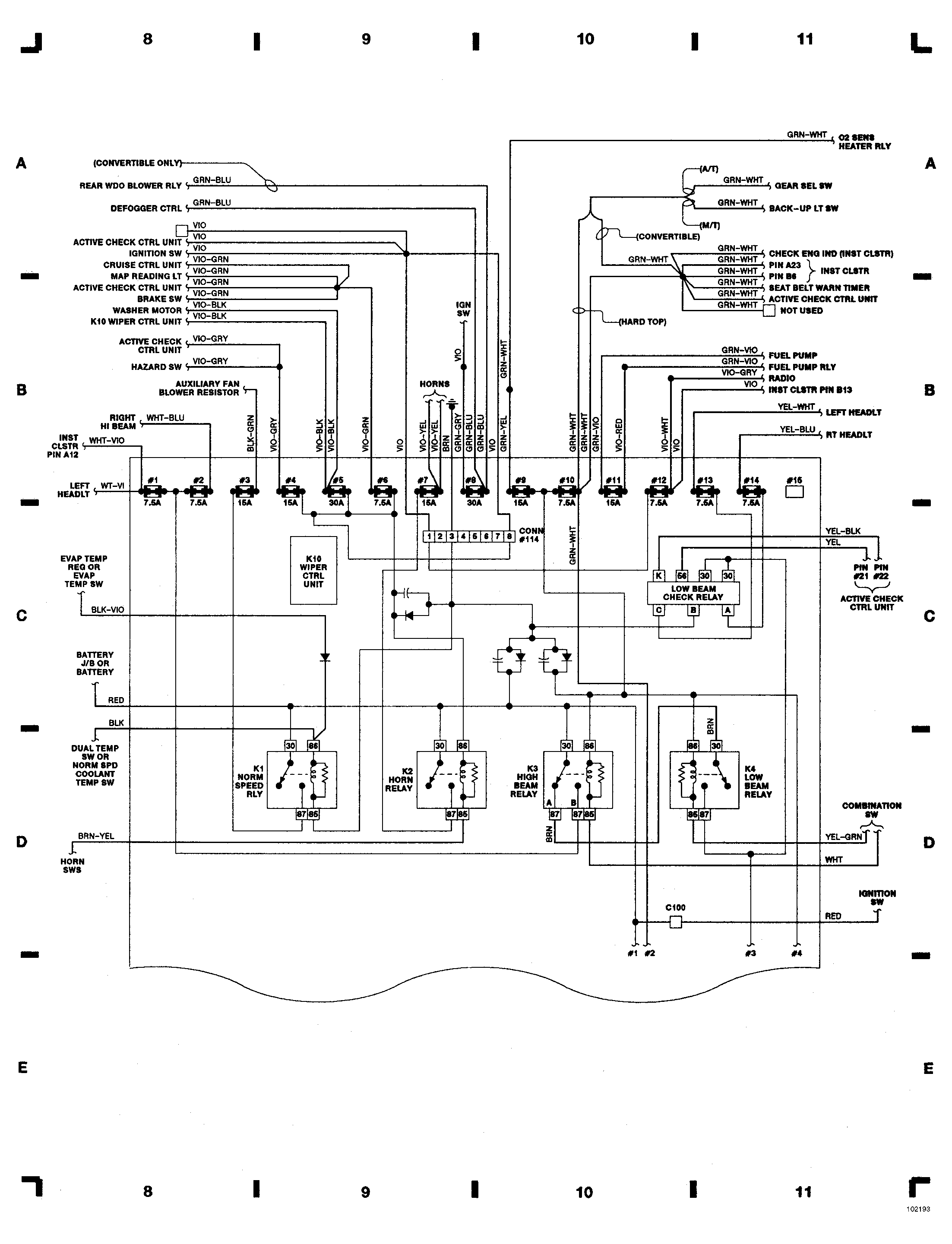

Fig 1: Engine Compartment

Fig 2: Engine Compartment (Cont.)

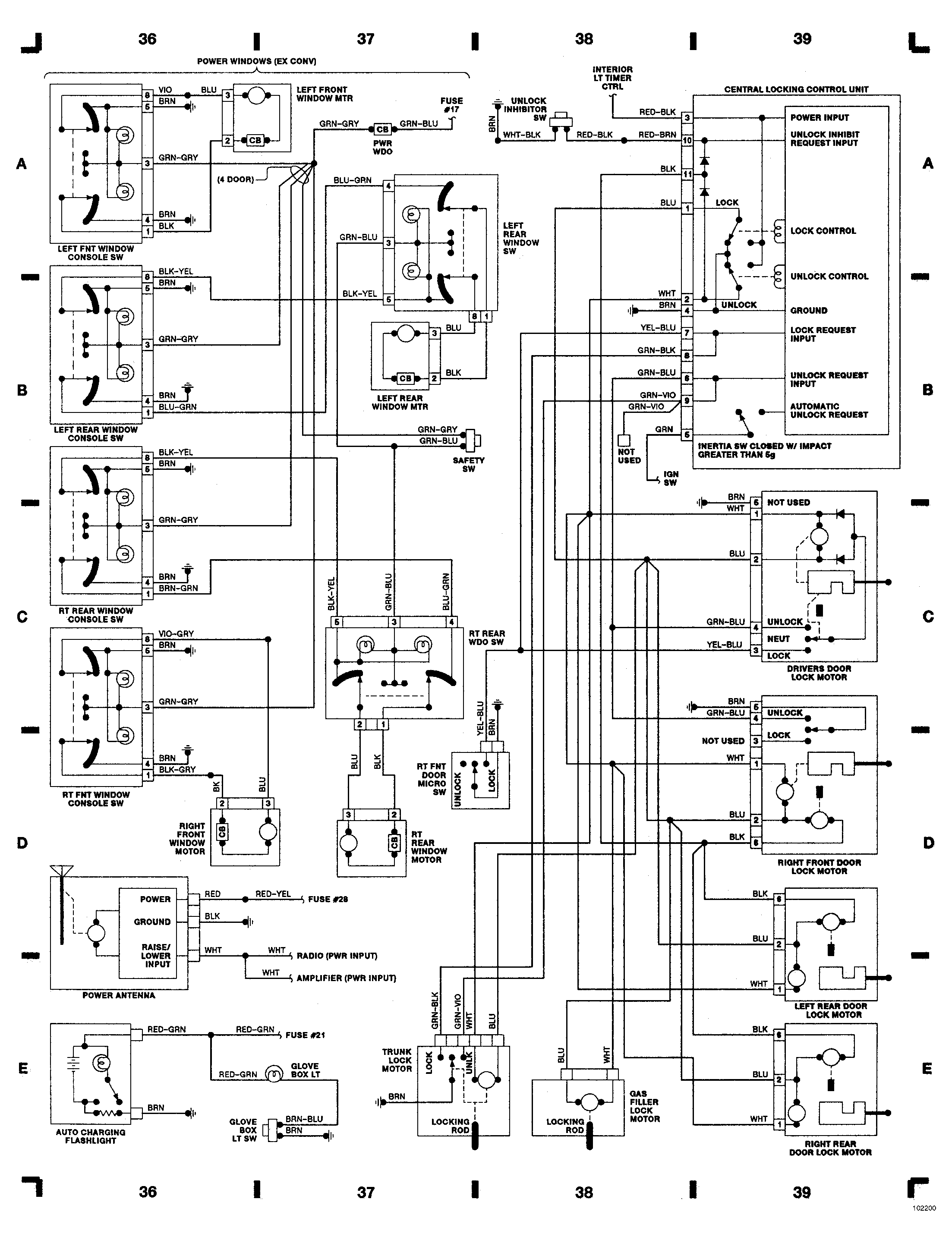

Fig 3: Fuse Block & Underdash

Fig 4: Fuse Block & Underdash (Cont)

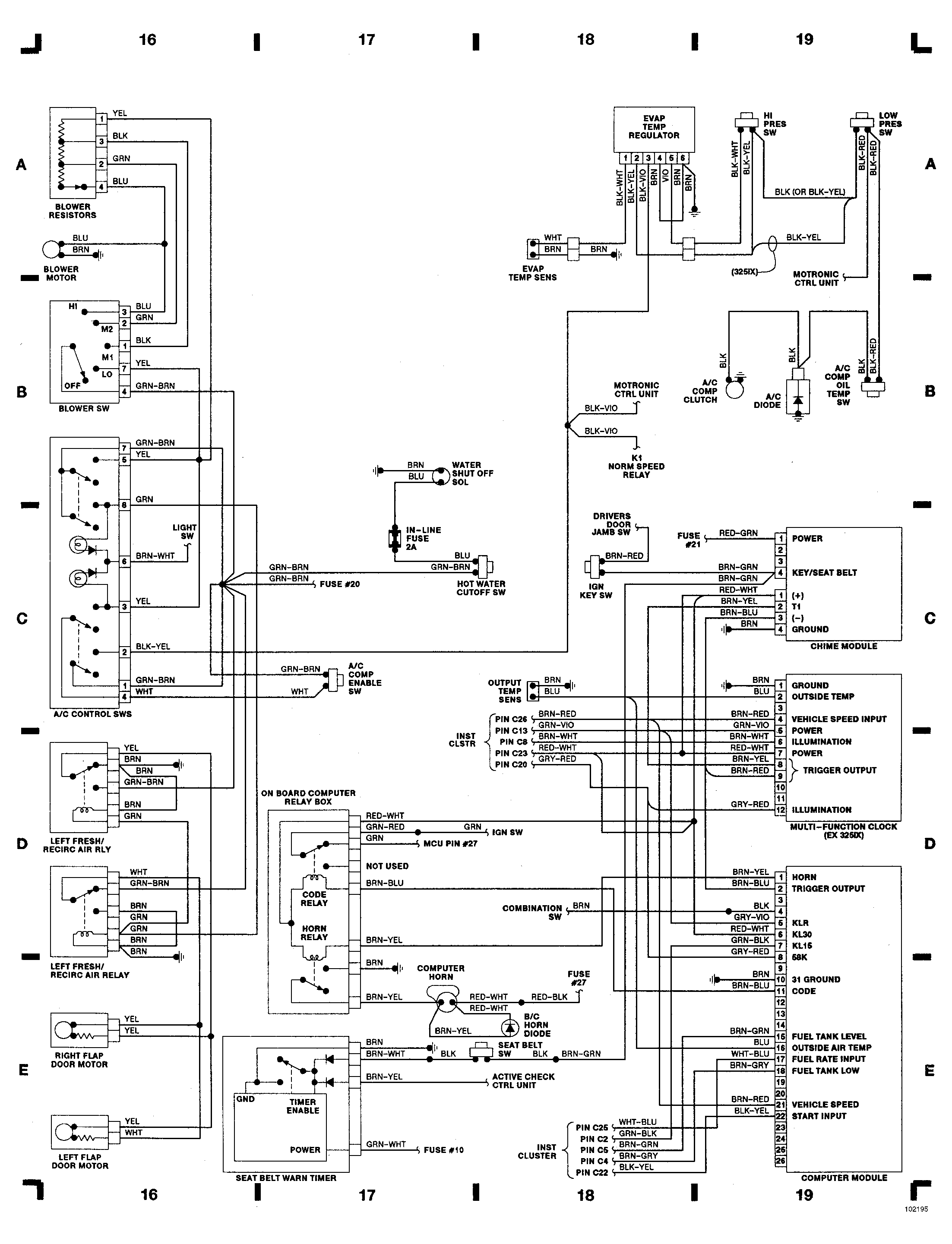

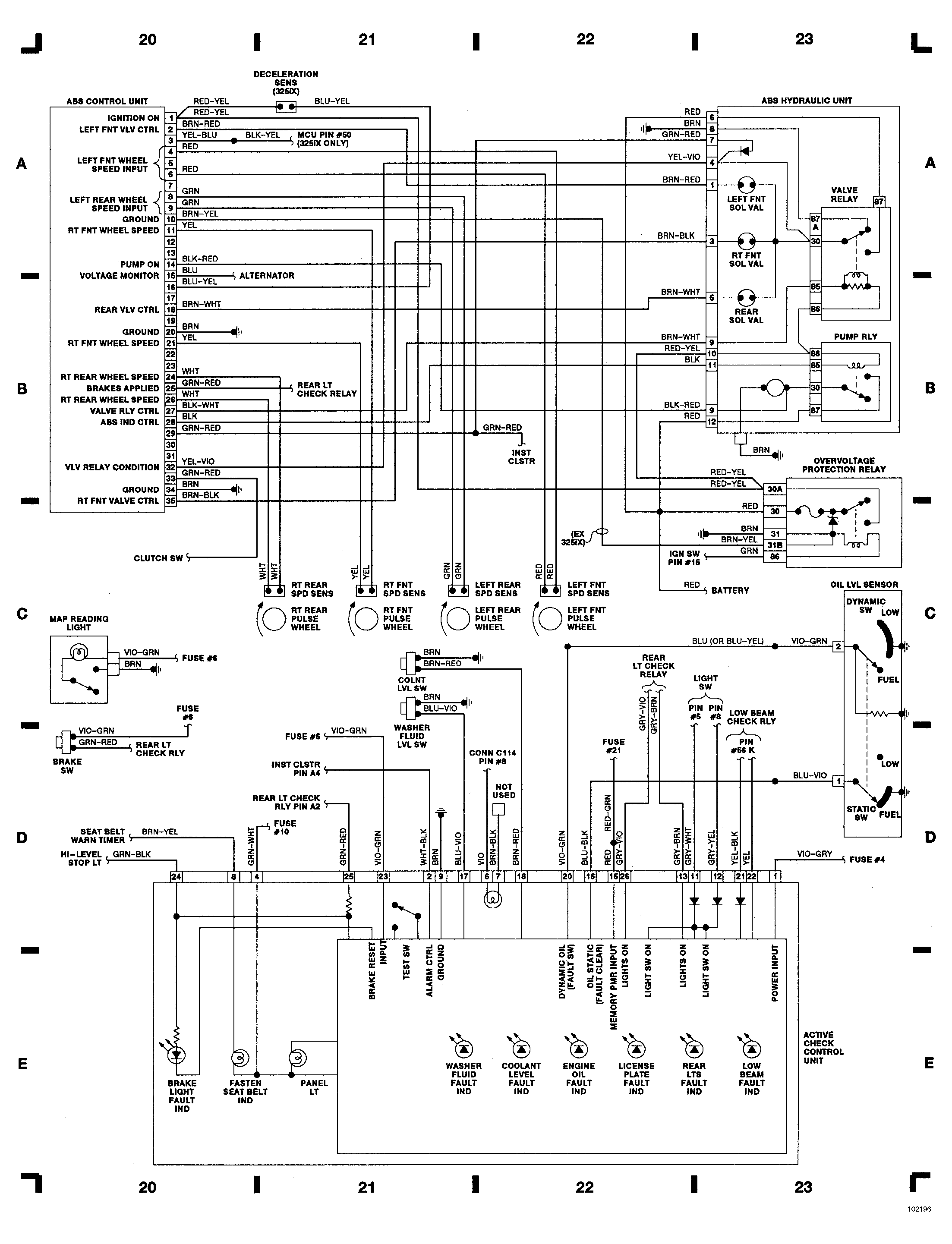

Fig 5: Underdash (Cont.)

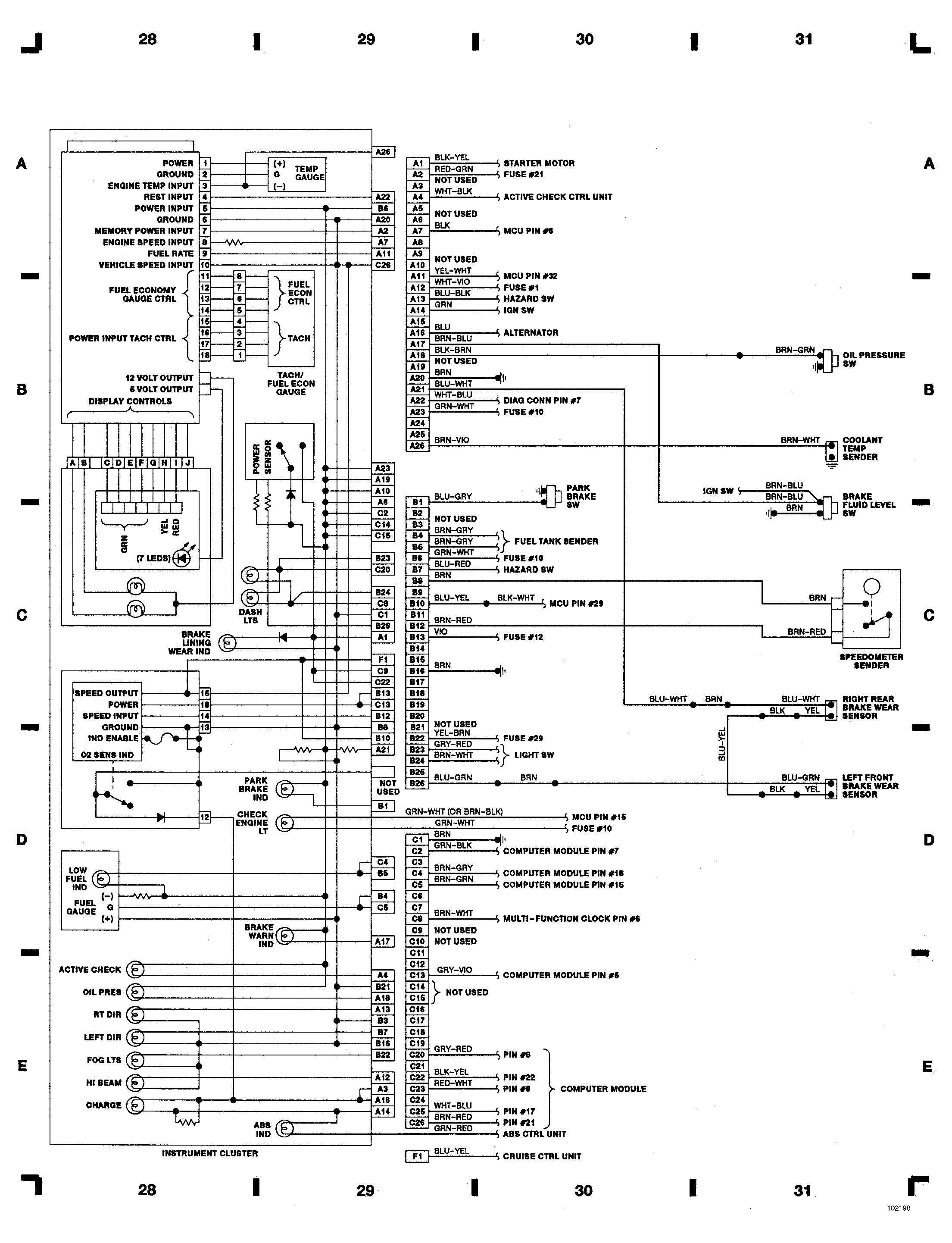

Fig 6: Underdash (Cont.) & Instrument Panel

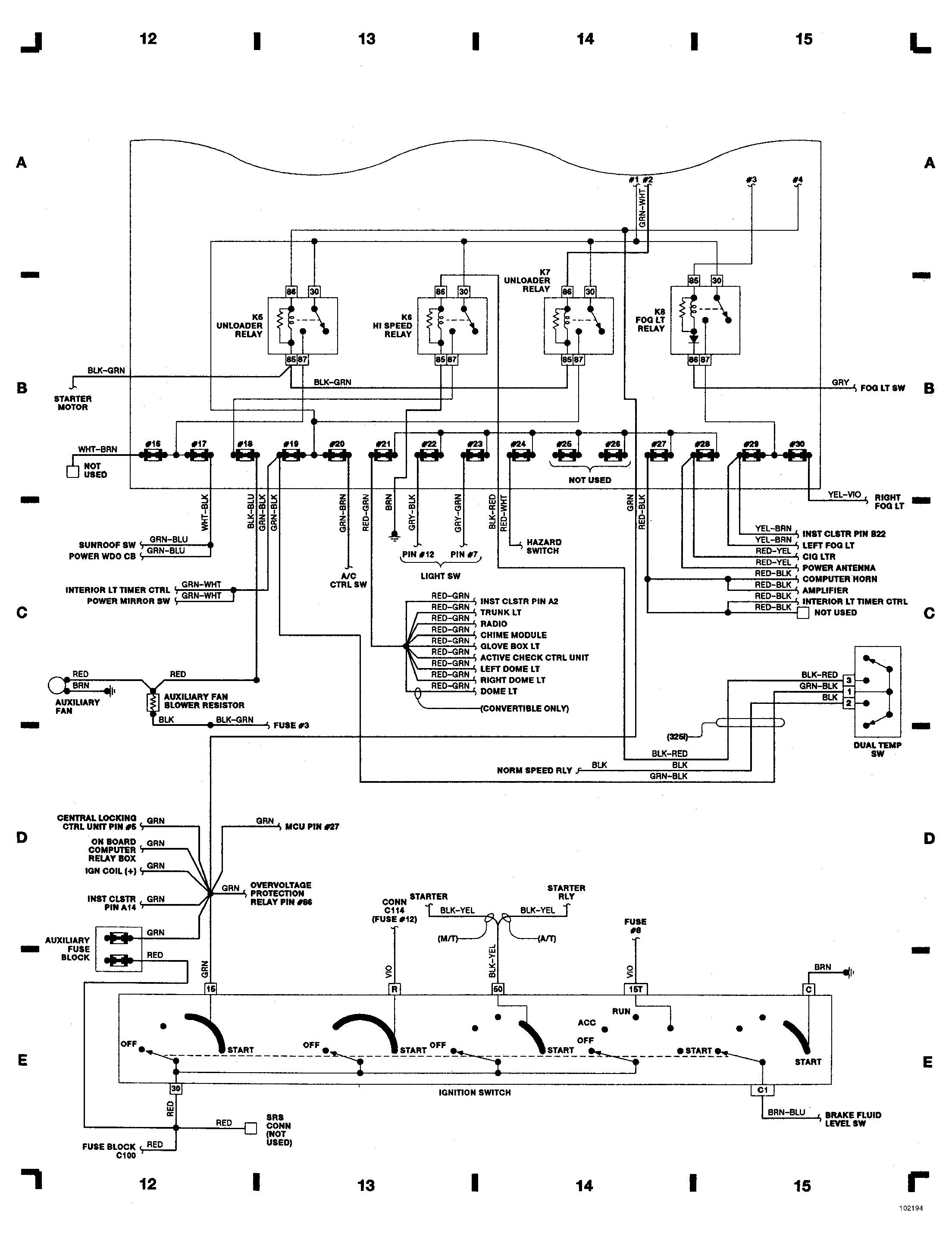

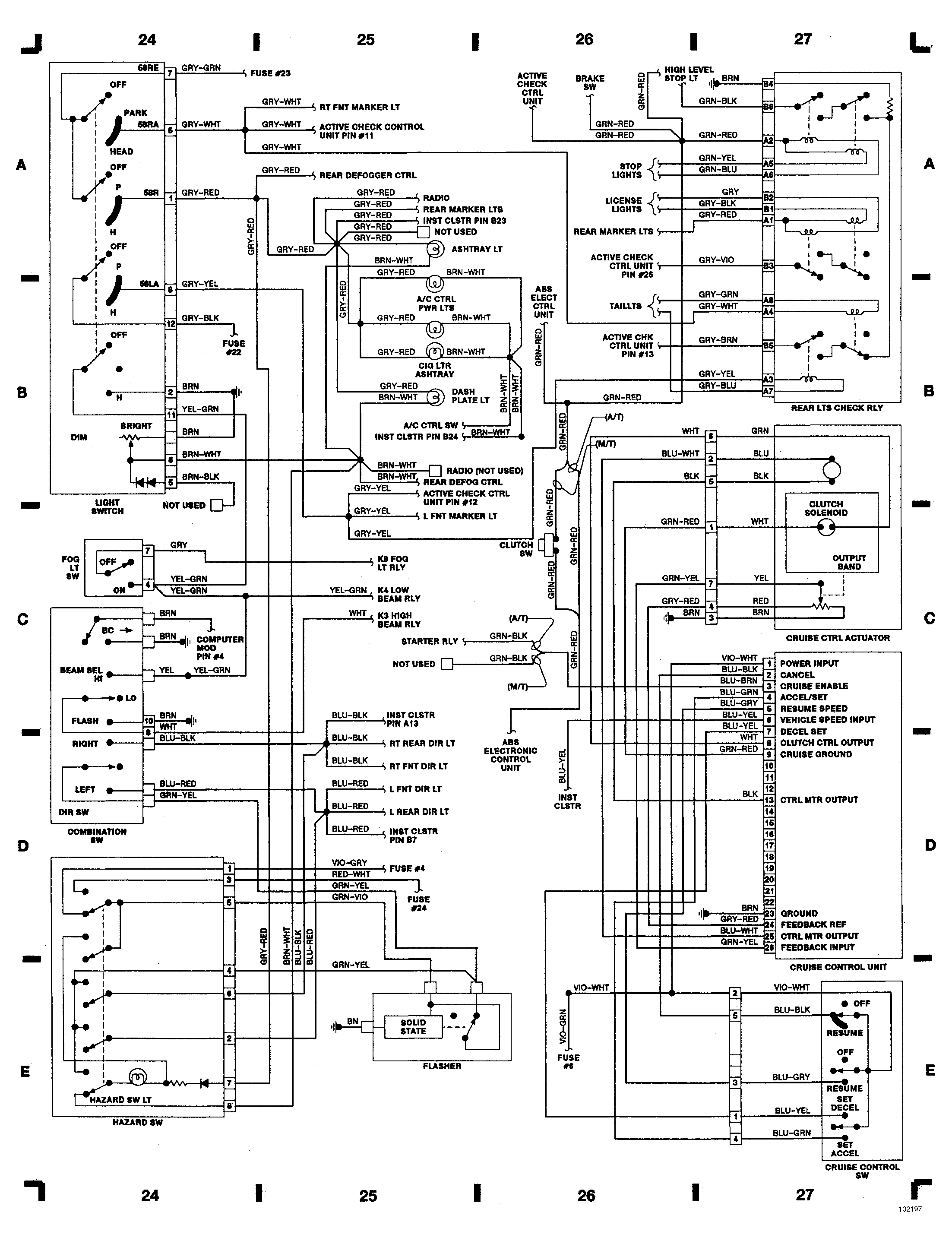

Fig 7: Underdash & Instrument Panel (Cont.)

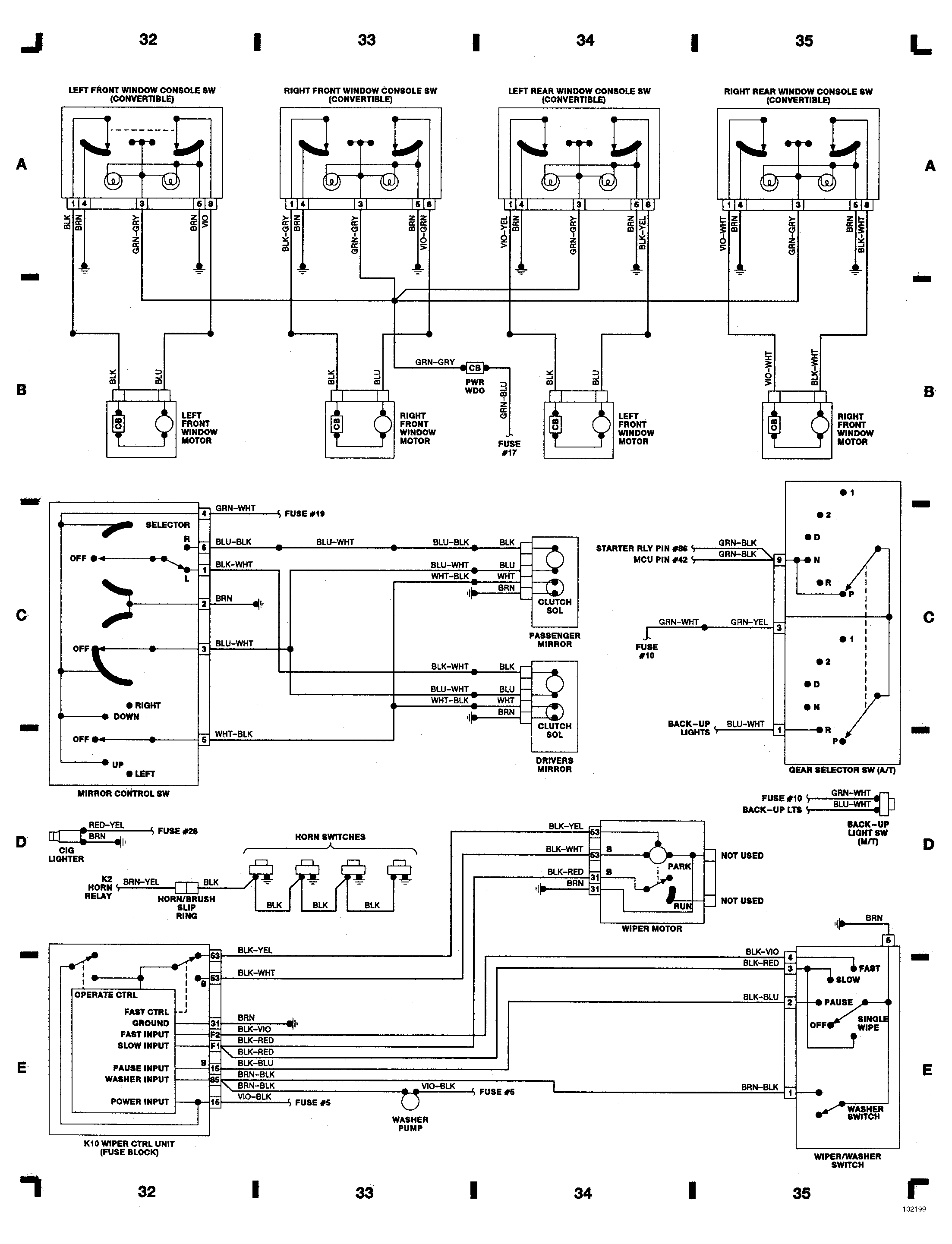

Fig 8: Instrument Panel (Cont.)

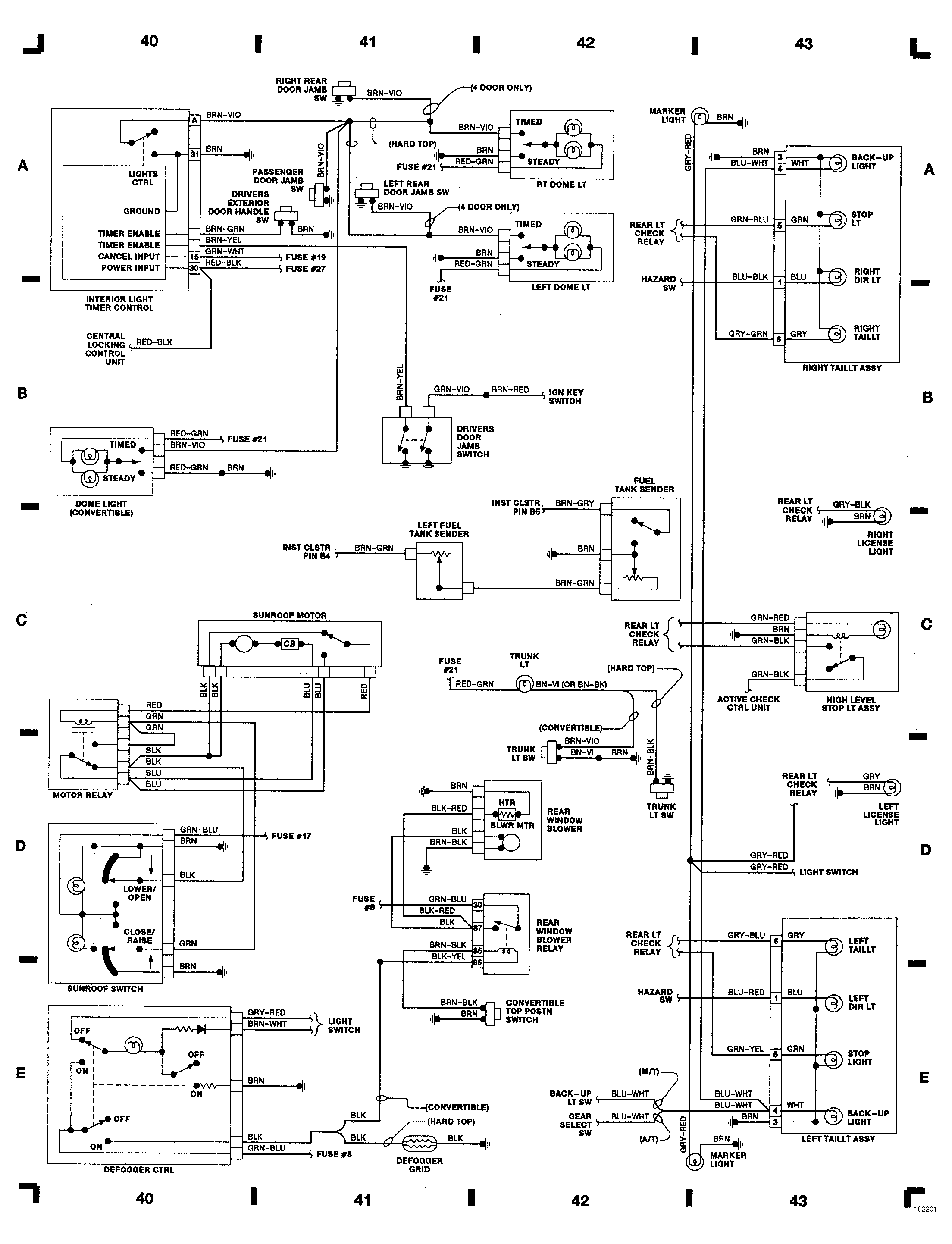

Fig 9: Rear Compartment & Accessories

Fig 10: Rear Compartment & Accessories (Cont.)

Fig 11: Rear Compartment & Accessories (Cont.)

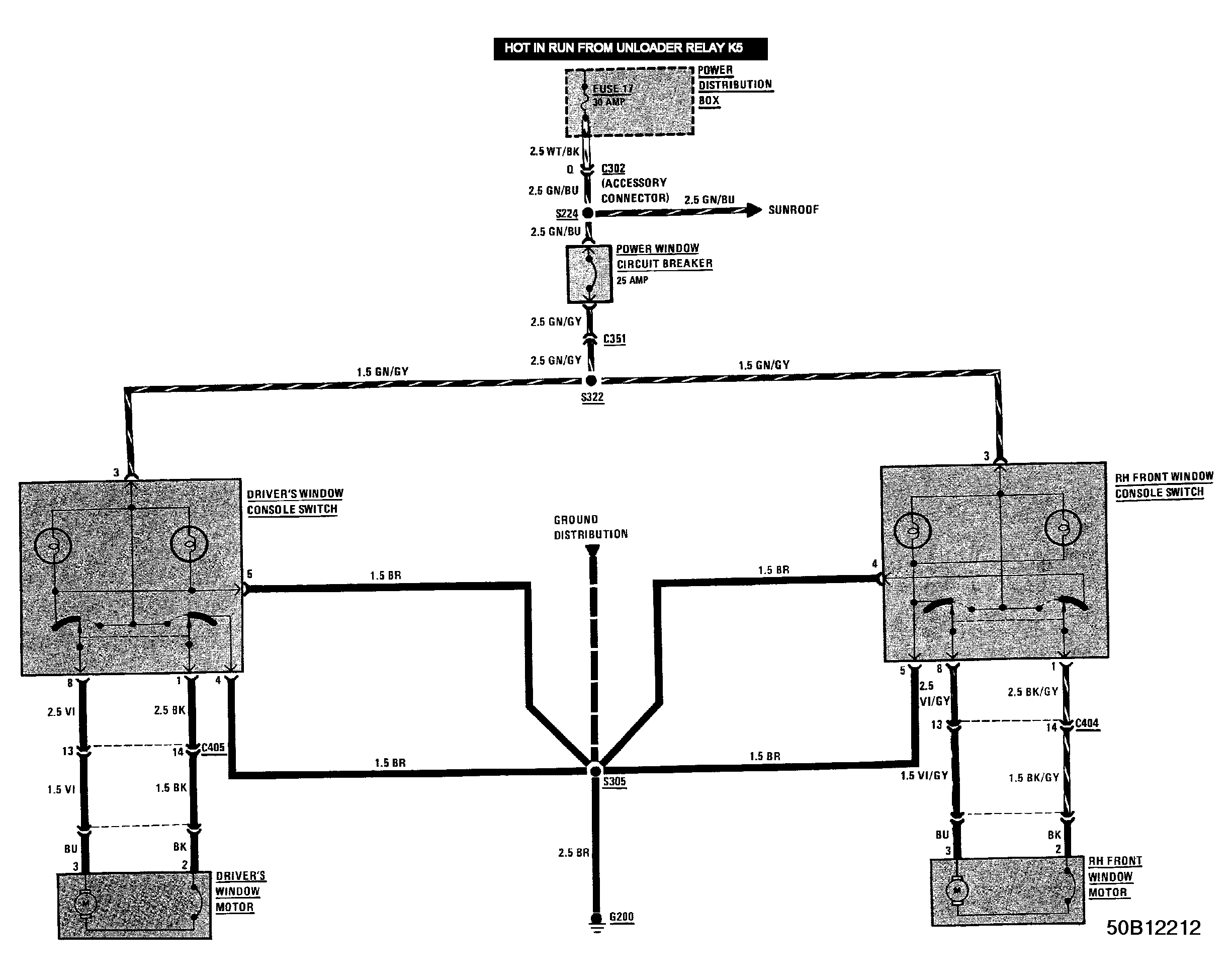

Fig 12: Power Window (2-Door)
