Clutch C' & "C": Reassembly

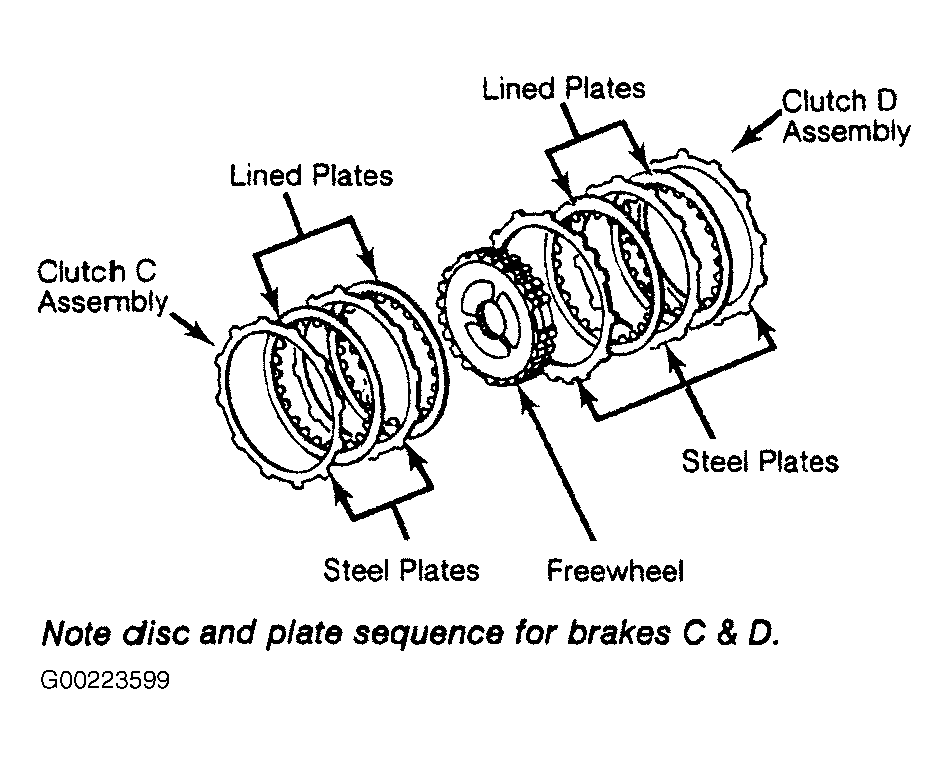

  1. Reverse disassembly procedures, noting the following: Coat all discs and plates with ATF. Make sure all plates and discs are installed in proper sequence and number as when removed. See Figure
  2. If discs or plates are replaced, soak new parts in warm ATF (160° F/70° C) for 20 minutes before installing.

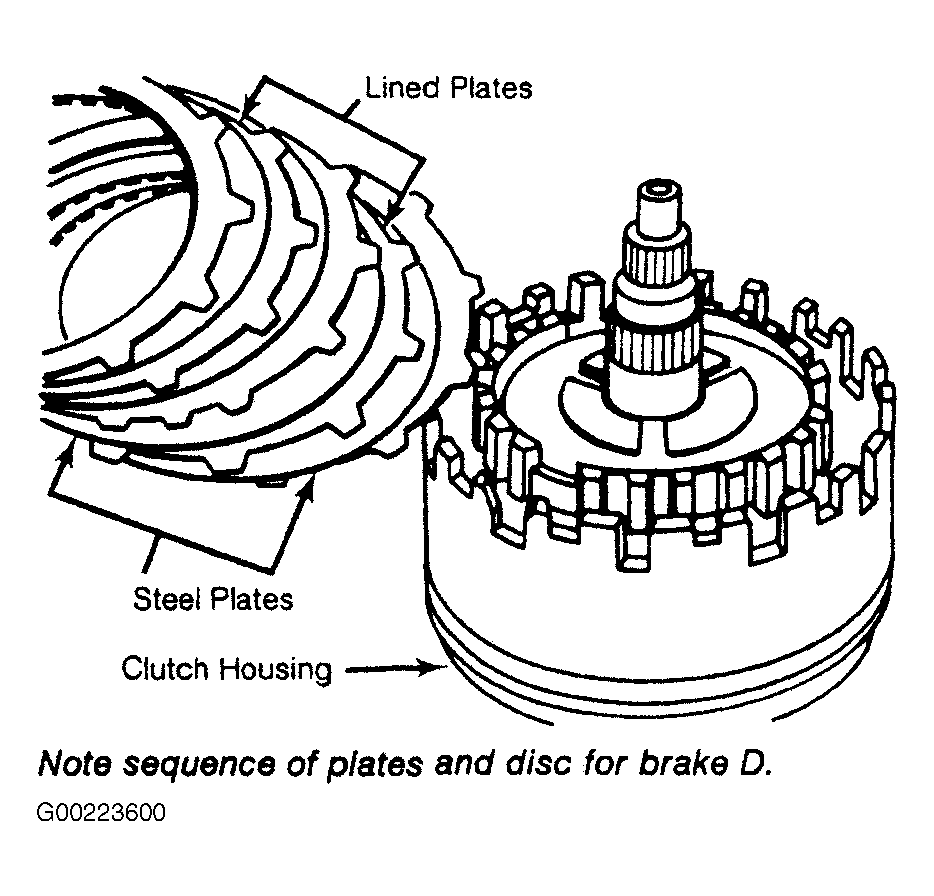

Fig 1: Exploded View of Clutch D Assembly
G00223600Courtesy of BMW OF NORTH AMERICA, INC.
