Removal & Disassembly (3.2L)

Carefully remove tensioner plug. Remove spring and piston assembly. Remove piston, check ball and metering disc from piston sleeve. See Fig 1. Clean all parts thoroughly and blow out with compressed air.

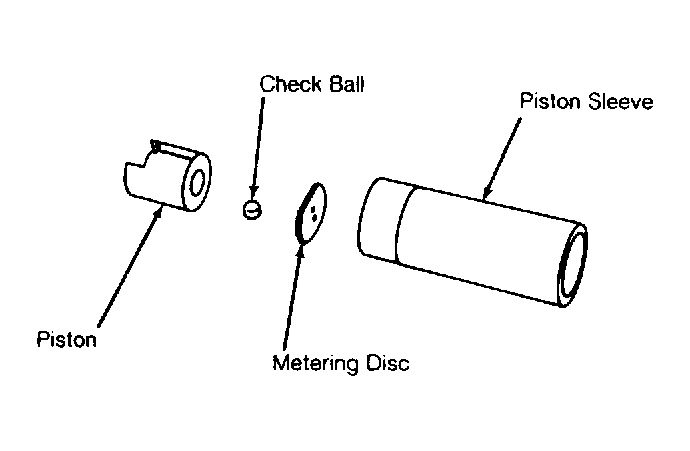

Fig 1: 3.2L Tensioner Components
G80040
NOTE: Piston assembly must be purged of air after installing.
