Removal & Installation

Loosen brake adjuster cams. Remove countersunk Allen bolt, and slide off brake drum. To install, reverse removal procedure and note: If one brake drum is reground, drum on other side must also be reground.

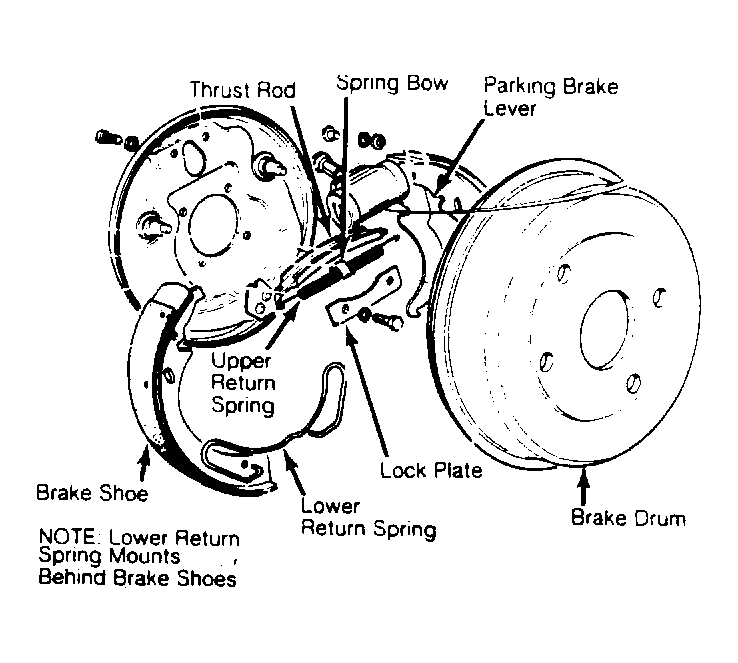

Fig 1: Exploded View of Rear Drum Brake Assembly (320i Shown; 318i Similar)
G50017
