Timing Belt & Sprocket: Installation

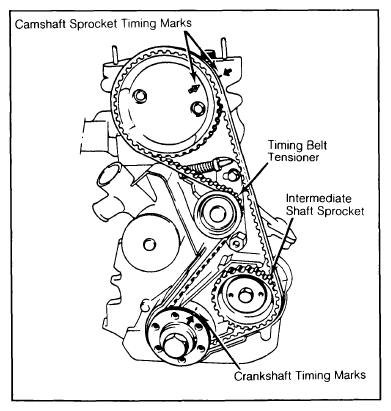

  1. Ensure arrow on camshaft sprocket is still aligned with timing mark on cylinder head. Check that timing mark on crankshaft sprocket is aligned with notch in cover (approximately 1 o'clock position). See Figure.
  2. Install timing belt on sprockets. Loosen tensioner adjusting bolt to allow tension on timing belt. Turn crankshaft in direction of normal rotation until timing belt tightens. Tighten tensioner bolts. Install remaining components in reverse order of removal.
