Camshaft Endplay

Check camshaft endplay with a feeler gauge. If endplay exceeds 0.001 - 0.007" (0.03 - 0.18 mm), replace camshaft thrust plate.

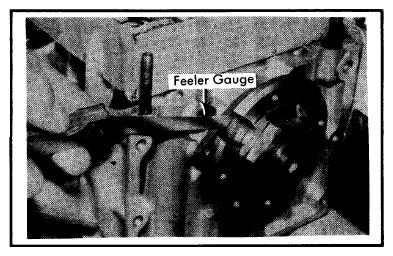

Fig 1: Using Feeler Gauge to Check Camshaft Endplay

Courtesy of BMW OF NORTH AMERICA, INC.
