Disassembly, All

Using a spring compressor, collapse spring and remove centering shell. Remove coil spring and boot. Pull retainer and auxiliary spring off shock absorber. Inspect and replace any defective parts.

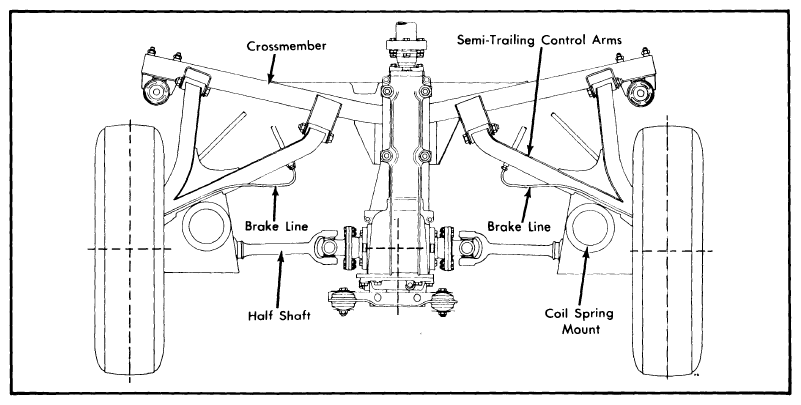

Fig 1: Overhead View of BMW Rear Suspension

Courtesy of BMW OF NORTH AMERICA, INC.
