Turn Signal & Dimmer Switch: Installation

To install, reverse removal procedure and note: Make sure steering wheel is lined up with reference marks. Ensure turn signal assembly is centered. Finger on cancelling cam must face toward center. Distance between switch and finger should be about 0.118" (3 mm).

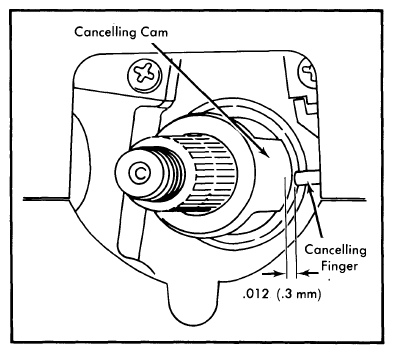

Fig 1: Cancelling Cam and Finger with Clearance Shown

Courtesy of BMW OF NORTH AMERICA, INC.
