Teflon Rings (Worm Gear & Piston)

Replace Teflon rings (four rings) on worm gear and piston. Replace "O" ring (one ring) on worm gear. Use a suitable blade-type tool to push old rings out of grooves.

Fig 1: Worm Gear And Piston Sealing Ring Locations

Courtesy of BMW OF NORTH AMERICA, INC.

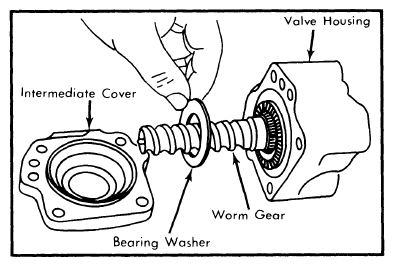

Fig 2: Worm Adjustment Washer Installation

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Intermediate Cover With Teflon Ring

Courtesy of BMW OF NORTH AMERICA, INC.
