Car Pulls To One Side

Tire treads not matched between right and left sides. Anchor pins incorrectly set. Shoes without full drum contact on cars with non-adjustable anchors. Front wheel bearings loose. Drums out-of-round or scored. Lining not matched or improperly placed. Foreign substance on brake lining.

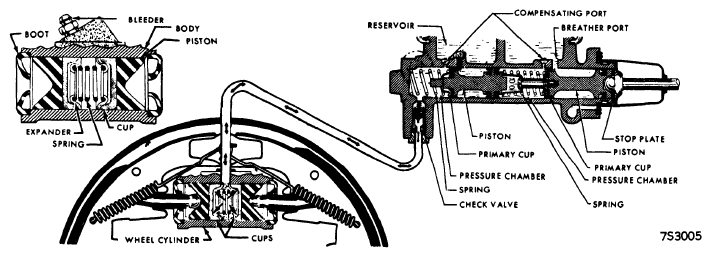

Fig 1: Hydraulic Brake System (Typical)
G09349297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
