Installation (All Models)

Reverse removal procedure and adjust brake shoes. See DRUM BRAKE ADJUSTMENT .

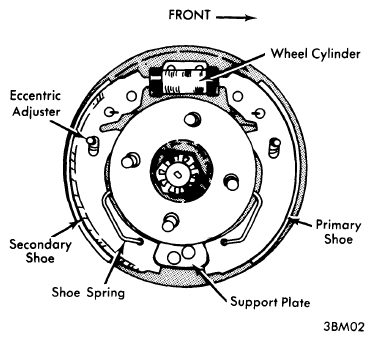

Fig 1: Rear Brake Assembly

G09349317

Courtesy of BMW OF NORTH AMERICA, INC.
