CIRCLIP For The Output Gear Of The Spur Gear Unit, Determining: Procedure

The output gear for the spur gear unit is pressed all the way on.

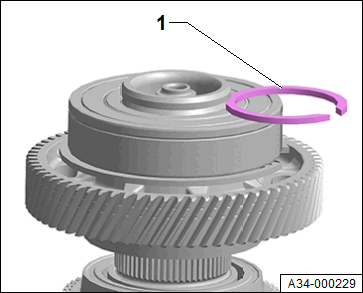

The illustration below shows a different component. Determining the circlip is identical.

-- Determine the thickest (but still usable) circlip and insert it. For the part number, refer to the Electronic Parts Information (ETKA).
