Parking Lock Solenoid N486/Drive Position Sensor G676, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Push the Drive Position Sensor -G676- onto the parking lock shaft; while doing so, pay attention to the different notches -arrows- and hand-tighten the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Check if the splines on the Drive Position Sensor -G676- are flush with the splines on the parking lock shaft.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -arrow- to the tightening specification.

Courtesy of AUDI OF AMERICA, LLC

-- When installing the Parking Lock Solenoid -N486-, make sure that the alignment pin is seated correctly.

Courtesy of AUDI OF AMERICA, LLC

-- Use a pin punch shaft turn the parking lock approximately 3° against the spring force.

Courtesy of AUDI OF AMERICA, LLC

-- Install both bolts -arrows- with lightened spring force and tighten to the tightening specification.

-- Pay attention to the correct installation position.

Courtesy of AUDI OF AMERICA, LLC

Conditions

• The lever from the parking lock is flush to the shaft splines -arrow-.
• If necessary align with less spring force.
• If necessary the spring pin can also be pushed in using pliers.
• Never drive in the tensioning pin because the shaft will be damaged.

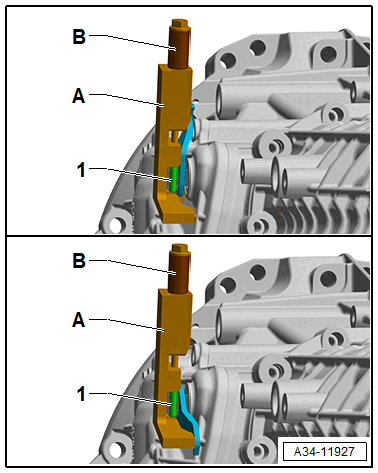

-- Press the tensioning pin -1- in using the Removal Tool Removal Tool :T40437  -A- and :T40437/1  -B-.

Courtesy of AUDI OF AMERICA, LLC
