Transmission Control Module J217, Removing And Installing: Removing

-- Remove the Mechatronic. Refer to Mechatronic, Removing and Installing  .

-- Release the connector for the Hydraulic Pressure Sensor 1 -G545- -1- and Hydraulic Pressure Sensor 2 -G546- -2- at the retaining tabs -A- and disconnect from the Transmission Control Module -J217-.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the connectors in the transportation safeguard.

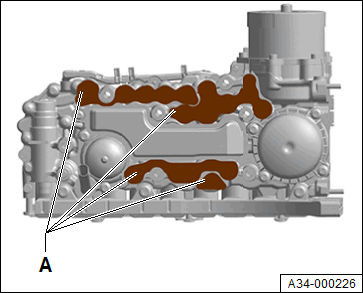

-- Seal off the ATF channels with Covers : T40322A  -A-.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the Mechatronic with the Support :T40321  .

Courtesy of AUDI OF AMERICA, LLC

-- Release the cover -1- for the sensor arm from the locking tabs -arrows- and remove.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts in the sequence -3 through 1-.

Fig 1: Sensor Arm Bolts Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the Transmission Fluid Auxiliary Hydraulic Pump Rotor Position Sensor -G847- -1- to the side to the engagement position.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the connector for Gear Position Distance Sensor 1 -G487- and Gear Position Distance Sensor 2 -G488- Distance Sensor 2 in Transportation Bracket -arrow-.

Fig 2: Transmission Control Module -J217- Bolts Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts in the sequence -4- through -1-. Remove the Transmission Control Module -J217- from the valve body.
