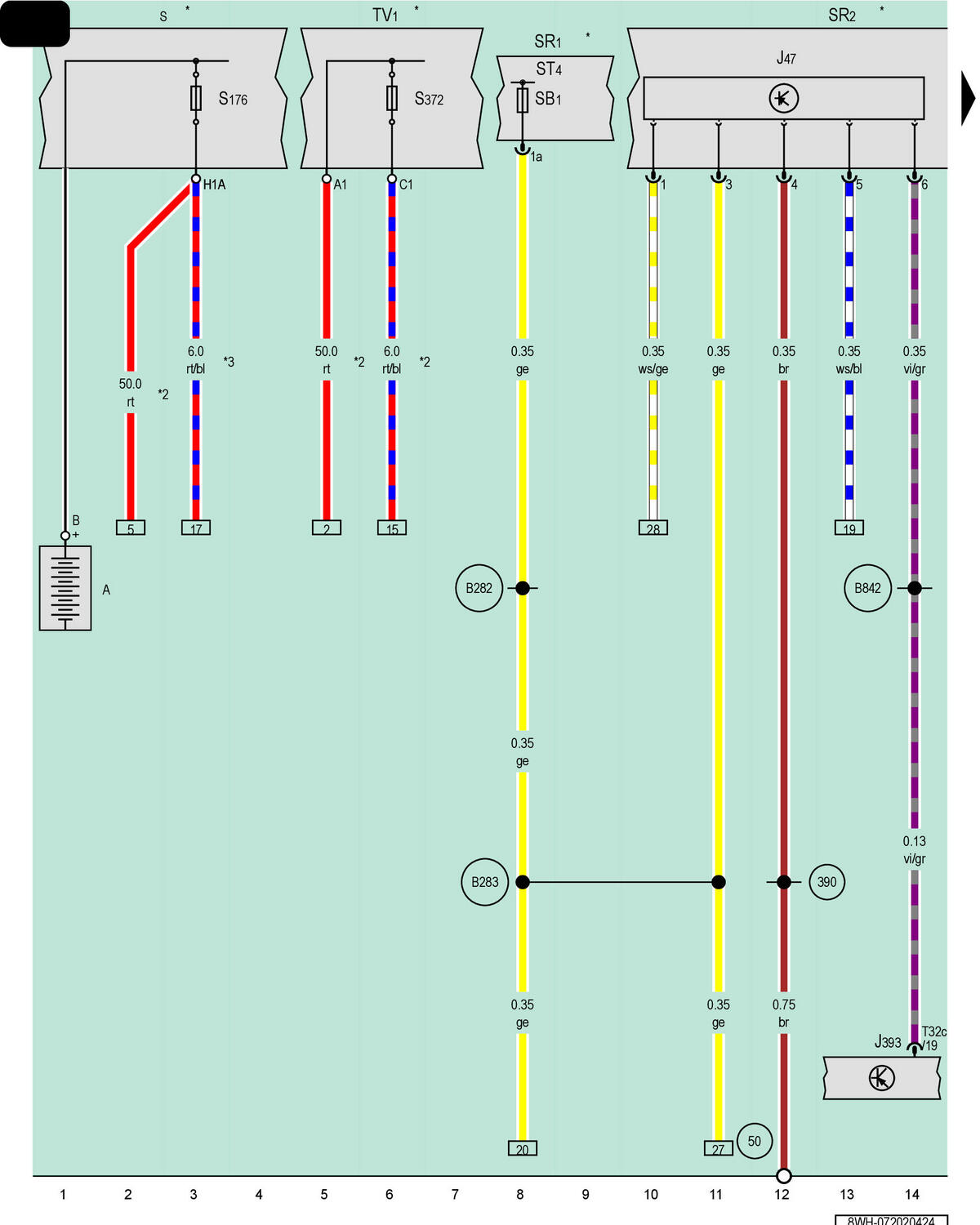

Windshield Defogger Relay, Relay And Fuse Panel 1, Relay And Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

A

Battery

J47

Windshield Defogger Relay, Gray

J393

Comfort System Central Control Module

S

Fuses (On Fuse Panel), On the Battery Fuse Panel

SB1

Fuse 1 (On Fuse Panel B)

SR1

Relay and Fuse Panel 1

SR2

Relay and Fuse Panel 2

ST4

Fuse Panel 4, Black

S176

Fuse 4 (Terminal 30) on Battery Fuse Panel

S372

Wire Junction Fuse 2

T32c

32-Pin Connector, Black

TV1

Wire Junction

50

Ground Connection in Luggage Compartment, Left

390

Ground Connection 25 (in Main Wiring Harness)

B282

Positive Connection 6 (15a) (in Main Wiring Harness)

B283

Positive Connection 7 (15a) (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with 48 V Hybrid System

*3

For Vehicles without 48 V Hybrid System
