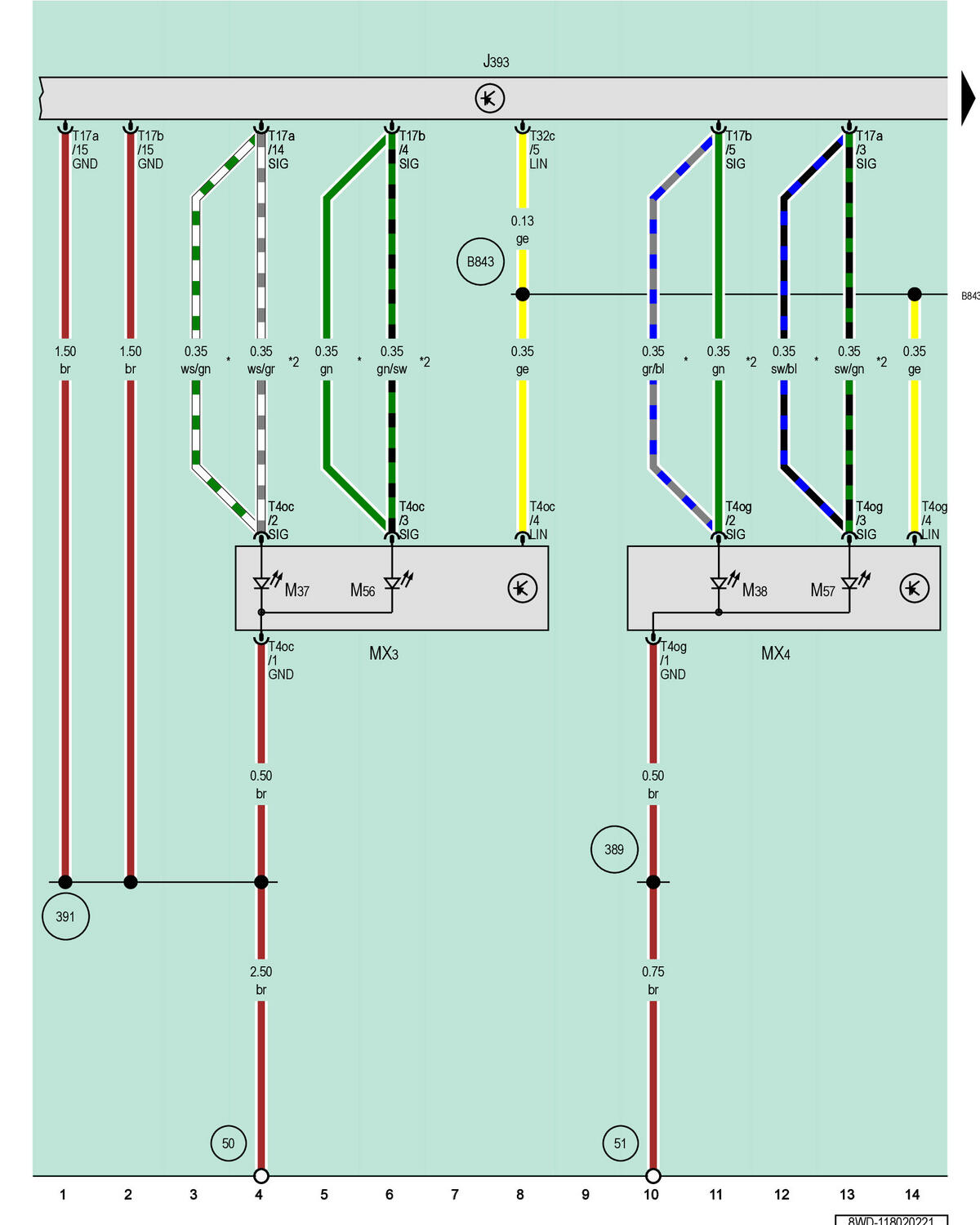

Comfort System Central Control Module, Left Tail Lamp, Right Tail Lamp
J393
Comfort System Central Control Module
MX3
Left Tail Lamp
MX4
Right Tail Lamp
M37
Left Rear Side Marker Lamp Bulb
M38
Right Rear Side Marker Lamp Bulb
M56
Left Brake Lamp/Turn Signal Bulb
M57
Right Brake Lamp/Turn Signal Bulb
T4oc
4-Pin Connector, Brown
T4og
4-Pin Connector, Brown
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
T32c
32-Pin Connector, Black
50
Ground Connection in Luggage Compartment, Left
51
Ground Connection in Luggage Compartment, Right
389
Ground Connection 24 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
B843
LIN Bus Connection 9 (in Main Wiring Harness)
*
Avant
*2
Sedan
