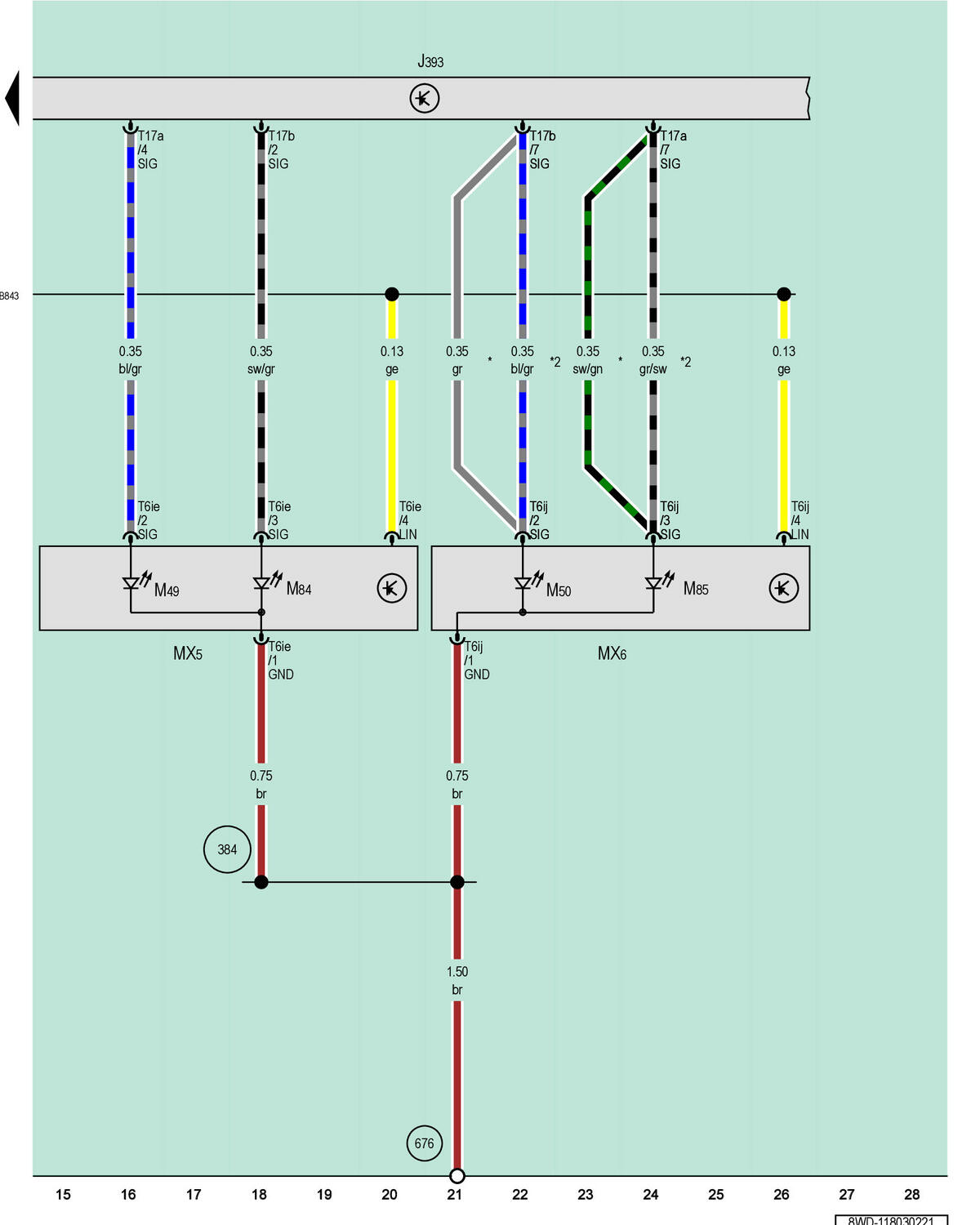

Comfort System Central Control Module, Left Tail Lamp 2, Right Tail Lamp 2
J393
Comfort System Central Control Module
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
M49
Left Tail Lamp Bulb 2
M50
Right Tail Lamp Bulb 2
M84
Left Brake Lamp/Turn Signal Bulb 2
M85
Right Brake Lamp/Turn Signal Bulb 2
T6ie
6-Pin Connector, Blue
T6ij
6-Pin Connector, Blue
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
384
Ground Connection 19 (in Main Wiring Harness)
676
Ground Connection 2 in Luggage Compartment, Left
B843
LIN Bus Connection 9 (in Main Wiring Harness)
*
Avant
*2
Sedan
