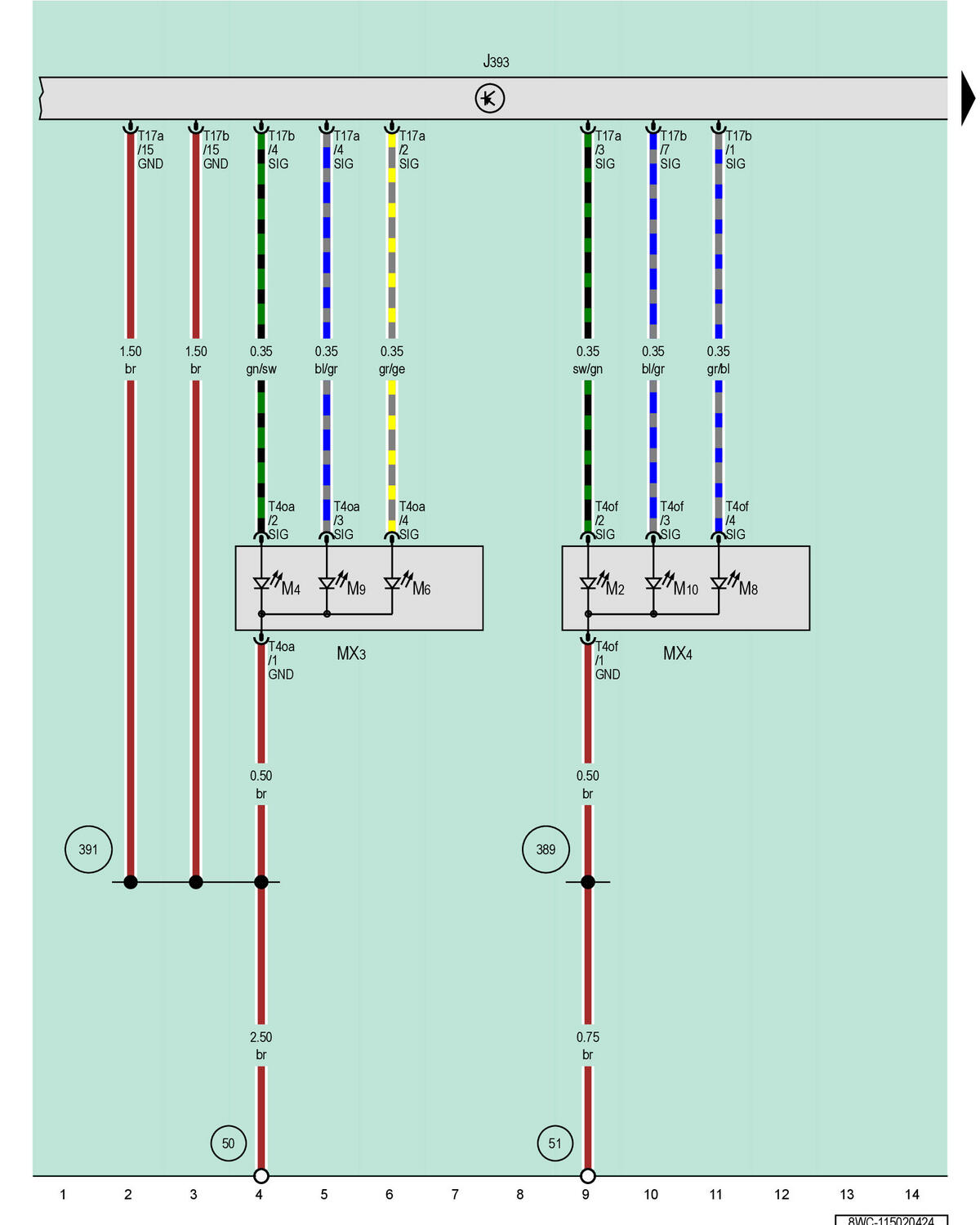

Comfort System Central Control Module, Left Tail Lamp, Right Tail Lamp
J393
Comfort System Central Control Module
M2
Right Tail Lamp Bulb
MX3
Left Tail Lamp
MX4
Right Tail Lamp
M4
Left Tail Lamp Bulb
M6
Left Rear Turn Signal Bulb
M8
Right Rear Turn Signal Bulb
M9
Left Brake Lamp Bulb
M10
Right Brake Lamp Bulb
T4oa
4-Pin Connector, Gray
T4of
4-Pin Connector, Gray
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
50
Ground Connection in Luggage Compartment, Left
51
Ground Connection in Luggage Compartment, Right
389
Ground Connection 24 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
