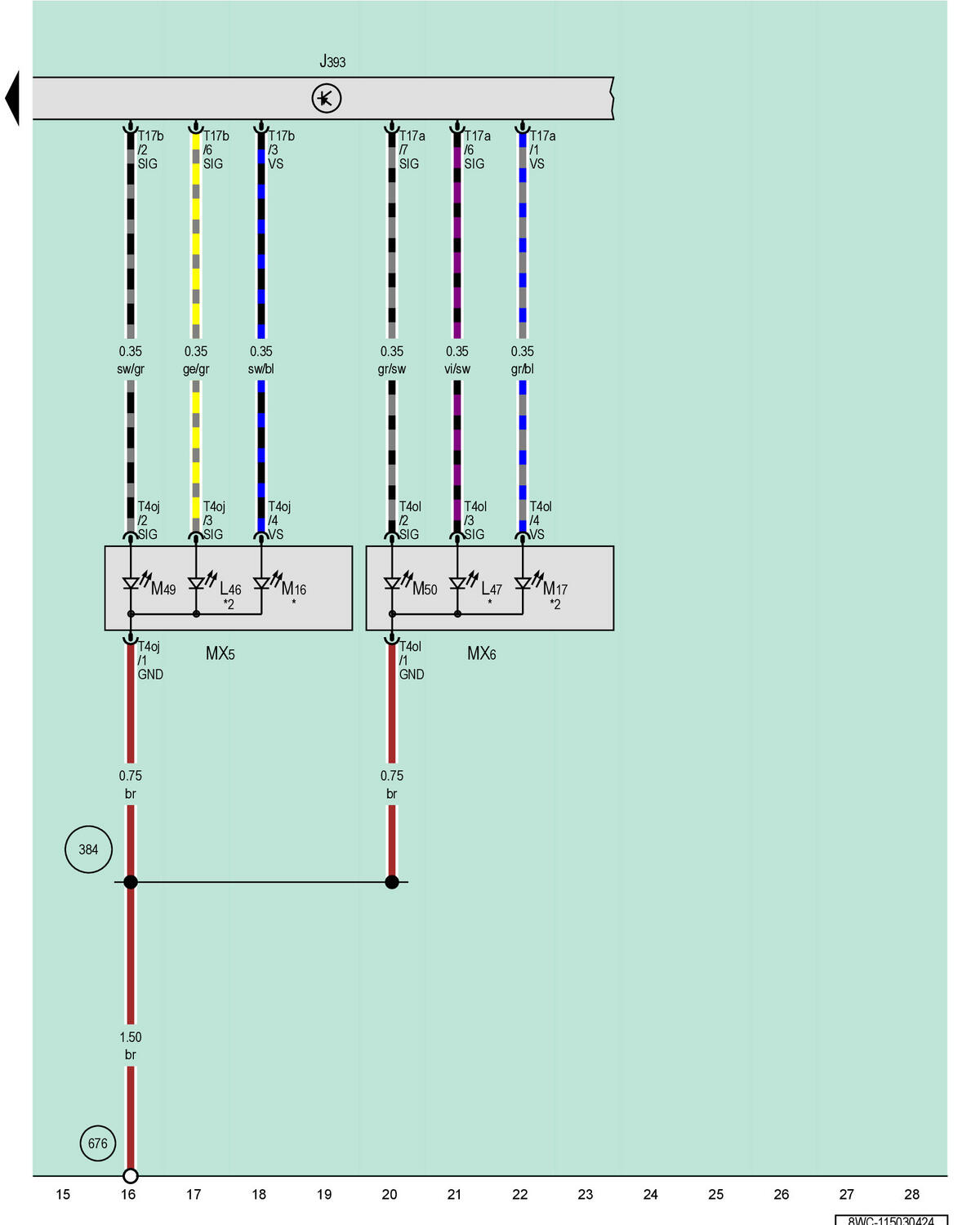

Comfort System Central Control Module, Left Tail Lamp 2, Right Tail Lamp 2

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

L46

Left Rear Fog Lamp Bulb

L47

Right Rear Fog Lamp Bulb

MX5

Left Tail Lamp 2

MX6

Right Tail Lamp 2

M16

Left Back-Up Lamp Bulb

M17

Right Back-Up Lamp Bulb

M49

Left Tail Lamp Bulb 2

M50

Right Tail Lamp Bulb 2

T4oj

4-Pin Connector, Black

T4ol

4-Pin Connector, Black

T17a

17-Pin Connector, Brown

T17b

17-Pin Connector, Black

384

Ground Connection 19 (in Main Wiring Harness)

676

Ground Connection 2 in Luggage Compartment, Left

*

For LHD Vehicles

*2

For RHD Vehicles
