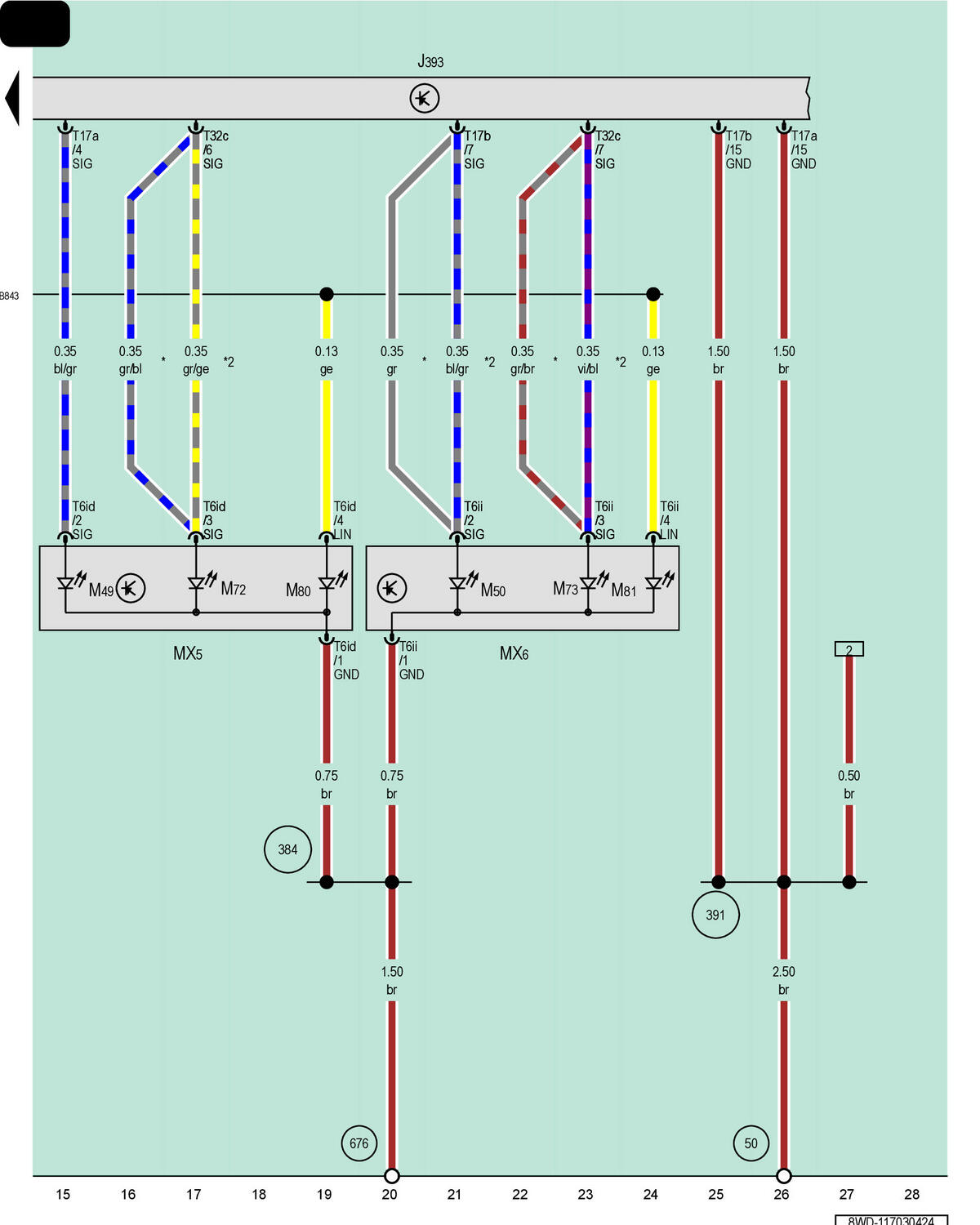

Comfort System Central Control Module, Left Tail Lamp 2, Right Tail Lamp 2
J393
Comfort System Central Control Module
MX5
Left Tail Lamp 2
MX6
Right Tail Lamp 2
M49
Left Tail Lamp Bulb 2
M50
Right Tail Lamp Bulb 2
M72
Left Brake Lamp/Turn Signal/Tail Lamp Bulb 2
M73
Right Brake Lamp/Turn Signal/Tail Lamp Bulb 2
M80
Left Rear Turn Signal Bulb 2
M81
Right Rear Turn Signal Bulb 2
T6id
6-Pin Connector, Red
T6ii
6-Pin Connector, Red
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
T32c
32-Pin Connector, Black
50
Ground Connection in Luggage Compartment, Left
384
Ground Connection 19 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
676
Ground Connection 2 in Luggage Compartment, Left
B843
LIN Bus Connection 9 (in Main Wiring Harness)
*
Avant
*2
Sedan
