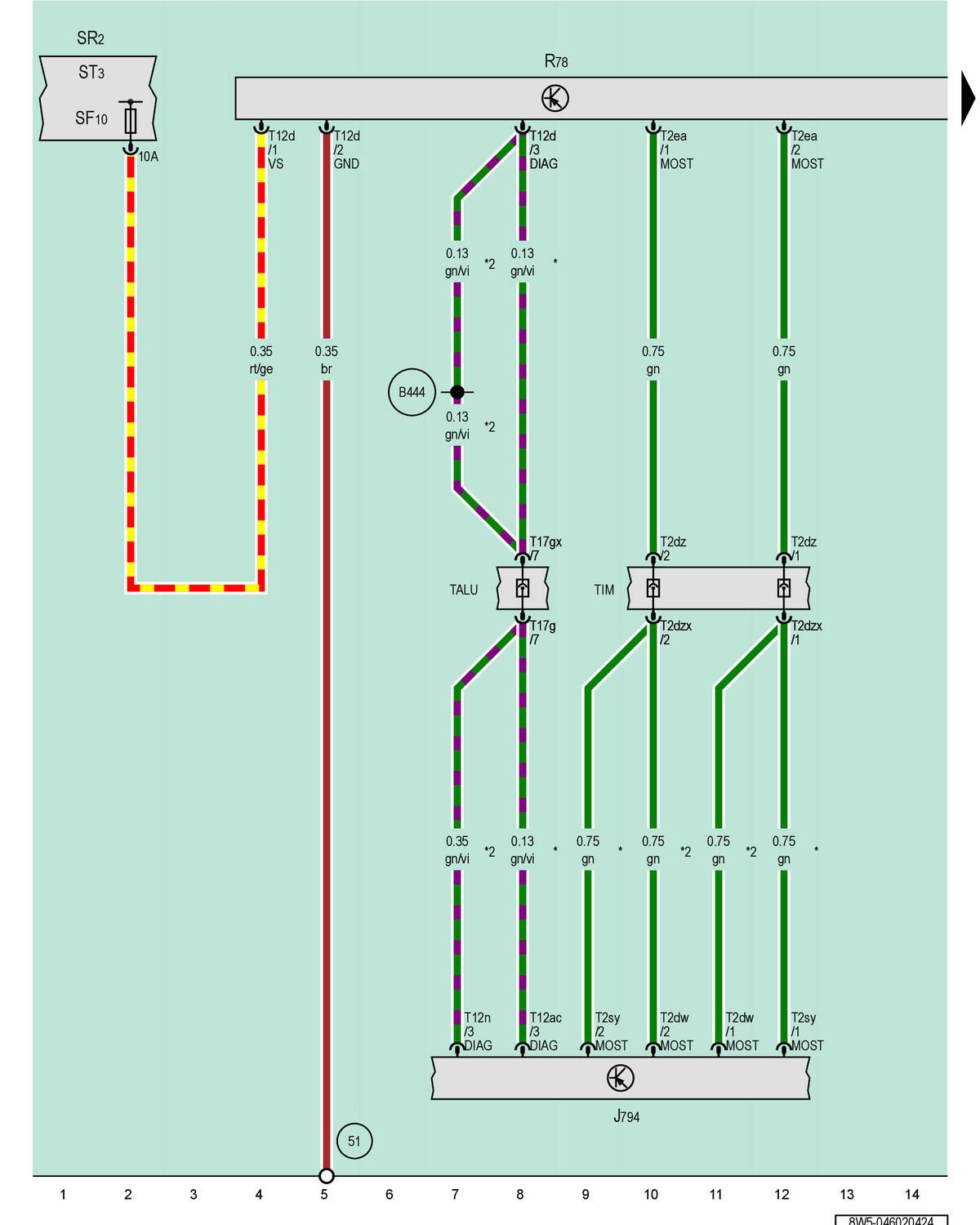

Information Electronics Control Module 1, TV Tuner, Relay And Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R78

TV Tuner

SR2

Relay and Fuse Panel 2

ST3

Fuse Panel 3, Brown

SF10

Fuse 10 (On Fuse Panel F)

T2dw

2-Pin Connector, Black

T2dz

2-Pin Connector, Black

T2dzx

2-Pin Connector, Black

T2ea

2-Pin Connector, Black

T2sy

2-Pin Connector, Black

T12ac

12-Pin Connector, Gray

T12d

12-Pin Connector, Black

T12n

12-Pin Connector, Gray

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

TIM

Coupling Point in Interior, Center

51

Ground Connection in Luggage Compartment, Right

B444

OBD Connection 1 (in Main Wiring Harness)

*

From July 2019

*2

Through June 2019
