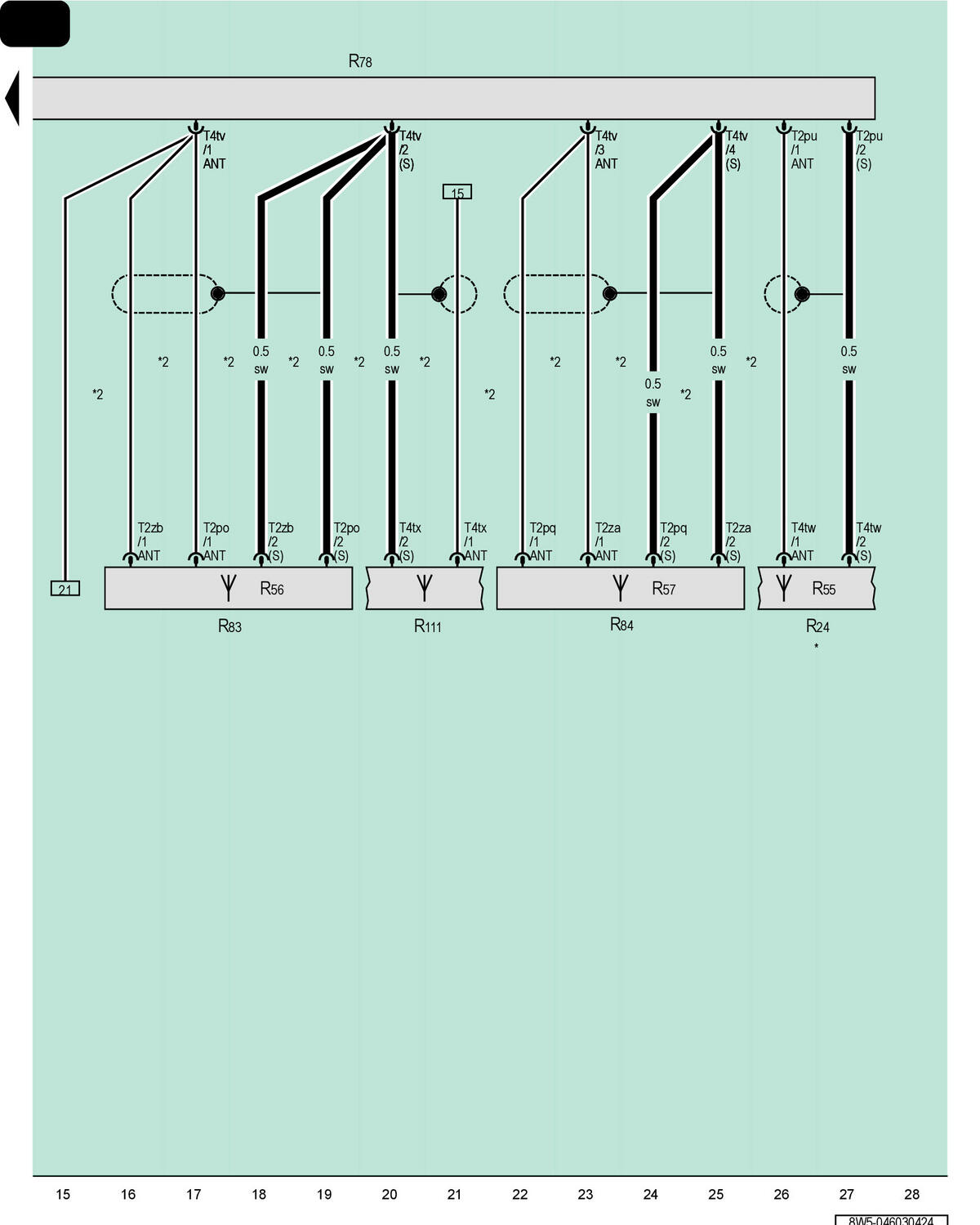

Antenna Amplifier, TV Tuner, TV Antenna Amplifier 2, TV Antenna Amplifier 3, Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

R24

Antenna Amplifier

R55

TV Antenna 1

R56

TV Antenna 2

R57

TV Antenna 3

R78

TV Tuner

R83

TV Antenna Amplifier 2

R84

TV Antenna Amplifier 3

R111

Antenna Amplifier 2

T2po

2-Pin Connector, Brown

T2pq

2-Pin Connector, Brown

T2pu

2-Pin Connector, Brown

T2za

2-Pin Connector, Green

T2zb

2-Pin Connector, Green

T4tv

4-Pin Connector, Green

T4tw

4-Pin Connector, Pink, White

T4tx

4-Pin Connector, Blue

*

Different Connector Color Possible

*2

Depending on Equipment
