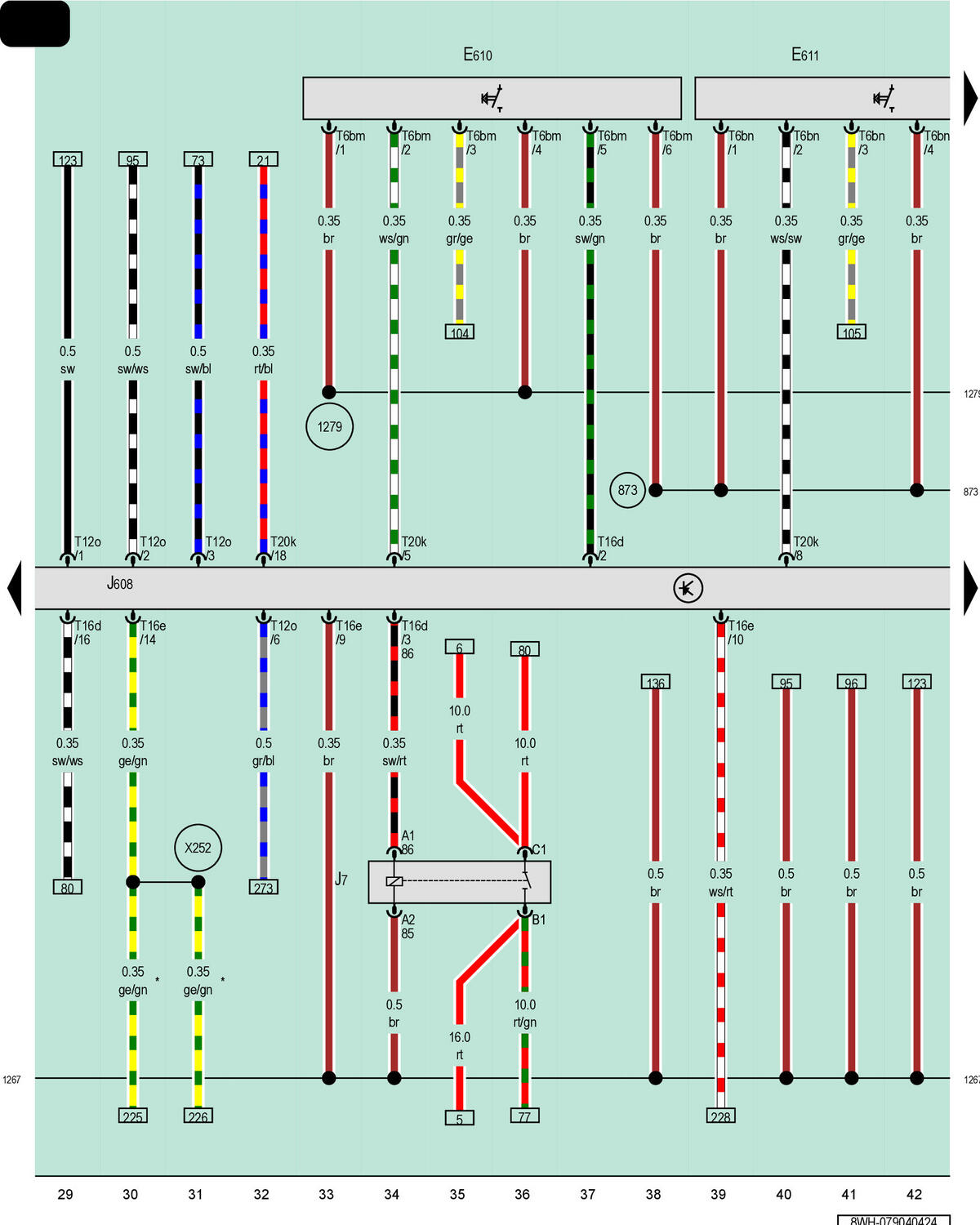

Video Self-Monitoring Button 1, Video Self-Monitoring Button 2, Battery Cut-Off Relay, Special Purpose Vehicle Control Module

Courtesy of AUDI OF AMERICA, LLC

E610

Video Self-Monitoring Button 1

E611

Video Self-Monitoring Button 2

Battery Cut-Off Relay

J608

Special Purpose Vehicle Control Module

T6bm

6-Pin Connector, Black

T6bn

6-Pin Connector, Black

T12o

12-Pin Connector, Black

T16d

16-Pin Connector, Black

T16e

16-Pin Connector, Black

T20k

20-Pin Connector, Black

873

Ground Connection 10 (in Special Purpose Vehicle Wiring Harness)

1267

Ground Connection 4 (in Special Purpose Vehicle Wiring Harness)

1279

Ground Connection 16 (in Special Purpose Vehicle Wiring Harness)

X252

Positive Connection 8 (in Special Purpose Vehicle Wiring Harness)

Depending on Equipment
